Westinghouse WSFDAN1201SV Bedienungsanleitung

12” Vintage Metal Table Fan –

Chrome

Ventilateur de table style ancien de

12 po en métal — Chrome

Instruction Manual / Manuel d’instructions

WSFDAN1201SV

CONTENT

SAFETY INFORMATION

IMPORTANT SAFEGUARDS....................................................................... 4

HOW TO USE

MOTOR UNIT AND BASE ASSEMBLY.................................................... 9

FAN HEAD ASSEMBLY ................................................................................ 9

OPERATING INSTRUCTIONS .................................................................... 10

CLEANING AND MAINTENANCE...................................................... 11

DISPOSAL............................................................................................... 12

INFORMATION AND SERVICE........................................................... 12

SAFETY INFORMATION

Read these safety instructions before using the fan for the ﬁrst

time and store them in a safe place. They contain important

information on basic safety precautions that must be followed.

1. Use this appliance only as described in this manual. Using the

appliance for other purposes may cause a ﬁre or electric shock.

2. Only connect the appliance to a mains socket that matches the

voltage speciﬁed on the rating plate of the appliance (120V /

60Hz).

3. This product is intended for household use only and not for

commercial, industrial or outdoor use.

4. To prevent the risk of an electrical shock, do not place the

appliance near a window where it may be exposed to rain.

Never immerse the appliance, power cord or plug in water or

spray the appliance with liquids.

5. This appliance can be used by children aged 8 and above and

by people with reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they have been given

supervision or instructions concerning the use of the appliance

in a safe way and understand the hazards involved. Children

must not play with the appliance. Cleaning and maintenance

must not be done by children unless they are older than 8 years

of age and supervised by an adult.

6. Close supervision must be provided when the appliance is used

by or near children.

7. WARNING! Only use this appliance after it has been

properly assembled.

IMPORTANT SAFEGUARDS

DANGER

DANGER – Immediate hazards

which WILL result in severe

personal injury or death

WARNING

WARNING – Hazards or unsafe

practices which COULD result in

severe personal injury or death

WARNING

When using electrical appliances, basic safety precautions

should always be followed, including the following

CAUTION

CAUTION – Hazards or unsafe

practices which COULD result in

minor personal injury

SAFETY INFORMATION

8. WARNING! The metal fan blades have sharp edges. Handle

with care.

9. DANGER! Avoid contact with moving parts. Never insert

ﬁngers, pencils or other objects into the rotating fan blades

or any openings on the appliance, as this may cause an injury,

electric shock, ﬁre, or damage to the appliance. Keep hands,

hair, clothing, or jewelry away from the protective guards

during operation to prevent injury.

10. Use the appliance upright on a dry, level and hard surface.

11. DANGER! KEEP OUT OF REACH CHILDREN AND PETS.

Do not let the power cord hang over the edge of a table or

counter. Ensure that the power cord is not in a position where it

may be pulled by children or pets, or tripped over.

12. CAUTION! To prevent the risk of ﬁre, always keep the air

inlets and outlets of the appliance clear of obstructions. Do

not cover the appliance or use it in close proximity to curtains,

tablecloths, etc.

13. WARNING! Always unplug the appliance from the wall

socket before:

- assembling or disassembling any parts,

- adjusting the vertical tilt,

- moving the appliance from one location to another,

- cleaning and storing.

14. To disconnect the appliance from the mains, grip the plug and

pull it from the wall outlet. Do not pull on the cord.

15. Do not use the appliance in the presence of explosive and/or

ﬂammable fumes.

16. Do not place the appliance or any parts near open ﬂames, or

next to cooking or other heating appliances.

17. This appliance has a 3-PIN UL plug (without

fuse). This is Class I product. To reduce the risk of electric

shock, plug the power cord into a grounded (earthed) electrical

outlet that is easily accessible.

This is a Class I product.

SAFETY INFORMATION

18. DANGER OF ELECTROCUTION! Never use the appliance

in the bathroom, near any source of water or heavy moisture

(e.g.near a swimming pool, bathtub, basin, or in a damp

basement, etc.). Do not place any objects ﬁlled with liquids,

such as vases, near or on the appliance.

19. Do not use the appliance in high ambient temperatures

(exceeding 40 ⁰C) or humid conditions.

20. Do not use the appliance if any part is damaged or missing.

21. Only use the appliance with the original accessories and parts

supplied. The use of accessories or ﬁttings other than those

supplied with this appliance may result in an injury, ﬁre or

damages and will void the warranty.

22. If the power cord is damaged, it must be replaced by the

manufacturer’s authorized service centre.

23. DANGER OF ELECTROCUTION! This appliance has no user-

serviceable parts. Never attempt to dismantle or repair the

appliance yourself. The warranty will not cover any claim for

damage due to mishandling.

24. WARNING! Never use a damaged appliance. Do not use the

appliance if it malfunctions, or has been dropped or damaged

in any manner. In case of malfunction or damage, unplug the

appliance and contact an authorized service centre to arrange

a repair.

WARNING!

• Before assembling the appliance, check that it is unplugged

from the wall socket.

• Choking Hazard – Keep small parts and safety screws away

from children and pets.

RETAIN THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

HOW TO USE

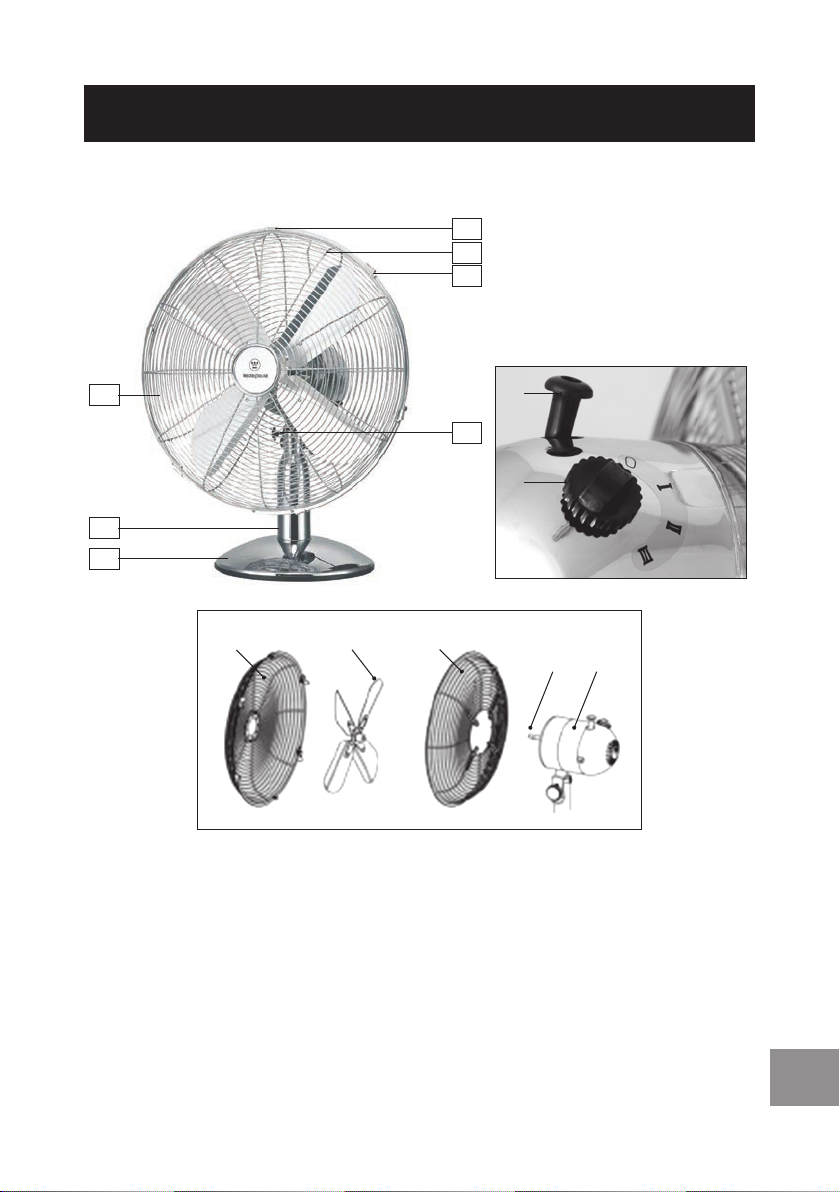

DESCRIPTION OF PARTS

10 11 12 1413

1. Fan head

2. Neck

3. Base

4. Top hook

5. Carry handle

6. Locking clips

7. Tilt adjustment knob

8. Oscillation knob

9. Control knob (O-O/I/II/III)

10. Front guard

11. Fan blades

12. Rear guard

13. Motor shaft

14. Motor unit

HOW TO USE

Fig. 3

Fig. 1 Fig. 2

Fig. 4

Fig. 6

Fig. 5

Fig. 7

HOW TO USE

MOTOR UNIT AND BASE ASSEMBLY

Required tools: Cross-head (Phillips) screwdriver.

1. Remove the tilt adjustment knob (7), long screw, small screw

and small knob from the bottom of the motor unit (14).

2. Align the 4 screw holes on the bottom of the motor unit (14)

with the 4 screw holes on the neck (2) of the base.

3. Insert the long screw through the bottom screw holes and

tighten with the tilt adjustment knob (7) (Fig. 1, 2).

4. Tighten the small screw in the screw hole above the tilt-

adjustment knob (7) by turning clockwise with the screwdriver.

Then tighten the small knob in the remaining screw hole.

(Fig.3).

FAN HEAD ASSEMBLY

1. Insert the back of the rear guard (12) into the motor shaft (13).

2. Align the 4 screw holes on the rear guard (12) with the 4screw

holes on the motor unit (14) (Fig. 4), ensuring that the carry

handle (5) is at the top. Tighten the 4 screws (provided)

clockwise with the screwdriver (Fig. 5).

3. Loosen the screw on the back of the fan blades (11) and align it

with the ﬂat indentation on the motor shaft (13) (Fig. 6). Insert

the fan blades into the motor shaft until the screw is right on

top of the ﬂat indentation (Fig. 7). Tighten the screw clockwise

with the screwdriver.

4. Carefully rotate the fan blades (12) a few turns with your

hand to make sure that they are levelled and spin smoothly.

Reassemble if necessary.

5. Open the locking clips (6) around the rim of the front

guard(10) and hook the top onto the rear guard (12).

6. Align the screw holes on the bottom of both guards, and use

the screwdriver to tighten the screw clockwise.

7. Close the locking clips (6) to lock the guards.

HOW TO USE

WARNING!

• The metal fan blades have sharp edges. Handle with care.

• Before using the appliance, always ensure that all parts of the

appliance are properly assembled to avoid a hazard.

OPERATING INSTRUCTIONS

WARNING! Never adjust the tilt of the fan while the appliance is

on.

1. Place the fan on a dry, level and stable surface.

2. To adjust the vertical tilt, hold the fan head (1) with one hand

and, with the other hand, slowly turn the tilt adjustment knob

(7) anti-clockwise to loosen it. Push the fan head (1) up or down

to adjust the tilt to your desired angle (70⁰ tilt), and tighten the

tilt adjustment knob (7).

3. Make sure that the Control knob (9) is in the “O” (O) position,

and plug the appliance into a suitable wall socket.

4. Turn the Control knob (9) to the desired speed setting.

I = Low speed

II = Medium speed

III = High speed

5. To start the automatic left-right oscillation, press the oscillation

knob (8). To stop the automatic left-right oscillation, pull the

oscillation knob.

6. Once you have ﬁnished using the fan, turn the Control knob

(9) to the “O” (O) position, and unplug the fan from the wall

socket.

IMPORTANT: Always unplug the appliance from the wall socket

after use to disconnect it completely from the power supply.
