# QL057
UTILITY SINK WITH FAUCET, SPRAYER AND STORAGE CABINET
ÉVIER UTILITAIRE AVEC ROBINET, DOUCHETTE LATÉRALE
ET ARMOIRE DE RANGEMENT
ALL-IN-ONE
TOUT-EN-UN
OWNER’S MANUAL
MANUEL DE L’UTILISATEUR
QL057 2
ENGLISH
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................3
One Year Limited Warranty...........................3
Warranty Claim Procedure...........................3
Pre-Installation.....................................4
Tools/Materials Required ............................4
Package Contents .................................5
Installation ........................................6
Leveling Leg Installation ............................6
Door Handle Installation.............................6
Faucet and Sprayer Installation.......................7
Strainer Installation ................................7
Mounting the Utility Sink ............................8
Placement .......................................8
Supply Line Assembly ..............................8
Maintenance .......................................8
Cartridge Replacement .............................8
Care and Cleaning ..................................9
Utility Sink .......................................9
Cabinet..........................................9
Service Parts......................................10
MANUEL DE L’UTILISATEUR ..........................11
Safety Information
READ AND SAVE THESE INSTRUCTIONS
1. Inspect your unit before proceeding. Once you unpack your unit,
check for chips, scratches, cracks, dents or scuff marks. If any
damage is noticed, do not install.
2. Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the manufacturer.
3. Installation work and plumbing must be done by qualied
person(s) in accordance with all applicable codes and standards.
4. Protect the entire surface during installation.
5. All holes drilled into the unit must be done from the nished
surface side with extreme care and caulked very carefully to
form a watertight barrier.
DANGER: Always wear safety goggles and gloves in order
to avoid personal injury.
3 CONGLOMKB.COM
Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance.
ENGLISH
Warranty
ONE YEAR LIMITED WARRANTY
A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.
Conglom Kitchen & Bath warrants this product to be free from defects in materials or workmanship for one (1) year from the date of purchase.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to Conglom Kitchen & Bath for all
warranty claims.
This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than genuine Conglom Kitchen &
Bath replacement parts, (Replacement parts may be obtained by e-mail at cs@conglomkb.com or by calling 1-877-333-0098 between
8:30 am - 5:00 pm EST) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor,
service provider or member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh
or abrasive cleaners and/or materials.
Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.
Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:
- Improper installation not in accordance with manufacturer’s instructions.
- Dents and/or scratches incurred during shipping, handling, or installation.
- Change in colour or nish due to chemical usage.
- Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.
- Alterations made to the unit by the purchaser or installer.
- Damage caused by accidental impact, re, ood, freezing, and normal wear.
- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.
- This warranty does not extend to commercial and institutional installation or use.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs or replacement parts are needed, please contact our customer service team at [email protected] or
1-877-333-0098 (8:30 am - 5 pm, EST, Monday - Friday).
Before you make your call, please ensure that you have:
- Model number or description.
- Proof of sale.
- Details regarding the defect and/or part number.
- Name(s) and address(es) of the owner and/or installer.
QL057 4
ENGLISH
Pre-Installation
TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)
Adjustable
wrench
Needle nose
pliers
Phillips
screwdriver
Utility knife Pipe wrench Sealant
Carpenter’s level Hacksaw Safety gloves
Safety goggles Allen Key
PARTS REQUIRED (NOT SUPPLIED)
P-Trap Tail Pipe Supply Lines
5 CONGLOMKB.COM
Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance.
ENGLISH
Pre-Installation (continued)

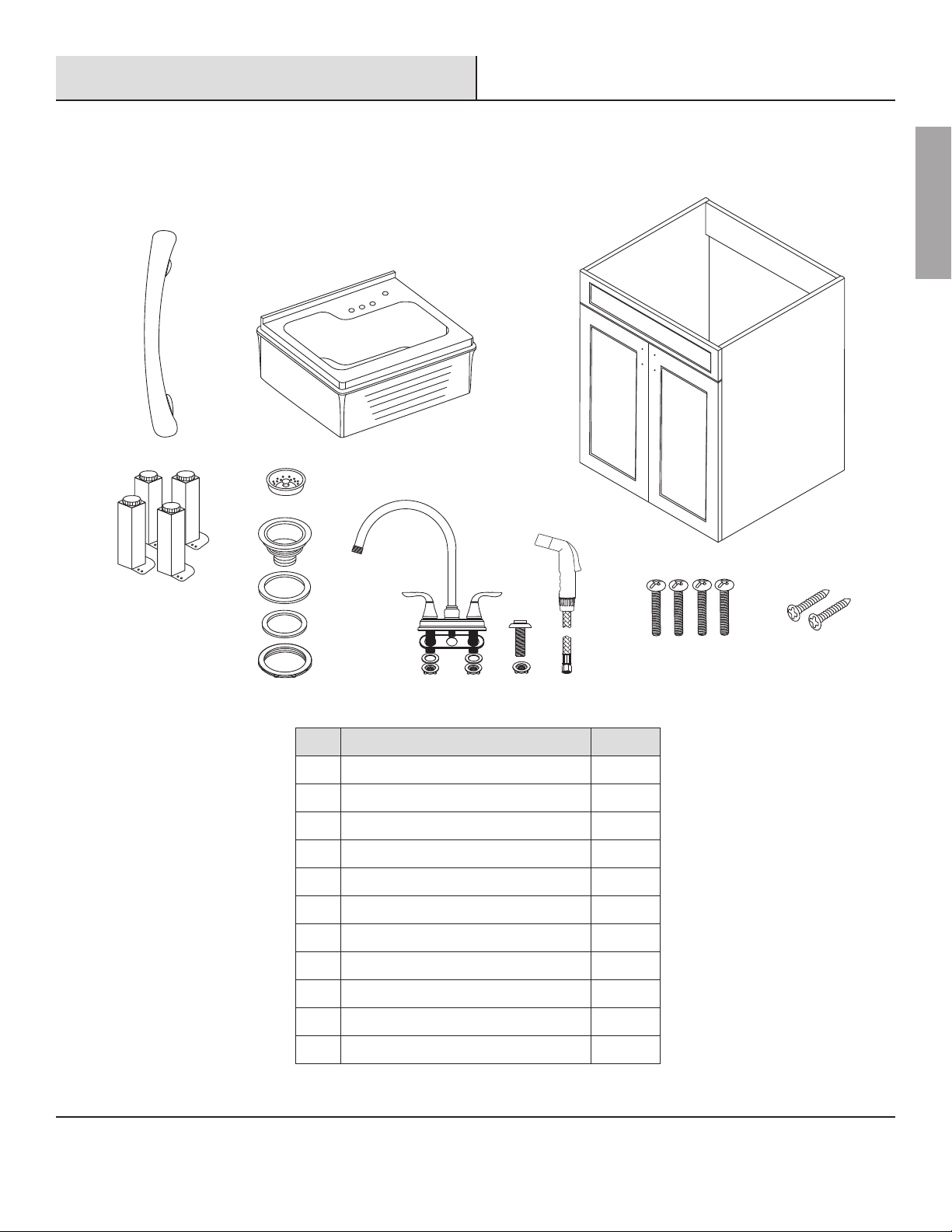

PACKAGE CONTENTS
AA
A
B
C
E
FG
J
H
BB
D
Part Description Quantity
A Door Handles 2
B Utility Sink 1
C Cabinet 1
D Leveling Legs 4
E Strainer Basket 1
FStrainer Assembly 1
GFaucet Assembly 1
H Sprayer Support 1
J Sprayer with Hose 1
AA Door Handle Screws 4
BB Leveling Leg Screws 16
QL057 6
ENGLISH
Installation

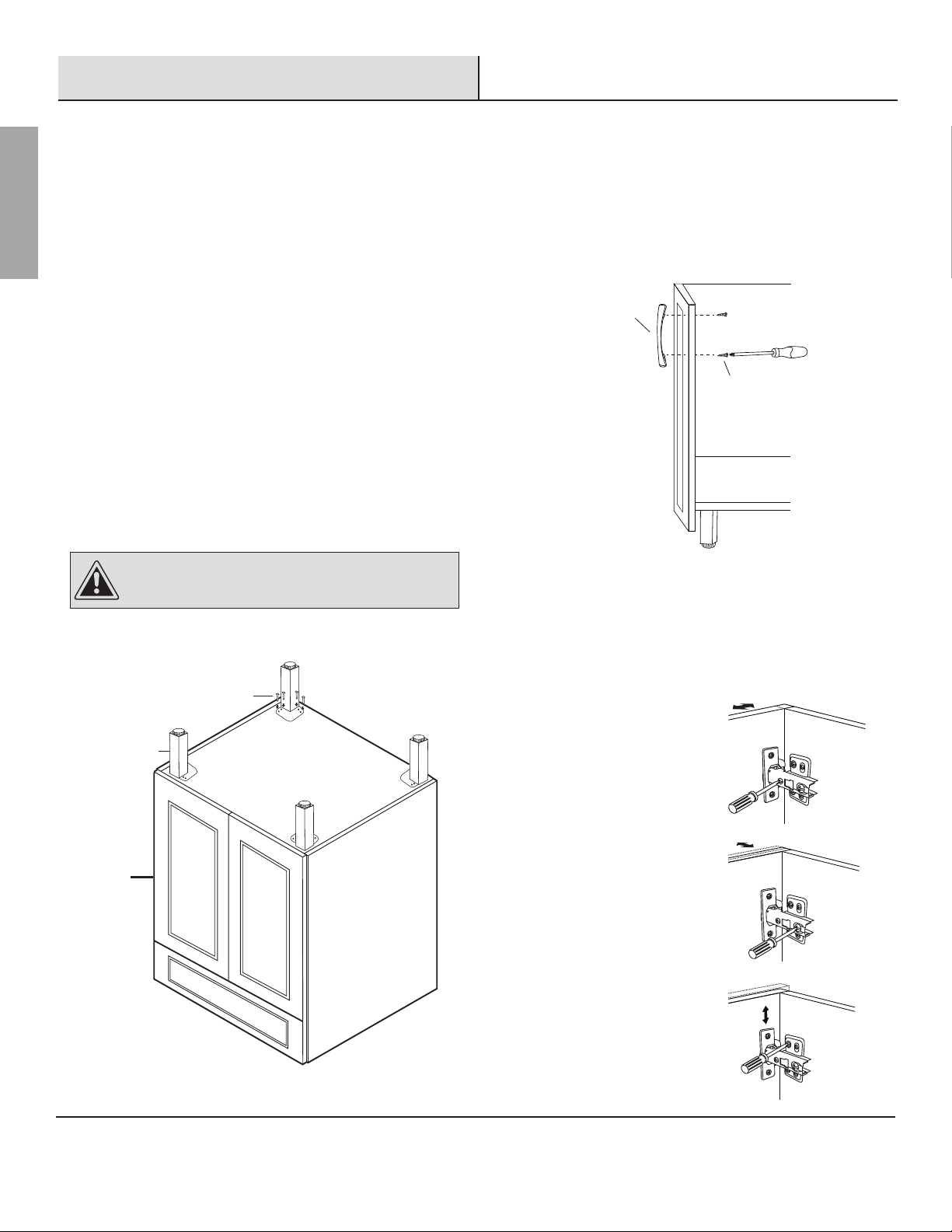

INSTALLING THE LEVELING LEGS DOOR HANDLE INSTALLATION
1. Insert the door hand screws (AA) into the pre-drilled holes
on each door.
2. Attach the door handles (A) and hand tighten the door
handle screws (AA).
3. Repeat on other door.
A
AA
DOOR POSITION ADJUSTMENT
If the doors need to be repositioned, the hinges can be
adjusted to ensure a precise t with the cabinet.
4. The lateral adjustment
screw adjusts the door
left or right. 1
5. The horizontal
adjustment screw
adjusts the door forward
or backward. 2
6. The vertical adjustment
screw adjusts the door
up or down. 3
Carefully check the utility sink for damage and/or missing parts prior
to installation. If there is any damage or if you are missing parts, do
not proceed with the installation. Report damage and/or missing parts
immediately to the manufacturer. Do not dispose of packaging before
you are satised with your new utility sink.
- Remove the utility sink (B) and place it on a soft, protective
surface.
- Turn the cabinet (C) upside down onto a protective surface.
- Gently put each leveling leg (D) into its proper location. Using the
four screws provided (BB) per leveling leg, attach the leveling
legs (D) to the bottom of the cabinet (C).
- Gently right the cabinet (C).
- Using a carpenter’s level, turn the base of each leveling leg (D)
until the cabinet (C) is level.
CAUTION: Do not place side load onto feet when righting
the cabinet.
C
BB
D
7 CONGLOMKB.COM
Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance.
ENGLISH
Installation (continued)
FAUCET AND SPRAYER INSTALLATION
Sprayer and hose
Faucet
Faucet shank
Faucet shank nut
Rubber gasket
Sprayer housing
support
Nut
Before installing, carefully unpack the faucet and ensure no parts
are missing.
1. Insert the spray housing support through the pre-drilled
hole on the sink corner. Screw the nut onto the threads and
hand tighten.
2. Run the spray hose down through the spray housing and up
through the centre faucet mounting hole. Connect the spray
hose to the faucet and tighten with a wrench.
3. Install the new faucet on sink with hot “H” to the left and
cold “C” to the right. From under the sink, thread mounting
nuts and rubber gaskets onto the faucet shanks and tighten
the mounting nuts.
STRAINER INSTALLATION
1. Apply a ring of sealant to the underside of the strainer
ange.
2. Insert the strainer body into the sink.
3. Assemble the rubber gasket, friction washer and locknut
onto the strainer body from under the sink.
4. Hand tighten the locknut. Do not over tighten locknut as it
may split or deform the body of the strainer.
Basket
Strainer body
Rubber gasket
Friction washer
Locknut
Sealant
QL057 8
ENGLISH
Installation (continued)

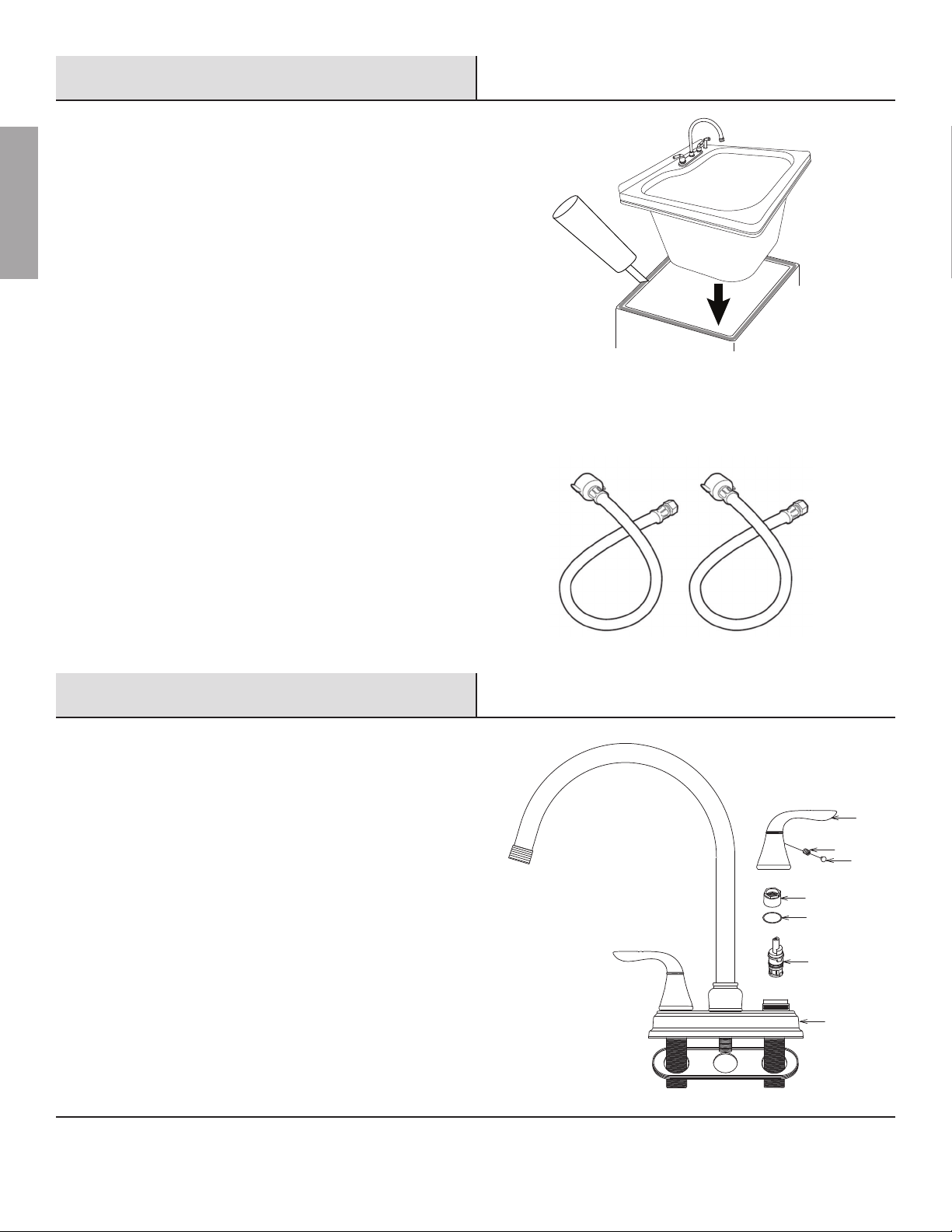

MOUNTING THE UTILITY SINK
SEALANT
1. Carefully place a bead of sealant all around the top of the
cabinet.
2. Ease the sink onto the cabinet, and ensure it is placed
evenly and centered on the cabinet. Wipe off any excess
sealant. Use masking tape to hold the unit in place until the
sealant dries.
PLACEMENT
Move the assembled unit to its nal location. Final hook up of the supply lines and drain system can now be completed.
SUPPLY LINES (NOT INCLUDED)
The supply lines that attach the faucet to the household
water system, are not supplied with this unit. They need to be
purchased separately.
Follow the manufacturers instructions for proper installation of
the supply lines.
Maintenance
CARTRIDGE REPLACEMENT
2
1
7
6
3
4
5
To replace the cartridge, please follow these steps:
1. Turn off the water supply to the faucet.
2. Remove water indicator (7) and screw (5) with an Allen key.
3. Remove the handle (6).
4. Screw off the cartridge cover (4).
5. Remove the gasket (3).
6. Pull out the cartridge (2) by hand.
7. Click in the new cartridge.
8. Place the gasket (3) back in its original position.
9. Screw on the cartridge cover (4). Do not over tighten.
10. Place the handle (6) over top and secure the screw (5) with
an Allen key, replace the water indicator (7).
9 CONGLOMKB.COM
Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance.
ENGLISH
Care and Cleaning
UTILITY SINK
This utility sink is manufactured with premium ABS. With the proper care and maintenance it will provide you with many years of enjoyment.
Do Do not
- Use common household cleaners (non-
abrasive) or a mild liquid dish washing
detergent. Rinse well and dry with a clean
cloth.
- Remove dust and dry dirt with a soft, damp
cloth.
- Clean grease, oil, paint and ink stains with
isopropyl (rubbing alcohol). Immediately rinse
with water after removal of stain.
- Do not allow your ABS surface to come into
contact with products such as acetone (nail
polish remover), nail polish, dry cleaning
solution, lacquer thinners, gasoline, pine oil,
etc.
- Use caution when using sharp instruments
that may fall and scratch the surface.
CABINET
To maintain the surface of your cabinet, follow these tips.
Do Do not
- Remove dust and dry dirt with a soft, damp
cloth.
- Clean grease, oil, paint and ink stains with
isopropyl (rubbing alcohol). Immediately rinse
with water after stain removal.
- Do not allow your cabinet surface to come
into contact with products such as acetone
(nail polish remover), nail polish, dry cleaning
solution, lacquer thinners, gasoline, pine oil,
etc.
- Use caution when using sharp instruments
that may fall and scratch the surface.
QL057 10
ENGLISH
Service Parts
If you are missing parts or if you require replacement parts, please contact our customer service team at cs@conglomkb.com or
1-877-333-0098, 8:30 am – 5 pm, EST, Monday–Friday. Identify the required part(s) and have the part number(s) ready.
HJ
AA BB
ABCD
E
G
F
Part Description Code Quantity
A Door Handles QHL132 2
B Strainer Basket QHS101 1
CStrainer Assembly QHS150 1
D Cabinet Feet QHL139 4
E Sprayer Support QHL110 1
F Sprayer QHL112 1
G Flexible Hose QHL113 1
H Cartridge QHS137 2
J Cabinet Hinges QHL111 4
AA Door Handle Screws QHL104 4
BB Leveling Leg Screws QHL106 16
Inhaltsverzeichnis
Sprachen:
Andere Westinghouse Küchen- und Badezimmerausstattung Handbücher
Beliebte Küchen- und Badezimmerausstattung Handbücher anderer Marken
Alpha Bidet
Alpha Bidet Alpha One Bedienungsanleitung
InSinkErator
InSinkErator H/HC3300 Installationshandbuch
Clou
Clou Xo type 1 Bedienungsanleitung
Kohler
Kohler Contra 26448T-4 Bedienungsanleitung
Grohe
Grohe Bridgeford 20 158 Bedienungsanleitung
Hans Grohe
Hans Grohe Croma Select S 180 Showerpipe EcoSmart... Bedienungsanleitung
