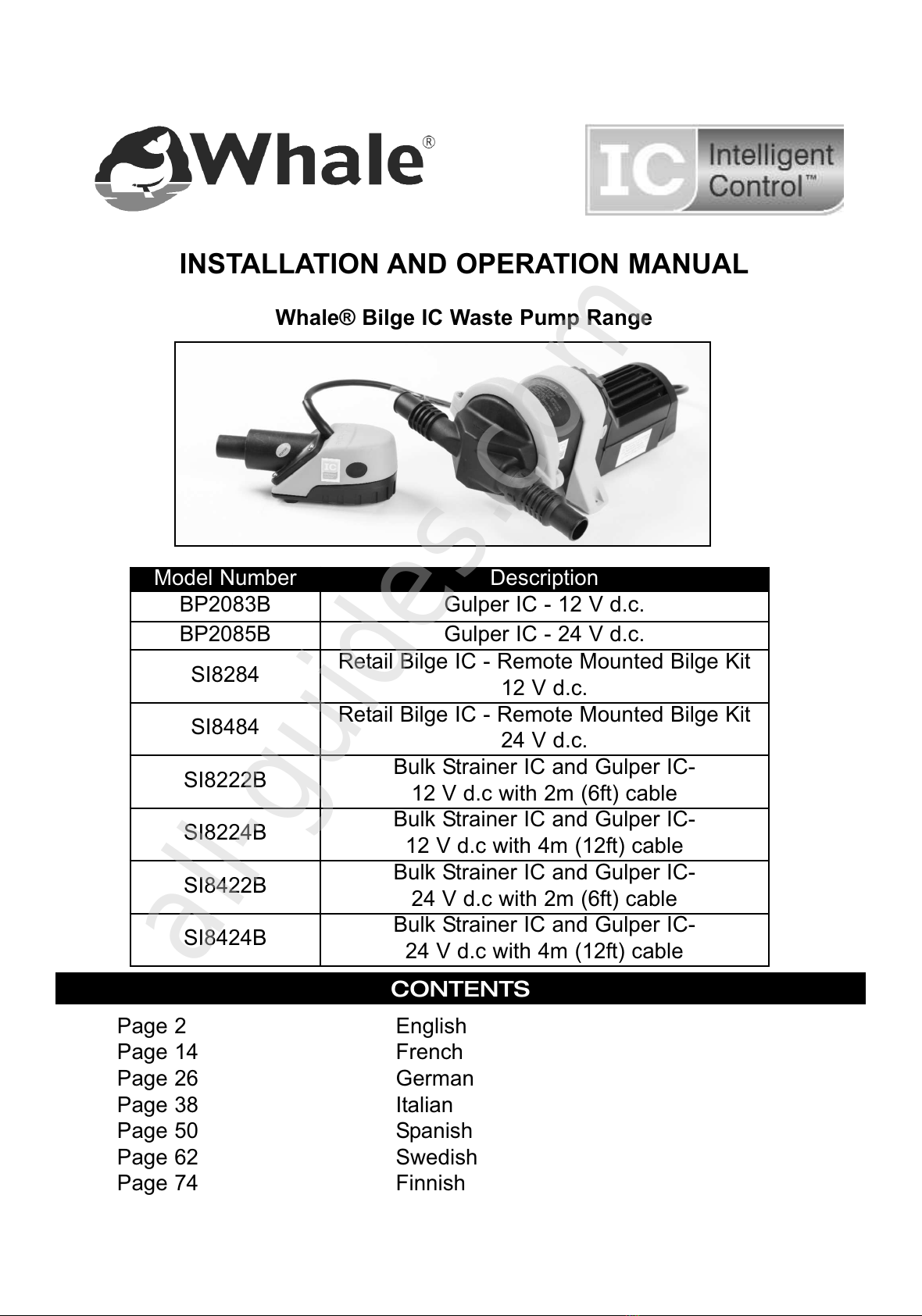

INSTALLATION AND OPERATION MANUAL

Whale® Bilge IC Waste Pump Range

Page 2 English

Page 14 rench

Page 26 German

Page 38 Italian

Page 50 Spanish

Page 62 Swedish

Page 74 innish

Model Number Description

BP2083B Gulper IC - 12 V d.c.

BP2085B Gulper IC - 24 V d.c.

SI8284 Retail Bilge IC - Remote Mounted Bilge Kit

12 V d.c.

SI8484 Retail Bilge IC - Remote Mounted Bilge Kit

24 V d.c.

SI8222B Bulk Strainer IC and Gulper IC-

12 V d.c with 2m (6ft) cable

SI8224B Bulk Strainer IC and Gulper IC-

12 V d.c with 4m (12ft) cable

SI8422B Bulk Strainer IC and Gulper IC-

24 V d.c with 2m (6ft) cable

SI8424B Bulk Strainer IC and Gulper IC-

24 V d.c with 4m (12ft) cable

CO TE TS

All manuals and user guides at all-guides.com

all-guides.com

INSTALLATION AND OPERATION MANUAL

Whale® Bilge IC Waste Pump Range

Thank you for purchasing this Whale® product.

or over 40 years, Whale® has led the way in the design and manufacture of

freshwater and waste systems including: pumps, plumbing, faucets and showers for

low voltage applications. The company and its products have built a reputation for

quality, reliability and innovation backed up by excellent customer service.

or information on our full range of products visit www.whalepumps.com

This Gulper® IC is a high capacity waste pump with intelligent control electronics

inside designed to be installed in recreational marine vessels as a remote mounted

bilge pump - Suitable as a primary bilge pump for boats up to 12 metres / 39.4 ft

(designed to ISO15083), or as a secondary bilge pump on any vessel.

ig 1 - Typical

Installation Gulper®

IC as a Remote

Mounted Bilge

Pump

I STALLATIO & USER I STRUCTIO S

1. TYPICAL I STALLATIO

Gulper IC

Remote Mounted bilge pump

with integrated intelligent

control.

Strainer IC

3/4” strainer

with integrated

intelligent

control

Model Number Description

BP2083B Gulper IC - 12 V d.c.

BP2085B Gulper IC - 24 V d.c.

SI8284 Retail Bilge IC - Remote Mounted Bilge Kit 12 V d.c.

SI8484 Retail Bilge IC - Remote Mounted Bilge Kit 24 V d.c.

SI8222B Bulk Strainer IC and Gulper®IC- 12 V d.c with 2m (6ft) cable

SI8224B Bulk Strainer IC and Gulper®IC- 12 V d.c with 4m (12ft) cable

SI8422B Bulk Strainer IC and Gulper®IC- 24 V d.c with 2m (6ft) cable

SI8424B Bulk Strainer IC and Gulper®IC- 24 V d.c with 4m (12ft) cable

ENG

All manuals and user guides at all-guides.com

Note - Output capacity depends on installation and operating conditions.

Whale's policy is one of continuous improvement and we reserve the right to change

specifications without prior notice.

2. SPECIFICATIO

Model Bilge IC bilge water kit

Product Code BP2083B SI8284 SI8222B SI8224B BP2085B SI8484 SI8422B SI8424B

Cable Length / 4m

(12ft)

(6ft)

(12ft) /4m

(12ft)

(6ft)

(12ft)

Voltage 12V d.c. 24V d.c.

Voltage Range 10 v d.c. to 13.6 V d.c. 21.6 V d.c. to 27.2 V d.c

Current Profile Soft start / soft stop

Recommenced use

Size 10 Amp Automotive 5 Amp Automotive

Minimum Wire Size 1.5mm²(16 AWG)

Weight 2.6 kg (5.7 lbs)

Materials

Pump head - Glass filled Nylon. Valves and Diaphragm - Santoprene®

Pump Body - Aluminium. Gear Wheel - Delrin®

Fasteners - Stainless Steel

Service Kits /

Accessories

AK2050 - Replacement Gulper® Pump Head

AK2086B - Deutsch Connector Extension Cable 6m (18ft)

Hose Connections Gulper® IC - Barbed connections - either 19mm (¾") or 25mm (1")

Strainer IC - 19mm (3/4") port

Port Orientation for

Strainer IC Horizontal (easily changed to vertical / side)

Maximum Suction Lift

(Vertical) 3m (10 ft)

Maximum Discharge

Head (Vertical) 3m (10 ft)

Maximum Discharge

Head and Suction Lift

Combined (vertical vent)

4m (13.5 ft)

Operational Time

Delays 1 second on delay / 45 second off delay

Current Draw On

Standby Low power 0.01 Amps supply

PERFORMANCE DATA

Suction Lift 0m / 0ft 0m / 0ft 1m / 3ft 1m / 3ft

Discharge Head 1m / 3ft 1m / 3ft 1m / 3ft 1m / 3ft

Hose Size 19mm / ¾" 25mm/ 1" 19mm / ¾" 25mm/ 1"

low Rate per min 19 ltrs

(5 US gals)

17.5 ltrs

(4.6 US gals)

17.5 ltrs

(4.6 US gals)

15.5 ltrs

(4.1 US gals)

low Rate per hour 1140 ltrs

(300 US gals)

1050 ltrs

(276 US gals)

1038 ltrs

(270 US gals)

930 Ltrs

(246 US gals)

Current Draw (12 V d.c.) 7.5 amps 8 amps 7.5 amps 8 amps

Current Draw (24 V d.c.) 3.25 amps 4 amps 3.25 amps 4 amps

All manuals and user guides at all-guides.com

1. TYPICAL INSTALLATION 12. PLUMBING

2. SPECI ICATION 13. INSTRUCTIONS OR USE

3. CONTENTS AND DIAGRAMS 14. MAINTENANCE

4. PRINCIPLES O OPERATION 15. HELP UL HINTS

5. TO THE USER 16. TROUBLE SHOOTING

6. TO THE ITTER 17. WINTERIZING

7. APPLICATION 18. SERVICE SUPPORT DETAILS

8. WARNINGS 19. PATENTS/ TRADEMARKS

9. PARTS LIST 20. WARRANTY STATEMENT

10. OPTIONAL EXTRAS 21. EU DECLARATION O

11. INSTALLATION CON ORMITY, APPROVALS

LIST OF DIAGRAMS:

IG 1 GULPER® IC - TYPICAL INSTALLATION AS A REMOTE MOUNTING

BILGE PUMP OR USE WITH WHALE STRAINER IC

IG 2 PUMP ORIENTATION

IG 3 GULPER® IC INSTALLATION

IG 4 INSTALL P CLAMP

IG 5 STRAINER IC CONNECTION

IG 6 STRAINER IC CONNECTION

IG 7 WIRING GULPER® IC TO STRAINER IC

IG 8 CONNECTING SWITCHING CABLE THROUGH BULKHEAD

IG 9 CONNECT DEUTSCH® CONNECTORS

IG 10 SECURING PIPEWORK

IG 11 STRAINER IC OPERATION TEST

IG 12 OR CLEANING - DETACH TOP COVER O STRAINER IC

IG 13 OR CLEANING - UNSCREW VALVE HOUSING

IC - Intelligent Control Technology

At the heart of every Whale® IC product lies innovative electronic control circuitry built

in. This enables IC sensor accessories to communicate directly with IC pumps to

control their performance. These accessories send signals to built-in intelligent

software which then control the pumps to react as required.

Gulper® IC

The Gulper® IC fully automatic self-priming pump is designed as a remote mounting

bilge pump. Output capacity depends on installation and operating conditions.

REMOTE MOUNTED BILGE APPLICATION

Save time and money by reducing four separate components to one pre-wired

system. Remote mounting automatic Gulper® IC receives signals from Strainer IC

3. LIST OF CO TE TS A D LIST OF DIAGRAMS

4. PRI CIPALS OF OPERATIO

All manuals and user guides at all-guides.com

and switches on and off automatically (See ig 1). Suitable for a primary bilge pump

for boats smaller than 12 metres/39.4 ft (designed to ISO15083), or as a secondary

bilge pump on any recreational marine vessel.

Read the following instructions carefully.

Check that the product is suitable for the intended application, follow these installation

instructions and ensure all relevant personnel read the points listed below. Also

ensure that these operating instructions are passed on to the end user.

Gulper® IC is designed for installation in recreational marine vessels only and

operated on 12 or 24 V d.c. electrical supply only. If it is intended for use for any other

purpose or with any other liquid, it is the user's responsibility to ensure that the pump

is suitable for the intended use and, in particular, that the materials are fully

compatible with the liquids to be used. The Whale Gulper® IC pump is not

recommended for domestic applications.

• This pump must not be mounted below the water line when

connected to an intake or outlet unless the system has a

vented loop (see ig 1).

• Not suitable for pumping flammable liquids, diesel,

chemicals etc. Suitable for bilge water only.

•NOTE: Bilge pump capacities may not be sufficient to prevent flooding

from rapid accumulation of water due to storms, rough weather and/ or

rapid leaks created by hull damage and or unsafe navigational conditions.

• With all applications, it is important that a system of safe working practice

is applied to installation, use and maintenance. Ensure the electric supply

is turned off and waste water system is drained before installation. In order

to securely fasten the unit, ensure that the mounting surface is a minimum

thickness of 19mm (3/4") (when fitted with the screws supplied).

•NOTE Do not screw directly to the hull - must be mounted on a bulkhead

or on an additional board.

•NOTE - DO NOT unscrew the rear section, as interference with the

internal electrics will render the pump unfit for use. - this is a non-

serviceable part of the pump.

•WARNING: ire hazard. Wiring must comply with applicable electrical

standards and include a properly rated fuse or circuit breaker (See section

11v.) Improper wiring can cause a fire resulting in injury or death. Switch

off the power while making connections.

6. TO THE FITTER

7. APPLICATIO

8. WAR I GS

5. TO THE USER

All manuals and user guides at all-guides.com

Suggested wiring information is given as a guide only. or full information, refer to the

USCG, ABYC and ISO regulations for marine applications and wiring gauges,

connectors and fuse protection.

Contact Whale® Support team for further technical advice +44 (0)2891 270531 or

email: info@whalepumps.com

Qty 1 Gulper® IC bilge pump Qty 1 Strainer IC

Qty 3 No.8 self tappers and washers Qty 1 Inline fuse assembly

AK2050 - Service kit - Replacement head for all Gulper® pumps

AK2086B - Deutsch® Connector Extension Cable 6m (18ft)

NOTE: Incorrect installation will invalidate warranty

Preparation - Always disconnect power sources before installing.

11.i Location

• Choose a position to mount the pump that is dry and away from standing

water and is free from obstacles.

• Mount in a position with the shortest possible pipe run lengths.

11.ii Mounting Instructions - Gulper® IC

• Gulper® IC can be mounted on a horizontal or vertical surface.

• When mounted vertically ensure that the pump head is lower most (see

ig 2).

NOTE -It is recommended that the outlet is mounted above the water line and anti-

syphon loops are fitted where applicable- see typical installation ( ig. 1)

• When mounting, position the pump on surface and work out the best

angles for the hose (to prevent kinking) and mark the 3 hole positions

using the pump feet.

•NOTE: The pump head may be rotated to suit the hose connections.

9. PARTS LIST

10. OPTIO AL EXTRAS

11. I STALLATIO

ig. 2 - Pump Orientation

All manuals and user guides at all-guides.com

all-guides.com

Loosen the screw, adjust and ensure diaphragm remains in place.

Reposition the head to the required position (fig 3) and tighten the screw

• Drill pilot holes of 3.2mm (1/8").

NOTE: Do not drill through hull, ensure that pump is mounted to additional board or

bulkhead.

• Use the three No.8 self tappers and washers (included) to secure the

pump.

• Use 19mm (3/4") or 25mm (1") smooth bore reinforced hose to connect to

the pump with hose clips.

NOTE: Barbed connections mean no need to cut inlets or outlets to size.

NOTE: Ensure tight connections, but do not over-tighten clamp rings/ screws/hose

clips

ig 3 - Gulper® Installation ig 4 - it P clamp

• Screw p clamp to bulkhead ensuring it is located Approx. 100 mm (4")

from rear housing ( ig 4).

NOTE: In order to securely fasten the unit, ensure that the p clamp mounting surface

is at least 19mm (3/4") minimum thickness.

11.iii Mounting Instructions - Strainer IC

• Mount in a position with the shortest pipe run lengths.

• Drill pilot holes. NOTE: do not drill through hull; ensure that strainer is

mounted to additional board or bulkhead ( ig 5).

• Use 19mm (3/4”) smooth bore reinforced hose to connect to the strainer

with hose clips ( ig 6).

ig 5 Connect Strainer IC to bulkhead ig 6 Attaching jubilee clips

P Clamp

All manuals and user guides at all-guides.com

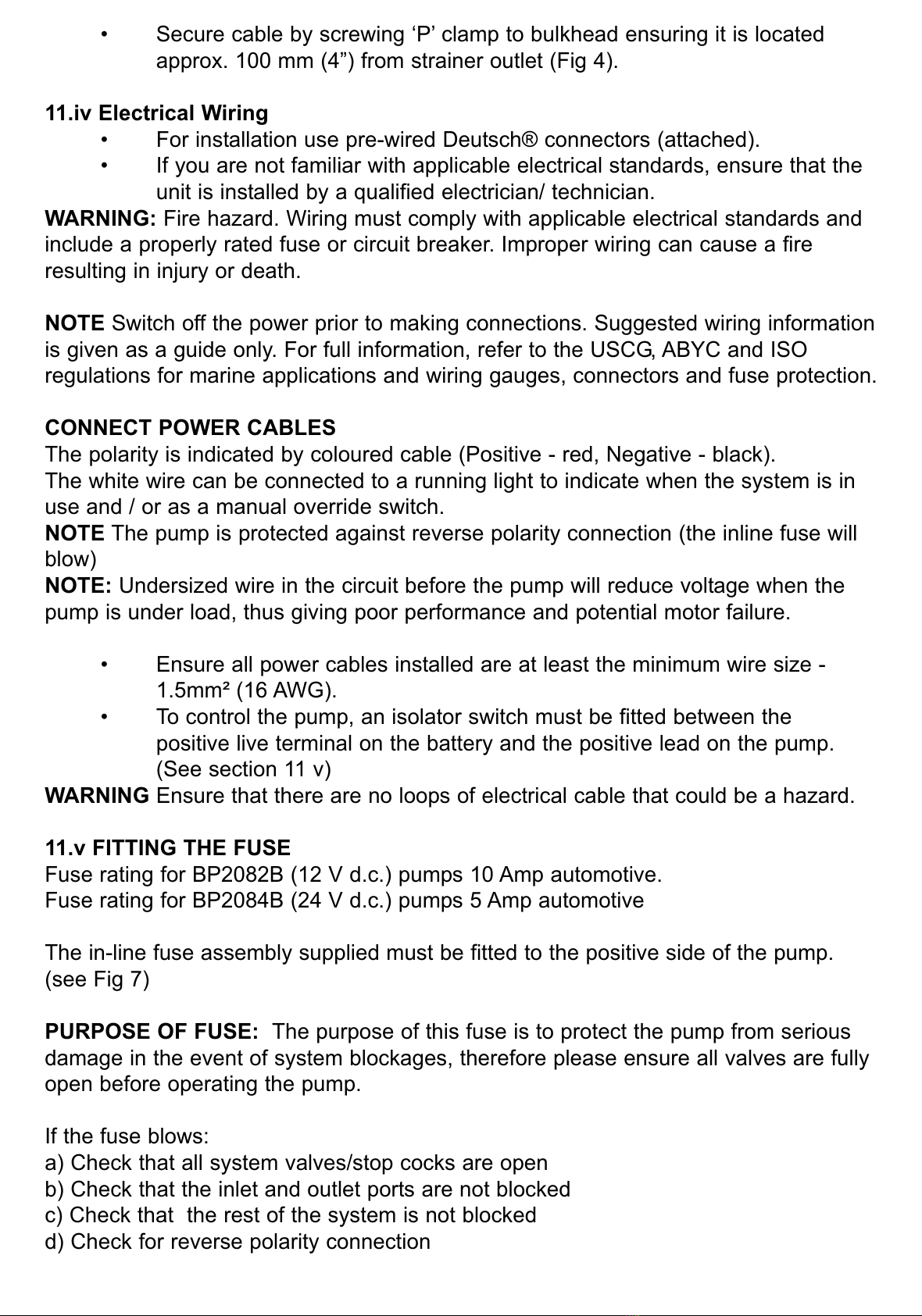

• Secure cable by screwing ‘P’ clamp to bulkhead ensuring it is located

approx. 100 mm (4”) from strainer outlet ( ig 4).

11.iv Electrical Wiring

• or installation use pre-wired Deutsch® connectors (attached).

• If you are not familiar with applicable electrical standards, ensure that the

unit is installed by a qualified electrician/ technician.

WARNING: ire hazard. Wiring must comply with applicable electrical standards and

include a properly rated fuse or circuit breaker. Improper wiring can cause a fire

resulting in injury or death.

NOTE Switch off the power prior to making connections. Suggested wiring information

is given as a guide only. or full information, refer to the USCG, ABYC and ISO

regulations for marine applications and wiring gauges, connectors and fuse protection.

CONNECT POWER CABLES

The polarity is indicated by coloured cable (Positive - red, Negative - black).

The white wire can be connected to a running light to indicate when the system is in

use and / or as a manual override switch.

NOTE The pump is protected against reverse polarity connection (the inline fuse will

blow)

NOTE: Undersized wire in the circuit before the pump will reduce voltage when the

pump is under load, thus giving poor performance and potential motor failure.

• Ensure all power cables installed are at least the minimum wire size -

1.5mm² (16 AWG).

• To control the pump, an isolator switch must be fitted between the

positive live terminal on the battery and the positive lead on the pump.

(See section 11 v)

WARNING Ensure that there are no loops of electrical cable that could be a hazard.

11.v FITTING THE FUSE

use rating for BP2082B (12 V d.c.) pumps 10 Amp automotive.

use rating for BP2084B (24 V d.c.) pumps 5 Amp automotive

The in-line fuse assembly supplied must be fitted to the positive side of the pump.

(see ig 7)

PURPOSE OF FUSE: The purpose of this fuse is to protect the pump from serious

damage in the event of system blockages, therefore please ensure all valves are fully

open before operating the pump.

If the fuse blows:

a) Check that all system valves/stop cocks are open

b) Check that the inlet and outlet ports are not blocked

c) Check that the rest of the system is not blocked

d) Check for reverse polarity connection

All manuals and user guides at all-guides.com

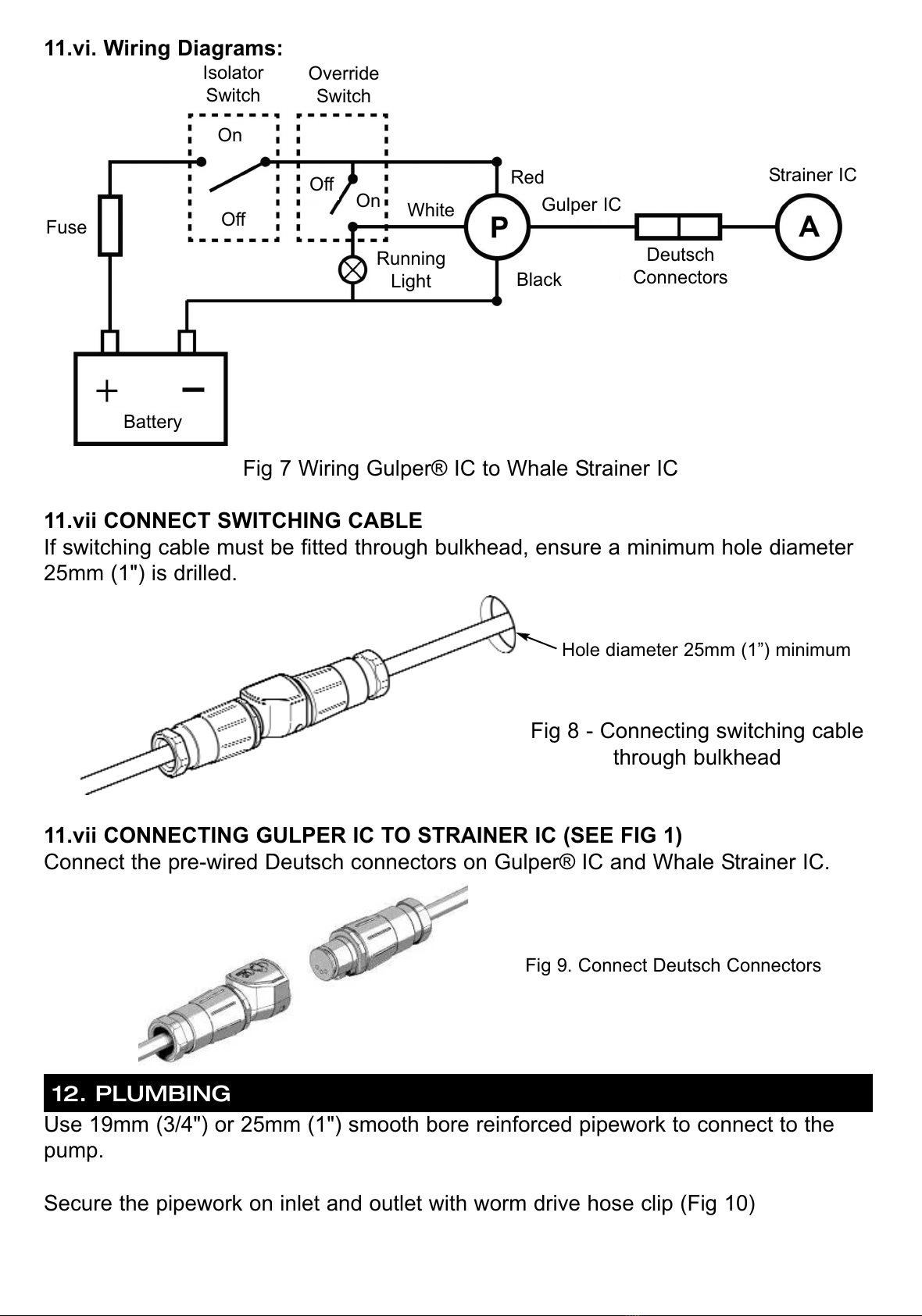

11.vi. Wiring Diagrams:

ig 7 Wiring Gulper® IC to Whale Strainer IC

11.vii CONNECT SWITCHING CABLE

If switching cable must be fitted through bulkhead, ensure a minimum hole diameter

25mm (1") is drilled.

ig 8 - Connecting switching cable

through bulkhead

11.vii CONNECTING GULPER IC TO STRAINER IC (SEE FIG 1)

Connect the pre-wired Deutsch connectors on Gulper® IC and Whale Strainer IC.

ig 9. Connect Deutsch Connectors

Use 19mm (3/4") or 25mm (1") smooth bore reinforced pipework to connect to the

pump.

Secure the pipework on inlet and outlet with worm drive hose clip ( ig 10)

Gulper IC

Strainer IC

Deutsch

Connectors

Black

Red

Override

Switch

Battery

Isolator

Switch

Off White

Off

use

Hole diameter 25mm (1”) minimum

12. PLUMBI G

Running

Light

All manuals and user guides at all-guides.com

ig 10 Secure pipework

Ensure that pump installation is thoroughly tested before first use.

NOTE - These are all automatic or semi-automatic applications - ensure that isolator

switch is turned on.

BILGE APPLICATION

Gulper® IC with Strainer IC - Place finger over sensor area to check pump is

activated, remove finger and wait for the pump to stop (45 seconds).

ig 11 Testing Strainer IC

This Whale Gulper® IC is designed to only require minimal maintenance.

WARNING: Before servicing pump, turn off pump and drain water from system.

Annual Checks

• Whale advise that the boat's plumbing system is checked annually for

leaks and obstructions. Also a pump electrics check is advisable.

• Before inspecting or replacing the diaphragm, disconnect the electrical

supply.

Optimal Performance

• Ensure this product is clear of debris

IF THE PUMP IS NOT OPERATING AS E PECTED:-

• Loosen the hose clips to release the pump from plumbing.

• Unscrew the Ezi-clamp clamping ring to release the pump head - see ig

3 - This will release the pump head, and allow easy access to the valves

& diaphragm.

• The diaphragm and valves should be checked for any excessive wear,

damage or cracks, and should be replaced if necessary (service kit

AK2050 - replacement pump head).

13. I STRUCTIO S FOR USE

14. MAI TE A CE

All manuals and user guides at all-guides.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whale Wasserpumpe Handbücher

Whale

Whale WD1815 Bedienungsanleitung

Whale

Whale Gulper 220 Bedienungsanleitung

Whale

Whale Gulper BP2082B Bedienungsanleitung

Whale

Whale Gulper 320 Series Merkblatt

Whale

Whale BE0500 Bedienungsanleitung

Whale

Whale CS4620B Bedienungsanleitung

Whale

Whale GP1309 Bedienungsanleitung

Whale

Whale Gulper BP2082B Bedienungsanleitung

Whale

Whale IS1218B Montageanleitung

Whale

Whale Orca 500 US GPH Bedienungsanleitung

Whale

Whale Watermaster Series Bedienungsanleitung

Whale

Whale Gusher 10 Mk3 BP3708 Montageanleitung

Whale

Whale Gusher Galley Mk 3 GP0550 Bedienungsanleitung

Whale

Whale GP0418 Bedienungsanleitung

Whale

Whale Tiptoe Mk4 GP1309 Bedienungsanleitung

Whale

Whale Supersub 360 Kurzanleitung

Whale

Whale Bilge IC Series Bedienungsanleitung

Whale

Whale Compac 50 Bedienungsanleitung

Whale

Whale Gulper Grouper Mk 3 Bedienungsanleitung

Whale

Whale AK1316 Bedienungsanleitung

Whale

Whale BP0527 Bedienungsanleitung

Whale

Whale WS7205(B) Bedienungsanleitung

Whale

Whale Gusher 10 MK3 BP3708 Bedienungsanleitung

Whale

Whale Watermaster FW0814 Bedienungsanleitung

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
