Wharfedale Pro KM-1 Leitfaden

www.wharfedalepro.com

MICROPHONES

KM-1 KM-2 KM-3 KM-4 KM-5

OPERATING MANUAL AND USER GUIDE

Series

Important Warnings & Safety Instructions.................. 1

Introduction............................................................... 3

Features .................................................................... 4

Line Drawings of the KM Series ................................. 5

Dimensional drawings............................................... 5

Microphone use and placement................................. 6

Connections / Wiring ................................................ 7

Specifications ............................................................ 8

Warranty ................................................................... 8

TABLE OF CONTENTS

OPERATING MANUAL

IMPORTANT WARNINGS & SAFETY

INSTRUCTIONS

1. READ ALL INSTRUCTIONS carefully and become

familiar with the features and functions of these

products before operating them.

2. RETAIN THESE INSTRUCTIONS for future reference.

3. COMPLY WITH ALL WARNINGS – All warnings and

instructions for this product should be adhered to.

4. USE WITH MIXERS & AMPLIFIERS – In order to avoid

damage to drivers and other equipment, it is advisable

to establish and follow a routine for powering up

and powering down a sound system. With all system

components connected, turn on source equipment

(mixers, signal processors, record and playback

units, etc.) BEFORE powering up amplifiers. Transient

voltages from powering up source equipment can

damage speakers (HF Drivers) if amplifiers are

already turned on. Make sure that amplifier volumes

are set to their minimum settings and power up any

system amplifiers LAST. It is recommended that all

system components be allowed to stabilize for several

seconds before any source signals are introduced or

level setting adjustments are made. Similarly, when

shutting systems down, turn all amplifiers off first,

before powering down any other system components.

5. CABLES – Always use shielded or microphone cables

for connection between source equipment (i.e.

microphones, mixers, EQ, crossovers) and amplifiers.

Use only approved speaker cables with proper

connectors between amplifiers and speakers.

6. CAUTION – Professional sound systems are capable of

generating very high sound pressure levels. Use care

with placement and operation to avoid exposure to

excessive volume levels. Permanent hearing damage

can result when operated to extreme levels.

7. SERVICE – There are no user serviceable parts inside

this product. Users should not attempt to service this

product. Warranty nullification could result if this is

attempted.

OPERATING MANUAL

INTRODUCTION : KM SERIES

The KM Series Microphones are hand held dynamic

(KM-1, KM-2, KM-4 & KM-5) super-cardioid &

condenser (KM-3) cardioid microphones featuring

super-cardioid & cardioid patterns to minimize

feedback and to reject signals not originating in front

of the microphone. The microphones have extended

frequency response for optimum reproduction. They

are designed to provide exceptionally clear, articulate

sound. A shock mounting system isolates the

microphone element from external forces to greatly

reduce handling noise. The well-balanced zinc-alloy

die cast body ensures reliable performance in even

the most demanding applications. Designed for high

SPL use, the KM Series Microphones are ideal for

mic'ing drums or other purcussion instruments, but fit

into a wide range of applications. The high sensitivity

capsule picks up all of the nuances of a performance.

The lightweight neodymium magnet provides 6dB

of additional sensitivity/gain compared to other

magnetic materials.

A microphone must have very low distortion at

intended sound pressure levels. Distortion has a

profound effect on the way we hear the material

being auditioned. Our ears can be fooled by

harmonics and undertones that are a product of

distortion (Distortion, by a simple definition is the

difference between the input sound and the sound

coming out of the speakers). Another important

factor is the microphone’s ability to work within an

extreme dynamic range. Many microphones that may

sound acceptable with a low sound pressure, have

problems with high sound pressure.

High quality professional drum microphones

High tech zinc finish

5 models to choose the best tool for the job(KM-4

& KM-5: easily mounted on drums)

Unidirectional dynamic microphones with

exceptional feedback rejection

Neodymium magnet for high output low distortion

Dent-resistant spring-steel grill

Rugged cast Zinc alloy body

On/off switch

Gold-plated XLR connector

■

FEATURES

OPERATING MANUAL

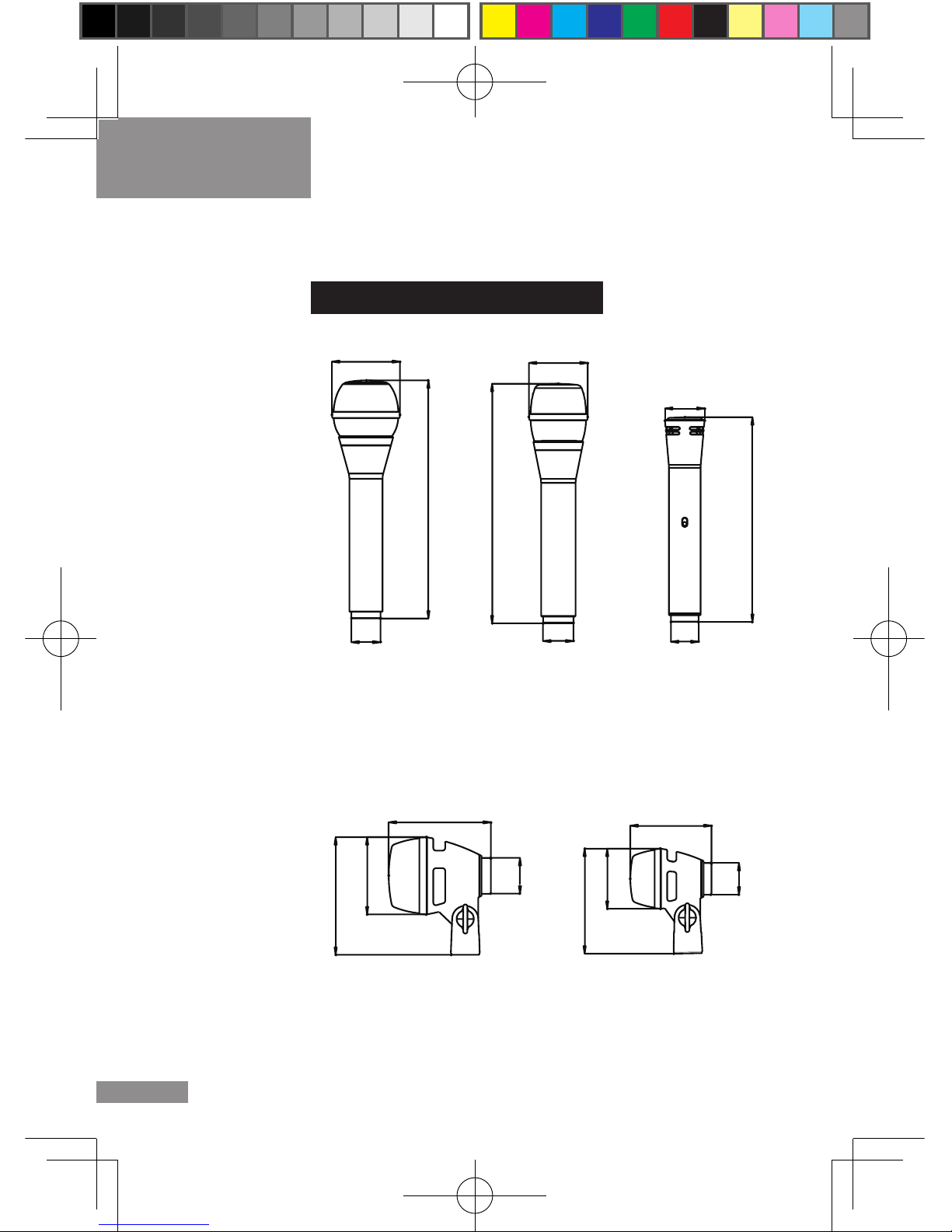

Line Drawings of the KM Series

Ø51.5mm

Ø22mm

178mm

KM-1

Ø45.5mm

Ø23mm

178mm

KM-2

Ø27mm

Ø58.6mm

92mm

77.8mm

KM-4

Ø45.2mm

79mm

Ø24mm

61.3mm

KM-5

Ø30mm

Ø21mm

154mm

KM-3

MICROPHONE USE/ PLACEMENT

When mic’ing, the position of the instrument

microphones is not trivial. If the microphone does

not have a smooth polar pattern, it is difficult to mic

vocals, instruments or instrument amplifiers.

The uniform dispersion of the KM SERIES makes

it easy to place the microphones where you need

them. For best results use the included stand and

mounting adapters to place the microphone on the

0 degree axis (i.e. point it directly at the source).

The dynamic microphones exhibit increased low

frequency response when placed close to the source.

When using KM1 or KM2 or other dynamic vocal

mics for vocals, instruct the user to get close to the

windscreen. If you speak into the mic more that a

few centimeters (inches) away, the sound will be thin

and “tinny”; no bass. Using the mic “off-axis” (not

dead center to the source) will likely result in a “tinny”

sound. The microphones are most sensitive “on-axis”.

Condenser microphones do not exhibit this feature.

You may place a condenser mic farther away

from the source and still maintain good full range

frequency response.This makes them especinlly well

suited to drum over head applications. Using the

mounting brackets, you can place the KM-4 & KM-5

mics on drums and other instruments easily and

with flexibility. Try to place them so they will not get

OPERATING MANUAL

CONNECTIONS / WIRING

Connecting the KM Series to your system is easy.

You simply plug in the microphone cable to your

mic and then to the mixer. Always use good quality

microphone (2 conductor + shield) cable. After you

plug in the mic, you must adjust the sound level to

produce the best sound. A good place to start is the

the first channel of your mixer, or the section the

drums mics plug into. Its a good idea to group like

instruments to allow easy gain adjustments.

Plug the mic in and position the volume control at '0'

(zero) dB. Keep the main output volume down as well

as the amplifiers' volume control. Whilst watching

the meters, speak, play the instrument, beat the

drums in the same sequence you have plugged them

into the board or sing (it's always good to warm up

your voice) into the mic at the same level of your

performance and adjust the GAIN control, usually at

struck by wild drummers as this can result in a very

loud "crack" through the PA! The KM-3 is a great

over head Mic and the KM-1 & KM-2 are your all

purpose mics. You can use them for vocals, acoustic

instruments (winds, brass, strings,etc.) and drums.

Next adjust the MIC trim output so that the meters

are at the ‘0’ (zero) position most of the time, or at

the loudest part of your performance. This takes time

and practice to get the best sound.
