UseAndCare

AIR CONDITIONERS

A Note to You ......................... 2

Air Conditioner Safety ........... 3

Parts and Features ................. 4

Operating Your Air

Conditioner ............................. 5

Starting your air

conditioner .......................... 5

Using the exhaust

vent control ......................... 6

Using the energy saver

settings ............................... 6

Changing air direction ......... 6

Caring for Your Air

Conditioner ............................. 7

Cleaning the front panel.. ....7

Cleaning the slide-out

air filter.. .............................. 8

Performing annual

maintenance ....................... 8

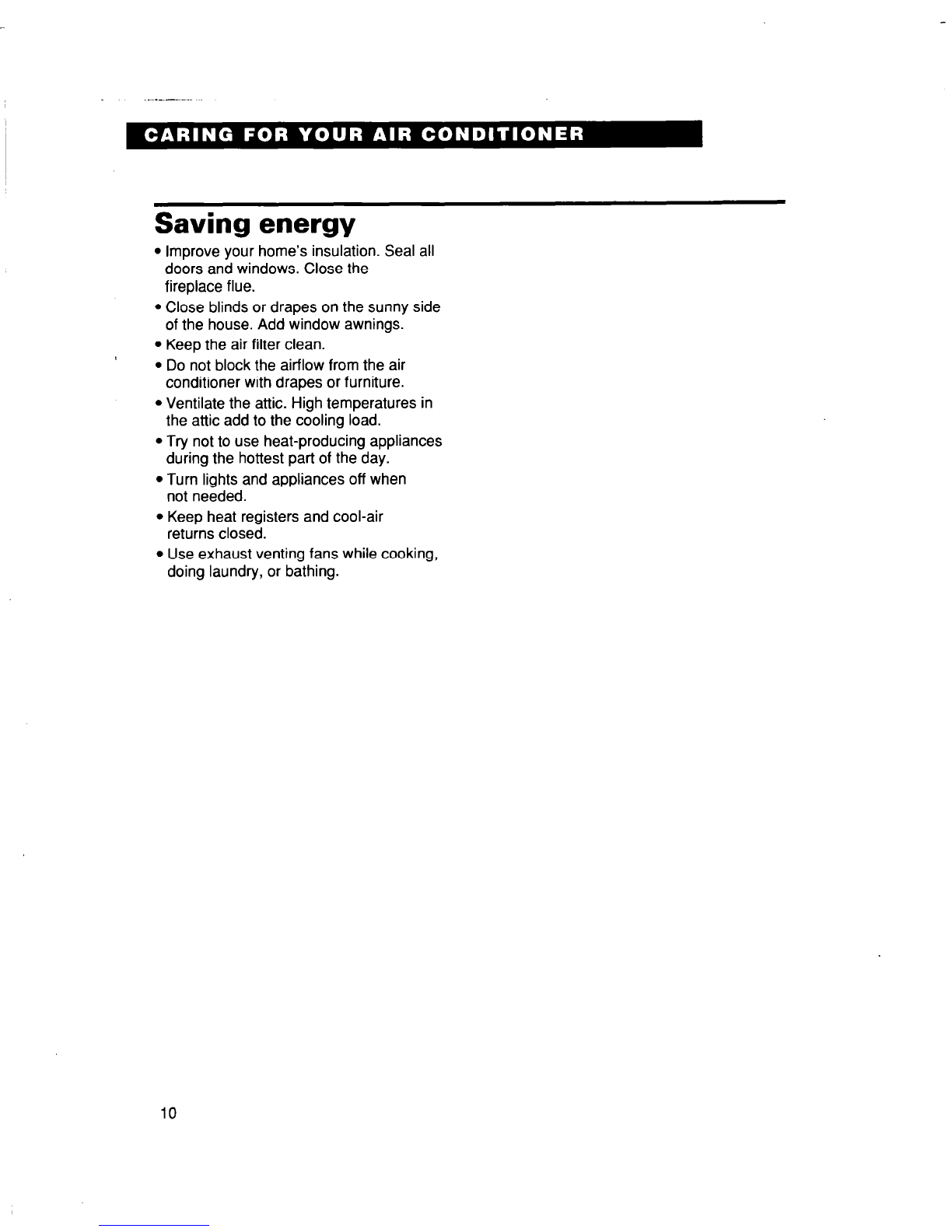

Saving energy.. ................. 10

Troubleshooting ................... 11

Normal operating sounds ... 11

Requesting Assistance

or Service .............................. 12

Index.. .................................... 15

Warranty ............................... 16

1-800-253-I 301

Call our Consumer Assistance Center

with questions or comments.

PART NO. 1166878 Rev. A

MODELS: ACQ052 ACQ062

“fq5

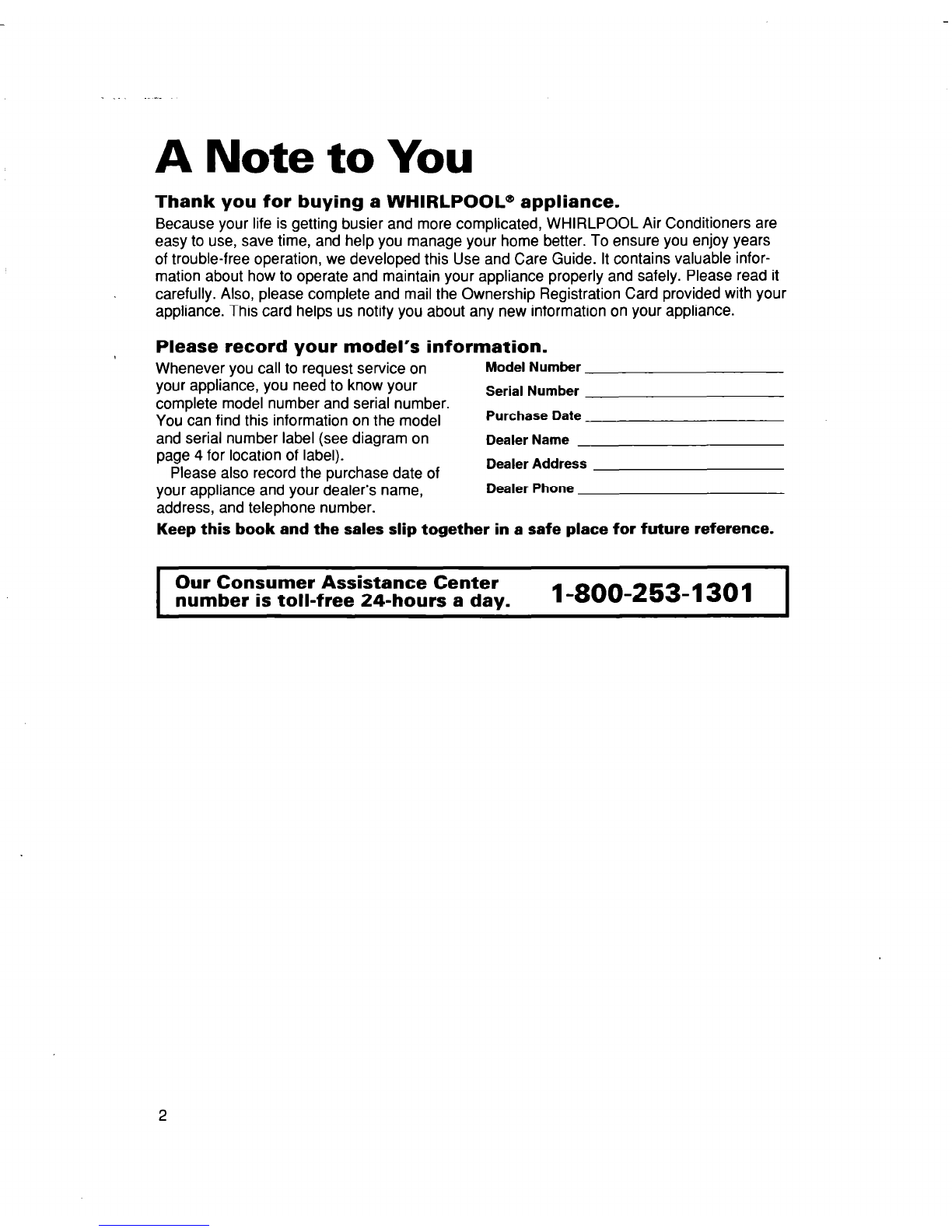

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable infor-

mation about how to operate and maintain your appliance properly and safely. Please read it

carefully. Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

Serial Number

complete model number and serial number.

You can find this information on the model

Purchase Date

and serial number label (see diagram on

Dealer Name

page 4 for location of label).

Please also record the Durchase date of

Dealer Address

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24-hours a day.

1-800-253-1301 1

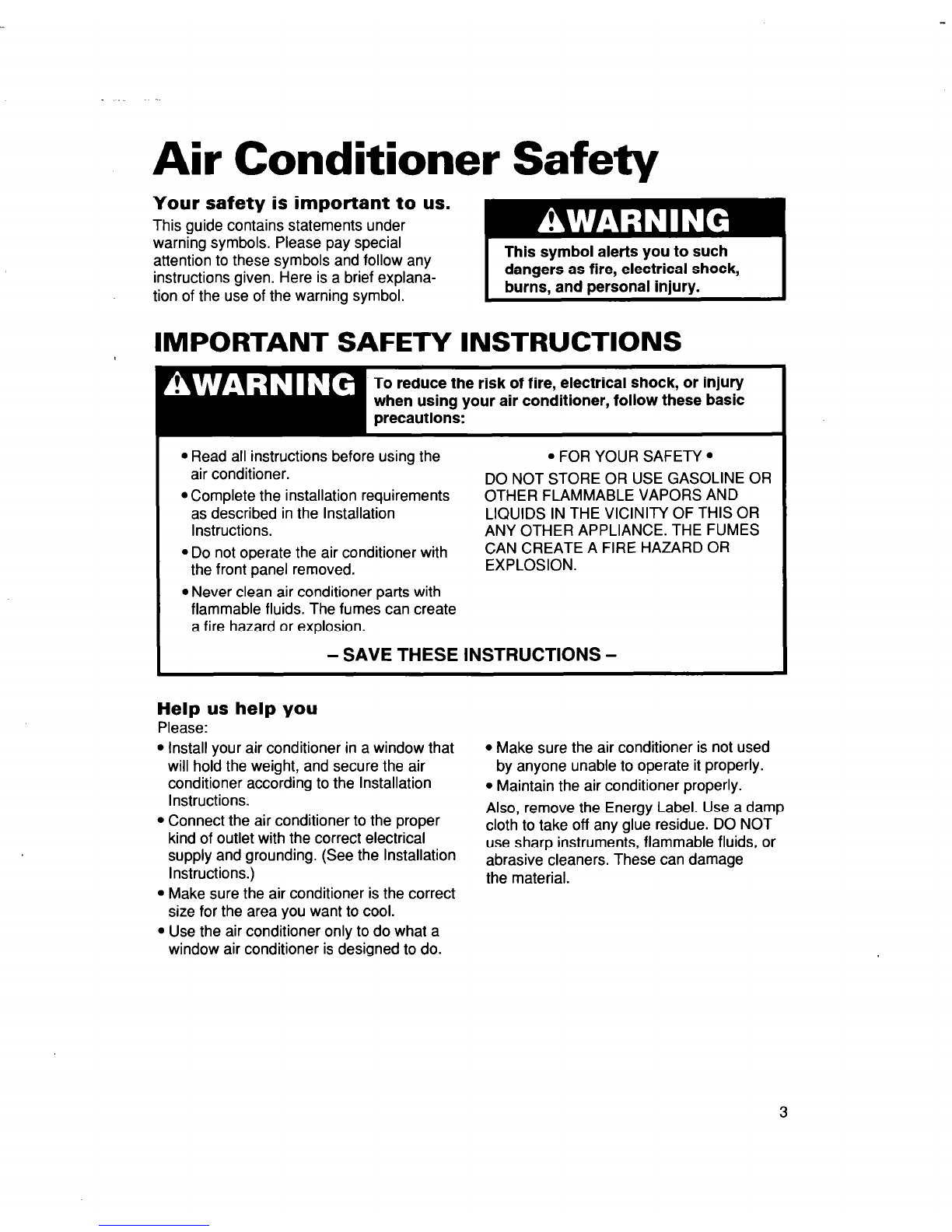

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

l Read all instructions before using the l FOR YOUR SAFETY l

air conditioner. DO NOT STORE OR USE GASOLINE OR

*Complete the installation requirements OTHER FLAMMABLE VAPORS AND

as described in the Installation LIQUIDS IN THE VICINITY OF THIS OR

Instructions. ANY OTHER APPLIANCE. THE FUMES

l Do not operate the air conditioner with CAN CREATE A FIRE HAZARD OR

the front panel removed. EXPLOSION.

l Never clean air conditioner parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install your air conditioner in a window that l Make sure the air conditioner is not used

will hold the weight, and secure the air by anyone unable to operate it properly.

conditioner according to the Installation

Instructions. l Maintain the air conditioner properly.

l Connect the air conditioner to the proper Also, remove the Energy Label. Use a damp

kind of outlet with the correct electrical cloth to take off any glue residue. DO NOT

supply and grounding. (See the Installation use sharp instruments, flammable fluids, or

Instructions.) abrasive cleaners. These can damage

the material.

l Make sure the air conditioner is the correct

size for the area you want to cool.

l Use the air conditioner only to do what a

window air conditioner is designed to do.

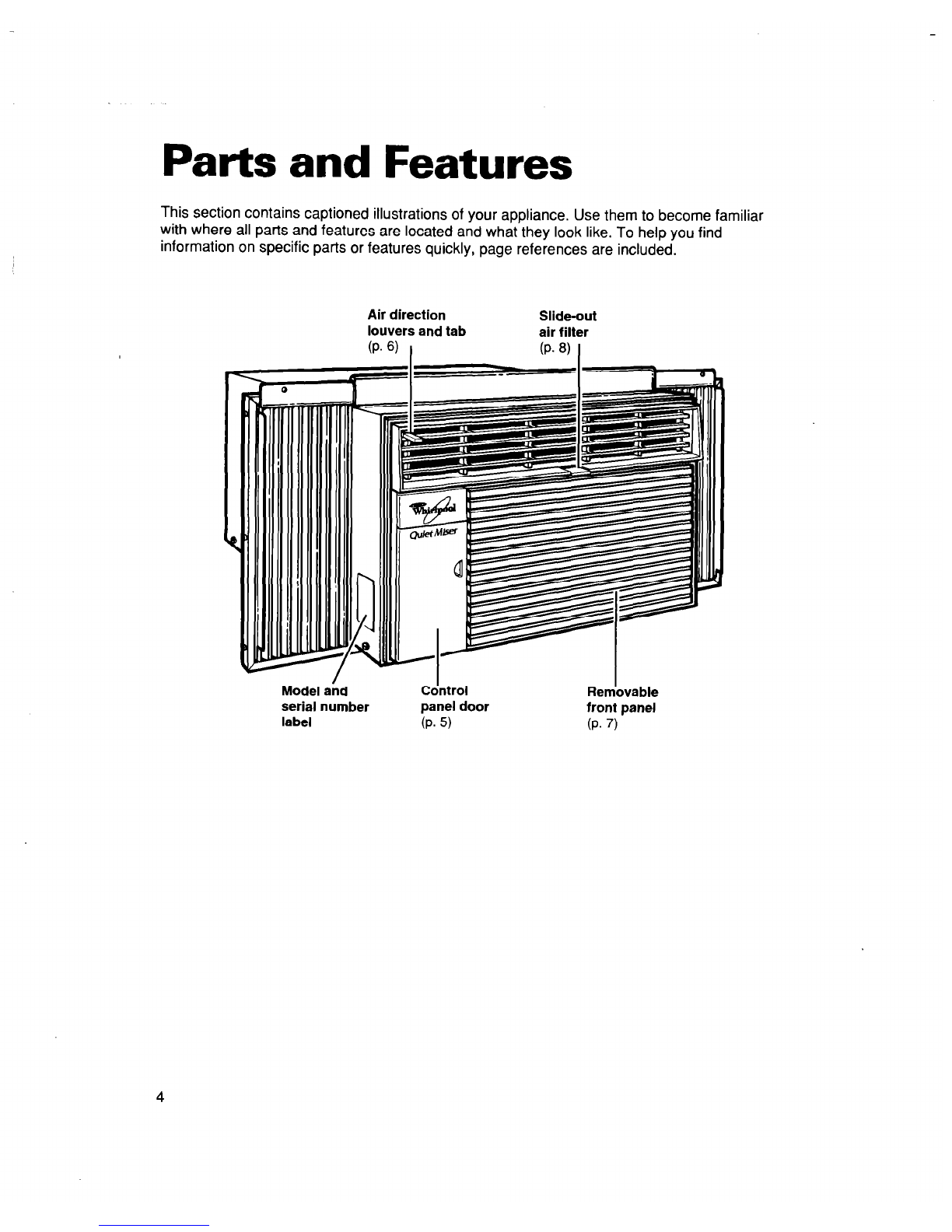

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. To help you find

information on specific parts or features quickly, page references are included.

Air direction

louvers and tab Slide-out

air filter

(P. 8)

Model and Cdntrol

serial number panel door

label

(P. 5)

Redovable

front panel

(P. 7)

Operating Your Air Conditioner

To obtain the best possible results from your air conditioner, it is important that you operate it

properly. This section tells you how to set the controls and how to direct the cooled air.

Starting your air conditioner

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or

electrical shock.

1. Set Exhaust Control to CLOSED for

maximum cooling performance. (See

“Using the exhaust vent control” on

page 6.1

2. Set the Fan Control to the desired

setting. You can use either the Energy

Saver or Normal Fan settings. (See

“Using the energy saver settings” on

paw 6.1

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT - for fastest cooling

FAN ONLY-to circulate room air without

cooling it

3. Turn the Thermostat Control to the

desired setting. You can adjust the air

conditioner’s cooling performance by

turning the Thermostat Control clockwise

for more cooling or counterclockwise for

less cooling. You will need to experiment

to find the setting which suits you best.

IMPORTANT: If you turn the air conditioner

off, or if the compressor turns off when you

lower the Thermostat Control, wait at least

3 minutes before turning the air conditioner

back on. If you don’t wait, you may blow a

fuse or trip a circuit breaker.

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Do not remove ground prong.

Failure to follow these instructions

can result in death or electrical shock.

EXHAUST VENT

(

OPEN

CLOSED

THERMOSTAT

Liisa

l .

. __^_._.

Using the exhaust vent control

The Exhaust Vent Control draws stale or

smoky air from the room or circulates

existing room air.

To exhaust room air:

1. Set Exhaust Control to OPEN.

2. Set Fan Control to desired setting. If no

cooling is desired, set Fan Control to

FAN ONLY.

3. Set Thermostat Control to desired setting.

EXHAUST VENT

OPEN CLOSED

To circulate room air: I

1. Set Exhaust Control to CLOSED.

2. Set Fan Control to desired setting. If no

cooling is desired, set Fan Control to

FAN ONLY.

3. Set Thermostat Control to desired setting.

NOTE: For maximum performance, the

Exhaust Vent Control must be in the

CLOSED position when cooling or room

air circulation is desired.

EXHAUST VENT

(

OPEN CLOSED

Using the energy saver set :tings

Use the Energy Saver settings when you do

not want the fan to run continuously. Using

these settings causes the fan to stop when

the compressor stops, and saves energy.

Set the Fan Control to the desired setting.

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT - for fastest cooling

I ENERGY

NORMAL

SAVER FAN

Changing air direction

The air direction louvers, in the top grille

area of the front panel, control the direction

of the cooled air. Move the tabs in the

direction you want the air to flow (right, left,

or straight ahead). A tab in the center of the

louver area (on some models) adjusts the

airflow up or down.

CaringfbrYourAir Conditioner

Proper care of your air conditioner helps ensure longer life of the unit and lower operating

costs. Follow these instructions carefully. Call your authorized Whirlpool servicing dealer for

an annual checkup.

Cleaning the front panel

Explosion Hazard

Unplug power cord from outlet

before cleaning the air conditioner.

Use only nonflammable cleaners.

Failure to follow these instructions

can result in death, explosion, fire,

or electrical shock.

1. Disconnect power cord from outlet.

2. Remove the front panel from the unit for

cleaning. Press down at the top of the

front panel to release it from the top

of the cabinet.

3. Pull the top of the front panel toward you.

4. Lift front panel up and away from the

bottom spring clips.

5. Remove the slide-out air filter and clean

separately. (See “Cleaning the slide-out

air filter” on page 8.)

NOTE: The front panel does not have to

be removed to clean filter.

6. Clean front panel with warm water, mild

soap or detergent, and a soft cloth.

Rinse and dry thoroughly.

7. Wipe control panel clean with a soft,

dry cloth.

8. Replace the front panel. Locate bottom

of panel on the spring clips. Press down

on top edge of front panel and push it

toward the unit to secure the upper tabs.

9. Replace air filter.

10. Plug in the power cord.

Tabs

\ -

Cleaning the slide-out air filter

The filter is cleanable. A clean filter helps

remove dust, lint, and other particles from

the air. Check every two weeks to see if filter

needs cleaning.

1. Remove filter by sliding it up and out the

top of the front panel.

2. Clean filter using a vacuum cleaner.

If very dirty, wash filter with warm water

and mild detergent. Air dry thoroughly

before replacing.

3. Replace filter by sliding it back down into

opening at top of front panel.

Performing annual maintenance

Your air conditioner needs annual mainte-

nance to ensure steady, top performance

throughout the year. Call the service com-

pany recommended by your dealer to:

l Inspect and clean the coils and condensate

water passages.

l Check fan.

The compressor and fan motor are sealed

and need no oiling. The expense of an

annual inspection is the consumer’s

responsibility.

If you are familiar with electrical appliances,

you can do the inspection and maintenance

yourself. If you choose to do so, follow these

steps:

Electrical Shock Hazard

Unplug power cord from outlet

before servicing.

Be sure no liquid gets into the motor,

electrical control box, or compressor

terminals.

NOTE: Do not lift, push, or pull any white

beaded foam (expanded polystyrene) parts.

1. Disconnect power cord from outlet.

2. Remove the front panel. (See “Cleaning

Failure to follow these instructions

can result in death, electrical shock,

or serious injury.

the front panel” on page 7.)

3. Remove unit from the window.

Excessive Weight Hazard

Use 2 or more people to move and

install air conditioner.

Failure to do so can result in back or

other injury.

10.

11.

12.

13.

14.

Remove side curtains. Slide curtains out

to their fullest width. From the back side,

remove the Phillips-head screws (A)

holding the curtains to the cabinet.

Remove the slotted hex-head screws (B)

holding the top channel.

Remove the slotted hex-head screws (C)

on the sides of the cabinet.

Holding both sides of the cabinet, care-

fully lift the cabinet off the base. Watch

out for the sharp metal fins on the front

and rear coils.

Wrap the motor, electrical control box,

and the compressor terminal box in

plastic film to make sure no water or

other liquid gets inside. Water or other

liquids could damage the insulation and

cause serious mechanical problems.

Clean and hose out the base, coils, and

condensate pans. Clean at least once a

year, or more often if the condenser

coils and pans collect dirt, sand, leaves,

insects, or algae. Also, clean if you detect

an odor coming from the air conditioner.

Do not use the collected water for drinking

purposes. It is not sanitary.

Remove plastic film from motor and

electrical parts.

Replace unit in the cabinet. Reattach top

channel and side curtains. Tighten all

screws.

Reinstall unit in the window.

Replace the front panel.

Plug in the power cord.

NOTE: It is a good idea to wait 24 hours

before starting the unit again. This allows

time !or all areas to dry thoroughly. The

water from rainfall or from normal opera-

tion does not harm the components. 9

._.*_.-..~.

Saving energy

l Improve your home’s insulation. Seal all

doors and windows. Close the

fireplace flue.

l Close blinds or drapes on the sunny side

of the house. Add window awnings.

l Keep the air filter clean.

l Do not block the airflow from the air

conditioner with drapes or furniture.

l Ventilate the attic. High temperatures in

the attic add to the cooling load.

l Try not to use heat-producing appliances

during the hottest part of the day.

l Turn lights and appliances off when

not needed.

l Keep heat registers and cool-air

returns closed.

l Use exhaust venting fans while cooking,

doing laundry, or bathing.

Andere Handbücher für ACQ052

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Klimaanlage Handbücher

Whirlpool

Whirlpool 1188177 Bedienungsanleitung

Whirlpool

Whirlpool ROOM AIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool ACSIOZ ACS520 Bedienungsanleitung

Whirlpool

Whirlpool ACP102PS2 Bedienungsanleitung

Whirlpool

Whirlpool ACE184XM0 Bedienungsanleitung

Whirlpool

Whirlpool AMAP151BW Bedienungsanleitung

Whirlpool

Whirlpool ASV09000R Bedienungsanleitung

Whirlpool

Whirlpool ACQ052 Bedienungsanleitung

Whirlpool

Whirlpool AS12 Bedienungsanleitung

Whirlpool

Whirlpool ACS072XE Bedienungsanleitung

Whirlpool

Whirlpool ACD052PK0 Bedienungsanleitung

Whirlpool

Whirlpool AC1 352 Bedienungsanleitung

Whirlpool

Whirlpool ACQ052PK0 Bedienungsanleitung

Whirlpool

Whirlpool WHAT081-HAW Bedienungsanleitung

Whirlpool

Whirlpool AMD 011 Bedienungsanleitung

Whirlpool

Whirlpool ACQ152XK0 Bedienungsanleitung

Whirlpool

Whirlpool BHAC1000XS0 Bedienungsanleitung

Whirlpool

Whirlpool ACQ142XA0 Bedienungsanleitung

Whirlpool

Whirlpool WHAP081AW Bedienungsanleitung

Whirlpool

Whirlpool ACS082PK Bedienungsanleitung

Whirlpool

Whirlpool SPIW309A3WF.1 Bedienungsanleitung

Whirlpool

Whirlpool ACQ058PP0 Bedienungsanleitung

Whirlpool

Whirlpool ACE244PT2 Bedienungsanleitung

Whirlpool

Whirlpool PACW29CO BK Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
