Thank you for choosing Whirlpool air conditioner. Our design is based on the best efficiency and the lowest noise operation and itcan

keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation.

Product Structure

and Installation

Operation Procedure

Function

Safety Precaution

Operating Condition

Installation Instruction

Part Identification & Operation

Operation Tips

Caution 16

Please read this user manual carefully before operating the air conditioner.

The description in this user manual may differ from actual unit, please refer to the material objects for reference.

Care and Maintenance

Trouble Shooting Guide

After-Sales Service

Safeguarding The Environment

Dear User,

Content

lllllllllllllllllllll

8-13

川川川川川

llllllllll

5-7 lllllllllllllllllllll

llll川lllllllllllllllllll

lllll川

lllllllllllllllllll

l1lll lllll川

llllllllllllllllll

川

2-3

l川llllll

8-14

Introduction

Window type room air conditioners can regulate the room temperature and dry the

room. It is convenient for your work, study and life. It can be widely used in residence,

shop, hotel, office, library and laboratory, and so on.

Cooling in summer

In hot summer, air conditioner can cool down

room air by transferring heat out.

Without reducing room temperature, air

conditioner can dehumidify and make room

air dry and comfortable.

Dehumidifying in rainy or

humid season

Function

Exchange of fresh air

Fresh Air

Open storm door to keep the fresh air in the room.

Safety Precaution

Read the safety precaution carefully before using this appliance.

Incorrect operation will cause injuries and damage, please pay special attention to below sign:

To prevent personal injury, injury to others and product damage.

User should strictly follow the operating instructions. Or it may cause product

damage or injuries.

When using the appliances, should always follow this instruction to reduce the risk of fire, electric

shock, and injury to person.

Please keep this manual . If you deliver the appliance to other users , do handover this manual together.

Installation Precaution

The appliance must be fitted with means for disconnection from the supply mains having a

contact separation in all poles that provide full disconnection under overvoltage category

III conditions, and these means must be incorporated in the fixed wiring in accordance

with the wiring rules.

The air conditioner must be installed by professional or qualified persons.

The appliance shall be installed in accordance with national wiring regulations.

The appliance shall be connected to electric supply with safety grounding .

The appliance must be connected to an electrical leakage protection switch with sufficient

capacity .

Operation Precaution

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

Do not use extension cord , otherwise it may cause fire hazard.

Do not pull the power supply cord to remove it from the socket. Do not twist or press the

power supply cord, and make sure it is not broken.

Do not touch the power plug, circuit breaker and emergency button when your hands are

wet.

Disconnect power plug before cleaning , maintenance and servicing .

Disconnect power plug from power supply when the appliance is not in use for a long

period of time .

Disconnect power plug when there is stange smell or abnormal noise from the appliance ,

and then contact service agency.

Do not use flammable detergent to clean the appliance , such as gasoline, to avoid fire

hazard.

Safety Precaution

Need two or more people to move and install the appliance to avoid excessive weight

hazard.

COOL mode operation

Outdoor temperature should be in range of 18

to 43 , otherwise it is possible for air conditioner

to breakdown.

Room humidity should be lower than 90% .

Otherwise, it is possible for air conditioner to dew

at air conditioner surface and even drop water after

running for so much time. And this is a normal

phenomenon.

Please operate air conditioner in the correct condition as followings.

DRY mode operation

Outdoor temperature should be in range of18 to 43 ,

otherwise it is possible for air conditioner to breakdown.

Power requirement

Water pipe

Special socket must be used. Furthermore, the socket and wiring

must conform to the wiring regulations. And the earthing method

must be reliable.

In fixed circuit, there must be electricity leakage protection switch

of enough power capacity and air switch with enough space.

Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:

Operating Condition

Make sure the voltage is 220V~240V, the ground must be

connected.

If the voltage is too high, it may damage the electric components.

If the voltage is too low, the compressor will vibrate violently

and damage the refrigerant system, the machine cannot be

operate normally.

Installation Instruction

The distance between the air conditioner and the around

obstacles s hould meet the requirement as below: over 150mm

(upper side), over 150mm (le ft side), over 150mm (right side)

and over 500mm (rear side).

Model W H D

7K/9K 450 350 580

18K 660 428 700

Unit:mm

Location:

How to install:

Avoid other heat sources or direct sun light.

Avoid a place where is easy for children to touch.

Don't use the unit in the immediate surroundings

of a laundry, a bath, a shower or a swimming

pool.

For window type air conditioner with remote

control, install in a location where is strong elec-

tromagnetic disturbance, you should contact the

seller in advance to avoid the malfunction in use.

and polluted by sulphurous gas, or other special areas, please

contact the seller before use.

Avoid a place where is possible for inflammable gas to leak

out.

It’s not allowed to be installed on the unstable or motive base

structure (such as truck) or in the corrosive environment

(such as chemical factory).

The condensation water must be drained away conveniently.

Install air conditioner unit far away from TV set or radio

etc. to avoid disturbing video or voice.

In salt and coastal area or place where is near thermal springs

Window type air conditioner is so valuable and the improper installation of it will cause a lot of damage!

Please associate the professional technician to install the unit and don’t install it by yourself.

Choose a location where there are no any obstacle

surrounding the unit, and the plug is accessible.

Prepare the installation hole slightly bigger than unit size.

Choose the installation space according to the following

diagram.

Product Dimension:

Installation procedure:

1) Remove the sticker from the front panel.

2) Put the unit into the installation hole.

When installing the unit, it should be slanted

down to the back to avoid the enlargement of

noise or vibration. (Slant between 6-10mm.)

(Shown at right figure.)

The installation place should be strong enough

to avoid the enlargement of noise or vibration.

3) Fill up sews in the cabinet with sponge or foam.

Installation assistance:

Use iron support

The installation hole should be strong enough to

support the air conditioner. If it cannot, iron sup-

port has to be used outdoors.

Iron support should be fixed on the building (Shown

at right figure.)

Use sunshade board

Air conditioner should avoid anything to be dropped

into it and avoid direct sunshine. If there is no cover

on it, you should contact the seller for installing

the sunshade board. When installing the sunshade

board, don’t let it block the air inlet at the side grille.

Horizontal line

Sunshade board

Wall

Wooden frame

Rubber plate

Support

Horizontal line

Drain water :

To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on

the condenser coil.

If the splashing sound annoys you, you can provide an outside drain by using the following procedure,

which may however cause a small loss of performance.

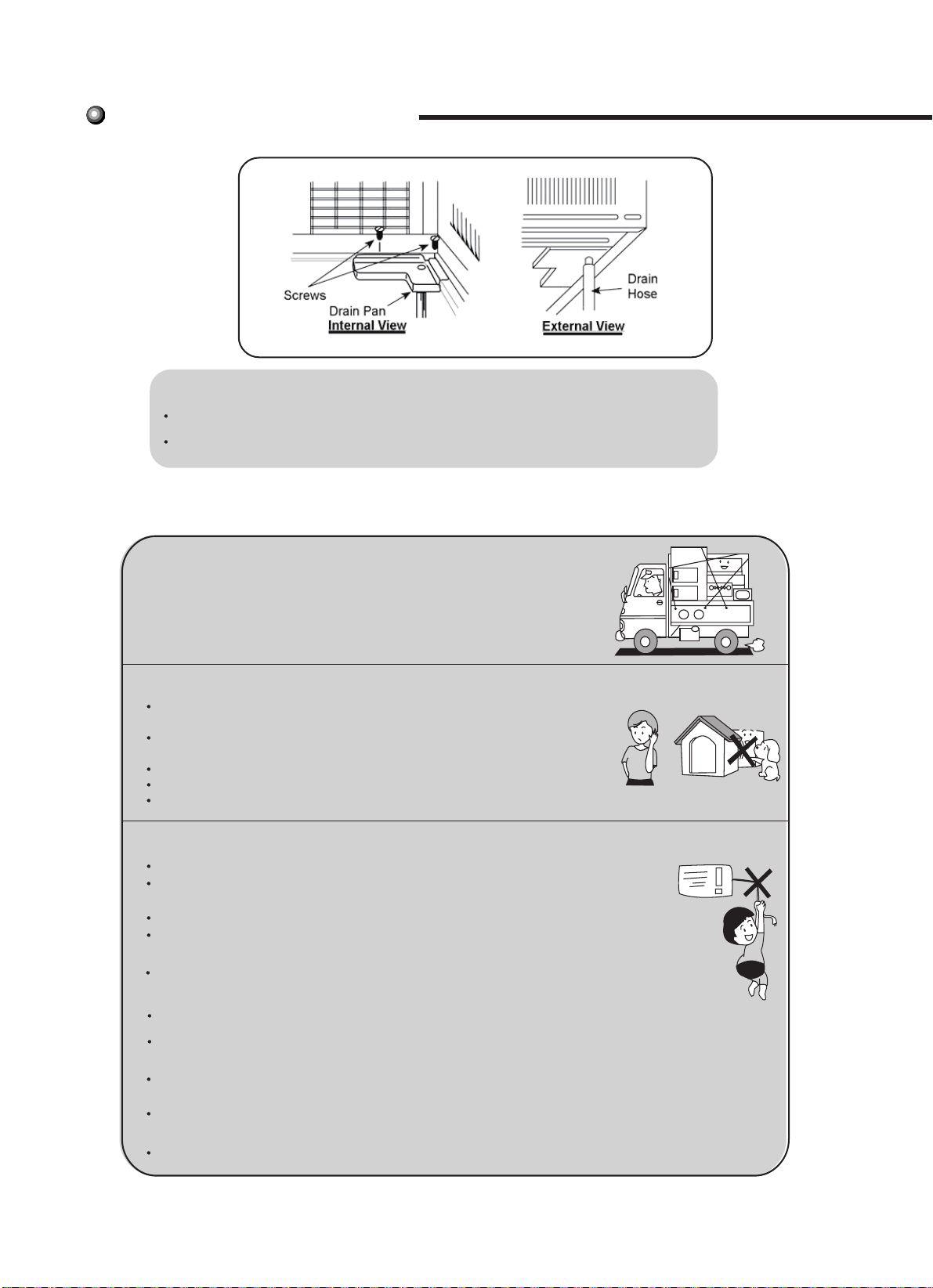

1. Slide out the chassis from the cabinet.

2. Remove the rubber plug from the body base plate.

3. Install the drain pan to the corner of the cabinet with 2 screws.

4. Connect the drain hose to the outlet on the drain pan bottom.

6.Slide the chassis into its original place in the cabinet.

Installation Instruction

5. Ensure the drainage work well, pour 2-3 cup of water into the drainage system.

Notes for installation

Remove

Before removing air conditioner to the other place, you should

contact the seller firstly.

Then it must be done under the direction of the professional

technician.

Noise

Electric wiring

Install in a location where is firm enough to avoid the enlargement of noise

and vibration.

Don’t put anything in front of the outlet of the unit to avoid increasing

noise.

Be sure that hot air or noise will not inconvenience neighbors.

Please contact the seller as soon as there is strange noise during operation.

Please use the safety support.

Must connect with ground reliably.

The exclusive circuit must be used. But removable socket can’t be used because poor

contact of it can cause over heat or fire.

Don’t pull the power cord strongly.

In fixed circuit, there must be electricity leakage protection switch and leakage current

is less than 30mA.

Connecting method between air conditioners and power cord and interconnecting method

of each individual element with one another should accord with wiring diagram on the unit.

The air conditioner should be installed in accordance with national wiring regulations.

Installation Instruction

An all-pole disconnection switch having a contact separation of at least 3mm in all poles

should be connected in fixed wiring

Air switch (thermal-magnetic breaker) should be installed in the circuit and its capacity is

10A for 7K and 9K, 20A for 18K.

If the supply cord is damaged, it must be replaced by the manufacturer or your dealer

or a qualified person to avoid a hazard.

All the electrical work must be done according to the local wiring regulations.

Note:

Drain pan and drain hose must be installed before using reverse cycle models.

Drain hose or tubing can be purchased locally to satisfy your particular needs.

Dieses Handbuch passt für folgende Modelle

Andere Whirlpool Klimaanlage Handbücher

Whirlpool

Whirlpool AC1888 Bedienungsanleitung

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool ACU109PR Montageanleitung

Whirlpool

Whirlpool ACM102 Bedienungsanleitung

Whirlpool

Whirlpool R1011 Produktinformationsblatt

Whirlpool

Whirlpool WA9260Q Bedienungsanleitung

Whirlpool

Whirlpool ACQ142XG0 Bedienungsanleitung

Whirlpool

Whirlpool Coolerator CAW21D2A1 Original Betriebsanleitung

Whirlpool

Whirlpool Through-The-Wall Air Conditioner Bedienungsanleitung

Whirlpool

Whirlpool AMAP151BW Bedienungsanleitung

Whirlpool

Whirlpool ACE082XS2 Bedienungsanleitung

Whirlpool

Whirlpool W7WCC085XB0 Bedienungsanleitung

Whirlpool

Whirlpool 1188018 Bedienungsanleitung

Whirlpool

Whirlpool WMB Bedienungsanleitung

Whirlpool

Whirlpool ACSL02XT Bedienungsanleitung

Whirlpool

Whirlpool PORTABLEAIR CONDITIONER Bedienungsanleitung

Whirlpool

Whirlpool AC1052XS Bedienungsanleitung

Whirlpool

Whirlpool ACE082XS0 Bedienungsanleitung

Whirlpool

Whirlpool AMD 302 Bedienungsanleitung

Whirlpool

Whirlpool ACU072XE Produktinformationsblatt

Whirlpool

Whirlpool ACQ082 Bedienungsanleitung

Whirlpool

Whirlpool ACQ189XR1 Bedienungsanleitung

Whirlpool

Whirlpool AC0062XM0 Bedienungsanleitung

Whirlpool

Whirlpool 1157672 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
