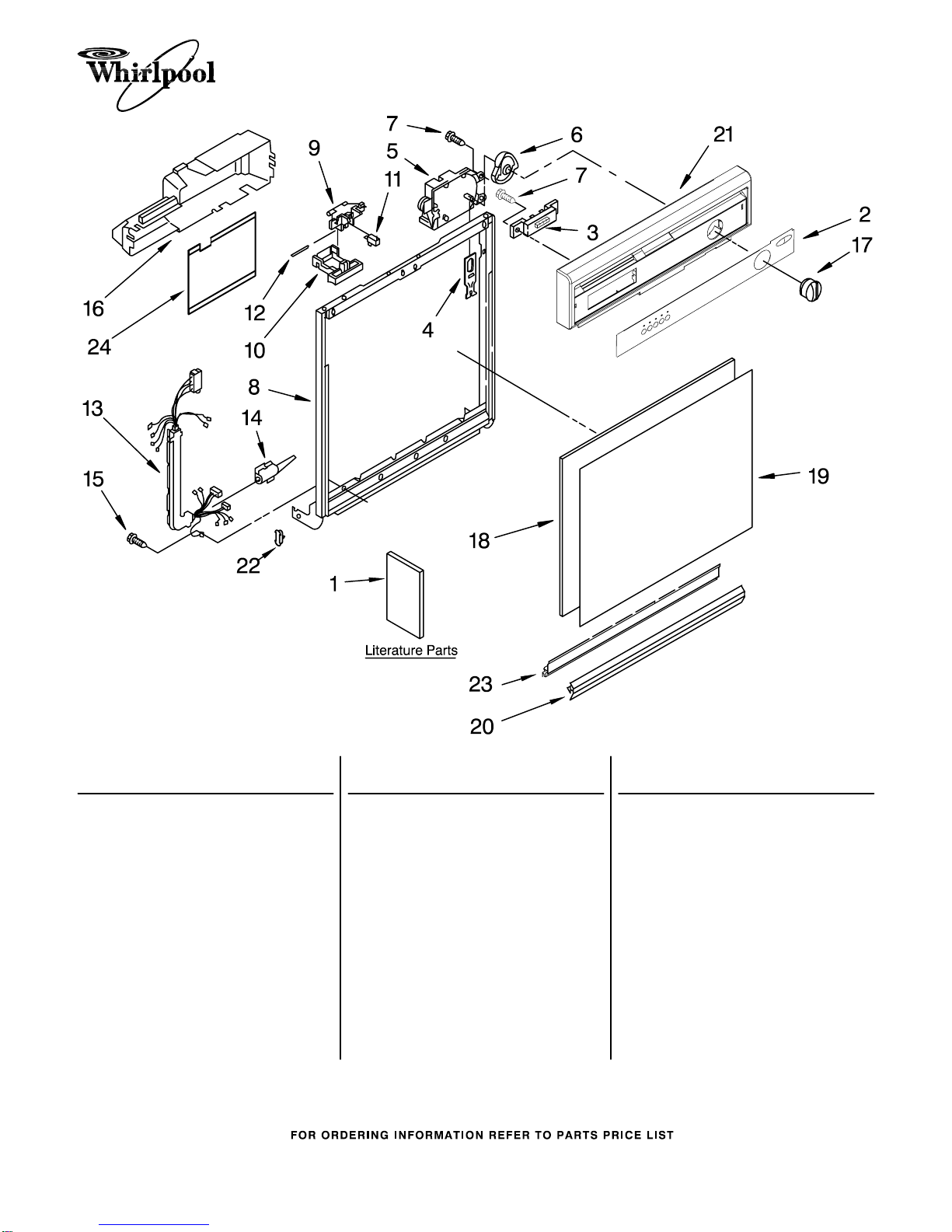

FRAME AND CONSOLE PARTS
1
For Model: DP840SWSX0
(White/Black)
9−06 Litho In U.S.A. (ebk) Part No. 8194530
PORTABLE
DISHWASHER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8535418 Instructions,
Installation
3367007 Instructions,
Installation
(Supplement)
(Locating Your
Water Supply)
W10072930
Guide, Energy
W10102271
Guide, Use & Care
8275134 Diagram, Wiring
2
W10102070
Insert, Console
3 8269365 Switch
4 3369529 Follower, Cam
5 8535372 Timer
6 8271510 Cam
7 304231 Screw,
8−18 x 1/2 (5)
8 3374711 Door Frame
(Includes Item 23)
9 3380854 Bolt, Latch
10 3369457 Lever, Latch
11 3369325 Switch, (2)
12 3368955 Pin, Switch (2)
13 8568324 Harness and
Protector
14 3376405 Elbow, Harness
15 3400892 Screw,
16 8269526 Cover Control
17 8275308 Knob, Timer
18 3368979 Spacer
19 Front Panel
3369769 White/Black
20 3374010 Retainer, Panel
21
W10072680
Console
(Includes Item 2)
22 3373234 Bearing,
Spring (2)
23 3374716 Channel, Retainer
(Also Order Item
#20)
24 3379671 Shield, Control
Cover

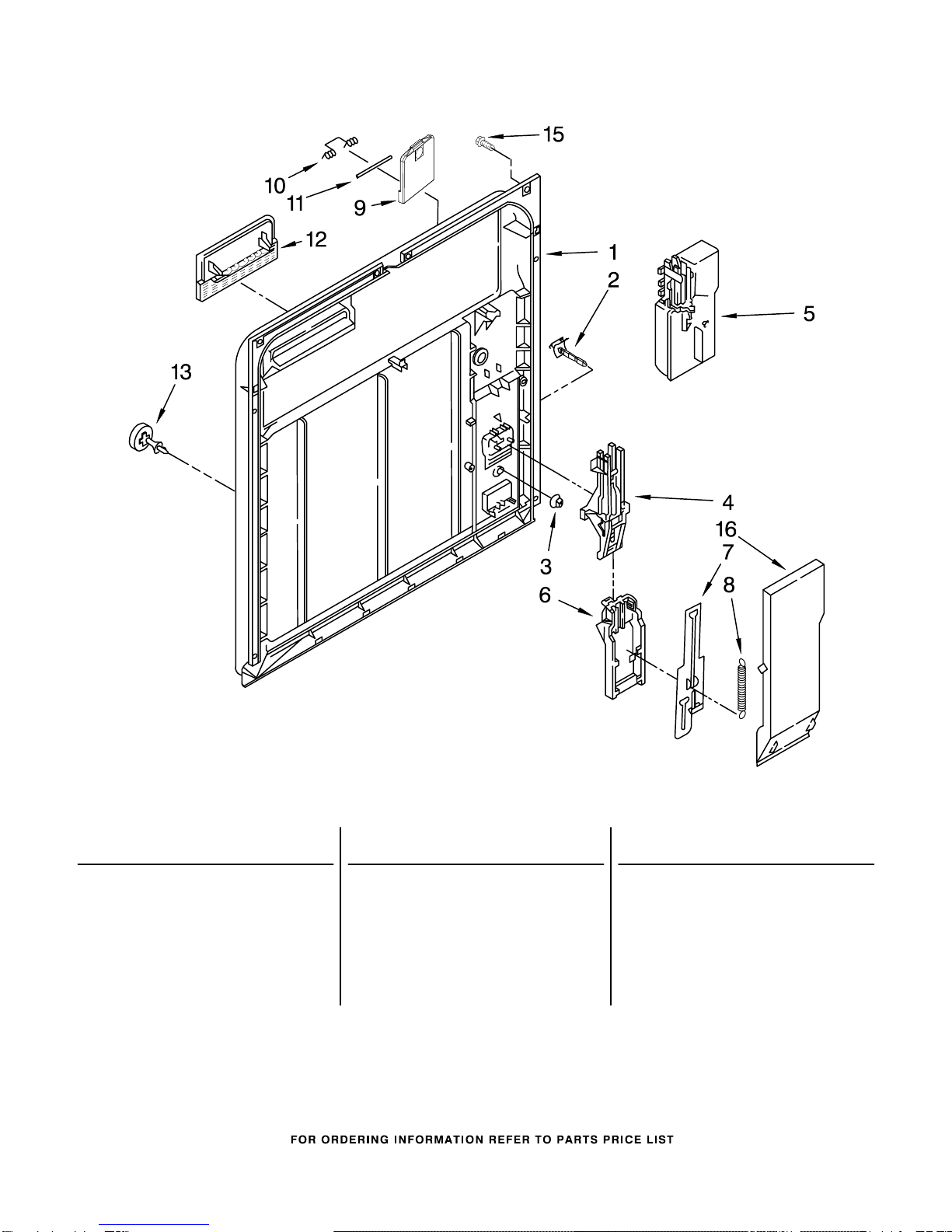

INNER DOOR PARTS
2
For Model: DP840SWSX0
(White/Black)
8194530
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8528310 Inner Door
(Also Order Latch
Door Kit 676413)
2 3376066 Latch, Detergent
Dispenser
3 3369061 Snap, Detergent
Dispenser
4 8519606 Actuator Assembly
5 8052027 Wet Agent,
Dispenser
6 3369000 Draw Bar (Upper
Dispenser)
7 8066017 Draw Bar (Lower
Dispenser)
8 3368999 Spring (Draw
Bar)
9 3378138 Lid Assembly
10 8066018 Spring, Lid
11 3372028 Pin (Lid Hinge)
12 3371710 Screen, Vent
13 3378134 Cap, Wet−Agent
15 3400815 Screw (8)
16 3371569 Cover, Drip
TUB ASSEMBLY PARTS
3
For Model: DP840SWSX0
(White/Black)
8194530
TUB ASSEMBLY PARTS
4
For Model: DP840SWSX0
(White/Black)
8194530
Illus. Part
No. No. DESCRIPTION
1 8533815 Tub and Support
Assembly
2 8528831 Tub, Wheel
Assembly (8)
3 3368933 Runner (2)
4 3374849 Leveler (2)
5 3370389 Screw,
Shoulder (2)
6 302819 Wheel (2)
7 343641 Screw,
10−16 x 1/2 (4)
8 3378149 Plate, Latch
9 3374720 Screw
10 3376927 Gasket
11 3369322 Grate
12 8528862 Deflector (2)
13 8519827 Heater
(Includes Item 14)
14 717273 Washer, Rubber (2)
15 8268548 Nut (2)
(Heater Terminal)
16 8274220 Water Valve
17 304392 Screw
18 3400935 Clip
23 3370225 Screw
24 3369063 Relay
25 304231 Screw
26 3368928 Fuse, Thermal
28 3373228 Spring, Door (2)
29 8318218 Housing, Float
Switch
30 3369067 Switch, Float
31 8318219 Cover, Switch
Housing
32 8519552 Float
33 717488 Nut
37 3371030 Hose, Inlet
38 301958 Clamp
40 8573243 Sound Shield
52 3379740 Support, Heater
53 8052018 Friction Pad

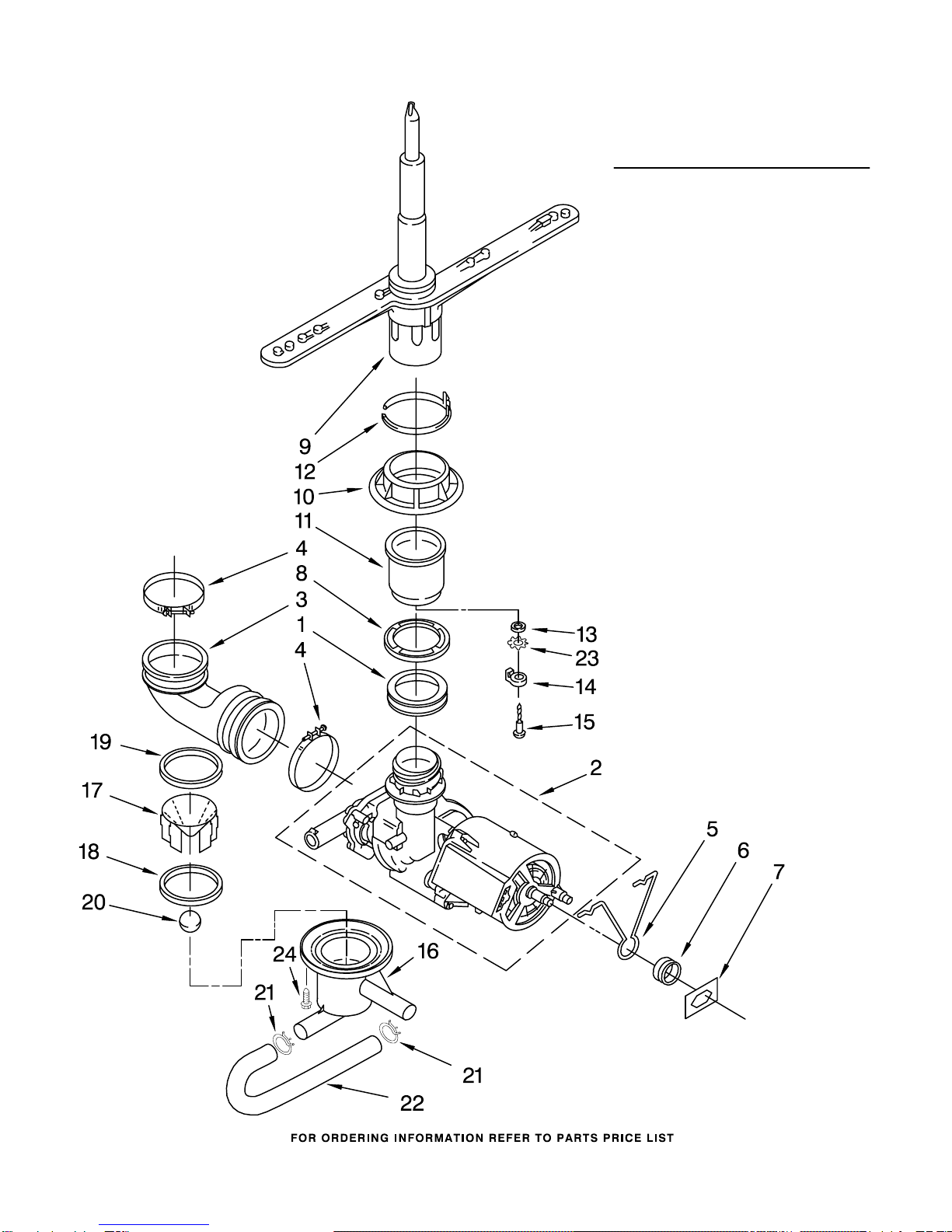

PUMP AND SPRAY ARM PARTS
5
For Model: DP840SWSX0
(White/Black)
8194530
Illus. Part
No. No. DESCRIPTION
1 3369037 Grommet, Pump
Seal
2 3369015 Pump & Motor
Assembly
For Breakdown Of Pump
Parts, Refer To Pump And
Motor Parts Page.
3 3369035 Hose, Pump
Inlet
4 3400959 Clamp (2)
5 8531963 Support, Motor
6 8535657 Grommet, Motor
Support
7 3370856 Pushnut, Motor
Support
8 3369038 Washer, Grommet
9 8268870 Spray Arm,
Assembly Lower
10 8268883 Nut, Pump Outlet
11 3371745 Support & Bearing
Assembly
(Includes Items:
13, 14 & 15)
12 3369045 Seal, Split Ring
13 3369044 Washer
14 3371746 Bearing
15 3371744 Shoulder Screw
16 8520839 Collector
17 8520841 Funnel
18 8520843 Seal
19 3369177 Seal
20 3369178 Ball, Check−Valve
21 371499 Clamp, Hose
22 8520842 Hose, Collector
23 3371634 Washer, Curved
24 8534039 Screw 10−16,
Hi−Lo (4)
PUMP AND MOTOR PARTS
6
For Model: DP840SWSX0
(White/Black)
8194530
Illus. Part
No. No. DESCRIPTION
1 8539225 Housing Assembly
2 3369031 Seal, Drain Cover
3 8563504 Diaphragm
4 3369029 Ring, Diaphragm
5 3369030 Cover, Drain Valve
6 3368921 Screw (4)
7 3369020 Seal Seat
8 3385557 Seal Head
9 3369013 Impeller &
Bearing Assembly
10 3369012 Disk & Mount
Assembly
11 8283457 Motor
12 3368922 Screw (3)
DISHRACK PARTS
7
Illus. Part
No. No. DESCRIPTION
For Model: DP840SWSX0
(White/Black)
8194530
1 8539225 Lower Dishrack
Assembly
2 8268825 Tower,
Protector
3 3385142 Bumper,
Dishrack (2)
4 8268645 Wheel & Transport
Assembly (4)
5 8268866 Basket,
Silverware
6 3385089 Track,
Dishrack (2)
7 8565920 Stop, Track (4)
8 8539222 Dishrack, Upper
9 8268852 Wheel & Axle
Assembly (4)
11 8519550 Diffuser, Water
CABINET PARTS
8
Illus. Part
No. No. DESCRIPTION
1 3378111 Shell Assembly
(White)
2 8275398 Coupler Assembly
3 302868 Screw
4 3378109 Saddle, Hose
5 309330 Clip, Strap
6 3367052 Clamp, Hose
7 16123 Washer
8 3371343 Housing, Hose
9 8566201 Cord, Power
10 3378125 Protector−Edge,
Divider
11 3373329 Screw
12 3371640 Shroud, Caster
13 3370544 Screw
14 3373199 Panel, Top
15 304428 Screw (2)
17 8559932 Caster
18 3374592 Adapter, Faucet
19 3372525 Screw
21 3370826 Screw (2)
22 3378126 Protector−Edge,
Divider
24 8559928 Frame Assembly
25 3371635 Screw, 8−18 x 1/2
26 3371644 Screw, 8−18 x 5/8
27 302251 Screw
For Model: DP840SWSX0
(White/Black)
8194530
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: DP840SWSX0
(White/Black)
8194530
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
ACCESSORIES
Side Panel Kits
4378867 White
4378868 Black
675788 Biscuit
4378869 Almond
Custom Trim & Panel Kits
675775 Black
675776 White
675809 Biscuit
Moisture Barrier Kit
4396277 Kit
Drain Hose
3385556 12 Ft.
Heavy Duty Spring Kit
4318050 Spring
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
4392901 Biscuit
PAINT, TOUCH−UP (1 qt.)
799344 White (Uncut)
4392900 Biscuit
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
4378968 Floor Mounting Kit
DISHRACK REPAIR
Tip Tine Repair Kit
(Enough for Two
Complete Dishracks)
4396838 White
4396840 Grey
4396854 Silver Atlantis
Vinyl Touch−Up (4 oz.)
676453 White
676455 Grey
4396853 Silver Atlantis
