Whirlpool DU1055XTSB1 Bedienungsanleitung

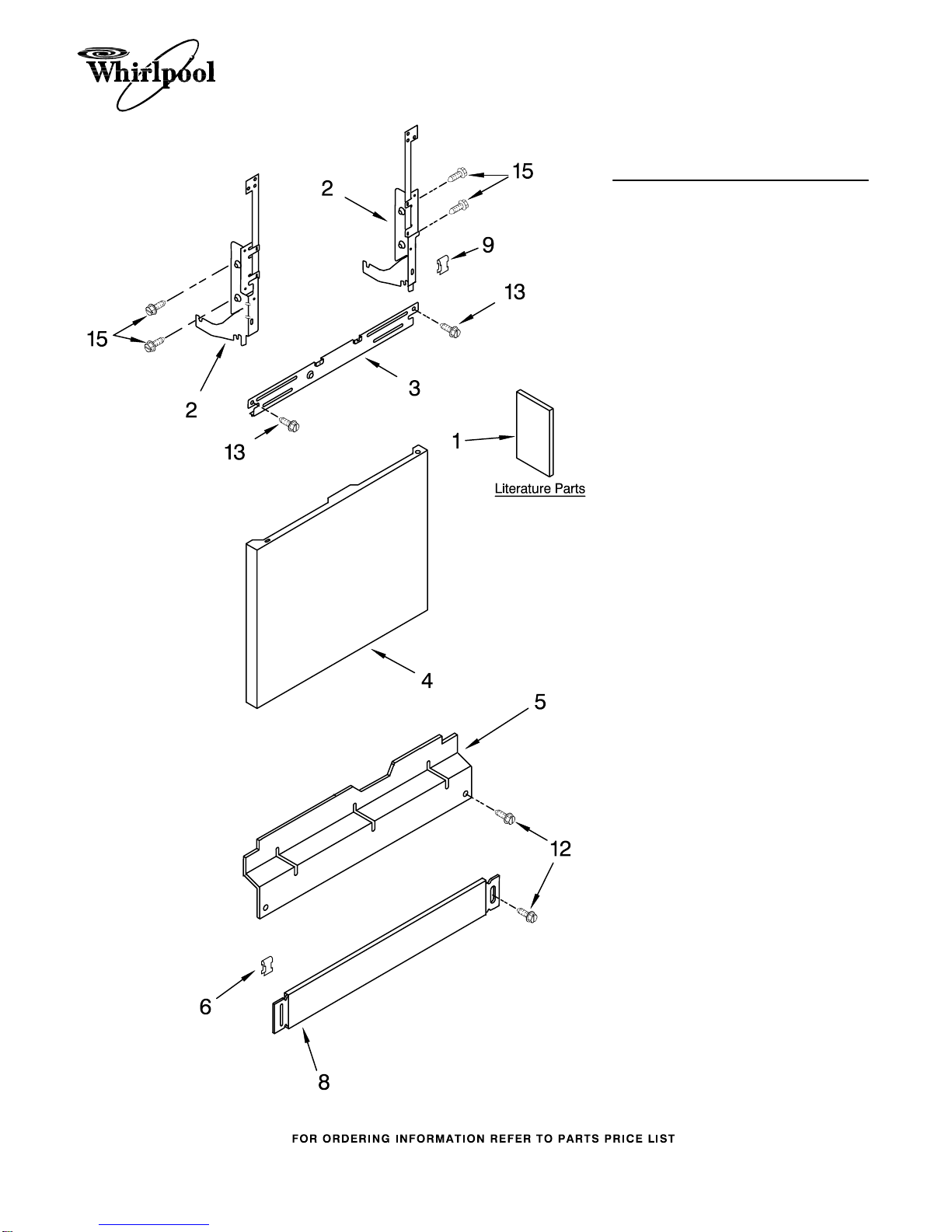

DOOR AND PANEL PARTS
1
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
2−07 Litho in U.S.A. (els) Part No. 8194599 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8575348 Instructions,
Installation
W10066090
Energy Guide
W10073760
Guide, Use & Care
W10082651
Tech Sheet
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
Door
4 Panel Front
W10073170
Black
W10073180
White
W10073190
Biscuit
8528840 Stainless
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 8269016 Clip, Grounding
8 Toe Panel
(Includes Item 6)
8573286 Black
8573287 White
8573288 Biscuit
9 8269740 Clip, Grounding
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
15 489470 Screw
CONTROL PANEL PARTS
2
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10102453
Black
W10102454
White
W10102455
Biscuit
2 8546546 Clip, BI−Metal
4
W10056090
Cover Control
Shield Assembly
5 8524472 Actuator, Latch
6 661663 BI−Metal
7 3400412 Screw
8 3369051 Screw (6)
9 Handle, Latch
8534984 Black
8534985 White
8534986 Biscuit
10 8524476 Bolt, Latch
11 8575277 Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
3 8269311 Inner Door
(Also Order
Item 6)
5 8542603 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8542566 Deflector, Vent
(Also Order
Item 6)
8 8565814 Dispenser,
Assembly
9 8269258 Seal, Front
12
W10070130
Wiring Harness
Main
13 8281154 Screw
14 8269296 Seal,
Console/door
15 8535637 Bracket, Dispenser
16 8531865 Shield, Dispenser
17 8558307 Cap, Rinse Aid
4
LOWER WASHARM PARTS
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268317 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1 8563007 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
NOTE:
If heater element is
removed, it must be replaced.

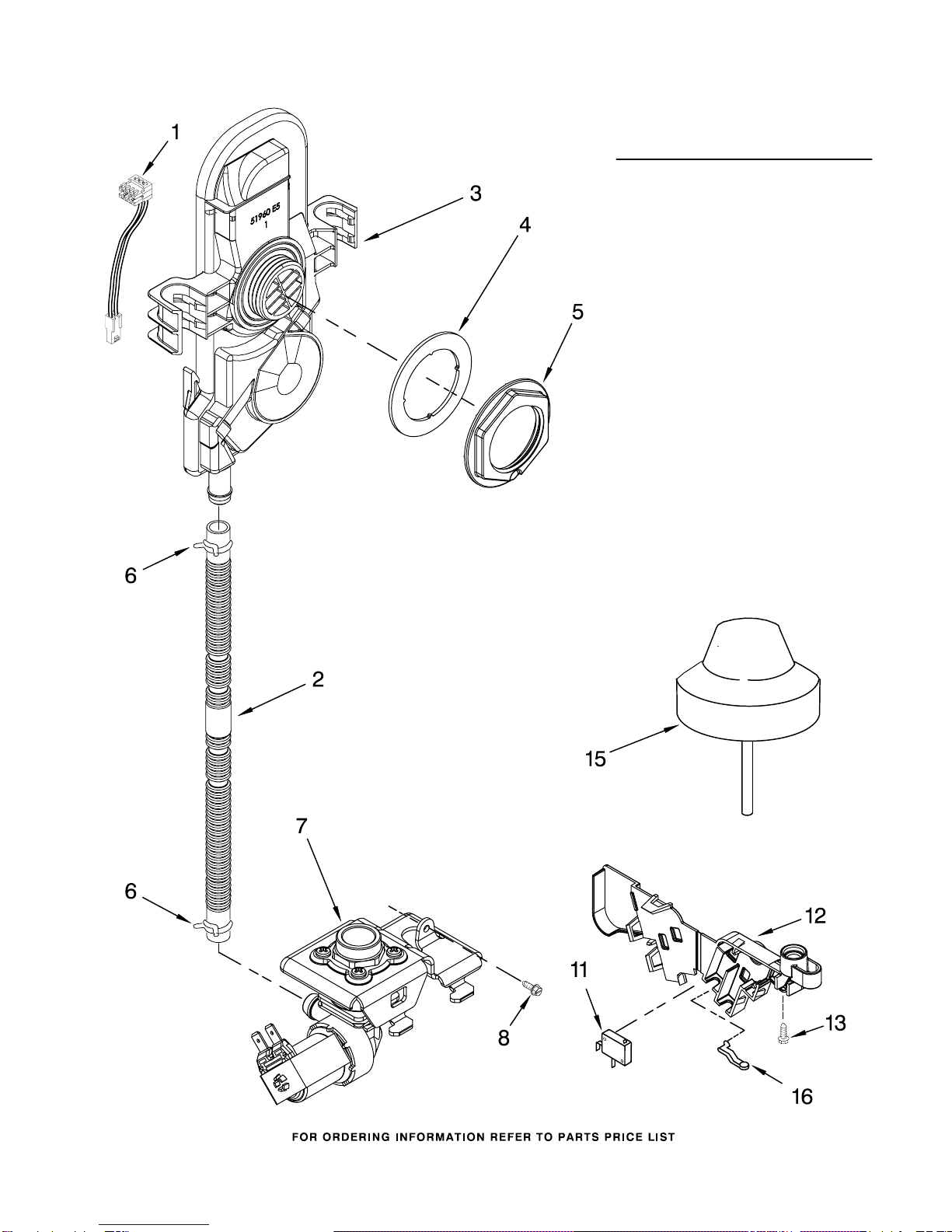

FILL AND OVERFILL PARTS
6
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1
W10070120
Wire, Jumper
2
W10041920
Hose, Inlet
3
W10041900
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531326 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
11 8268909 Switch, Overfill
Control
12 8545881 Standpipe,
Overfill
13 304231 Screw
15 8268913 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
TUB AND FRAME PARTS
7
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
TUB AND FRAME PARTS
8
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1
W10008370
Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
5 8531022 Drain Loop
With Check Valve
8 8533836 Screw (8)
10 3367670 Screw
11 8269145 Bracket,
Undercounter
15 8269831 Wheel Leg
16 8524584 Leveler, Leg
18 8524473 Spring, Door
Balance
19 8270016 Wheel & Mount
Assembly
20 3400892 Screw
21 8268991 Cover, Terminal
Box
23 8268961 Pad, Friction
26 304231 Screw
27 8269016 Clip, Grounding
28 8573240 Shield, Sound
Tub
29 3378595 Bracket,
Thermostat
30 661566 Thermostat
31 8580309 Strike, Latch
33 8268990 Bushing, Door
Spring
34 3378128 Washer
35 3400014 Screw
36 356138 Clamp, Hose (1)
37 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)

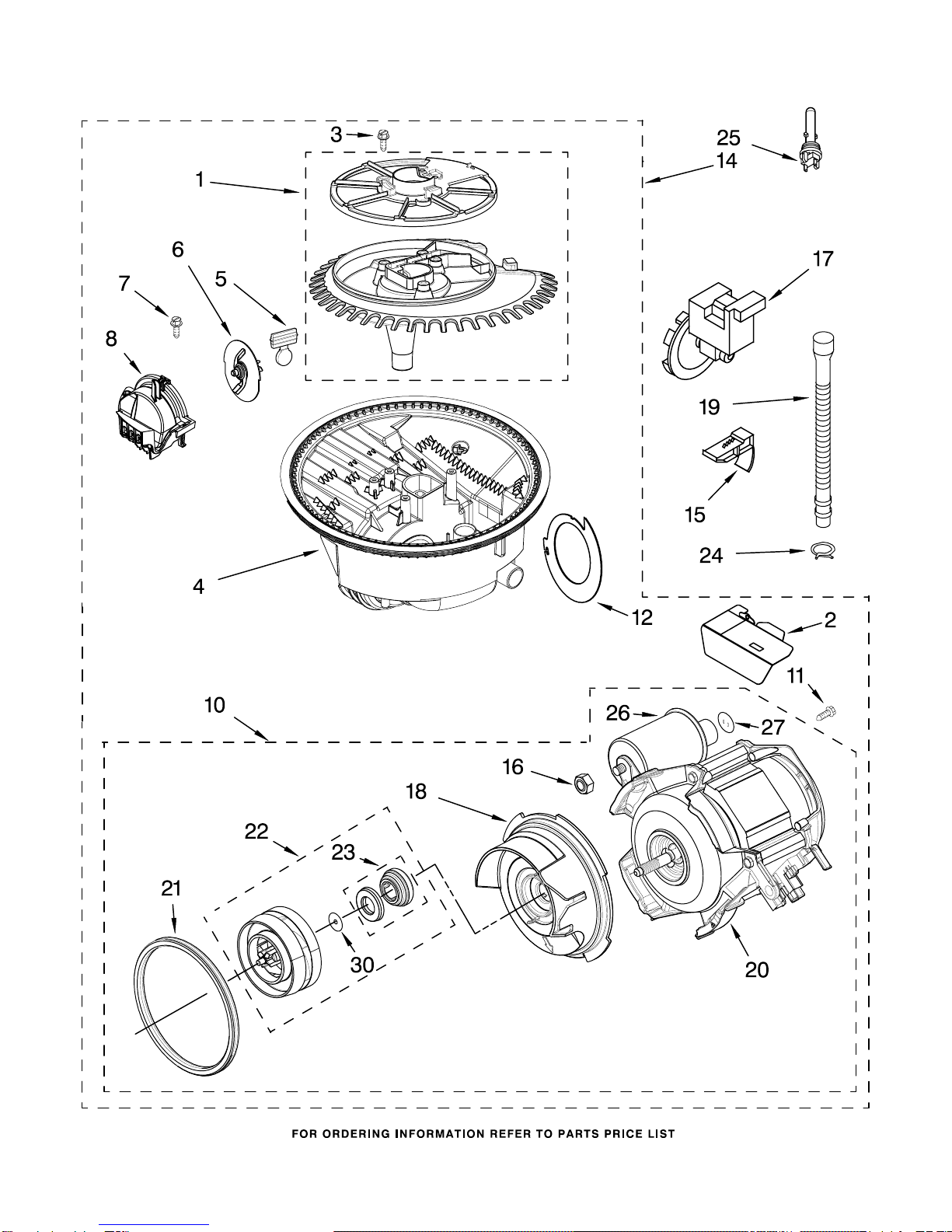

PUMP AND MOTOR PARTS
9
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
PUMP AND MOTOR PARTS
10
For Models: DU1055XTSB1, DU1055XTSQ1, DU1055XTST1, DU1055XTSS1
(Black) (White) (Biscuit) (Stainless)
8194599
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572615 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 30)
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25 8578828 Thermister
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
