iiiiiiiiiii_i_i! iiiilJi!i_! ;_ii' i

ANote to You .......................... 2

Dishwasher Safety .................. 3

Parts and Features .................. 4

Starting Your Dishwasher ......6

Loading Your Dishwasher ......8

Using the Dispensers ............ 12

Setting the Controls .............. 14

Selecting a wash cycle ...... 14

Using Cancel/Drain ............ 16

Selecting cycle options ...... 16

Changing a cycle

or option ............................ 17

Adding items

during a cycle .................... 17

Using Delay Hours ............ 18

Understanding the

status indicators .................. 19

Washing Special Items .......... 20

Caring for Your

Dishwasher ............................ 21

Saving Energy ........................ 23

Solving Common

Dishwashing Problems ........ 24

Troubleshooting .................... 27

Requesting Assistance

or Service .............................. 28

Warranty ................................ 31

8051554 www.whiripooLcom

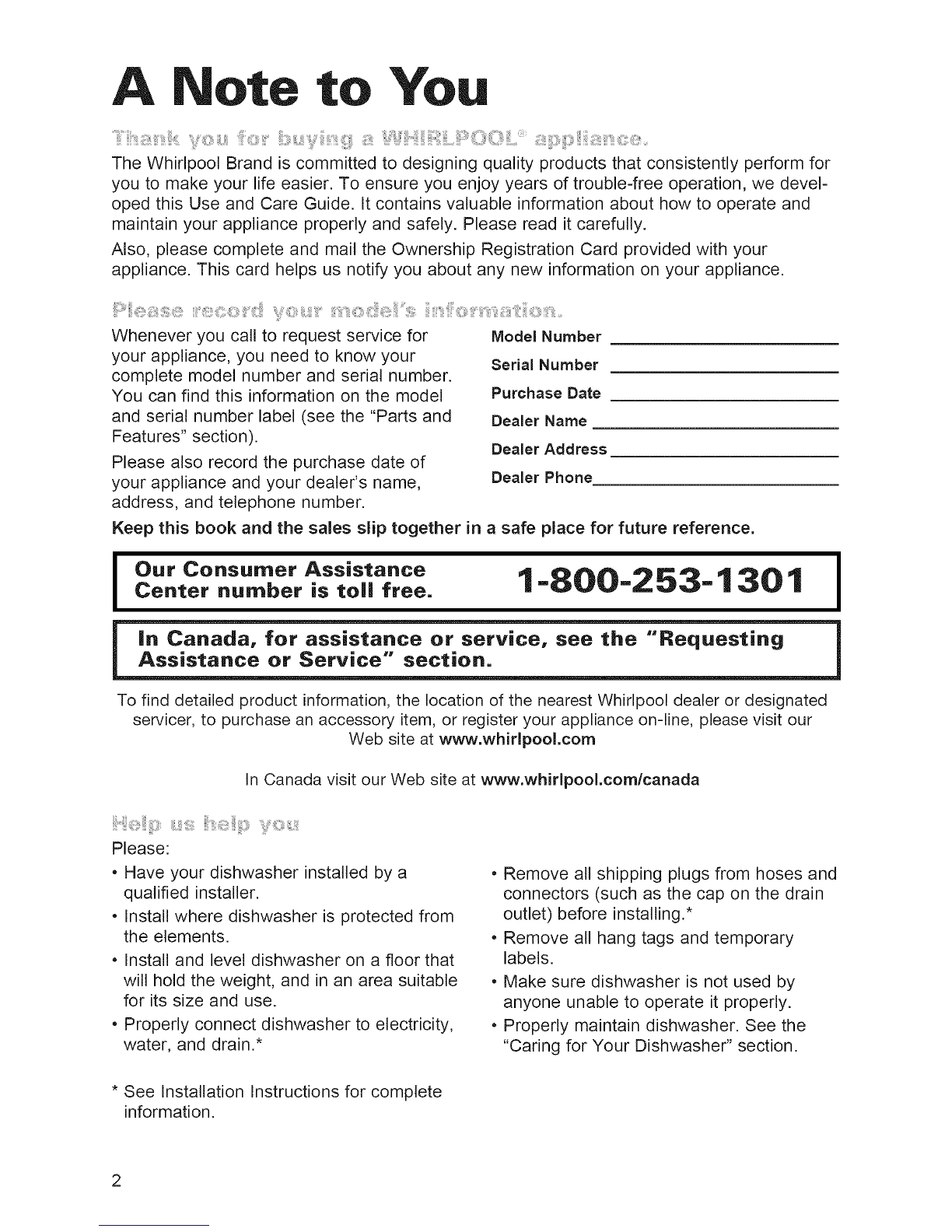

The Whirlpool Brand is committed to designing quality products that consistently perform for

you to make your life easier. To ensure you enjoy years of trouble-free operation, we devel-

oped this Use and Care Guide. It contains valuable information about how to operate and

maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Whenever you call to request service for Model Number

your appliance, you need to know your Serial Number

complete model number and serial number.

You can find this information on the model Purchase Date

and serial number label (see the "Parts and Dealer Name

Features" section). Dealer Address

Please also record the purchase date of

your appliance and your dealer's name, Dealer Phone

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

I Our Consumer Assistance I

Centern.mberistoll free. 1-800-253-1301

j in Canada, for assista,n, ce or service, see the "Requesting j

Assistance or Service section.

To find detailed product information, the location of the nearest Whirlpool dealer or designated

servicer, to purchase an accessory item, or register your appliance on-line, please visit our

Web site at www.whirlpool.com

In Canada visit our Web site at www.whirlpool.com/canada

Please:

• Have your dishwasher installed by a

qualified installer.

• Install where dishwasher is protected from

the elements.

• Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

• Properly connect dishwasher to electricity,

water, and drain.*

• Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.*

• Remove all hang tags and temporary

labels.

• Make sure dishwasher is not used by

anyone unable to operate it properly.

• Properly maintain dishwasher. See the

"Caring for Your Dishwasher" section.

* See Installation Instructions for complete

information.

ishwasher Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions,

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the

dishwasher, follow basic precautions,

including the following:

• Read all instructions before using the

dishwasher.

• Use the dishwasher only for its

intended function.

• Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

• When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

• Do not wash plastic items unless they

are marked "dishwasher safe" or the

equivalent. For plastic items not so

marked, check the manufacturer's

recommendations.

• Do not touch the heating element

during or immediately after use.

• Do not operate the dishwasher unless

all enclosure panels are properly in

place.

• Do not tamper with controls.

• Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

• To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

• Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

• Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

Parts an Features

This manual covers several different models. The dishwasher you have purchased may

have some or all of the parts and features listed below.

Top spray ................................

(p. 30) .............................................................

Extra-capacity

fold-down

(on some models,

not shown)

(p. 11)

Water inlet opening

(PBottom10)rack .............................................................

(p. 10)

Rack bumper ...............

(p. 10) ........................................

Heating element

Silverware

basket

(p. 9)

spray arm

(p. 11)

ht items clip

(on some models)

(p. 11)

Fold-down divider

(on some models)

(p. 10)

Model and serial

number label

(on right side)

spray arm

(p. 10)

POWER CLEAN TM

filter module

(p. 30)

Overfill protector

(p. 21)

Detergent

dispensers

(p. 12)

Rinse agent

dispenser

(p. 13)

Series 925 model

Cycle selector pads ii__.... %y#'

Option selector pads Cycle status indicators

Series 940 model

Cycle selector pads Option selector pads Cycle status indicators

Series 1000 model

ii_¸¸.... _,

Cycle selector pads Option selector pads Cycle status indicators

"n Your

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

ishwas er

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground

connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

GROUNDING iNSTRUCTIONS

•For a grounded, cord connected

dishwasher:

The dishwasher must be grounded, in

the event of a malfunction or breakdown,

grounding will reduce the risk of electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

For a permanently connected

dishwasher:

The dishwasher must be connected to

a grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

SAVE THESE INSTRUCTIONS

1. Load the dishwasher. See the "Loading

Your Dishwasher" section. 6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn off water.

2. Spin the spray arms. They should turn

freely.

3. Add detergent. See the "Using the

Dispensers" section.

7. Press a Cycle. If desired, press one

or more Options. The

dishwasher starts filling once

you press a Cycle unless

you select the delay wash

cycle. You can press Options

as the machine is filling.

'-L#J

The indicator glows when a

cycle or an option is selected.

4. Add rinse agent, if needed.

5. Close door firmly until it latches.

You can stop your dishwasher anytime

during a cycle. All you have to do is:

• Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close the door to

continue the cycle.

• Press Cancel/Drain. Once pressed, a

2-minute drain starts.

Loading Your shwasher

• To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

• Remove large pieces of food, bones, and

other hard items. The POWER CLEAN T'v'

filter module removes food particles from

the water. The module contains a chopping

device which reduces the size of food

items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the

POWER CLEAN filter module, you might

hear chopping, grinding, crunching, or

buzzing sounds. Those sounds are normal

when hard items enter the module. Do not

let metallic items (such as pot handle

screws) get into the POWER CLEAN filter

module. Damage can occur.

• Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to

dry over a period of time. Run a Rinse

Only cycle to keep dishes moist if you do

not plan to wash them soon.

• Load dishes so soiled surfaces face the

rotating spray arm.

• Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

•Secure lightweight load items in the racks.

• Pot lids and handles, pizza pans, cookie

sheets, etc. should not touch interior walls

or interfere with the spray arm's rotation.

• Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

iiiiiiiiii_li!;_!i:iiiiiiiil111:iiii'iii,_!!!ii_¸ _iii!:_iiilii!ii!l'_,_ii_J,_iii!!iiii_,,!i_iiii_"_'_i_,i_,ii_J,_iii!!i;i_;i_ii,ii_i"'_ii!i:::!!i!i_¸¸iiiii!i::::iii__:!!_i!!i__i_i,!!i_i_ii_!ii!,,_iii_i:i_i_!!!i!_,,,il;ii_

• Load the silverware basket while it is in

the door or take the basket out for loading

on a counter or table.

• Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. Load spoons with baked on food

pointing up.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

• Put small items (baby bottle caps, jar lids,

etc.) in the section with the lid.

• You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

NOTE: The basket may be hung on the

door or on the bottom rack. It can also be

placed inside the bottom rack.

To remove the basket:

1. Grab the basket by the handle and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To rep|ace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

• Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

iiii!!i'!i i!!I!ii!ili ' ,liiiii!!"i !i' !!:i '!!! i!

iili,,,_ii_iii_iiil_,_i_iii!!!ii_!_i_iiiiiiiiiiiiii'i_!!_i_ii_iii111iiiii,iiil,i,_iii!i!i;!__ii!:i:iiii__,_:iii_Ii!:'iiii_i_i_ii_,iiih_i_'i__iii,li"_;iiiiiiC:ii!,,_iii_i:i

Load items with cooked=on or dried=on food 12 place setting load

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

• Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

• Make sure pot handles and other items do

not stop rotation of the spray arm. Spray

arm must move freely.

• Load heavily soiled cookware face down

in rack.

• Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

• Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTES:

• Do not load glasses, cups, or plastic items

in the bottom rack.

• Do not load items between the bottom rack

and the dishwasher tub. This can block

the water inlet opening.

• If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Mixed load

Utensil load

/t/

Bumpers must face

dishwasher door

Fold=down dividers

(o_ some mode|s)

Fold-down dividers at the back of the rack

can be lowered to make room for deep

bowls, roasters, and other large items.

Dieses Handbuch passt für folgende Modelle

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool W10130985A Bedienungsanleitung

Whirlpool

Whirlpool ADG 6600 Bedienungsanleitung

Whirlpool

Whirlpool WDP560HAMZ Bedienungsanleitung

Whirlpool

Whirlpool UDT555SAF Bedienungsanleitung

Whirlpool

Whirlpool W7F HS51 AX UK Installations- und Betriebshandbuch

Whirlpool

Whirlpool DU930PWSB - on 24 Inch Full Console... Bedienungsanleitung

Whirlpool

Whirlpool ADP 7955 TOUCH Bedienungsanleitung

Whirlpool

Whirlpool DUSOOXR Bedienungsanleitung

Whirlpool

Whirlpool DU9900XR Series Bedienungsanleitung

Whirlpool

Whirlpool WDT730PAHV Bedienungsanleitung

Whirlpool

Whirlpool DU620 Bedienungsanleitung

Whirlpool

Whirlpool series 980 Bedienungsanleitung

Whirlpool

Whirlpool RUD6050R Bedienungsanleitung

Whirlpool

Whirlpool WKIC 3C26 Installations- und Betriebshandbuch

Whirlpool

Whirlpool ADG 4966 Bedienungsanleitung

Whirlpool

Whirlpool DP3000XRN4 Bedienungsanleitung

Whirlpool

Whirlpool DU850SWPB0 Bedienungsanleitung

Whirlpool

Whirlpool DU948PWPB0 Bedienungsanleitung

Whirlpool

Whirlpool Ikea IUD4000RQ0 Bedienungsanleitung

Whirlpool

Whirlpool DU1100XTPS Gebrauchsanweisung

Whirlpool

Whirlpool ADG 6240 IX Bedienungsanleitung

Whirlpool

Whirlpool WBC 3C26 X Installations- und Betriebshandbuch

Whirlpool

Whirlpool W10435040C Bedienungsanleitung

Whirlpool

Whirlpool WDT710PA Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
