INSTALLATION INSTRUCTIONS

PORTABLE DISHWASHER

PLASTIC TUB

INSTRUCCIONES DE INSTALACIÓN

LAVAVAJILLAS EMPOTRADA

CON TINA PLÁSTICA

INSTRUCTIONS D’INSTALLATION

LAVE-VAISSELLE ENCASTRÉ

CUVE EN PLASTIQUE

Table of Contents........................................................2

Indice ..........................................................................7

Table des matières....................................................12

W10894879A

TABLE OF CONTENTS

DISHWASHER SAFETY

You Need to:

■Slowly open dishwasher door while someone grasps the rear

of the dishwasher. Remove shipping materials and drain hose.

Close dishwasher door until latched.

NOTE: Each dishwasher is tested at the factory and may

contain some residual water in the tub as a result of the test.

■Observe all governing codes and ordinances.

■Prepare dishwasher and faucet as speciﬁed in these

instructions.

■Have everything you need to properly install dishwasher.

The dishwasher must be installed to meet all electrical and

plumbing national and local codes and ordinances.

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER SAFETY ................................................... 2

INSTALLATION REQUIREMENTS................................... 3

Tools and Parts .........................................................................3

Location Requirements.............................................................3

Water Supply Requirements.....................................................3

Electrical Requirements............................................................3

INSTALLATION INSTRUCTIONS..................................... 3

Caster Installation.....................................................................3

Prepare Dishwasher..................................................................4

Connect Dishwasher.................................................................4

Disconnect Dishwasher ............................................................6

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the recommended tools and parts before starting

installation. Read and follow the instructions provided with

any tools listed here.

Tools Needed:

Pliers Small hammer

Parts Supplied:

■Faucet Adapter Kit Part Number W10254672

■4 casters

■Literature package

Make sure all these parts were included in the parts bag.

Close and latch dishwasher door. See parts list for accessories

available for your dishwasher.

NOTE: Parts are available for purchase in plumbing supply

stores. Check local codes. Check existing electrical supply. See

the “Electrical Requirements” section. It is recommended that

electrical connections be made by a licensed electrical installer.

LOCATION REQUIREMENTS

■Grounded electrical supply is required.

■Sink or laundry tub that can drain water at a minimum

carry-away capacity of 7 gal. (26 L) per minute

■Top of sink or laundry tub that is at least 27" (68.6 cm)

high and not higher than 48" (122 cm) from the bottom

of dishwasher

■Floor support for dishwasher weight of 180 lbs (81.6 kg).

■Grounded electrical outlet

■Hot water faucet or hot and cold single-spout water faucet

within 30" (76.2 cm) of the back of dishwasher

■20-120 psi (103-827 kPa) water pressure

WATER SUPPLY REQUIREMENTS

■A hot water line with 20-120 psi (138-862 kPa) water

pressure can be veriﬁed by a licensed plumber.

■120°F (49°C) water at dishwasher

ELECTRICAL REQUIREMENTS

Be sure that the electrical connection and wire size are adequate

and in conformance with the National Electrical Code, ANSI/

NFPA 70 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02269

You must have:

■120-volt, 60 Hz, AC-only, 15- or 20- amp, fused

electrical supply

■Mating grounded electrical outlet

We recommend:

■A time-delay fuse or circuit breaker

■A separate circuit

INSTALLATION INSTRUCTIONS

CASTER INSTALLATION

1. Place 2 corner posts on ﬂoor

behind dishwasher

Corner post

2. Put dishwasher on its back

Dishwasher door frame

Grasp sides of dishwasher door frame and put dishwasher

on its back.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

dishwasher.

Failure to do so can result in back or other injury.

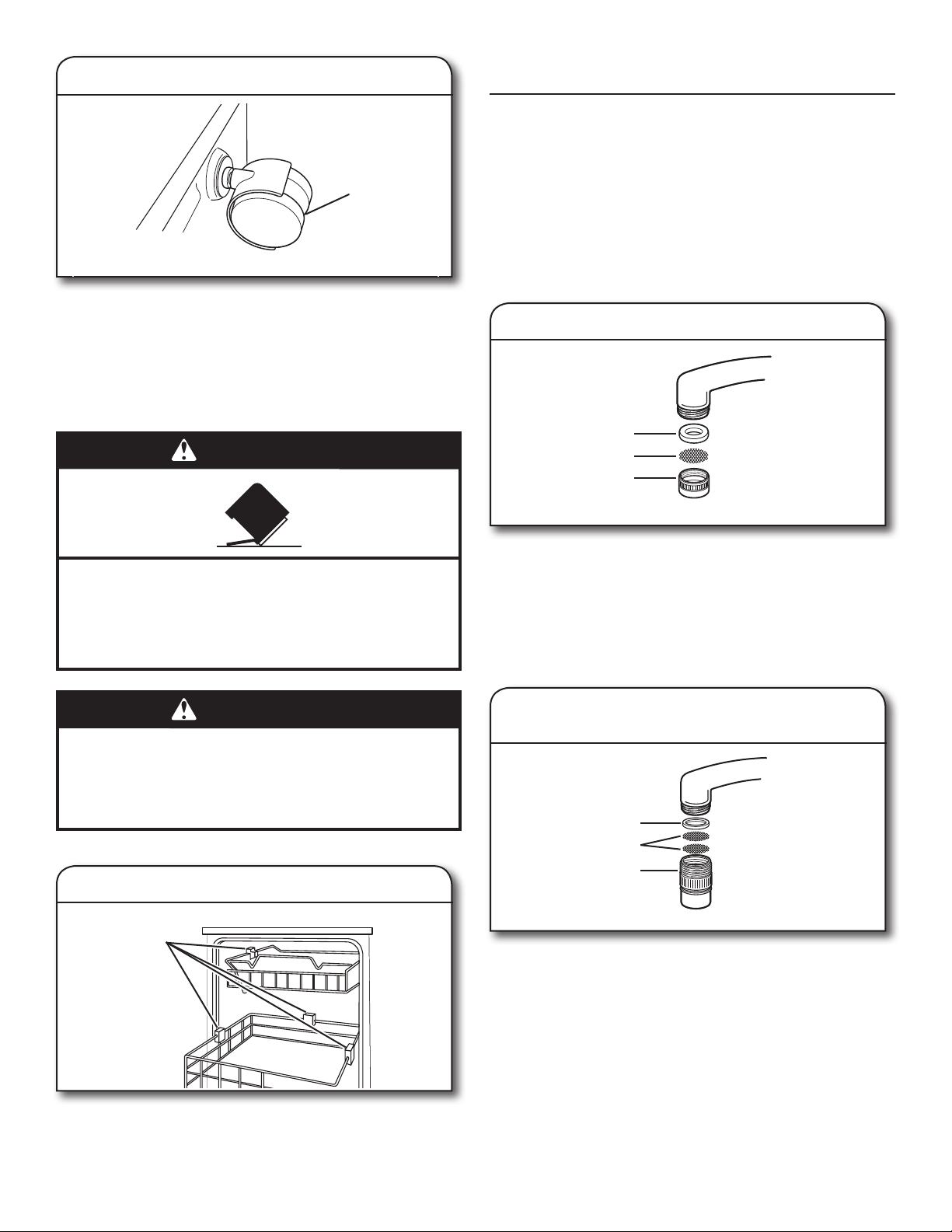

3. Attach casters

Caster

Firmly push casters into holes at corners of dishwasher as

shown. Pull on each caster to check that casters are snug.

HELPFUL TIP: It may be helpful to place a piece of wood

between the caster wheels and then lightly tap the wood with

a hammer.

PREPARE DISHWASHER

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

dishwasher.

Failure to do so can result in back or other injury.

4. Stand dishwasher upright

Beaded foam

shipping pieces

Stand dishwasher upright. Open door and remove shipping

foam, cardboard tower, and any other shipping materials.

Close dishwasher door. Latch dishwasher door shut.

CONNECT DISHWASHER

Connecting the Faucet Adapter

NOTES:

■A hose that attaches to a sink spray can burst if it is installed

on the same water line as the dishwasher. If your sink has a

spray hose, it is recommended that the hose be disconnected

and the hole plugged.

■A special adapter must be installed on the faucet before the

dishwasher can be connected. Complete the instructions

below using the provided adapter.

When moving your dishwasher, make sure the door is latched.

Hold the dishwasher at the top front corners.

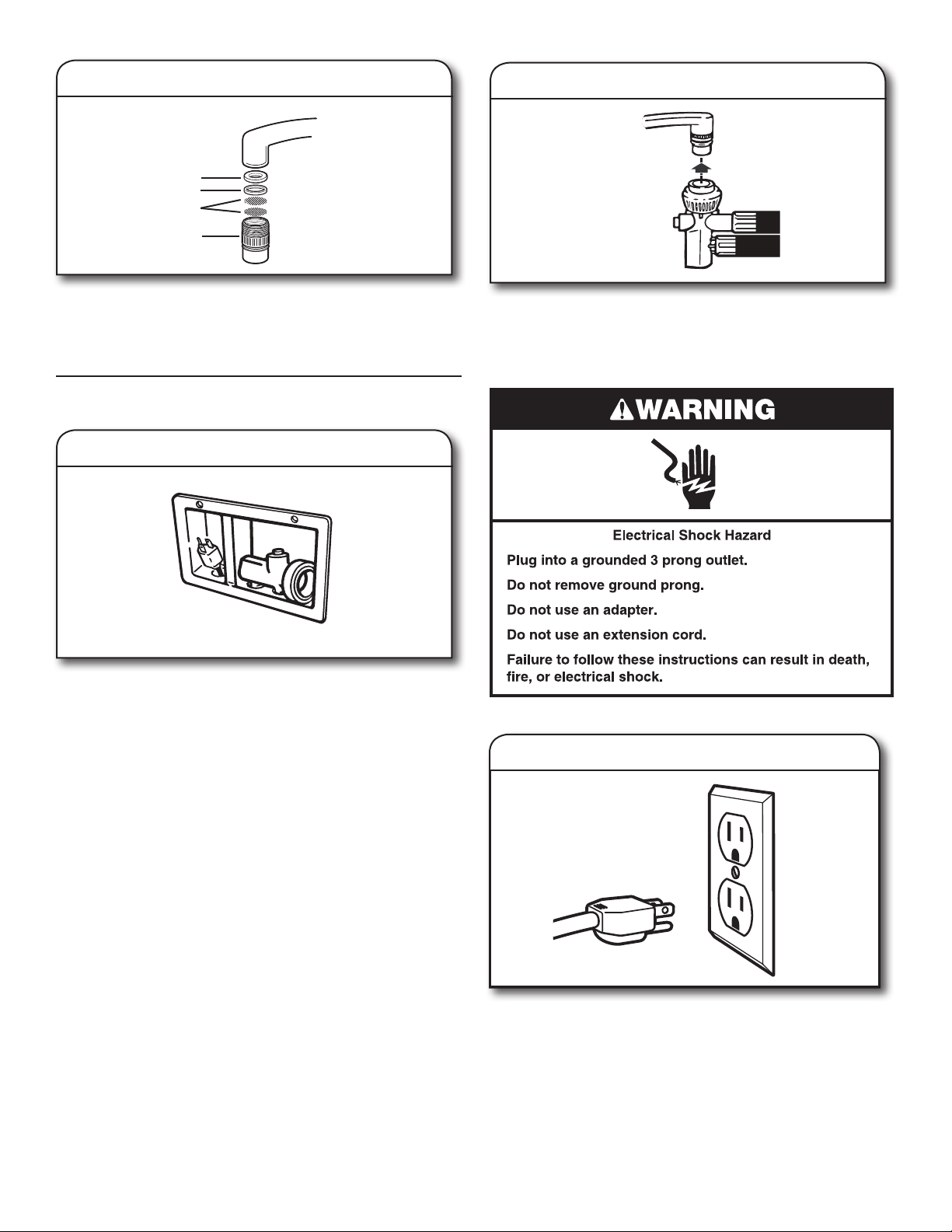

5. Prepare faucet

Washer

Screen

Screen holder

or aerator

Remove the screen holder or aerator, screen, and washer from

the end of the faucet. Use the faucet adapter kit that came

with your portable dishwasher to modify the faucet where the

dishwasher will be used.

NOTE: Remove and save the washer, screen, and screen holder

or aerator for future use.

DETERMINE FAUCET THREAD TYPE

6. Attach faucet adapter –

external threads

Thin washer

Screens

Faucet adapter

Insert the 2 screens and then the thin washer from the faucet

adapter kit into the faucet adapter. Attach the adapter onto

the end of the faucet.

NOTE: Do not use the thick washer.

Attach faucet adapter – internal threads

Thin washer

Screens

Faucet adapter

Thick washer

Insert the 2 screens, the thin washer, and then the thick washer

from the faucet adapter kit into the faucet adapter. Attach the

adapter onto the end of the faucet.

NOTE: Use both washers.

Connecting to Water and Electrical Supply

Run water at the faucet until it is hot. Turn off the water.

7. Check hose connection

Pull the hoses out of their storage compartment on the back of

the dishwasher.

NOTE: Make sure the hoses are not kinked or twisted. Kinked

hoses reduce washing performance.

8. Connect hose to faucet

Pull down on the locking collar while lifting the hose connector

onto the faucet adapter. When the connector snaps into place,

release the locking collar. Turn the hot water on slowly until it is

all the way on.

9. Plug into a grounded 3 prong outlet.

Using the Faucet

You can draw water from the faucet while the dishwasher

is connected.

NOTE: Do not draw water while the dishwasher is ﬁlling or

while water is being pumped out. (This helps avoid a low ﬁll

when dishwasher is ﬁlling or keeping drain water from mixing

with fresh water when dishwasher is draining.)

10. Adjust water temperature

Press the red button on the hose connector to draw water from

the faucet. (The faucet is set on hot. Adjust the faucet for the

water temperature you want.)

NOTE: Turn the hot water back on after you draw water from

the faucet. Turn off the cold water.

DISCONNECT DISHWASHER

Turn off the hot water. (This can be done after the last rinse.)

11. Disconnect hose from faucet

Press the red button on the connector to release the water

pressure. Lift slightly on the hose connector while pulling down

the locking collar. Pull down on the connector.

Empty any remaining water from the connector by turning the

connector upside down.

12. Disconnect dishwasher

Unplug the power supply cord and return it to the storage

compartment. Return the hoses to the storage compartment.

Vacation or Extended Time without Use

To Reduce Risk of Property Damage During Vacation or

Extended Time Without Use

■When you will not be using the dishwasher during the summer

months, turn off the water and power supply to the dishwasher

■Make sure the water supply lines are protected against

freezing conditions. Ice formations in the supply lines

can increase water pressure and cause damage to your

dishwasher or home. Damage from freezing is not covered

by the warranty.

■When storing your dishwasher in the winter, avoid water

damage by having your dishwasher winterized by authorized

service personnel.

7/16

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool WDF590SAJW Bedienungsanleitung

Whirlpool

Whirlpool ADP 6600 SL Bedienungsanleitung

Whirlpool

Whirlpool ADG 402 Bedienungsanleitung

Whirlpool

Whirlpool W7I HF60 TUS UK Installations- und Betriebshandbuch

Whirlpool

Whirlpool RUD6050R Bedienungsanleitung

Whirlpool

Whirlpool W10836808B Bedienungsanleitung

Whirlpool

Whirlpool DU8500XT Series Bedienungsanleitung

Whirlpool

Whirlpool W10329310A Bedienungsanleitung

Whirlpool

Whirlpool ADG 7470/1 Bedienungsanleitung

Whirlpool

Whirlpool DU850SWLQ0 Bedienungsanleitung

Whirlpool

Whirlpool 24-Inch - Built-In Dishwasher (Color: Silver)... Bedienungsanleitung

Whirlpool

Whirlpool WDL785SAAM Montageanleitung

Whirlpool

Whirlpool Ikea IUD8000R Bedienungsanleitung

Whirlpool

Whirlpool W10435039A Bedienungsanleitung

Whirlpool

Whirlpool 9700 Series Bedienungsanleitung

Whirlpool

Whirlpool WDTA75SAHN0 Bedienungsanleitung

Whirlpool

Whirlpool 925 series Bedienungsanleitung

Whirlpool

Whirlpool 8500 SERIES Bedienungsanleitung

Whirlpool

Whirlpool WDF560SAFM Bedienungsanleitung

Whirlpool

Whirlpool Ikea IUD4000RQ0 Bedienungsanleitung

Whirlpool

Whirlpool GU2700XTSB1 Bedienungsanleitung

Whirlpool

Whirlpool DP920QWDB3 Bedienungsanleitung

Whirlpool

Whirlpool 3367228 Bedienungsanleitung

Whirlpool

Whirlpool ADG 9442 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
