Whirlpool 3RAWZ481EML2 Bedienungsanleitung

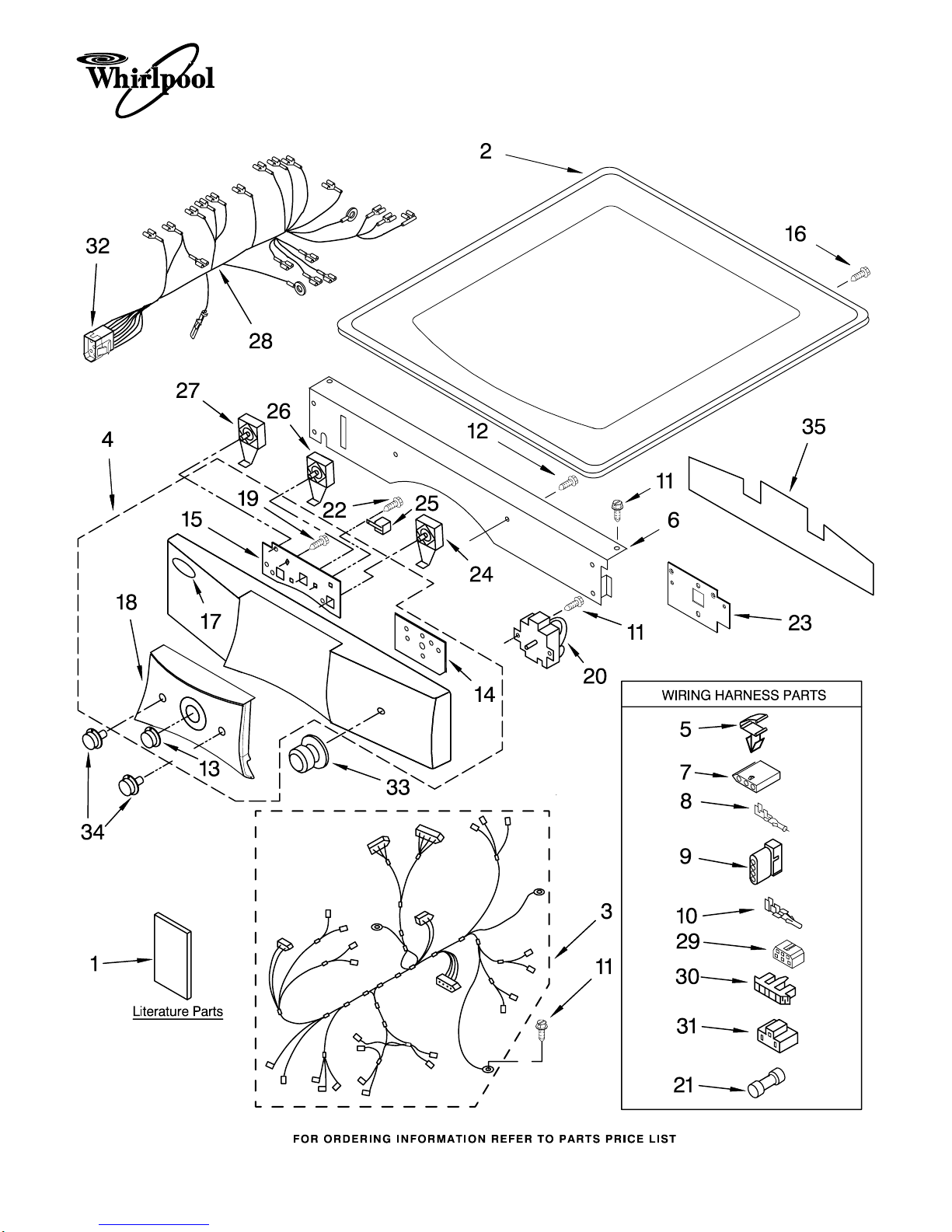

TOP AND CONSOLE PARTS

For Model: 3RAWZ481EML2

(Pewter)

6−05 Printed in U.S.A. (LT) Part No. 8180715

ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8545902 Label,

Wiring Diagram

8577079 Use & Care Guide

8563878 Installation

Instructions

8315975 Installation

& User Guide

2 3980096 Top

3 8543289 Harness, Main

4 3979740 Panel, Console

(Includes

Illus. 13, 14

15, 17, 18 & 19)

5 3394427 Clip, Harness

6 3980123 Bracket, Console

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

12 488886 Screw, 8−18 x 1/2

13 3980121 Button,

Push−To−Start

14 3979738 Bracket, Timer

15 3979743 Bracket,

Switch Mounting

16 8281225 Screw, 8−18 x 1/2

17 8543319 Medallion

18 3956540 Console, Center

19 3400238 Screw, 2−28 x 1/2

20 3980205 Timer

21 3951198 Fuse

22 3390646 Screw, 8−18 x 5/16

23 3980421 Spacer Plate

(Timer)

24 8316076 Switch,

Wrinkle Guard

25 8522378 Buzzer, Mini

26 8562100 Switch,

Push−To−Start

27 3399642 Switch,

Temperature

28 8543291 Harness, Console

29 3347243 Connector,

6−Circuit

30 3397269 Connector, Timer

31 3401144 Connector

(PTS Relay)

32 692997 Connector

33 3980218 Knob,

Timer Assembly

34 3980129 Knob, Control (2)

35 3980339 Shield, Drip

CABINET PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

CABINET PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317342 Cover,

Terminal Block

2 98139 Screw, 8−32 x 5/16

3 697776 Screw, 10−32 x 5/8

(Ground)

4 3397659 Block, Terminal

5 8318457 Switch, Broken

Belt

6 8521947 Dry Rack

(Top)

7 8519216 Panel, Side (L.H.)

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 3979261 Plug, Multivent

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

17 8564132 Sound Panel

18 233520 Washer, Thrust

19 8543119 Wire, Jumper

(Includes

Illus. #41)

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

23 8521961 Dry Rack

Support

24 8519217 Panel, Side (R.H.)

25 8521950 Dry Rack

Assembly

26 3393657 Restrainer, Belt

27 3404470 Motor, Assembly

50 HZ.

29 3402548 Pulley 50 HZ.

30 3387610 Belt, Drive

31 8541503 Kit,

Stack Assembly

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 8316644 Clip,

Strain Relief

36 3395532 Exhaust Pipe

& Bracket

37 3395534 Exhaust Pipe

(Short)

38 3395535 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

41 8541808 Switch, Door

42 3400934 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 340025 Wire, Ground

50 8519207 Base, Cabinet

51 8562170 Front Panel

52 696144 Strike, Door (2)

53 90767 Screw, 8−18 x 3/8

56 8519273 Bracket, Control

61 3980095 Toe, Panel

62 8543118 Panel, Rear

63 692400 Nut, Push−In

64 3400097 Screw, 10−24 x 3/8

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

66 279969 Grey

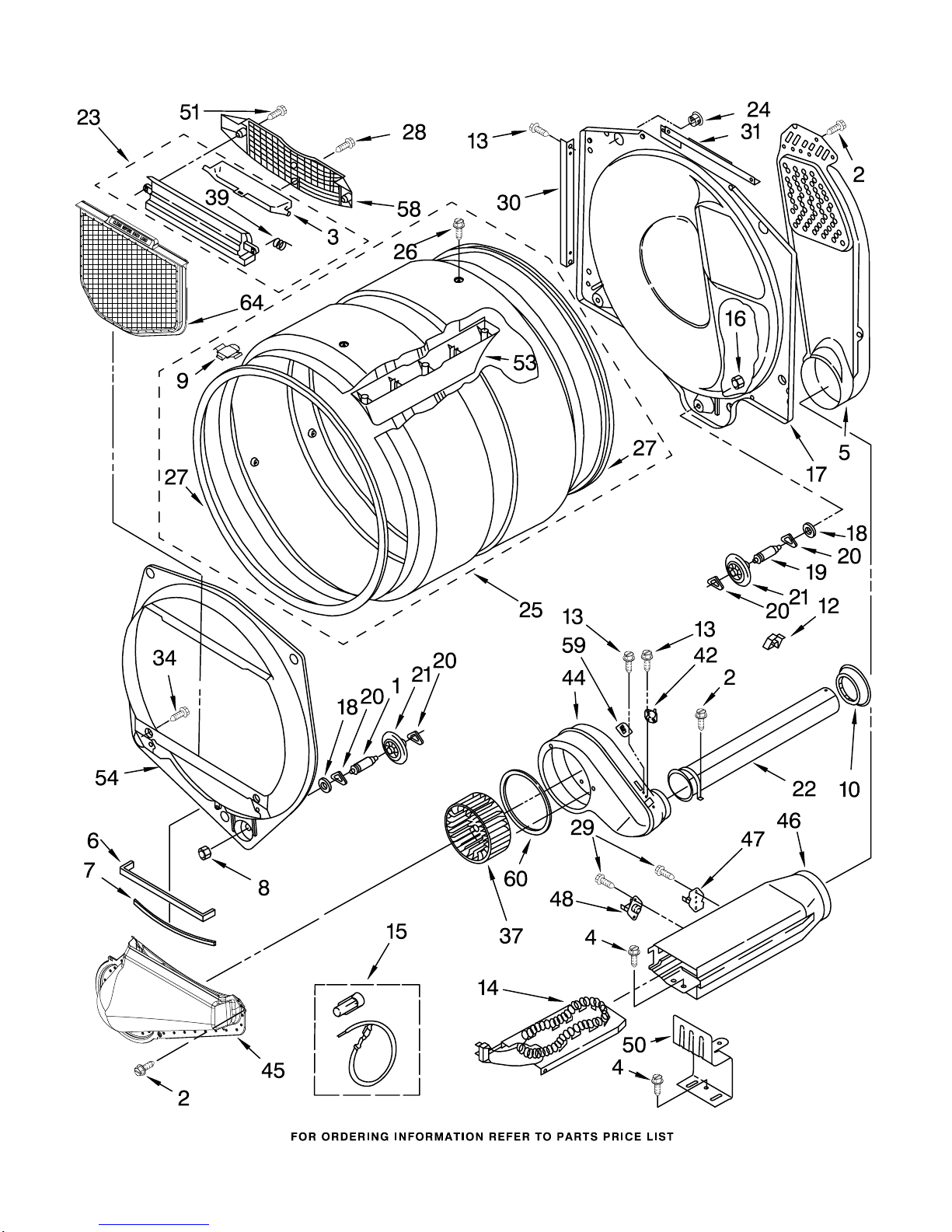

BULKHEAD PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

BULKHEAD PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3399508 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 98139 Screw, 8−32 x 5/16

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3359452 Nut,3/8 x 16(R.H.)

9 8066086 Drum Hole

Plug

10 696302 Shield, Exhaust

12 3388229 Clip, Exhaust

Pipe

13 3390646 Screw, 8−18 x 5/16

14 3387749 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

16 3387709 Nut, 3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 3399509 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 3402715 Exhaust Pipe

23 3394985 Housing, Outlet

24 8529007 Plug,

Rear Bulkhead

25 8543082 Complete Drum

Assembly

26 97787 Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8519275 Bracket, Upper

Rear Bulkhead

34 3357011 Screw, 10−16 x 1/2

37 697772 Wheel, Blower

39 3394986 Spring, Lint

Screen Door

42 3387137 Thermistor

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 3392537 Heater Box

47 3977394 Thermal Cut−Off

(Includes

Illus. 48)

48 3390291 Thermostat 250 F

(121 C)

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

53 697693 Baffle, Drum

54 8519245 Bulkhead, Front

58 8299979 Grill, Outlet

59 3392519 Thermal Fuse

60 697770 Seal, Cover Plate

64 8066170 Lint, Screen

DOOR PARTS

For Model: 3RAWZ481EML2

(Pewter)

8180715

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8563855 Plug, Strip

2 8565678 Door Hinge

Assembly

3 3980214 Cover,

Door Hinge

4 9742177 Screw, 8−18 x 5/8

5 342043 Screw, 10−32 x 3/8

7 8559752 Handle, Door

8 3400224 Screw,

1/4−20 x 1/2

9 8519374 Plug,

Door Handle (2)

10 8557500 Door Assembly

(Inner)

(Includes

Illus. 14)

11 355515 Screw,

8−18 x 11/16

12 3980213 Door, Outer

13 8545879 Window

14 3389441 Door Catch

Assembly

OPTIONAL PARTS (NOT INCLUDED)

For Model: 3RAWZ481EML2

(Pewter)

8180715

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

4396174 Pewter

PAINT, PRESSURIZED SPRAY

(12 oz.)

4396175 Pewter

350938 Primer, Gray

ACCESSORY PARTS

8529894 Hold Down Kit
