INSTRUCTIONS FOR USE - TUMBLE DRYER

AWG 367

IMPORTANT - PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING

THIS APPLIANCE.

KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

INSTALLATION

Position the tumble dryer so that the plug remains accessible after installation. Do not block the

vent at the side of the dryer, as this will impair the working of the machine. This appliance must not

be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that

of the tumble dryer.

TUMBLE DRYER VENTING

When using a vent hose, remember the following points:

This tumble dryer is designed to be wall mounted. A

range of accessories are available to achieve an ideal

installation.

0312 793 01090 – Wall Mounting Kit

If mounting your tumble dryer to the wall, please follow

the instructions provided in the wall mounting kit.

ACCESSORY - Shoe Rack -

The shoe rack is intended for stationary drying of items such as sport shoes that could damage the

dryer if tumbled. Also a variety of clothes particularly those that should be dried flat such as woolens

and is also suitable for other delicate items that should not be tumbled such as hats, gloves and

scarves.

Fig 1 Fig 2

Installation

Locate the centre rib wire into the hole in the plastic hub at the back of drum. (fig 1) Ensure the front

(curved part) of the rack locates correctly between the filter and the drum front (fig 2)

Your tumble dryer is supplied with a vent hose.

A vent hose allows you to direct the warm, damp air expelled from the

rear of the dryer to an open door or window.

The best solution is to make a permanent connection through either a

wall or a window. This is particularly recommended for small, cool

rooms and a kit for this purpose is available as an accessory.

The vent hose must be at least 10cm (4 ins) in diameter.

No more than three right-angled bends should be allowed when positioning the vent hose.

Do not distort or constrict the vent hose as this will reduce the airflow.

When drying, the vent hose must always be extended to an open door or window.

The vent hose must not be shared with other appliances, for example, a cooker hood outlet.

Note: Do not obstruct or add a mesh to the vent hose outlet during use and ensure that it cannot be

blocked or bent sharply which may obstruct the airflow.

It is recommended that the interior of the hose be periodically inspected and cleaned if necessary.

FINAL INSTALLATION

Place the filter in its operating position as shown in the diagram.

Remove any dust by wiping the drum and door with a damp cloth. Any

initial smell of burning will be caused by dust on the heater and will

quickly disappear.

THE CONTROLS

A. THE TIMER Select the required drying time based on the recommendations on the control

panel.

B. SENSING ON/OFF BUTTON – for automatic sensing

C. HEAT SWITCH – Select the required heat setting based on the recommendations on the

control panel.

PREPARATION

Check care labels inside the garments.

CARE LABELS YOU MAY FIND ON YOUR FABRICS

Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable.

This should avoid shrinkage.

Place delicate articles, e.g.tights, scarves, inside a pillowcase.

To avoid the need to iron easy care polyester/cotton items it is better to only dry small loads (i.e.

half fill drum) It is better to dry small and large articles together.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Do not overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important

that the airflow through the dryer is not obstructed.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the

items are left at a temperature that ensures that the items will not be damaged.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene,

spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra

amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles

and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

OPERATION

Open the door.

Load clothes loosely into the drum.

Load sheets first, starting with one corner.

Close the door.

Dry your hands.

Check that the timer is in the ‘0’position.

Plug in the machine.

Select correct heat position, (see programme chart on control panel for recommendations).

Turn the timer knob fully clockwise, then turn to the required time setting (see programme chart on

control panel for recommendations).

For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight

for cotton and set the timer to the recommended drying time for cotton dry as specified on the

control panel.

The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient

programme in terms of energy consumption for drying wet cotton laundry.

Your appliance is Reversing, small door opening a full load will typically take 95 minutes and will

use approximately 2.05kWh of electricity. A half load will typically take 55 minutes and will use

approximately 1.15 kWh of electricity.

The drum will begin rotating. Reversing drum models will stop periodically to rotate in the reverse

direction for a short time.

Should the clothes become dry before the cycle has finished, or if an excessive programme time has

been selected, the drum will continue to rotate while the thermostat will automatically switch the

heater off to reduce the risk of over drying and save energy.

If the door is opened during a cycle the dryer will stop. To restart your machine, close the door.

When drying large items such as sheets, we suggest you periodically stop the dryer to redistribute

the load.

To lengthen or shorten a timed programme, reset the timer knob.

There is an automatic 12 minute cool down period at the end of every cycle, during which the

heater is switched off. This helps to minimize creasing, and must always be used fully to avoid the

risk of fire.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM. RISK

OF FIRE.

ALWAYS CLEAN THE FILTER AFTER EACH USE.

Failure to do so could cause the safety cut-out to operate.

Your dryer will only function well if the machine is clean.

- The filter collects fluff which accumulates during drying and it must therefore be removed and

cleaned at the end of each programme.

- Remove any threads or fluff by hand or with a soft brush.

- Wash the filter occasionally in detergent solution using a soft brush to remove small particles.

- If your filter becomes damaged, replace it to ensure no damage is caused to the dryer.

ANY PROBLEMS

If the clothes are not dry after normal drying time:

– Check that you used the correct heat setting.

– Check that you have not set the timer within a cool down period.

– Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.

– Check that your dryer is heating – the door window should feel warm to touch after the first 10-

15 minutes of its programme.

Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at

the rear of the machine. If it has operated then a sharp “click” will be heard.

This cut-out only operates if the airflow is severely restricted so make sure the filter is clean, the air

inlets and outlets at the side and back are not blocked, and that all other restrictions are removed

before restarting.

If the cut-out continues to operate after checking the above points, you should contact your service

agent.

Check that the machine has the correct weight load in the drum before starting the appliance.

If your machine does not work check the following before calling a service engineer:-

- Check that there is a supply of electricity.

- Check that the door has been properly closed and the machine is switched on.

TECHNICAL DATA OVERALL DIMENSIONS:

Height: 67 cm

Width: 50 cm

Depth: 47 cm

Voltage 220-240V – 50Hz

Fuse 13A

Max Load 1600W

MAXIMUM DRY WEIGHT LOADS:

Cotton 3kg

‘Easy care’ polyester/cotton 3kg

(For minimum creasing 1.5kg)

Delicates 1.5kg

For electrical ratings see plate on back of dryer.

For Model No. see serial plate inside door (needed when requesting service).

Room temperature range 5˚C to 30˚C. (Drying performance decreases as room temperature falls).

Your washing machine should have a spin speed of not less than 1000rpm for maximum efficiency.

This product is manufactured to comply with the radio interference requirements of the Council

directive 89/336/EEC. It is intended for DOMESTIC use and not for commercial applications such

as hairdressers.

IMPORTANT USER INFORMATION

These notes are provided in the interest of safety. You must read them before installing or using the

appliance.

– This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.

-Adequate ventilation must be provided to avoid back flow of gases into the room from appliances

burning other fuels, including open fires.

-Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances

burning gas or other fuel.

– Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the

performance of the dryer may be affected.

– Any electrical work required to install the appliance should be carried out by a qualified person.

– It is important to clean the lint filter after each drying cycle or the restrictions to airflow will

extend drying times and could cause the safety cut-out to trip.

– Under no circumstances should anything other than the recommended articles be placed in the

tumble dryer.

–The tumble dryer should be serviced by an appointed service organisation and only genuine parts

used.

–It is dangerous to alter or modify the product in any way other than fitting authorized accessories.

–We recommend that the appliance is unplugged each time after use. It should always be

disconnected from the electricity supply or long periods (i.e.weekends, if it is to be left unattended

for holidays etc.)

–The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible

while in operation, but ensure that the sides have a space available to allow airflow.

–The special mains cable and plug assembly must only be replaced with a genuine part from the

manufacturer or our appointed service agent.

- It is important to clean fluff from the window of the dryer and around the door seal after each

drying cycle. Failure to do so could result in water leaking.

–This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.

- This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly

removed and spread out so that heat is dissipated.

Remove all objects from pockets such as lighters and matches.

DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.

DO NOT block the air inlets at the side of your dryer.

DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire

DO NOT exceed the recommended maximum load.

DO NOT dry unwashed items in the tumble dryer

DO NOT place articles in the dryer if anything other than a water solution has been used in the

cleaning process.

DO NOT attempt to dry dripping wet articles.

DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no

circumstances should you attempt to repair the appliance yourself. Repairs carried out by

inexperienced persons may cause serious injury. Consult your local appointed service engineer and

insist on genuine spare parts.

THIS APPLIANCE MUST BE EARTHED

CAUTION

HOT SURFACE

This appliance is marked according to the European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European wide validity of return and recycling on

Waste Electrical and Electronic Equipment.

This label, positioned on the rear of your dryer, indicates

the surface is hot when in operation - avoid touching.

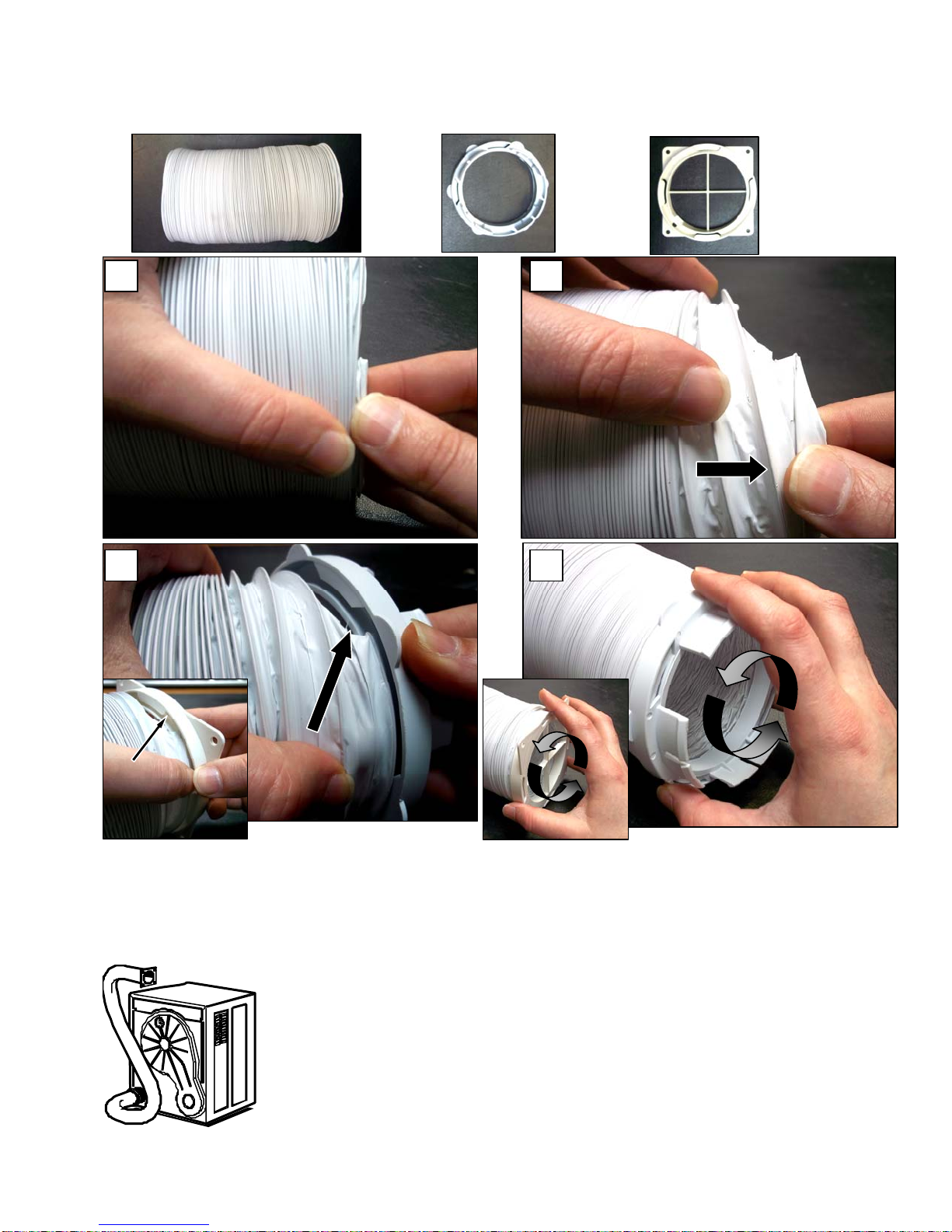

VENT HOSE ASSEMBLY

One end of the vent hose is fitted with an adaptor which can be pushed into the exhaust outlet at the

bottom rear of the tumble dryer. The free end should be led to a suitable outlet. It may simply be

hung through an open window or a more permanent connection made using the four holes in the

adapter flanges.

Note: Do not obstruct or add a mesh to the vent hose outlet during use

and ensure that it cannot be blocked or bent sharply which may

obstruct the air flow. It is recommended that the interior of the hose be

periodically inspected and cleaned if necessary.

X 3

1 2

Andere Handbücher für AWG 367

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool YLEV4634JQ1 Bedienungsanleitung

Whirlpool

Whirlpool DryAire Bedienungsanleitung

Whirlpool

Whirlpool WED97HEXW2 Bedienungsanleitung

Whirlpool

Whirlpool HybridCare WED9290FW Bedienungsanleitung

Whirlpool

Whirlpool WPWADRGW785 Bedienungsanleitung

Whirlpool

Whirlpool LE9800XS Bedienungsanleitung

Whirlpool

Whirlpool LE7800XP Bedienungsanleitung

Whirlpool

Whirlpool GEQ8811PW0 Bedienungsanleitung

Whirlpool

Whirlpool BYCD3722W0 Bedienungsanleitung

Whirlpool

Whirlpool Gold GGQ9800PW Bedienungsanleitung

Whirlpool

Whirlpool LDR3822PQ - Compact Electric Dryer Benutzerhandbuch

Whirlpool

Whirlpool WGD5200T Bedienungsanleitung

Whirlpool

Whirlpool LEQ9557KQ0 Bedienungsanleitung

Whirlpool

Whirlpool YWED8800YW0 Bedienungsanleitung

Whirlpool

Whirlpool LE681OXP Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC - DUET FRONT LOAD STEAM DRYERS Bedienungsanleitung

Whirlpool

Whirlpool W10240584C Bedienungsanleitung

Whirlpool

Whirlpool LET7646DQ0 Bedienungsanleitung

Whirlpool

Whirlpool LE5320XT Bedienungsanleitung

Whirlpool

Whirlpool LER3624PQ Bedienungsanleitung

Whirlpool

Whirlpool LER5644JQ0 Bedienungsanleitung

Whirlpool

Whirlpool CSP2761TQ Bedienungsanleitung

Whirlpool

Whirlpool WED5500BW Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9600T Stücklistenhandbuch

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
