Cycle 5ontrol knob

Temperature selector

Model and serial

Drying rack

(models LE9200XW,

LG92OlXW)

LARGECAPACITYAUTOMATICDRYERS

LE9200XWLE9300XT

LG92UlXW LG93UIXT

Contents

Page

Important Safety

Instructions.

Additional safety instructions

and your responsibilities

Operating Instructions

Starting your dryer

The automatic cycles

Timed drying

Using fluff air

End-of-cycle signal

Additional Dryer Features

Using the drying rack

Gentle heat system

Caring For Your Dryer

Cleaning the lint screen

Cleaning the dryer interior

Lint removal

If You Need Service Or

Assistance.

Whirlpool Automatic

Dryer Warranty.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers

from plate (on the frame behind the

door) and purchase date from sales

slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model

Number

Serial Number

01990 Whirlpool Corporation

Purchase Date

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used.

To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue

as described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels Inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. ;Fceguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

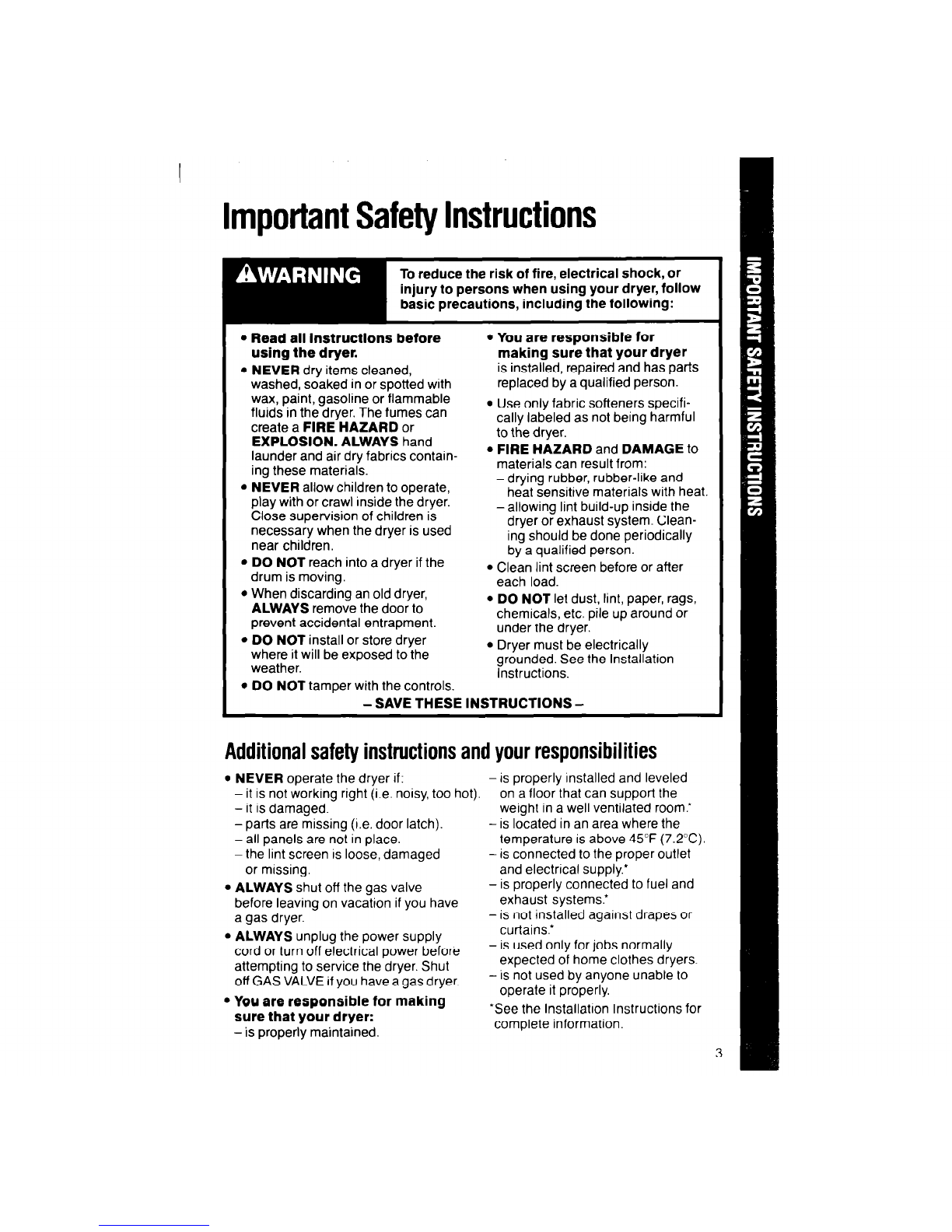

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or

injury to persons when using your dryer, follow

basic precautions, including the following:

Read all instructions before

using the dryer.

NEVER dry items cleaned,

washed, soaked in or spotted with

wax, paint, gasoline or flammable

fluids in the dryer. The fumes can

create a FIRE HAZARD or

EXPLOSION. ALWAYS hand

launder and air dry fabrics contain-

ing these materials.

NEVER allow children to operate,

play with or crawl inside the dryer.

Close supervision of children is

necessary when the dryer is used

near children.

DO NOT reach into a dryer if the

drum is moving.

When discarding an old dryer,

ALWAYS remove the door to

prevent accidental entrapment.

DO NOT install or store dryer

where it will be exposed to the

weather.

DO NOT tamper with the controls.

You are responsible for

making sure that your dryer

is installed, repaired and has parts

replaced by a qualified person.

Use only fabric softeners specifi-

tally labeled as not being harmful

to the dryer.

* FIRE HAZARD and DAMAGE to

materials can result from:

-drying rubber, rubber-like and

heat sensitive materials with heat.

-allowing lint build-up inside the

dryer or exhaust system. Clean-

ing should be done periodically

by a qualified person.

Clean lint screen before or after

each load.

DO NOT let dust, lint, paper, rags,

chemicals, etc. pile up around or

under the dryer.

Dryer must be electrically

grounded. See the Installation

Instructions.

- SAVE THESE INSTRUCTIONS -

Additional safety instructionsandyour responsibilities

NEVER operate the dryer if: - is properly installed and leveled

-it is not working right (i.e. noisy, too hot). on a floor that can support the

- it is damaged. weigh1 in a well ventilated room.’

- parts are missing (i.e. door latch). - is located in an area where the

- all panels are not in place. temperature is above 45°F (7.2”C)

- the lint screen is loose, damaged - is connected to the proper outlet

or missing. and electrical supply.’

ALWAYS shut off the gas valve - is properly connected to fuel and

before leaving on vacation if you have exhaust systems.’

a gas dryer. - is not installed against drapes or

ALWAYS unplug the power supply curtains.*

cord or turn off electrical power before - is used only for jobs normally

attempting to service the dryer. Shut expected of home clothes dryers.

off GAS VALVE if you have a gas dryer. -is not used by anyone unable to

You are responsible for making operate it properly.

sure that your dryer: ‘See the lnstallatron Instructions for

-is properly maintained. complete information.

OperatingInstructions

The drawings in this book may vary slightly from your dryer model. They are

designed to show the different features of all the models covered by this book.

Starting your dryer

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting il.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY - Bedspreads, mattress

pads, quilts

HEAVYWEIGHT - Towels, jeans,

corduroys, work clothes

MEDIUMWEIGHT - Sheets, pillowcases,

collon. underwear, diapers

LIGHTWEIGHT- Batlstes, organdles,

lingerie

AUTOMATIC

REGULAR HEAVY HIGH

PERM’T PRESS

KNITS GENTLE

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC

PERM’T PRESS

raincoats PERMANENT PRESS

MEDIUMWEIGHT - Shlrls, play clothes.

sheets, slacks

LIGHTWEIGHT - Lingerie. blouses, KNITS GENTLE

dresses

Knits

HEAVYWEIGHT - Cot(ons, rayons,

blends, T-shirts, slacks, shirts

AUTOMATIC

PERM’T PRESS

PERMANENT PRESS

LIGHTWEIGHT - Synthetic (polyester,

acrylic. etc.) and blends, linaerie.

KNITS GENTLE

blobses, dresses

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace. elc. AUTOMATIC

KNITS GENTLE

PERMANENT PRESS

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER - Pillows, bras,

stuffed toys

PLASTIC-Shower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

20 minutes

1520 minutes

(No temperature

needs lo be

selected.

Cycle is

unheated.)

DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage

some fabrics.

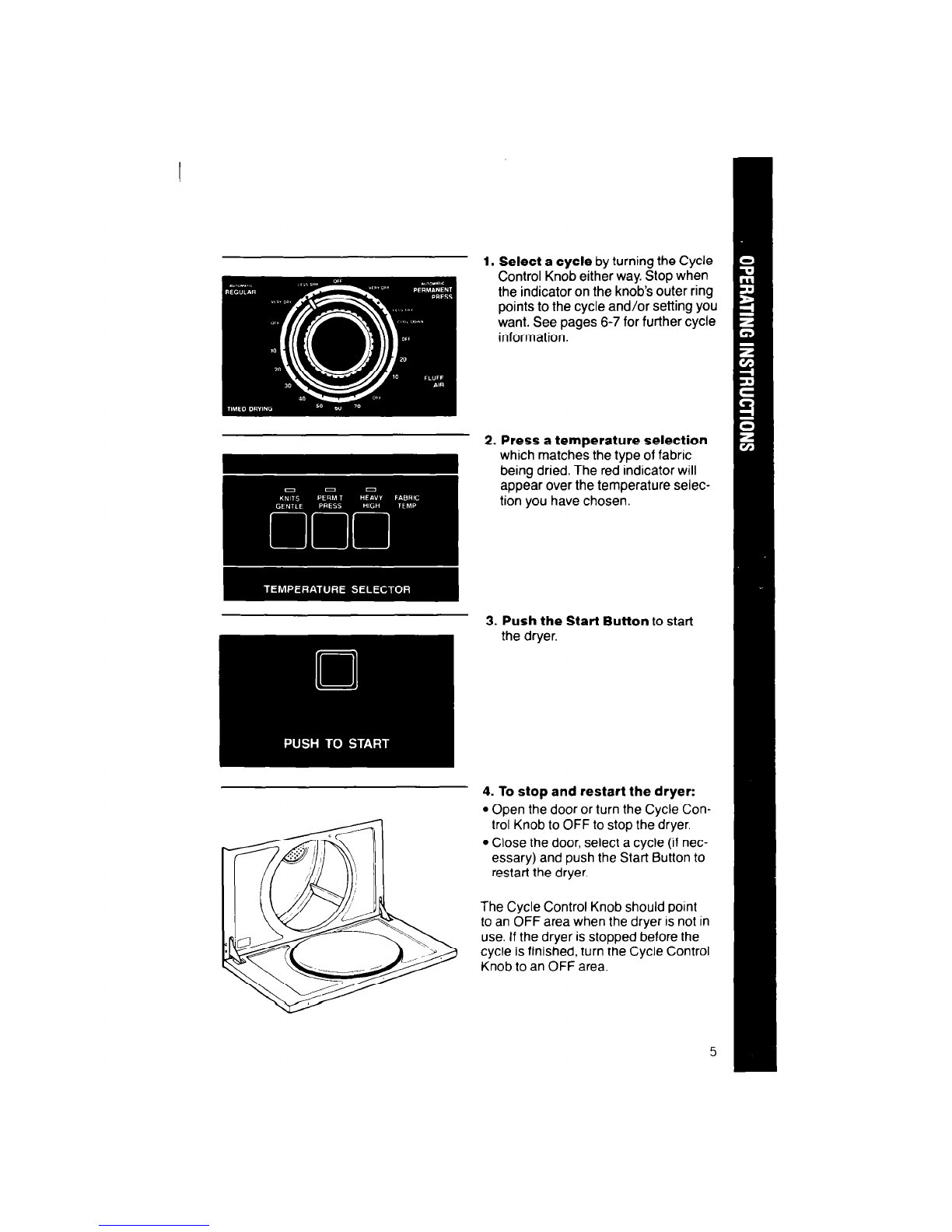

1. Select a cycle by turning the Cycle

Control Knob either way. Stop when

the indicator on the knob’s outer ring

points to the cycle and/or setting you

want. See pages 6-7 for further cycle

information.

2. Press a temperature selection

which matches the type of fabric

being dried. The red indicator will

appear over the temperature selec-

tion you have chosen.

3. Push the Start Button to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

lrol Knob to OFF to stop the dryer.

Close the door, select a cycle (if nec-

essary) and push the Start Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

Operating Instructions

Continued

Theautomatic cycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The automatic DRY-MISER@ control

is a thermostat that senses the dryer air

temperature. The dryer automatically

shuts off when the selected dryness is

reached.

The Cycle Control Knob will not move

until the clothes load ISalmost dry, or

the Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

Use AUTOMATIC REGULAR to dry

heavy and mediumweight cotton items.

The load tumbles without heat during

the last 5 minutes. This helps make the

load easier to handle.

Use AUTOMATIC PERMANENT

PRESS to dry permanent press, knits

and other synthetic items. The load

tumbles without heat during the last 10

minutes. This helps keep wrinkles from

setting in and makes the load easier

to handle.

For the first few loads, set the Cycle

Control Knob to point to the * in either

automatic cycle. When the dryer stops,

feel the dried items.

If items are drter than you like, use a

setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

NOTE: Overdrying can cause

shrinkage, static cling and damage to

some fabrics.

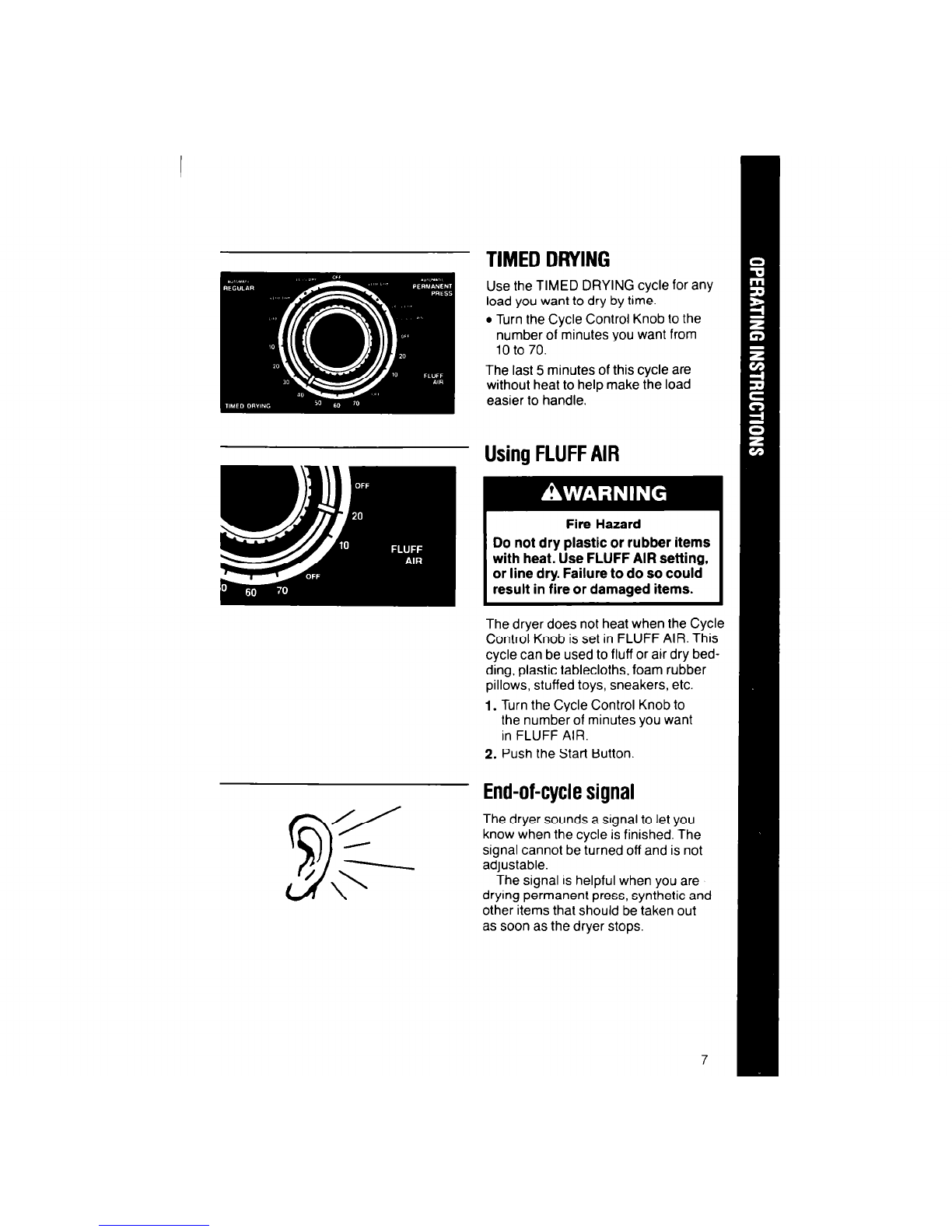

TIMEDDRYING

Use the TIMED DRYING cycle for any

load you want to dry by time.

Turn the Cycle Control Knob to the

number of minutes you want from

10 to 70.

The last 5 minutes of this cycle are

without heat to help make the load

easier to handle.

UsinaFLUFFAIR

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result in fire or damaged items.

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry bed-

ding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to

the number of minutes you want

in FLUFF AIR.

2. Push the Start Button.

End-of-cyclesignal

The dryer sounds a signal to let you

know when the cycle is finished. The

signal cannot be turned off and is not

adjustable.

The signal is helpful when you are

drying permanent press, synthetic and

other items that should be taken out

as soon as the dryer stops.

AdditionalDryerFeatures

Usingthe drying rack

(models LE9200XW, LG92OlXW

only)

The drying rack lets you dry items that

you may not want to tumble. The rack

does not move, but the drum turns.

Make sure nothing hangs over the edge

of the rack.

1. Fit rear legs of the rack into indenta-

tions in the back wall of the dryer.

2. Lower the front so the legs rest on

the dryer opening.

3. Put wet items on top of the rack.

Leave space between them so air

can reach all surfaces.

4. Close the door and start the dryer.

See page 9 for suggested cycles

and temperature settings when

using the drying rack.

Drying rack suggestions

Drying time will depend on how much moisture the items hold. The following chart

suggests cycles and temperature settings for different kinds of items that might best

be rack-dried.

TO RACK DRY:

Wool

sweaters

(Block to shape and lay flat on

the rack.)

SUGGESTED SUGGESTED

CYCLE TEMPERATURE

TIMED DRYING KNITS GENTLE

Stuffed toys or pillows

(Cotton or polyester fiber filled.) TIMED DRYING PERM’T PRESS

Stuffed toys or pillows

(Foam

rubber filled.) FLUFF AIR (No temperature

needs to be

Sneakers or canvas shoes FLUFF AIR

““.““.“Y. W,“‘”

is unheated.)

NOTE:

The rack must be removed for normal tumble drvina.

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERM’T PRESS. During the last few

minutes of each of these temperature

settings the dryer temperature gradu.

ally reduces to a lower heat setting.

This helps prevent overdrying.

CaringForYourDryer

Cleaningthe lint screen

The lentscreen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

Fire Hazard

Do not run the dryer with the lint screen

loose, damaged, blocked or missing. Doing so

can cause overheating, damage and be a

FIRE HAZARD.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off lhe screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

Cleaningthe dryer interior

Electrical Shock and

Personal Injury Hazard

Unplug the power supply cord

or turn off the electrical power

before cleaning the interior.

Use non-flammable cleaner.

Make sure the dryer is cool.

Failure to do so could result in

electrical shock or Injury.

Fire Hazard

Shut off gas valves on

gas dryers.

Use non-flammable cleaner.

Failure to do so could result in

gas leak or explosion.

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer interior. If the interior is discolored,

clean with one of the following methods

to avoid staining later load items.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WDH3090GW Bedienungsanleitung

Whirlpool

Whirlpool KHGV01RSS0 Bedienungsanleitung

Whirlpool

Whirlpool LE3000XM Bedienungsanleitung

Whirlpool

Whirlpool LE6090XSW1 Bedienungsanleitung

Whirlpool

Whirlpool LER7646AQ2 Bedienungsanleitung

Whirlpool

Whirlpool WED8300SB - Duet Sport Electric Dryer Bedienungsanleitung

Whirlpool

Whirlpool 27' Bedienungsanleitung

Whirlpool

Whirlpool GGW9250PW Bedienungsanleitung

Whirlpool

Whirlpool W10151595A Bedienungsanleitung

Whirlpool

Whirlpool L0412123 Bedienungsanleitung

Whirlpool

Whirlpool WED5510VQ Bedienungsanleitung

Whirlpool

Whirlpool AWD712S Bedienungsanleitung

Whirlpool

Whirlpool WGD7300XW Bedienungsanleitung

Whirlpool

Whirlpool DryAire LMA1053L Bedienungsanleitung

Whirlpool

Whirlpool WED5600XW0 Bedienungsanleitung

Whirlpool

Whirlpool LE7800XP Bedienungsanleitung

Whirlpool

Whirlpool WGD8300SB Bedienungsanleitung

Whirlpool

Whirlpool LE5320XT Bedienungsanleitung

Whirlpool

Whirlpool 8TWGD8620HW Bedienungsanleitung

Whirlpool

Whirlpool LGQ9558KQ1 Bedienungsanleitung

Whirlpool

Whirlpool Gold YGEX9868JQ2 Bedienungsanleitung

Whirlpool

Whirlpool AWZ 3203 Bedienungsanleitung

Whirlpool

Whirlpool LE5700XM Bedienungsanleitung

Whirlpool

Whirlpool AWZ 2413 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
