Whirlpool Cabrio,- WED5500X Gebrauchsanweisung

Electric Dryer

PRODUCT MODEL NUMBERS

Installation spacing for recessed area or closet installation

The dimensions shown below are the recommended spacing for this dryer.

■Additional spacing should be considered for ease of installation and servicing.

■Additional clearances might be required for wall, door, oor moldings, and dryer venting.

■Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise

transfer.

■For closet installation, with a door, minimum ventilation openings in the top and bottom of the door

are required. Louvered doors with equivalent ventilation openings are acceptable.

■Companion appliance spacing should also be considered.

W10115226C

02/2012

WED5500X, WED5600X, WED5610X,

WED5700A, WED5700X

43"

(1092 mm)

*29

(749 mm)

27"

(687 mm)

23¾"

(603 mm)

43"

(1092 mm)

27"

(687 mm)

*291/2"

(749 mm)

13¾"

(349 mm)

ABC

18"*

(457 mm)

(25 mm)

27"

(686 mm)

(25 mm)

1"*

(25 mm)

14" max.*

(356 mm)

29¼"

(743 mm)

5½"*

(140 mm)

48 in.

(310 cm )

24 in.

(155 cm )

2 *

3"*

(76 mm)

3"*

(76 mm)

A. Large opening side-swing door

B. Wide opening hamper door

A. Recessed area

B. Side view – closet or conned area

C. Closet door with vents

Installation clearances:

The location must be large enough to allow the dryer door to open fully.

Dryer Dimensions

*Most installations require a minimum 5½" (140 mm)

clearance behind the dryer for the exhaust vent with

elbow. See “Venting Requirements.”

Minimum spacing for recessed area or closet installation

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation

our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.

To supply the required 3 or 4 wire, single phase, 120/240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical

supply, if specied on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit

breaker is recommended. Connect to an individual branch circuit.

ELECTRICAL REQUIREMENTS

VENTING REQUIREMENTS

Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)

diameter vent is required. Rigid or exible metal exhaust vent

must be used. Do not use plastic or metal foil vet. Exhaust hood

must be at least 12" (305 mm) from the ground or any object that

may be in the path of the exhaust.

Determine vent path:

■Select route that will provide straightest and most direct

path outdoors.

■Plan installation to use fewest number of elbows and turns.

■When using elbows or making turns, allow as much room

as possible.

■Bend vent gradually to avoid kinking.

■Use as few 90° turns as possible.

Determine vent length and elbows needed for best

drying performance:

■Use following Vent System Chart to determine type of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specied

in Vent System Chart. Exhaust systems longer than those

specied will:

■Shorten life of dryer.

■Reduce performance, resulting in longer drying times

and increased energy usage.

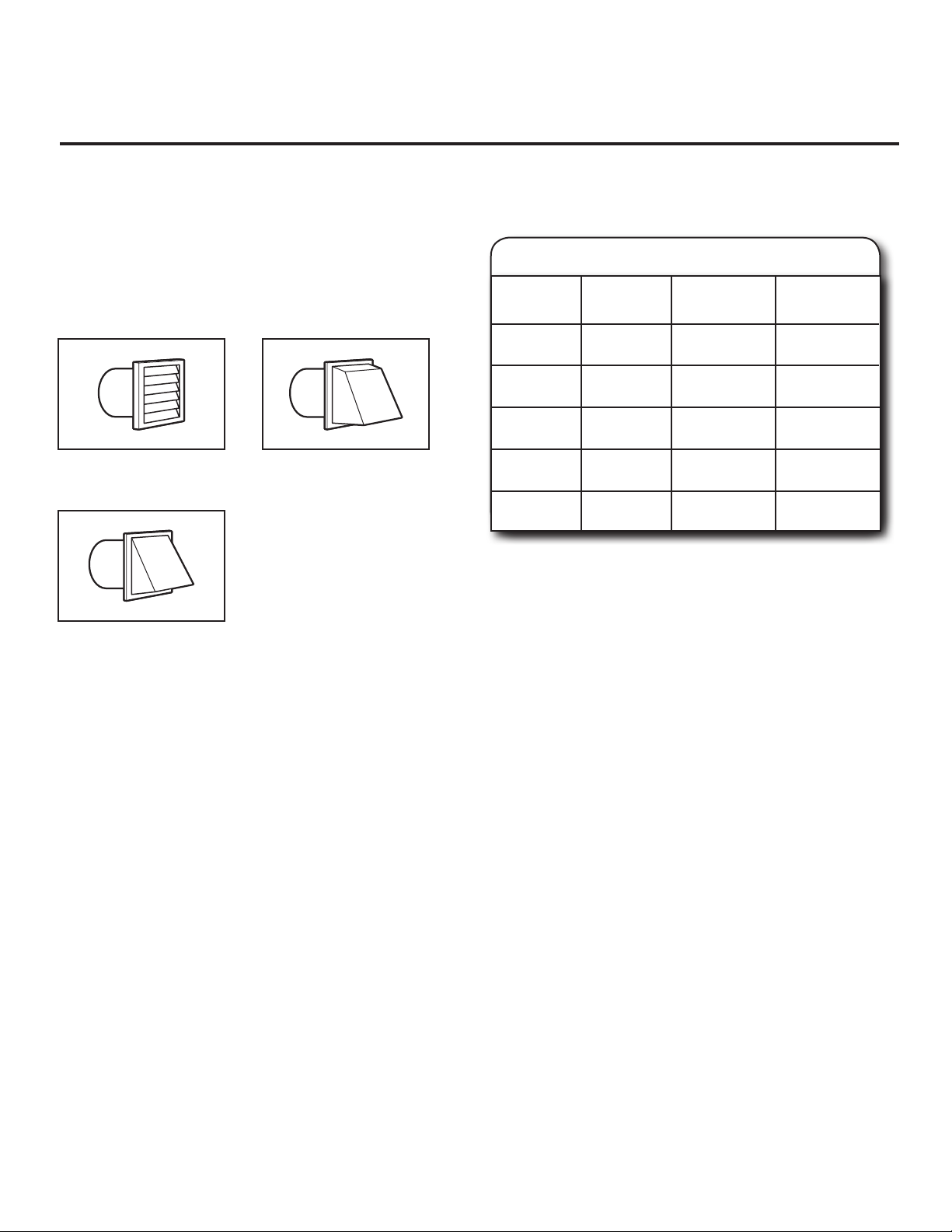

Louvered Hood

Angled Hood

Box Hood

Exhaust hoods:

Recommended Styles:

Acceptable Style:

Vent System Chart

Number of

90° turns

or elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0Rigid metal

Rigid metal

64 ft. (20 m)

54 ft. (16.5 m)

44 ft. (13.4 m)

35 ft. (10.7 m)

27 ft. (8.2 m)

58 ft. (17.7 m)

48 ft. (14.6 m)

38 ft. (11.6 m)

29 ft. (8.8 m)

21 ft. (6.4 m)

The “Vent System Chart” provides venting requirements that

will help achieve best drying performance.

NOTE: Side and bottom exhaust installations have a 90º turn

inside the dryer. To determine maximum exhaust length, add

one 90º turn to the chart.
