Whirlpool CEM2750KQ Bedienungsanleitung

CORPORATION

c2001 WHIRLPOOL CORPORATION

MODELS

COMMERCIAL

ELECTRIC DRYER

CEM2750KQ0

3−01 Litho in U.S.A. (djc) Part No. 8527791

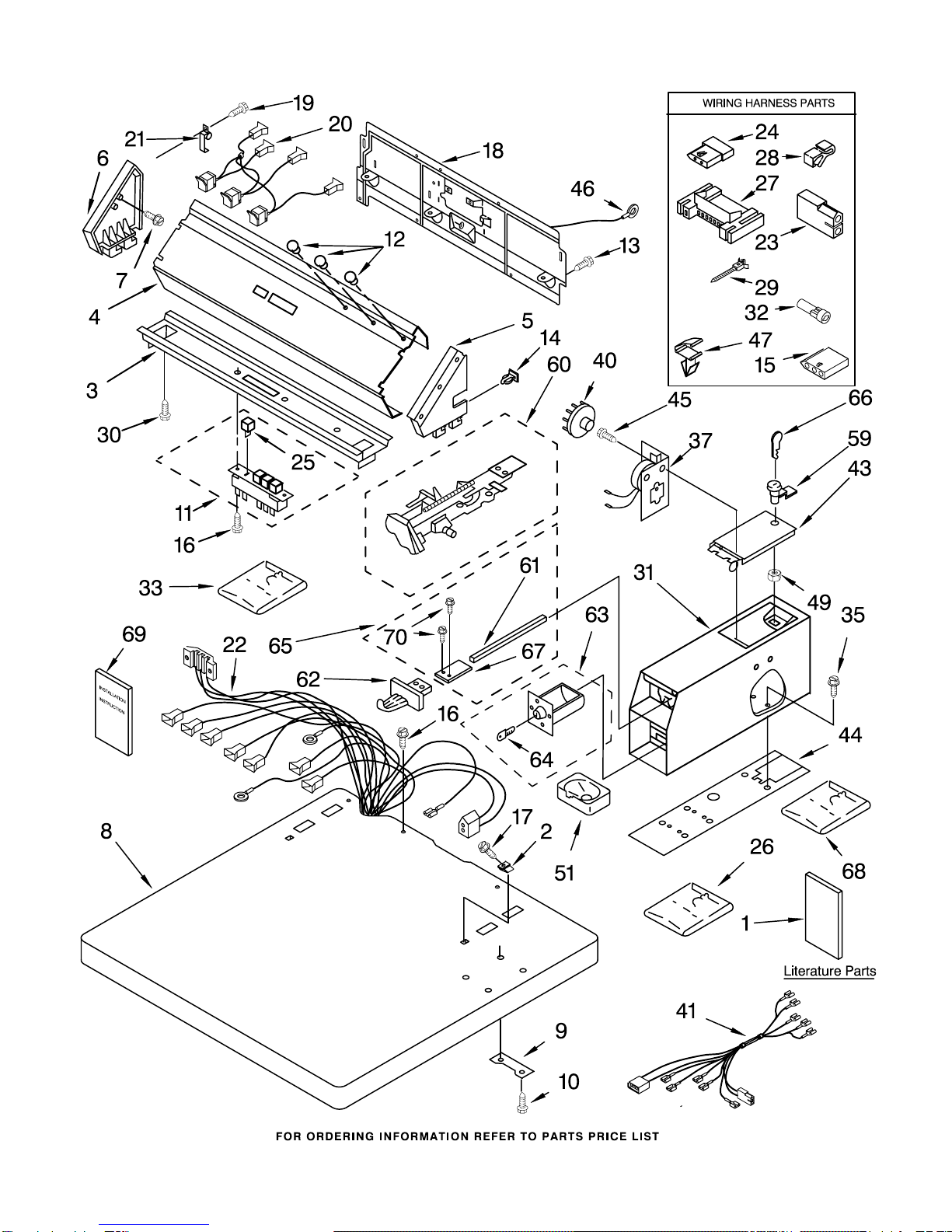

TOP AND CONSOLE PARTS

For Model: CEM2750KQ0

(White)

8527791

TOP AND CONSOLE PARTS

For Model: CEM2750KQ0

(White)

8527791

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8527795

Instructions

Installation

LIT8315969

Label, Wiring

Diagram

LIT8527791

Repair Parts List

2 357213 Nut, Push−In

3 3361029 Bracket, Control

4 8316634 Panel, Control

5 8316516 Cap, End (R.H.)

6 3949734 Cap, End (L.H.)

7 97787 Screw, 11−16 x 3/4

8 3954665 Top

9 3347825 Plate−Mounting (2)

10 98445 Screw, 10−16 x 3/4

11 8316437 Switch, Pushbutton

12 3348109 Lens Light

(Amber)

13 693995 Screw, 8−18 x 3/8

14 689559 Nut, Push−In

15 353424 Connector,

3−Circuit

16 3393918 Screw,

8−18 x 11/32

17 8281182 Screw

8−18 x 1−1/4

18 3979608 Panel, Rear

(Upper)

19 3390647 Screw, 8−18 x 1/2

20 8316640 Light, Indicator

Assembly

21 387402 Hinge (2)

22 8283165 Harness, Main

23 717252 Receptacle

(2−Way)

24 717253 Receptacle

(2−Way)

25 8316433 Pushbutton

26 8316238 Meter Case

Conversion Kit

27 3395683 Housing,

Connector

28 357572 Clip, Ground

29 3391018 Tie, Cable

30 3390646 Screw, 8−18 x 5/16

31 3406994 Case, Meter

32 351297 Plug, Harness

33 3954807 Kit, Vertical

Coin Slide

35 3349065 Screw, 5/16−24 x 1

37 3387975 Timer,

(Includes

4−Pin Cam)

40 Timing Cam

3387974 3−Pin

339855 4−Pin

343777 6−Pin

41 3401682 Harness, Timer

43 3351136 Door, Service

44 3954812 Cushion, Meter

Case

45 339805 Screw,

10−32 x 3/16

46 3398893 Ground Wire

47 3394427 Clip, Harness

49 90406 Nut−Cage

51 385421 Funnel, Coin

Coin Mechanism Parts, May Be

Ordered from Whirlpool Or

The Vendor(s) Listed Below.

59 8316526 Security Lock &

Cam Assembly

60 Slide &

Extension

61 8316521 Bolt, Slide

Mechanism

62 8316520 Slide Mechanism

(Vertical 8−Coin)

Inserts

(Not Shown)

8316264 Blank

8316265 25¢

63 8316525 Money Box W/Lock

64 Key (Money Box)

(When Ordering,

Specify Vendor

of Money Box Lock)

65 Slide Extension

Bag Assembly

66 Key (Service Door)

67 8316523 Extension

68 8316524 Kit, Decal

69 8316532 Installation

Instructions

Coin Kit

70 3400086 Screw, 10−32 x 3/8

GREENWALD

212 Middlesex Ave.

Chester, CT

06412−1254

1−800−221−0982

sales greenwaldindustries.com

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

CABINET PARTS

For Model: CEM2750KQ0

(White)

8527791

CABINET PARTS

For Model: CEM2750KQ0

(White)

8527791

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3393008 Screw, 10−16 x 1/2

3 3391846 Clip, Front

Panel (2)

4 3393258 Screw, 10−16 x 1/2

5 3394881 Switch, Broken

Belt

6 3397659 Block, Terminal

7 8310656 Cabinet

8 3392100 Foot, Dryer

(Plastic)

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697750 Plug, Multivent

13 3388672 Pulley Assembly

14 3391915 Screw, 10−16 x 1

15 8066115 Plate, Cover

16 3394081 Wire, Belt Switch

17 356674 Cone, Wedge

18 233520 Washer, Thurst

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

23 3391943 Boot, Foot

25 8317342 Cover, Terminal

Block

26 3389249 Nut, "U" (4)

27 3395656 Motor Assembly

(60 Hz.)

28 3389627 Pulley

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 3392186 Washer

34 279318 Terminal, Brass

& Tinned (3)

(Includes Ill. 35)

35 279393 Terminal Block

Screw Kit (For

Terminal Block)

36 3390663 Screw, 10−16 x 1/2

39 3388674 Bracket, Idler

40 3388600 Clip, Lint Duct

41 347207 Switch, Door

(Includes Illus.

No. 53)

42 98129 Screw,

6−20 x 1−1/16

43 3390814 Screw, 8−18 x 3/8

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

47 3392563 Door, Rear

48 694091 Screw, 8−18 x 3/8

49 3387872 Door, Front

51 3393081 Front Panel

52 696144 Strike, Door

53 691581 Lever, Door

Switch

55 3390647 Screw, 8−18 x 1/2

57 3390735 Seal, Door

58 3392538 Catch, Door

Assembly

59 3398948 Wire, Jumper

60 3389522 Handle, Door

61 697215 Panel, Toe

62 3393657 Restrainer, Belt

64 3391408 Lever, Snap

Switch

65 279731 4" − 90 Elbow

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

66 279818 White

BULKHEAD PARTS

For Model: CEM2750KQ0

(White)

8527791

OPTIONAL PARTS (NOT INCLUDED)

BULKHEAD PARTS

For Model: CEM2750KQ0

(White)

8527791

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3399508 Shaft, R.H. Thread

2 90767 Screw, 8−18 x 3/8

3 3390646 Screw, 8−18 x 5/16

4 8066086 Drum Hole

Plug

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3359452 Nut,

3/8 x 16 (R.H.)

9 8318486 Exhaust Pipe

10 3388229 Clip

11 693995 Screw, 8−18 x 3/8

12 3392537 Box, Heater

13 3390647 Screw, 8−18 x 1/2

14 3387748 Element, Heater

15 697699 Shield, Heat

16 3387709 Nut,

3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 3399509 Shaft, L.H. Thread

20 690997 Ring, Tri

21 3396801 Roller, Support

22 697700 Bracket, Heater

23 3394985 Housing, Outlet

24 3977395 Cut−Off, Thermal

25 8318215 Drum Complete

26 97787 Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 3394986 Spring, Lint

Screen

31 487909 Screw, 8−15 x 1/2

32 3391914 Thermostat 295 F

(146 C)

37 697772 Wheel, Blower

38 3394984 Door, Lint

Screen

42 3387138 Thermostat,

Internal−Bias

43 3387230 Screw, 10−16 x 3/4

44 697363 Housing, Blower

45 3390531 Lint Duct Assembly

51 3357011 Screw, 10−16 x 1/2

52 697771 Cover, Blower

(Includes Illus.

Nos. 60 & 62)

53 697693 Baffle, Drum (3)

54 697557 Bulkhead, Front

58 8299979 Grill, Outlet

59 3390719 Thermal Fuse

60 697770 Seal, Cover Plate

62 697769 Seal, Lint Duct

64 3390721 Screen, Lint

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
