Whirlpool CGM2941TQ0 Bedienungsanleitung

c2008 WHIRLPOOL CORPORATION Part No. W10119633 Rev. B

COMMERCIAL

GAS DRYER

MODELS

CGM2941TQ0

CGM2941TQ1

07−08 Litho in U.S.A. (LT)(mek)

BULKHEAD PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

BULKHEAD PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8563800 Instructions,

Installation

8576820 Label,

Wiring Diagram

W10119633

Repair Parts List

2 3388703 Washer, Support

3 348368 Lint Chute

Assembly

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 3392519 Thermal Fuse

7 3387134 Thermostat,

Internal Bias

8 696302 Shield, Exhaust

9 8066086 Drum Hole

Plug

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8530285 Box, Heater

15 3403140 Thermostat,

High Limit

205 F

(96 C)

16 3390647 Screw, 8−18 x 1/2

17 280010 Kit,

Thermal Cut−Off

(Includes

Illus. 15)

18 8066049 Funnel, Burner

19 3401707 Wire, Jumper

20 489463 Screw, 8−18 x 5/8

21 3406022 Bracket, Bulkhead

22 690997 Ring, Tri

23 3399506 Shaft, L.H.

24 3399507 Shaft, R.H.

25 3397590 Roller, Support (2)

26 348197 Washer,

Support (4)

27 3359452 Nut, 3/8−16 (2)

28 3403410 Bulkhead

29 338906 Sensor, Radiant

30 692526 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

32 3406130 Seal, Rear Drum

33 695587 Drum Assembly

34 692490 Baffle, Drum

35 3403636 Baffle, Drum (1)

36 339956 Seal

37 3976434 Bracket, Support

Shaft

38 90296 Clip

TOP AND CONSOLE PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

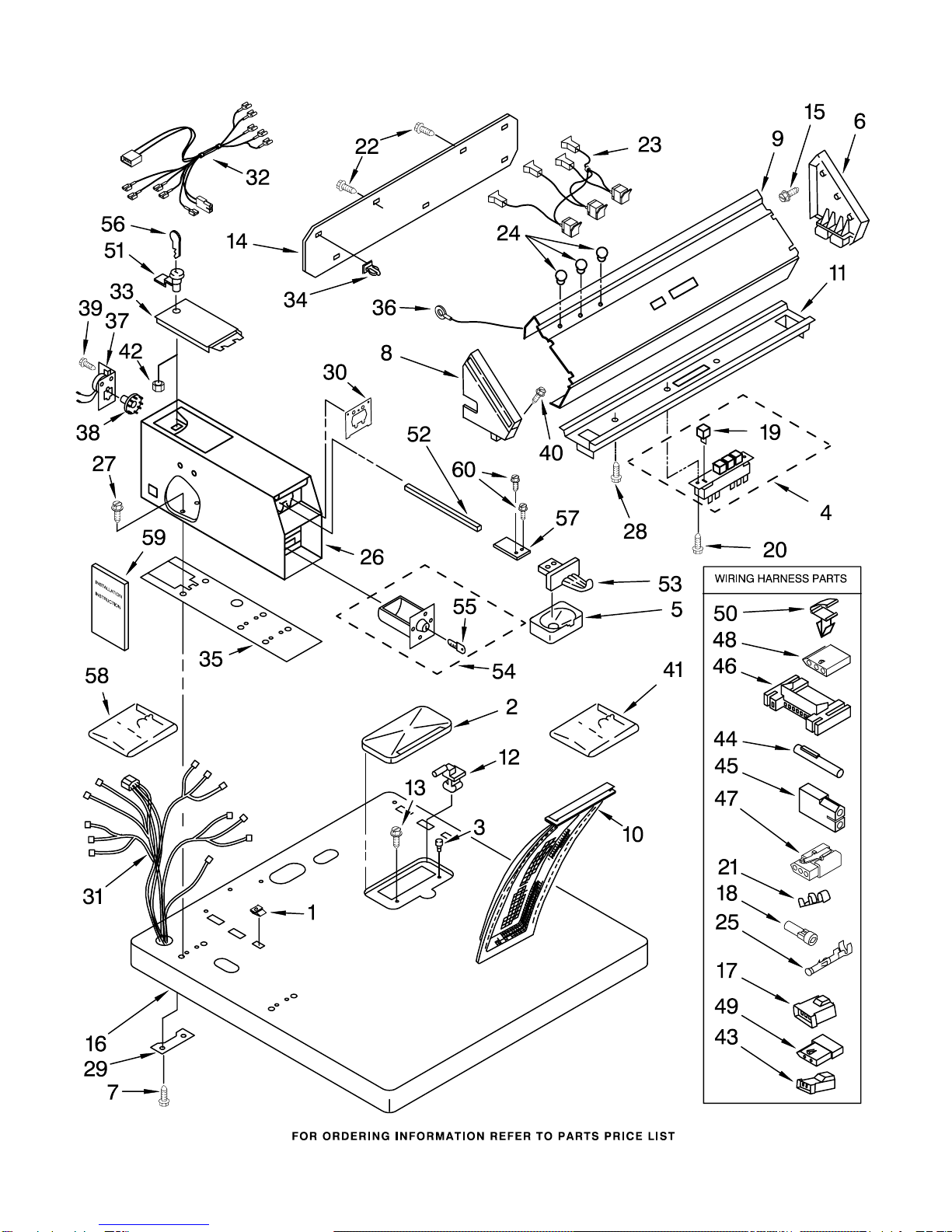

TOP AND CONSOLE PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 357213 Nut, Push−In (2)

2 8283378 Cover, Lint Screen

3 297535 Bumper, Lint Lid

4 8316437 Switch, Pushbutton

5 385421 Funnel, Coin

6 3949737 Cap, End (R.H.)

7 98445 Screw, 10−16 x 3/4

8 3402631 End Cap (L.H.)

W10127740

Panel, Control

10 349639 Screen, Lint

11 3387361 Bracket, Control

12 3978606 Hinge, L.H.

3978605 Hinge, R.H.

13 688983 Screw, 8−18 x 3/8

14 3387978 Panel, Rear

Console

15 97787 Screw,

11−16 x 5/8

16 8527847 Top

17 3403498 Connector,

3 Position

18 351297 Plug, Harness

19 8316433 Pushbutton

20 303921 Screw, 8−32 x 3/8

21 357572 Clip, Grounding

22 693995 Screw, 8−18 x 3/8

23 3401177 Light, Indicator

Assembly

24 3348109 Lens, Amber (3)

25 94614 Terminal

26 3978748 Case, Meter

27 3349065 Bolt,

5/16−24 x 1

28 339554 Screw,

10−16 x 1/32

29 3347825 Plate, Mounting

30 3954761 Adapter Plate

Chute Assembly

(Includes

Illus. 5)

31 8529862 Harness, Wiring

32 3401126 Harness, Timer

33 3351136 Door, Service

34 689559 Nut, Push In

35 3954812 Cushion, Meter

Case

36 690853 Wire, Ground

W10045440

Timer

(Includes

4−Pin Cam)

38 Timing Cam

3387974 3−Pin (60 Min)

339855 4−Pin (45 Min)

343777 6−Pin (30 Min)

Also Available

339854 9−Pin (20 Min)

339853 12−Pin (15 Min)

39 339805 Screw,

10−32 x 3/16

40 388326 Screw, Console

41 3954807 Kit, Vertical

8−Coin

(Includes

Illus. 51−53−54

57−58−59 & 60)

42 90406 Nut, Cage

43 3403499 Connector,

2 Position

44 351296 Receptacle

45 717252 Connector, 2−Way

46 3395683 Connector, Housing

47 717315 Receptacle (4−Way)

48 3936144 Connector

49 717253 Plug (2−Way)

50 3394427 Clip, Harness

Following Parts Supplied

On Whirlpool Coin

Equipped Models Only

51 8316526 Security Lock/Key

& Cam Assembly

52 8318517 Bolt, Slide

Mechanism

53 8316520 Slide Mechanism

(Vertical 8−Coin)

(Dollar Vend)

Inserts

(Not Shown)

8316264 Blank

8316265 25¢

54 8316525 Money Box W/Lock

55 Key (Money Box)

(When Ordering,

Specify Vendor

and Key Number)

56 Key (Service Door)

(When Ordering,

Specify Vendor

and Key Number)

57 8316523 Extension

58 8316524 Kit, Decal

59 8316532 Installation

Instructions

Coin Kit

60 3400086 Screw, 10−32 x 3/8

Coin mechanism parts may be

Ordered from whirlpool or

The vendor(s) listed below

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

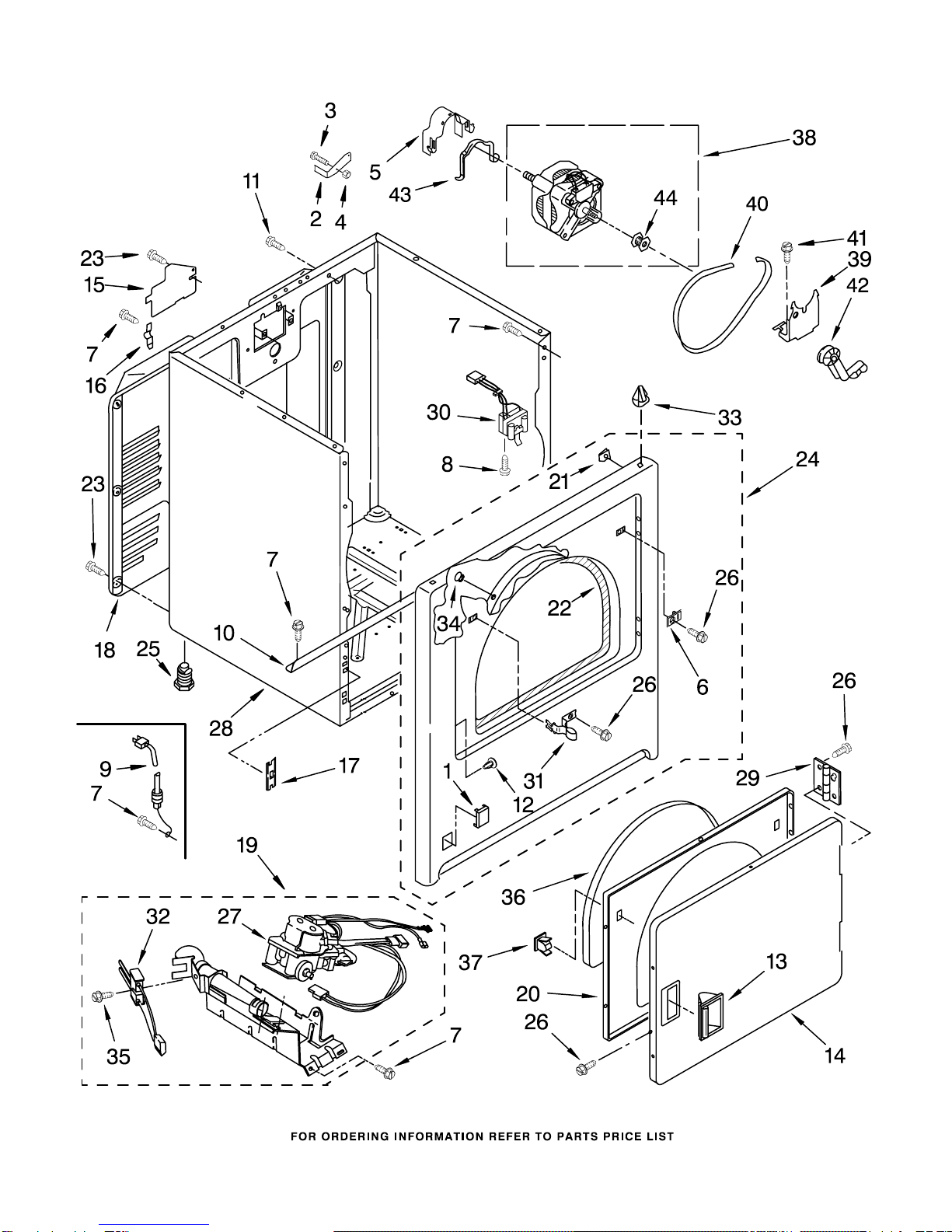

CABINET PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

CABINET PARTS

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3394975 Plug, Front

Panel

2 3954895 Bracket, Top

Lock

3 354730 Bolt,

5/16−18 x 2 3/4

4 90984 Nut

5 3404162 Clamp, Motor

(W/Shield)

6 3403630 Plug, Strike

7 343641 Screw, 10−16 x 1/2

8 697773 Screw, 6−20 x 7/8

9 3401401 Cord, Power

10 8541400 Bracket, Cabinet

11 697776 Screw, 10−32 x 5/8

(Grounding)

12 3404413 Plug, Hinge

Hole (4)

13 3405184 Handle, Door

14 3402335 Door, Front

15 3396795 Cover, Block

16 238088 Hinge, Top (2)

17 3394083 Clip, Front

Panel (2)

18 3396805 Panel, Rear

19 3401771 Burner Assembly

(60 Hz)

(Refer To Pages

8 & 9 For

Further Burner

Breakdown)

20 3402341 Door, Rear

21 98234 Clip, Ground (2)

22 3406129 Seal & Bearing

Assembly

23 693995 Screw, Hex

Washer Head

24 3403447 Front Panel

Assembly

25 3392100 Foot

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

26 342055 Screw, 8−18 x 1/2

27 8281908 Valve, Gas

(Complete)

28 8530603 Cabinet

(Includes

Illus. 10)

29 3405514 Hinge & Pin

Assembly (2)

30 3406109 Switch, Door

31 3403431 Strike, Door

32 686590 Ignitor

33 690363 Lock, Front

Top (2)

34 685203 Clip, Felt Pad (2)

35 3393909 Screw, Washer

36 3405246 Seal, Door

37 3389441 Catch, Door

38 8066206 Motor Assembly

60 Hz.

39 348780 Base, Motor

W10131364

Belt, Drive

41 3400500 Bolt,

5/16−18 x 3/4

42 691366 Idler & Pulley

Assembly

W10121316

Clamp, Motor

44 8066184 Pulley, 60 Hz.

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

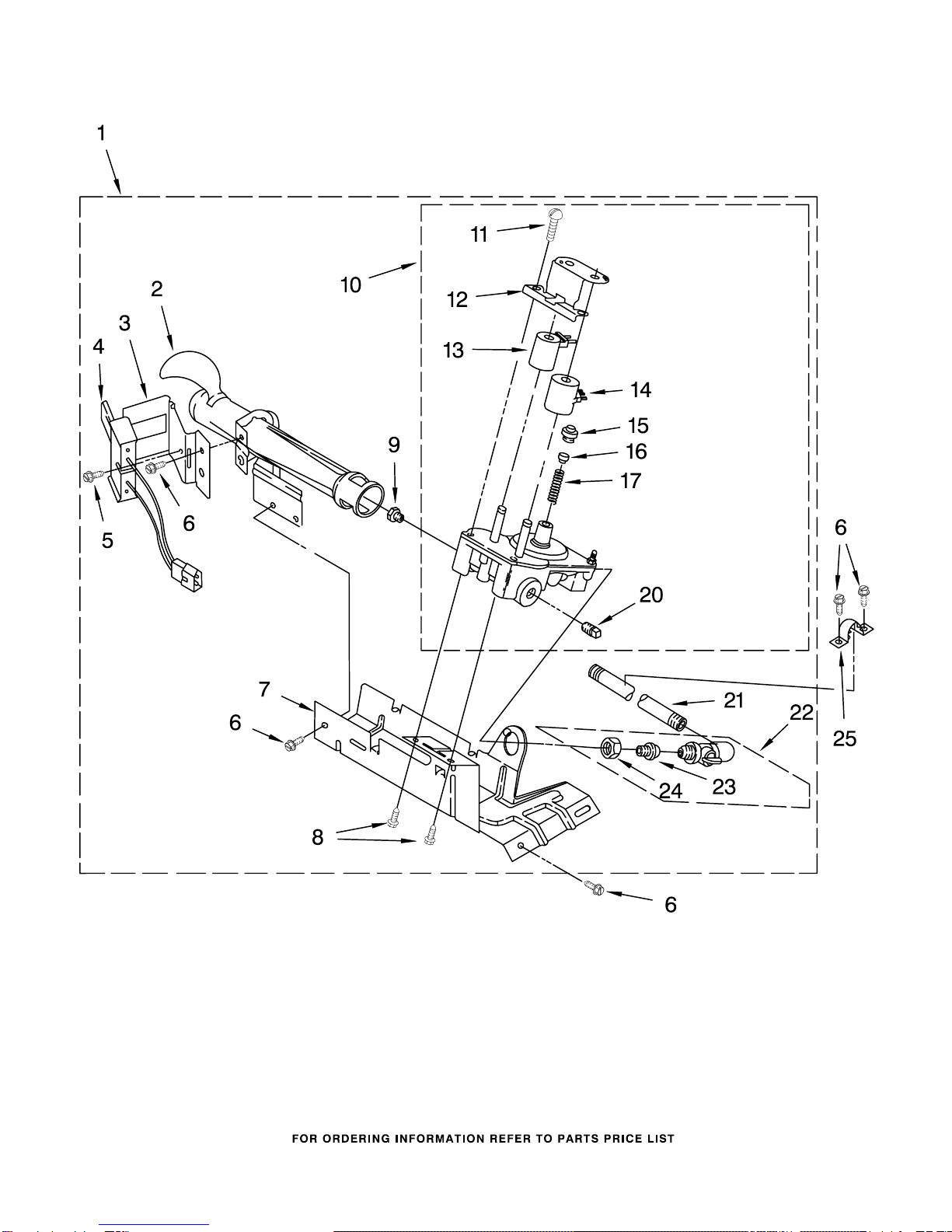

3401771 BURNER ASSEMBLY

BA−128−A

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

Illus. Part

No. No. DESCRIPTION

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

1 3401771 Burner Assembly

60 Hz.

(Type 1, 2 & 3)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw,

8−18 x 3/8 (2)

9 Orifice, Burner

234826 Type 1

15775 Type 2

15419 Type 3

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 3401775 Valve, 60 Hz.

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

21 233273 Pipe, Gas Supply

22 3393658 Valve & Union,

Shut−Off

23 3393767 Pipe, Tail

24 233076 Nut, Compression

25 341029 Clamp, Pipe

Following Parts Not Illustrated

694572 Conversion Kit

(Type 1, 2 & 3)

to Type (4) L.P.G.

BA−128−A

3401771 BURNER ASSEMBLY

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

OPTIONAL PARTS (NOTINCLUDED)

For Model: CGM2941TQ0, CGM2941TQ1

(White) (White)

W10119633

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
