Whirlpool CSP2760TQ0 Bedienungsanleitung

c2008 WHIRLPOOL CORPORATION

COMMERCIAL

ELECTRIC DRYER

11−08 Litho in U.S.A. (LT) (eeb) Part No. W10128963 Rev. B

MODELS

CSP2760TQ0

(WHITE)

CSP2760TQ1

(WHITE)

LOWER CABINET AND FRONT PANEL PARTS

W10128963

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

LOWER CABINET AND FRONT PANEL PARTS

3W10128963

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

1 Literature Parts

(Located Behind

Toe Panel)

W10135152

Installation

Instructions

8576825 Wiring Diagram

W10128963

Repair Parts List

2 693152 Bumper

3 3390663 Screw, 10−16 x 1/2

4 3391846 Clip, Front

Panel (2)

5 3394881 Switch, Broken

Belt

6 3393258 Screw, 10−16 x 1/2

7 8310656 Cabinet, Lower

8 3392100 Foot, Dryer

(Plastic) (4)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697773 Screw, 6−20 x 7/8

13 3388672 Pulley Assembly

14 3391915 Screw, 10−16 x 1

15 3392918 Window

(Not Shown Part

3396122, Window

Pack. Includes

Illus. 15 & 25)

W10167612

Wire, Belt Switch

17 718032 Screw, 8−18 x 3/4

W10121334

Washer, Thurst

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

22 3392914 Frame, Window

23 8066120 Lever, Door

Switch

24 3390647 Screw, 8−18 x 1/2

25 3392915 Gasket, Window

26 3389249 Nut, "U" (4)

27 8538264 Motor Assembly

(60 Hz.)

28 3398948 Wire, Jumper

29 8066184 Pulley 60 Hz

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 3392186 Washer (2)

34 8529992 Harness (Lower)

34A 692997 Plug, Multi−

Terminal

34B 717252 Receptacle

35 3390735 Seal, Door

36 3392538 Door Catch

Assembly

37 3393933 Fastner

38 8283298 Jumper,

Door Switch

38A 717253 Plug, 2−Way

38B 3936144 Connector

39 3388674 Bracket, Idler

W10213202

Handle, Door

41 3406109 Door Switch

Assembly

42 98129 Screw,

6−20 x 1 1/16

43 697215 Panel, Toe

(Includes

Item 2.)

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

W10205622

Door, Rear

48 694091 Screw, 8−18 x 3/8

W10205649

Door, Front

50 3391018 Tie Cable

51 3393081 Lower Front Panel

52 696144 Strike, Door

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

53 279818 Exhaust Kit

54 697750 Plug, Multivent

55 279731 4"− 90

Elbow

56 488729 Screw, 8−18 x 3/8

57 3394331 Plate, Cover

(Bottom Exhaust)

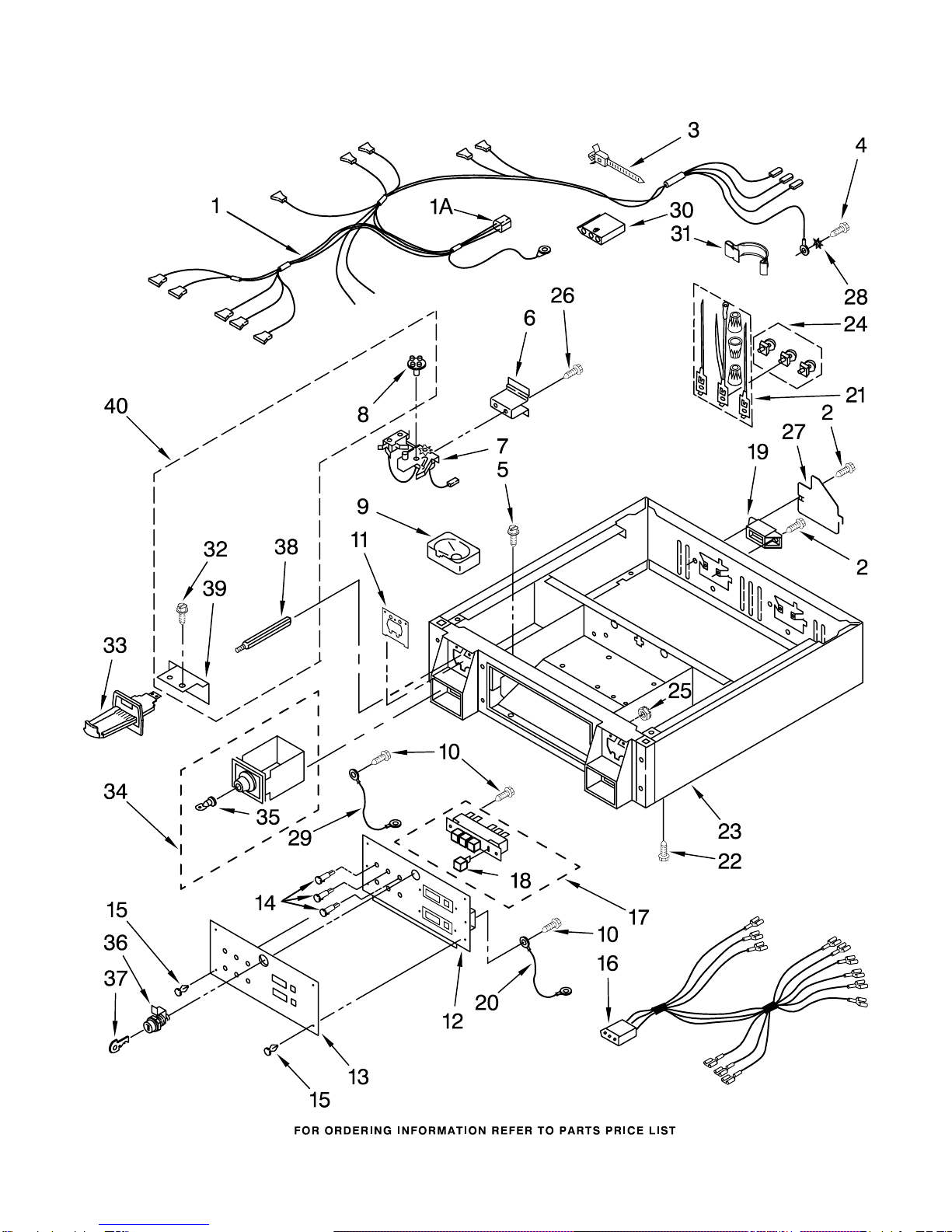

CONTROL PANEL AND SEPARATOR PARTS

W10128963

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

CONTROL PANEL AND SEPARATOR PARTS

5W10128963

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

1 8576522 Harness, Wire (2)

1A 692998 Receptacle (2)

2 3400000 Screw, 10−24 x 3/8

3 3391018 Tie, Cable

4 697776 Screw, 10−32 x 5/8

5 98139 Screw, 8−32 x 5/16

6 3390115 Bracket, Timer (2)

7 3389668 Timer (Includes

4−Pin Cam) (2)

8 Cam

3387974 3−Pin (60 Min.)

339855 4−Pin (45 Min.)

343777 6−Pin (30 Min.)

Also Available

339854 9−Pin (20 Min.)

339853 12−Pin (15 Min.)

9 385421 Funnel, Coin (2)

10 303921 Screw, 8−32 x 3/8

11 3954761 Plate,

Chute Adapter (2)

(Includes

Illus. 9)

12 3979100 Panel, Control

13 8565384 Insert, Decorative

14 Lamp, Indicator

3979325 Red

3979326 Amber

3979327 Blue

15 354239 Rivet (4)

16 8283296 Wire Jumper (2)

(Light & Switch)

17 8316437 Switch,

Pushbutton (2)

18 8316433 Pushbutton

19 3397659 Block, Terminal (2)

20 8539882 Jumper Wire

21 279318 Terminal, Brass

Tinned (3)

(Includes

Illus. 24)

22 3400500 Bolt,

5−16 x 18 (2)

23 3978853 Collar

24 279393 Terminal Block

Screw Kit (For

Terminal Block)

25 3400029 Nut, 10−32 (6)

26 3400094 Screw, 10−32 x 3/8

27 3396795 Cover, Terminal

Block (2)

28 3390443 Retainer,

Terminal (2)

29 3401699 Jumper, Wire

(Ground)

30 353424 Connector, Sensor

31 98997 Clip, Harness

Following Parts Optional

Are Not Supplied On This

Model. But Are Available

For Purchase.

32 96435 Screw, 10−32 x 3/8

33 8316520 Slide Mechanism

(Vertical 8−Coin)

(Dollar Vend)

Inserts

(Not Shown)

8316264 Blank

8316265 25¢

34 8316525 Money Box W/Lock

35 Key (Money Box)

(When Ordering,

Specify Vendor

and Key Number)

36 8316526 Security Lock/Key

and Cam Assembly

37 Key (Service Door)

(When Ordering,

Specify Vendor

and Key Number)

38 8318517 Bolt, Slide

Mechanism

39 3390424 Extension,

Slide

40 3390615 Screw & Cam

Bag Assembly

Coin Mechanism Parts May Be

Ordered From Whirlpool Or

The Vendor(s) Listed Below

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

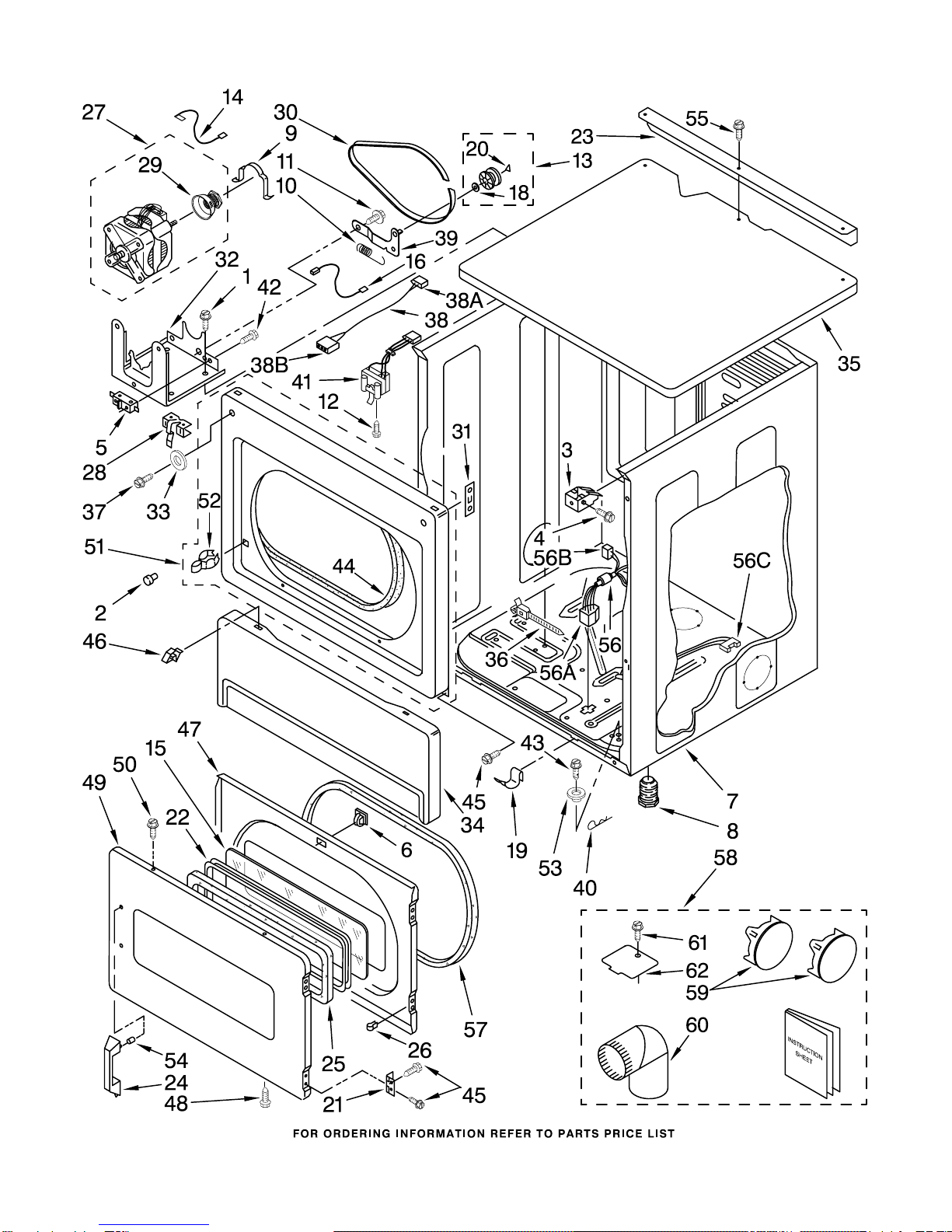

UPPER CABINET AND FRONT PANEL PARTS

W10128963

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

UPPER CABINET AND FRONT PANEL PARTS

7W10128963

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

1 3390663 Screw, 10−16 x 1/2

2 693152 Bumper

3 3391846 Clip, Front

Panel (2)

4 3391915 Screw, 10−16 x 1

5 3394881 Switch, Broken

Belt

6 3392538 Door Catch

Assembly

7 3978859 Cabinet (Upper)

8 689172 Foot, Dryer

(Plastic) (2)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697773 Screw, 6−20 x 7/8

13 3388672 Pulley Assembly

14 3398948 Wire, Jumper

15 3392918 Window

(Not Shown Part

3396122, Window

Pack. Includes

Illus. 15 & 25)

16 3394881 Wire, Belt Switch

W10121334

Washer, Thrust

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

22 3392914 Frame, Window

23 3979115 Bracket, Angle

24 3392906 Handle, Door

25 3392915 Gasket, Window

26 3389249 Nut, "U" (4)

27 8538264 Motor Assembly

60 Hz.

28 8066120 Lever, Snap

Switch

29 8066184 Pulley (60 Hz.)

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 3392186 Washer (2)

34 697215 Panel, Toe

(Includes

Item. 2 )

35 3389351 Top (Upper)

36 3391018 Cable Tie

37 3393258 Screw, 10−16 x 1/2

38 8283298 Jumper,

Door Switch

38A 717253 Plug, 2−Way

38B 3936144 Connector

39 3388674 Bracket, Idler

W10117347

Cotter Pin

41 3406109 Door Switch

Assembly

42 98129 Screw,

6−20 x 1 1/16

43 3400523 Screw, Security

(Includes

Item. 40 )

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

47 3392905 Door, Rear

48 694091 Screw, 8−18 x 3/8

49 3392880 Door, Front

50 718032 Screw, 8−18 x 3/4

51 3393081 Upper Front Panel

52 696144 Stike, Door

53 3389233 Bushing

54 3393933 Fastener

55 3390647 Screw, 8−18 x 1/2

56 8529991 Harness

(Upper)

56A 692997 Plug, Multi−

Terminal

56B 717252 Receptacle

56C 3395683 Connector

57 3390735 Seal, Door

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

58 279818 Exhaust Kit

59 697750 Pug, Multivent

60 279731 4"− 90

Elbow

61 488729 Screw, 8−18 x 3/8

62 3394331 Plate, Cover

(Bottom Exhaust)

UPPER AND LOWER BULKHEAD PARTS

W10128963

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

UPPER AND LOWER BULKHEAD PARTS

9W10128963

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

1 8575324 Shaft, R.H. Thread

2 90767 Screw, 8−18 x 3/8

3 8533971 Screw, 8−18 x 5/16

4 3387230 Screw,

10−16 x 13/16

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,

3/8 x 16 (R.H.)

9 8066224 Exhaust Pipe

10 8572105 Clip, Exhaust

11 3357011 Screw, 10−16 x 1/2

12 8066208 Clip−Spring

13 3390647 Screw, 8−18 x 1/2

14 3387748 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut,

3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8544362 Housing, Blower

23 3394985 Housing, Outlet

24 8066168 Lint Duct Assembly

25 8318215 Drum Complete

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

28 3394986 Spring, Lint

Screen

29 3392537 Heater Box

30 8318314 Thermal Cut−Off

(Includes

Item. 32 )

31 487909 Screw, 8−15 x 1/2

32 3391914 Thermostat 295

(146 C)

33 8066099 Bracket,

Heater Box

34 697693 Baffle, Drum (3)

35 697557 Bulkhead, Front

36 8299979 Grille, Outlet

W10049370

Wheel, Blower

38 3394984 Door, Lint Screen

39 3392519 Thermal Fuse

40 697770 Seal, Cover Plate

W10049370

Screen, Lint

42 3387138 Thermostat,

Internal−Bias

OPTIONAL PARTS (NOT INCLUDED)

W10128963

Illus. Part

No. No. DESCRIPTION

For Models: CSP2760TQ0, CSP2760TQ1

(White) (White)

ACCESSORY PARTS

4392067 Kit,

Dryer Repair

285875 Kit, Security

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

Andere Handbücher für CSP2760TQ0

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool Gold YGEQ9800PW1 Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC - DUET FRONT LOAD STEAM DRYERS Bedienungsanleitung

Whirlpool

Whirlpool 3XLER5435HQ2 Bedienungsanleitung

Whirlpool

Whirlpool L0412123 Bedienungsanleitung

Whirlpool

Whirlpool LER7646AQ1 Bedienungsanleitung

Whirlpool

Whirlpool LER3624EQ1 Bedienungsanleitung

Whirlpool

Whirlpool WED8300SB1 Bedienungsanleitung

Whirlpool

Whirlpool MDG22PRBWW0 Bedienungsanleitung

Whirlpool

Whirlpool WGD9450WW - 27" Gas Dryer Benutzerhandbuch

Whirlpool

Whirlpool LER4634PT Bedienungsanleitung

Whirlpool

Whirlpool WGD9450WL Bedienungsanleitung

Whirlpool

Whirlpool LER7620KQ1 Bedienungsanleitung

Whirlpool

Whirlpool WED7990XG0 Bedienungsanleitung

Whirlpool

Whirlpool WGD85HEFC Bedienungsanleitung

Whirlpool

Whirlpool Gas dryer Bedienungsanleitung

Whirlpool

Whirlpool LE9800XPW1 Bedienungsanleitung

Whirlpool

Whirlpool WGD4800B Bedienungsanleitung

Whirlpool

Whirlpool YWED9550WR0 Bedienungsanleitung

Whirlpool

Whirlpool 7MWGD1860EM0 Bedienungsanleitung

Whirlpool

Whirlpool LER3624PQ Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WED7300X Gebrauchsanweisung

Whirlpool

Whirlpool TEDL200W Montageanleitung

Whirlpool

Whirlpool LE5320XT Bedienungsanleitung

Whirlpool

Whirlpool Gold GGX9868JQ0 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
