I------

AUTOMATIC

DRYER

Electric Model

GLE7900XM

we Ovens. Trash Compactors. Room Air Condltloners. Oehumldlflers. Automatx Washers, Clothes Dryers. Freezers, Refrigerator-Freezer

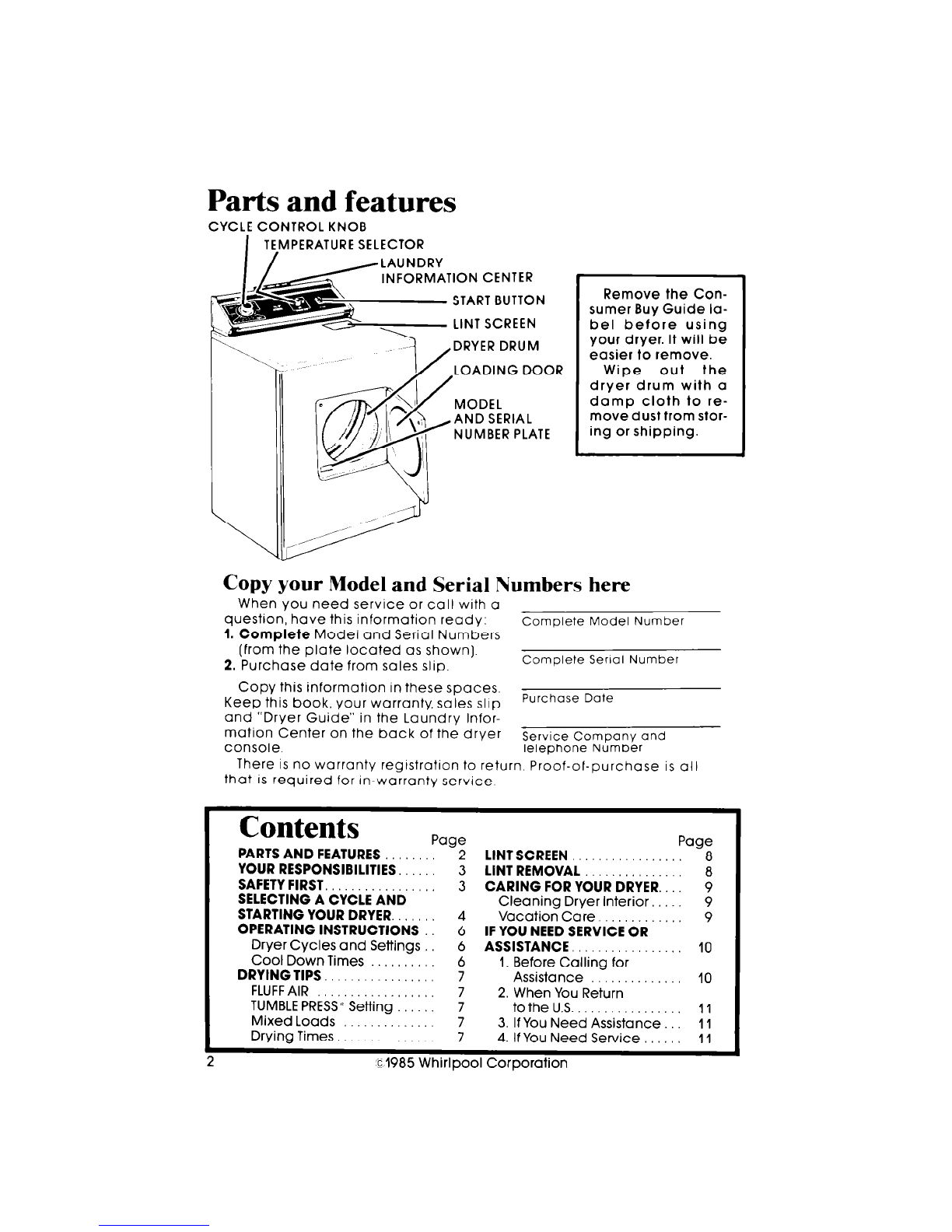

Parts and features

CYCLE CONTROL KNOB

TEMPERATURE SELECTOR

TION CENTER

START BUTTON

LINT SCREEN

DRYER DRUM

LOADING DOOR

MODEL

AND SERIAL

NUMBER PLATE

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Complete Model Number

1. Complete Model and Serial Numbers

(from the plate located as shown].

2. Purchase date from sales slip.

Complete Serial Number

Copy this information in these spaces.

Keep this book, your warranty, sales slop

Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console Telephone Number

There is no warranty regtstration to return. Proof-of-purchase is all

that IS required for in-warranty service.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST. 3

SELECTING A CYCLE AND

STARTING YOUR DRYER. 4

OPERATING INSTRUCTIONS 6

Dryer Cycles and Settings 6

Cool Down Times 6

DRYING TIPS. 7

FLUFFAIR 7

TUMBLEPRESS”Setting...... 7

Mixed Loads 7

Drying Times. 7

2 %1985 Whirlpool Corporation

Page

LINT SCREEN 8

LINT REMOVAL 8

CARING FOR YOUR DRYER.. 9

Cleaning Dryer Interior. 9

Vacation Care. 9

IF YOU NEED SERVICE OR

ASSISTANCE.. 10

I. Before Calling for

Assistance 10

2. When You Return

totheU.S . . . . . . . . . . . . . . . . 11

3. IfYou Need Assistance. 11

4.IfYouNeedService 11

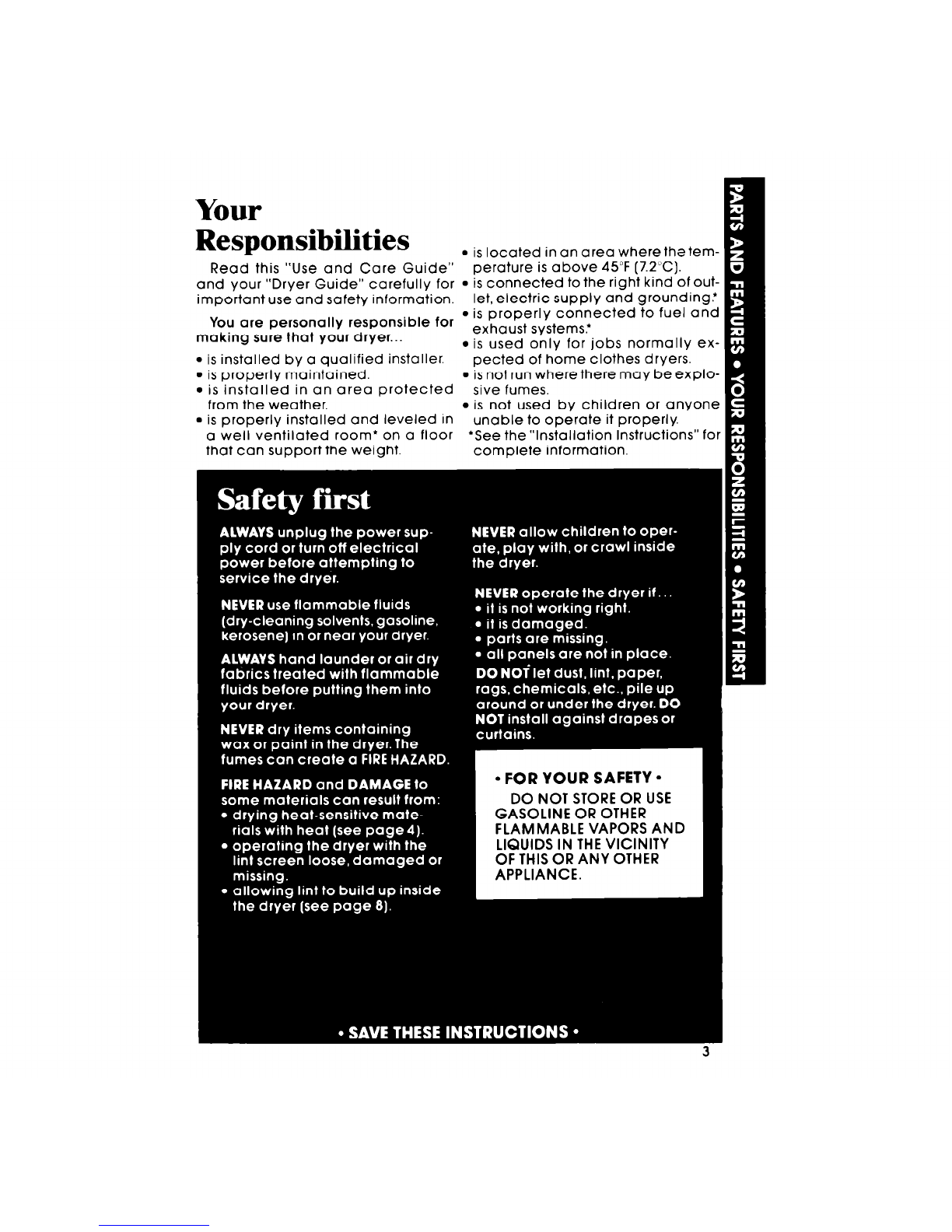

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room* on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2”C).

is connected to the right kind of out-

let, electric supply and grounding.’

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

‘See the”lnstallation Instructions” for

complete information.

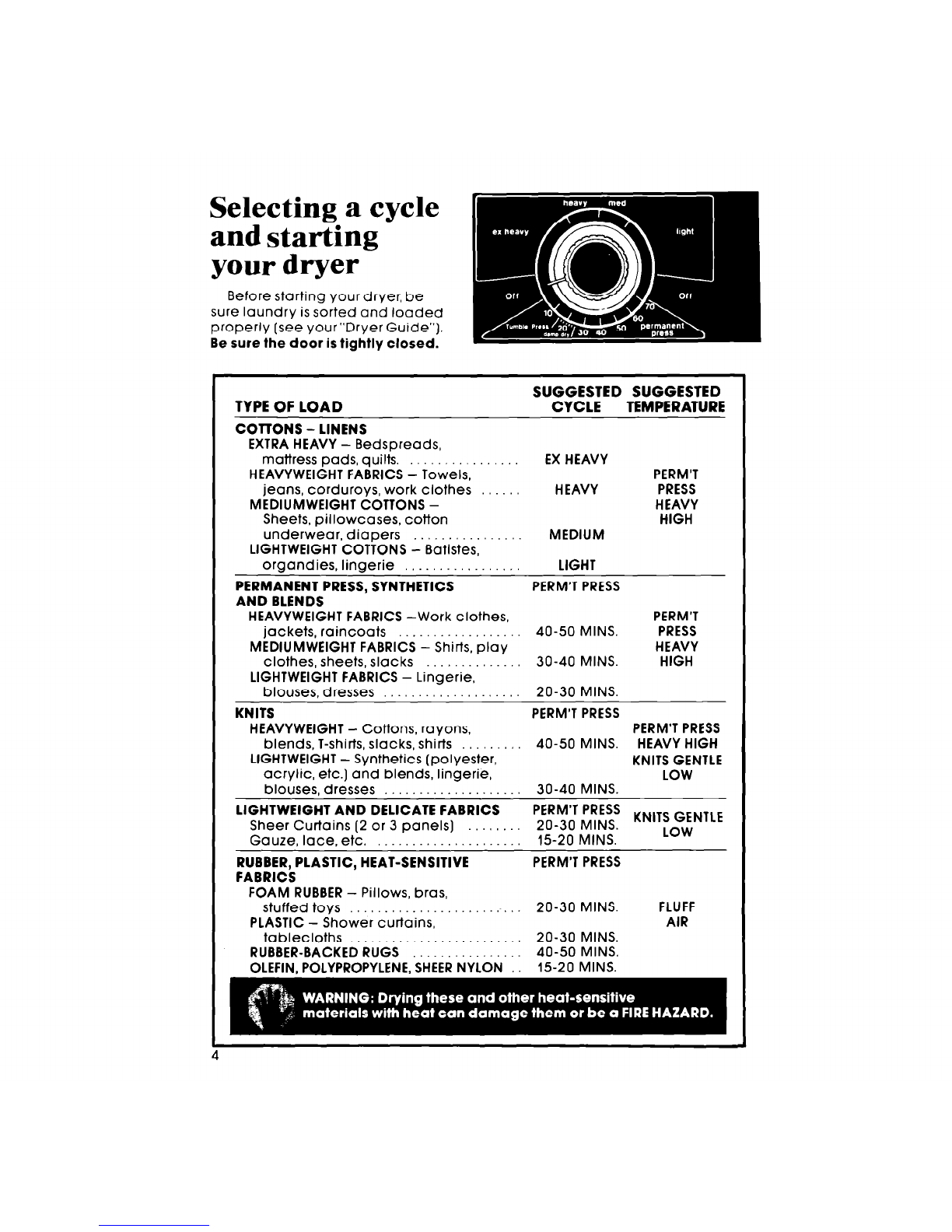

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts.

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS -

Sheets, pillowcases, cotton

underwear, diapers _.

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie

PERMANENT

PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes,

jackets, raincoats _. _. _.

MEDIUMWEIGHT FABRICS - Shirts, play

clothes, sheets, slacks

LIGHTWEIGHT FABRICS - Lingerie,

blouses. dresses

EX HEAVY

HEAVY

MEDIUM

LIGHT

PERMIT PRESS

40-50 MINS.

30-40 MINS.

20-30 MINS.

PERMIT

PRESS

HEAVY

HIGH

PERMIT

PRESS

HEAVY

HIGH

KNITS PERMIT PRESS

HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS

blends, T-shirts, slacks, shirts , 40-50 MINS. HEAVY HIGH

LIGHTWEIGHT - Synthetics (polyester, KNITS GENTLE

acrylic, etc.] and blends, lingerie, LOW

blouses, dresses 30-40 MINS.

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels] PERM’T PRESS KNITS GENTLE

20-30 MINS.

Gauze. lace.etc. _. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys ,._,_..._...__,._.......

PLASTIC - Shower curtains,

tablecloths _..__..._...............

RUBBER-BACKED RUGS

OLEFIN. POLYPROPYLENE, SHEER NYLON

PERMIT PRESS

20-30 MINS. FLUFF

AIR

20-30 MINS.

40-50 MINS.

15-20 MINS.

Select a

1. CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

Set TEMPERATURE

SELECTOR

Turn the Temperature Selector to the

needed drying temperature

To stop and restart

the dryer

The dryer will start tumbling when

you push the START Button.

Changing a setting

The setting can be changed at any

time by turning the Control Knob to a

new setting.

To stop the dryer, open the door [or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

Dryer cycles and settings

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...a period of heated drying

followed by a 10 minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads.

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry. The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is designed to be

longenoughtodryaloadofheavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

f MOPETIME LESSTIME + I

If the load is not as dry as you want,

set the dial more to the left the next

time you dry that kind of load.

If the load is dryer than YOU want.

set the dial more to the right the next

time you dry that kind of load.

Cool down times

In all cycle&the heat shuts off

before the dryer stops tumbling This

cool down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

COOL DOWN COOL DOWN I

The PERMANENT PRESS Cycle has

10 minutes of cool down time at the

end of the cycle.

All other cycles have 5 minutes of

cool down time.

Drying tips

FLUFF AIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, pillows and clothing orto

dust drapes.

It can also be used to damp-dry

heat sensitive items...such as plastic

shower curtains, rubber-backed

rugs, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Set the Temperature Selector to

FLUFF AIR.

2. Set the Control Knob to the PERMA-

NENT PRESS Cycle and select the

number of minutes you want.

3. Push the START Button.

TUMBLE PRESS” Setting

The TUMBLE PRESS setting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

Set Temperature Selector to PERM’T

PRESS/HEAVY HIGH.

2. Set Control Knob to TUMBLE PRESS.

3. Push START Button.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control.

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryer temperature selection.

See page 6 in your”Dryer Guide”

for more information. -I

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen

with your fingers.

DO NOT rinse or wash the screen

Lint removal

Lint can gather inside the dryer and create a fire hazard-This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

Heat Element

ELECTRIC DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

1. Remove back panel (electric]

or lower access panel (gas).

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art- with a soft brush or

Avoid injury or damage -do not

put hands inside cabinet. vacuum cleaner.

4. Replace panel; reconnect and

Make sure dryer is cool. re-level dryer.

Caring for your

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zlppers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or dame laundry

n your dryer. ~

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Some pretreatment products cal

damage dials, consoles and fini&

Do not use these products on or

near your dtver.

Cleaning dryer interior

Before cleaning interior, I

unplug power supply core

or turn off electrical

power to avoid electrical

shock hazard. I

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until all

excess dye is removed. Wipe thor-

oughly with a damp cloth. Tumble

a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

0 Clean lint screen. 9

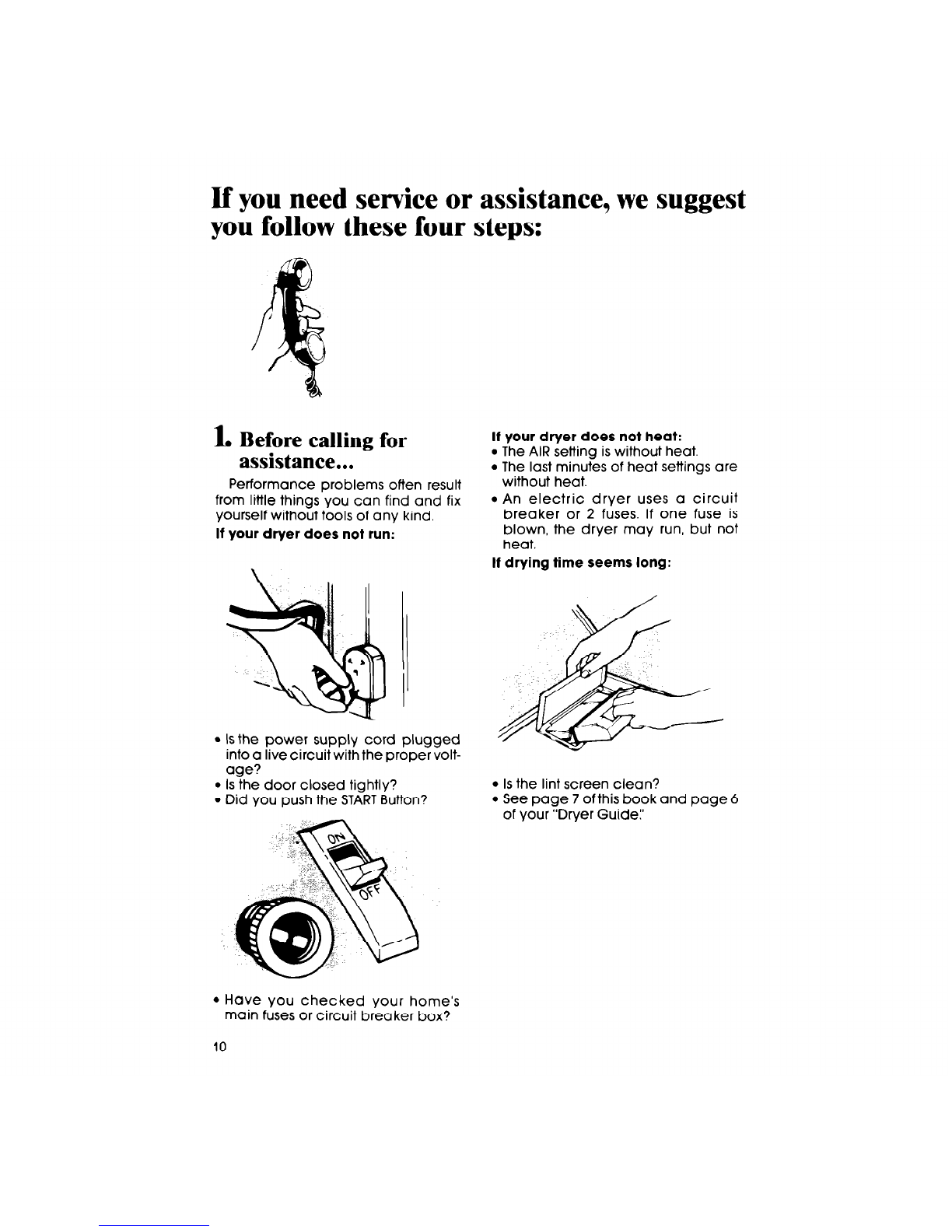

If you need service or assistance, we suggest

you follow these four steps:

Before calling for

assistance...

Performance problems offen result

from little things you can find and fix

yourself without tools of any kind.

If your dryer does not run:

Is the power supply cord plugged

into a live circuit with the proper volt-

age?

Is the door closed tightly?

Did you push the STARTButton?

If your dryer does not heat:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

An electric dryer uses a circuit

breaker or 2 fuses. If one fuse is

blown, the dryer may run, but not

heat.

If drying time seems long:

Is the lint screen clean?

See page 7 of this book and page 6

of your “Dryer Guide:’

Have you checked your home’s

main fuses or circuit breaker box?

Andere Handbücher für GLE7900XM

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool Duet Steam WGD9600T Benutzerhandbuch

Whirlpool

Whirlpool LGV4634JQ0 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WGD5500X Stücklistenhandbuch

Whirlpool

Whirlpool LG6056XSW0 Bedienungsanleitung

Whirlpool

Whirlpool WGD5500SQ0 Bedienungsanleitung

Whirlpool

Whirlpool WHDSCX80112 Bedienungsanleitung

Whirlpool

Whirlpool LE5535XP Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9200S Handbuch

Whirlpool

Whirlpool LE3000XM Bedienungsanleitung

Whirlpool

Whirlpool WPWADREW25 Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9500T Service-Handbuch

Whirlpool

Whirlpool Conservator Bedienungsanleitung

Whirlpool

Whirlpool Maytag W11416805 Bedienungsanleitung

Whirlpool

Whirlpool Duet Sport W10151582A Bedienungsanleitung

Whirlpool

Whirlpool Duet W10136968C Bedienungsanleitung

Whirlpool

Whirlpool LER5848DQ0 Bedienungsanleitung

Whirlpool

Whirlpool WGD7300XW Bedienungsanleitung

Whirlpool

Whirlpool WED9250WR - Duet Cranberry - Electric Dryer Bedienungsanleitung

Whirlpool

Whirlpool Duet Sport WGD8300SWH Bedienungsanleitung

Whirlpool

Whirlpool WED88HEAC Bedienungsanleitung

Whirlpool

Whirlpool Duet Steam Bedienungsanleitung

Whirlpool

Whirlpool LE9805XPW0 Bedienungsanleitung

Whirlpool

Whirlpool WED7300XW Bedienungsanleitung

Whirlpool

Whirlpool WGD9450WL Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
