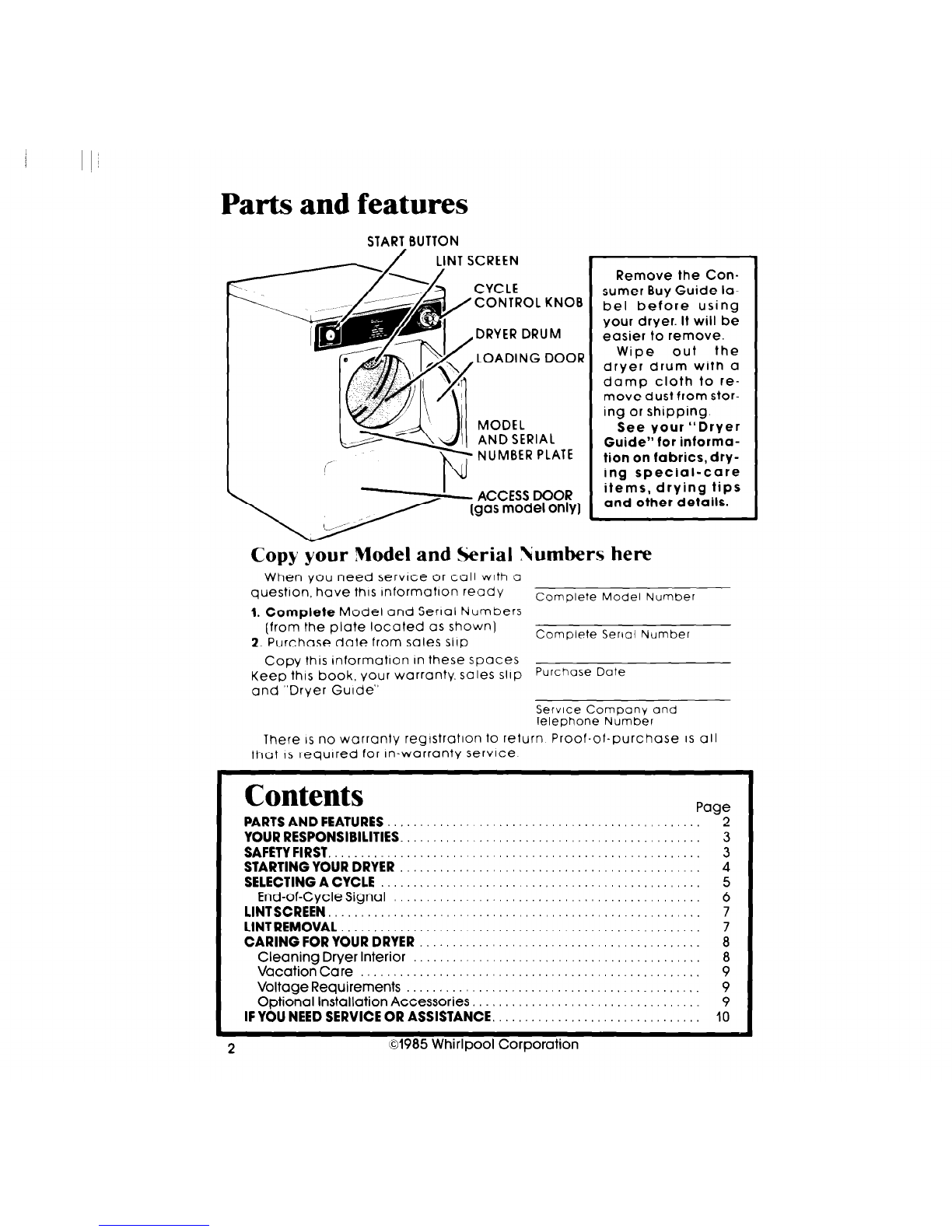

Parts and features

-.---

CONTROL KNOB

#DRYER DRUM

LOADING DOOR

MODEL

AND SERIAL

NUMBER PLATE

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

See your “Dryer

Guide” for informa-

tion on fabrics, dry-

Copy your Model and Serial Numbers here

When vou need service or call wtth a

questIon: have this InformatIon ready

Complete Model Number

1. Complete Model and Serial

Numbers

[from the plate located as shown)

2. Purchase date from sales slip

Complete Serial Number

Copy this information In these spaces

Keep this book, your warranty, sales slip Purchose Date

and “Dryer Guide”

Serwce Company and

Telephone Number

There IS no warranty reglstratlon to return Proof-of-purchase

all

that IS required for In-warranty Service

Contents

PARTS AND FEATURES ................

YOUR RESPONSIBILITIES. .............

SAFETY FIRST. .........................

STARTING YOUR DRYER ...............

SELECTING A CYCLE ..................

End-of-Cycle Signal ................

LINTSCREEN. .........................

LINT REMOVAL ........................

CARING FOR YOUR DRYER ............

Cleaning Dryer Interior .............

Vacation Care .....................

Voltage Requirements ..............

Optional Installation Accessories. ...

IF YOU NEED SERVICE OR ASSISTANCE.

2 01985 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled In

a well ventilated room’ on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2 C].

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to exhaust

systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

ISnot run where there may beexplo-

save fumes.

is not used by children or anyone

unable to operate it properly.

‘See the “Installation Instructions” for

complete information.

FOR YOUR SAFETY

IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

3. EXTINGUISH ANY OPEN

FLAME.

4. IMMEDIATELY CALL

YOUR GAS SUPPLIER.

FOR YOUR SAFETY

DO NOT STOREOR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THIS OR ANY OTHER

APPLIANCE.

Starting your dryer

Before starting your dryer, be sure laundry ISsorted and loaded

properly (see your”Dryer Guide”). Be sure the door is tightly closed.

1. %%E and TIME

Turn the Control Knob either way to

point to the cycle and time setting

you want

To stop and

. restart the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF]

To restart the dryer, close the door.

select cycle, If necessary, and push

START

The setting can be changed at any

time by turning the Control Knob to a

new setting.

The Cycle Control Knob should point to OFF when the dryer is not in use.

I I

The dryer will start tumbling when

you push the START Button.

To change

4. the setting

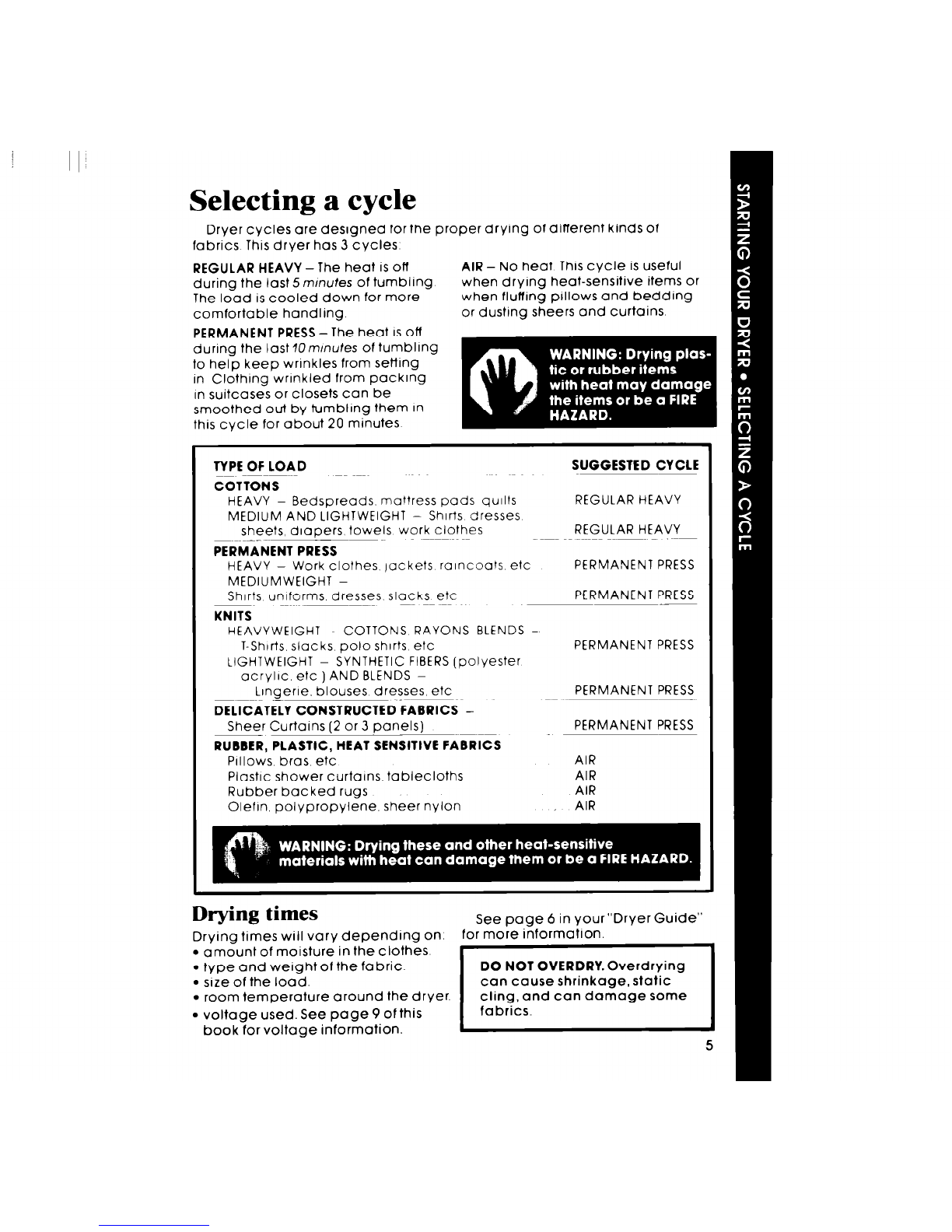

Selecting a cycle

Dryer cycles are designed for the proper drying of different kinds of

fabrics This dryer has 3 cycles

REGULAR HEAVY-The

heat is off

AIR

- No heat This cycle is useful

during the last 5

mlnufes

of tumbling when drying heat-sensitive items or

The load is cooled down for more when fluffing pillows and bedding

comfortable handling or dusting sheers and curtains

PERMANENT PRESS-The

heat

IS off

during the last

70m1nutes

of tumbling

to help keep wrinkles from setting

In Clothing wrinkled from packing

In suitcases or closets can be

smoothed out by tumbling them In

this cycle for about 20 minutes

TYPE OF LOAD SUGGESTED CYCLE

COTTONS

HEAVY - Bedspreads.

mattress pads quilts

MEDIUM AND LIGHTWEIGHT - Shirts dresses

sheets, diapers.

towels work clothes

PERMANENT PRESS

REGULAR HEAVY

HEAVY - Work

clothes jackets ralncoats etc

MEDIUMWEIGHT - PERMANENT PRESS

Shirts uniforms. dresses slacks etc

PERMANENT PRESS

KNITS

HEAVYWEIGHT - COTTONS RAYONS BLENDS -

T-Shirts. slacks polo shirts etC

LIGHTWEIGHT - SYNTHETIC FIBERS (polyester

acrylic. etc ) AND BLENDS -

PERMANENT PRESS

Lingerie. blouses dresses, etc

DELICATELY CONSTRUCTED FABRICS -

Sheer Curtains (2 or 3 panels)

RUBBER, PLASTlC, HEAT SENSITIVE FABRICS

Pillows bras etc

Plastic shower curtains. tablecloths

Rubber backed rugs

Olefln. polypropylene. sheer nylon

PERMANENT PRESS

AIR

Drying times See page 6 in your”Dryer Guide”

Drying times will vary depending on. for more information.

amount of moisture in the clothes.

9 type and weight of the fabric.

size of the load.

room temperature around the dryer.

voltage used. See page 9 of this

book for voltage information.

DO NOT OVERDRY. Overdrying

can cause shrinkage, static

cling, and can damage some

fabrics.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

ncs. When the dryer stops, remove

drv items and reset the control.

important for permanent press,

fabrics.

Suggested load sizes

Use these load size recommendations for your

compact dryer.

Do not

use the load sizes for larger capacity dryers that are listed in the”Dryer

Guide:’

FABRIC TYPE

Permanent press

or knits

MIXED LOAD UNMIXED LOAD

1 dress

shirts OR

2 polrs slacks 2 pantsulfs OR

blouses

3-4

dresses

Medium weight 1 pair pajamas

plllowcases

shlrls

2 sets ot underwear

1 king or queen-stze sheet OR

1 double sheet and 2

plllowcases OR

2 single sheersand

pillowcases

Heavywelghl

work shhrls

2 work pants 8 bath towels OR

6 bath towels,

3 hand towels and

6 washcloths OR

3 pairs of jeans

End-of-cycle signal

The dryer sounds a signal to let you know

when the cycle is finished. The signal cannot be

turned off and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

I I’

Lint screen

Pull straight

out.

The lint screen

is inside the dryer

drum, on the

back wall. Clean

it betore each

toad.

A screen

blocked by lint

can increase

drying time

1. Use the finger holes to pull the lint

screen straight out.

2. Lightly squeeze the body, as

shown, while pulling the cover off

Roll lint off the

screen with

your fingers.

DO NOT rins

or wash the

screen. Wet

lint is hard to

remove

Squeeze body;

pull cover off.

Replace the cover on the body of

the lint screen.

Push the lint screen straight back

rn until it clicks into place:

CAUTION: RUNNING THE DRYER WITH THE

LINT

SCREEN LOOSE,

DAMAGED OR MISSING CAN CAUSE OVERHEATING, DAMAGE TO

FABRtCS AND DRYER PARTS. OR CREATE A FIRE NAZARD.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

Remove back panel [electric]

or lower access door (gas).

Avoid damaging wires,

thermostats, funnel or igniter.

Remove lint from shaded area -

see art-with a soft brush or

vacuum cleaner.

Replace panel; reconnect and

re-level dryer. 7

Remove loose and sharp objects

from

pockets and cuffs before drying - pins,

buckles, etc.

Close metal zippers.

Wipe off all spills

with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never

leave wet or damp laundry

in your dryer.

Sharp or heavy objects

should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc

Some pretreatment products

can

damage dials, consoles and finish.

Do not use these products on or

near your dryer.

Cleaning dryer interior

Before cleaning interior,

unplug power supply cord

or turn off electrical

power to avoid electrical

shock hazard.

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to a

soft cloth and scrub area until all

excess dye is removed. Wipe thor-

oughly with a damp cloth. Tumble a

load of rags.

-OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

:..

‘.::.. \

...*.

::..:.. -

-*.

4!zb

/ .-:..

.:.*

-: (

.:-..

:*:: :

. ..*..

. .: . . .. .

......*. . i;

o /

Unplug power cord or For gas dryers, close Clean lint screen

turn off electrical power. gas valve.

Voltage Requirements

Dryer Model LE4935XM operates on Dryer MotileIs LE4905XM and

household current of 240 or 208 volts. LG4936XM Ioperate on household cur-

Dryer times will be longer if 208 volt rent of 120 vc Its.

current is used. Drying times will be longer than for

dryers that c perate on 240 volts.

Power supply for

Dryer Model LE4935XM Power supply for

Dryer Mode 5LE4905XM

LG4936XM

Optional Installation accessories

The WINDOW EXHAUST KIT (Part No

LCK 3000) ISa convenient way to

exhaust your dryer through a

window.

An EXHAUST DEFLECTOR (Part No LCK

4000) moves dryer exhaust to the

side or up or down

The dryer can be mounted on a wall

with the DRYER WALL MOUNT KIT (Part

No. LCK 2OOl- FOR ELECTRIC DRYERS

w). The wall must be strong

enough to support the weight. Not to

be used in mobile homes. This allows

you to have an eye level dryer with

floor space beneath for a washer.

The dryer c In be mounted on a

stand at eyl. level with the STACK

RACK KIT (P. ;rt No LCK 1100). A com-

pact washci. con be permanently

Installed ar II operated under the

dryer

Another STA IK RACK KIT (Part No LCK

1000) is ovc Iable for washers that

WIII only be stored under the dryer

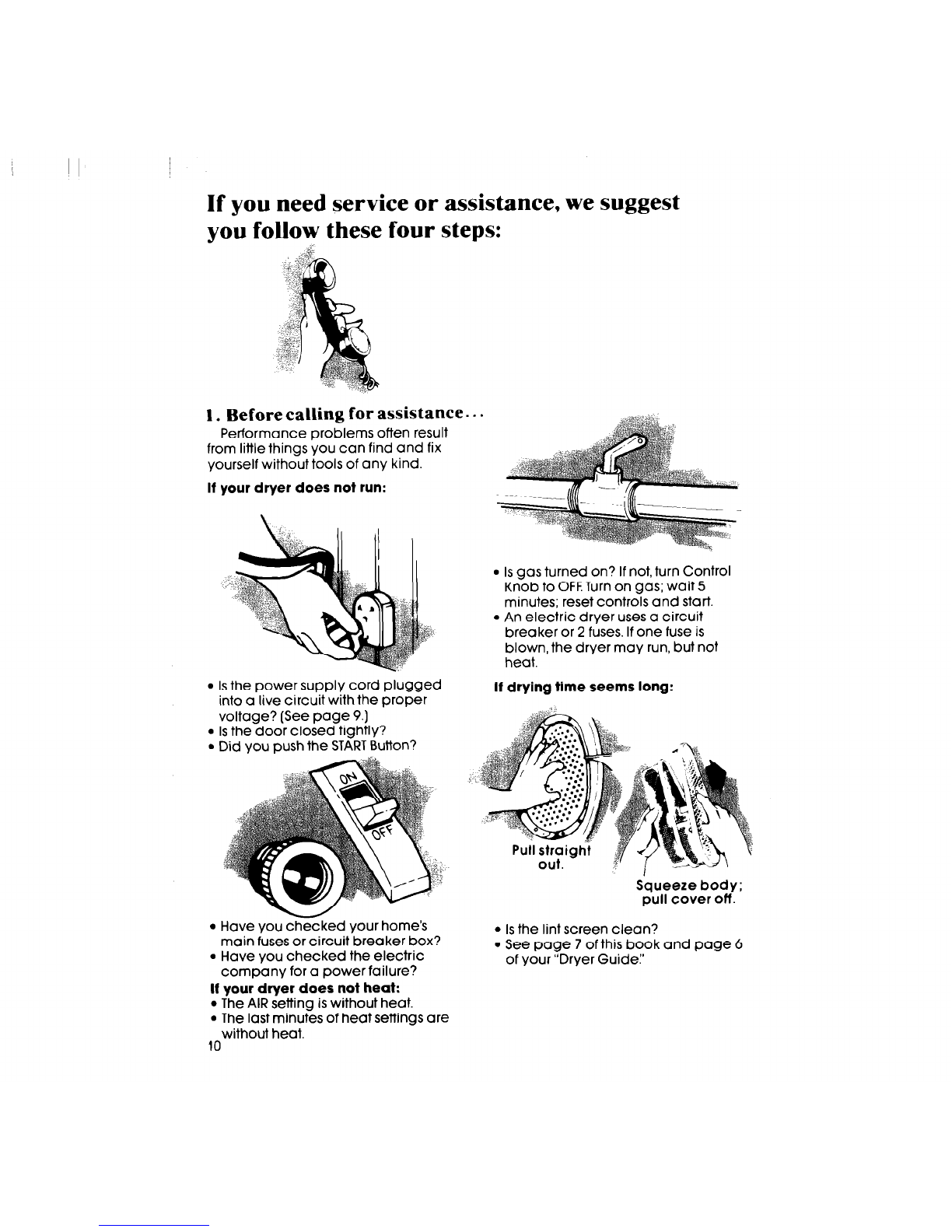

If you need service or assistance, we suggest

you follow these four steps:

I. Before calling for assistance., . .*+” 1

.“<S* .+;>_

Performance problems often result

from little things you can find and fix

yourself without tools of any kind.

It your dryer does not run:

Is the power supply cord plugged

into a live circuit with the proper

voltage? [See page 9.)

Is the door closed tightly?

Did you push the START Button?

Is gas turned on? If not, turn Control

Knob to OFF. Turn on gas; wait 5

minutes; reset controls and start.

An electric dryer uses a circuit

breaker or 2 fuses. If one fUSe iS

blown, the dryer may run, but not

heat.

If drying time seems long:

Have you checked your home’s

main fuses or circuit breaker box?

Have you checked the electric

company for a power failure?

If your dryer does not heat:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Squeeze body;

pull cover off.

Is the lint screen clean?

See page 7 of this book and page 6

of your “Dryer Guide:’

Dieses Handbuch passt für folgende Modelle

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool LE5800XK Bedienungsanleitung

Whirlpool

Whirlpool DUET SPORT W10151580B Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9200S Handbuch

Whirlpool

Whirlpool LE7000XP Bedienungsanleitung

Whirlpool

Whirlpool LE5535XP Bedienungsanleitung

Whirlpool

Whirlpool LER3622PQ Benutzerhandbuch

Whirlpool

Whirlpool 29 IN. (73.7 CM) ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool WED7500VW Bedienungsanleitung

Whirlpool

Whirlpool AED4475TQ Bedienungsanleitung

Whirlpool

Whirlpool YCEP2760KQ0 Bedienungsanleitung

Whirlpool

Whirlpool W10562337C-SP Bedienungsanleitung

Whirlpool

Whirlpool W10096984A Bedienungsanleitung

Whirlpool

Whirlpool WPWADRGW785 Bedienungsanleitung

Whirlpool

Whirlpool CEM2760TQ Bedienungsanleitung

Whirlpool

Whirlpool 3RLEC8600 Bedienungsanleitung

Whirlpool

Whirlpool 3LE5710XM Bedienungsanleitung

Whirlpool

Whirlpool Duet Series Bedienungsanleitung

Whirlpool

Whirlpool AWZ 3520 WP Bedienungsanleitung

Whirlpool

Whirlpool GLE7900XM Bedienungsanleitung

Whirlpool

Whirlpool WGD4870BW Bedienungsanleitung

Whirlpool

Whirlpool WED8127LC Bedienungsanleitung

Whirlpool

Whirlpool LGR7620LQ0 Bedienungsanleitung

Whirlpool

Whirlpool Inglis IES5000RQ0 Bedienungsanleitung

Whirlpool

Whirlpool Estate TGDS840JQ1 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
