Parts and features

CYCLE CONTROL KNOB

\ LAUNDRY INFORMATION CENTER

TEMPERATURESELECTOR

START BUTTON

LINT SCREEN

DRYERDRUM

LOADlNG DOOR

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a question, have this information ready:

1. Complete Model and Serial Numbers

(from the plate located as shown). Model Number

2. Purchase date from sales slip.

Copy this information in these spaces.

Keep this book in’the Laundry Information

Center with your “Dryer Guide:’ sales slip

and warranty

Please complete and mail the Owner

Registration Card furnished with this

pmduct.

Serial Number

Purchase Date

Service Company

Telephone Number

Contents

Page Page

PARTS AND FEATURES 2 Drying Times . 8

IMPORTANT SAFETY Mixed Loads,. . 8

INSTRUCTIONS. . 3 End-of-Cycle Signal 8

OPERATING INSTRUCTIONS. 4 Lint Signal . . . . 8

Selecting a Cycle and LINT SCREEN 9

Starting Your Dryer . 4 LINT REMOVAL.. 9

Automatic Cycles. 6 CARING FOR YOUR DRYER. . . .

Timed Drying . . 6 Cleaning Dryer Interior . 10

DRYING TIPS . . , 7 Vacation Care 10

FLUFFAIR Setting . , 7 IF YOU NEED SERVICE OR

TUMBLE PRESS@Setting 7 ASSISTANCE . . . . . . 11

Electronic DRY-MISER@ WHIRLPOOL DRYER

Control . 7 WARRANTY . . . . . . 12

Gentle Heat 7

2 01987 Whirlpool Corporation

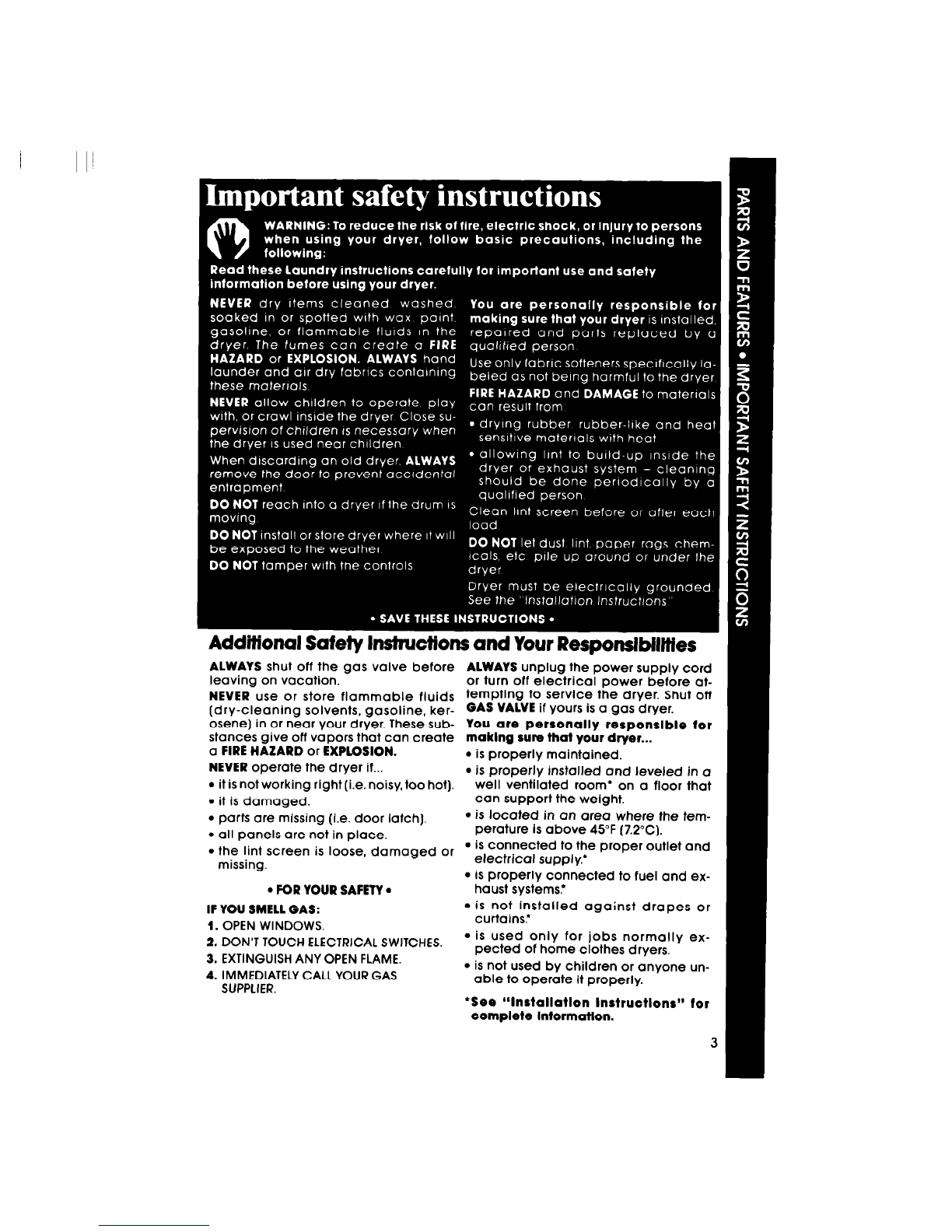

Additional Safety Insfrucfions and Your Responsibilffies

ALWAYS

shut off the gas valve before

ALWAYS

Unplug the power supply cord

leaving on vacation. or turn off electrical power before at-

NEVER

use or store flammable fluids tempting to service the dryer. Shut off

(dry-cleaning solvents, gasoline, ker-

GAS VALVE

if yours is a gas dryer.

osene) in or near your dryer. These sub-

You are personally responsible tar

stances give off vapors that can create

maklng sure that your dryer...

FIREHAZARD

EXPLOSION.

is properly maintained.

NEVER

operate the dryer if...

is properly installed and leveled in a

it is not working right (i.e. noisy, too hot). well ventilated room* on a floor that

it is damaged. can support the weight.

parts are missing (i.e. door latch].

located

in an area where the tem-

all panels are not in place. perature is above 45°F (7.2%).

the lint screen is loose, damaged or

connected to the proper outlet and

missing. electrical supply.’

is properly connected to fuel and ex-

FOR YOUR SAFETY

haust systems:

IF YOU SMELLGAS:

is not installed against drapes or

OPEN WINDOWS. curtains.*

2. DON’T TOUCH ELECTRICAL SWITCHES.

is used only for jobs normally ex-

3. EXTINGUISH ANY OPEN FLAME. petted of home clothes dryers,

4. IMMEDIATELY CALL YOUR GAS

is not used by children or anyone un-

SUPPLIER. able to operate it properly.

*See “lnstallatlon InstructIons” tor

complete Intormatlon.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COllONS - LINENS

EXTRA HEAVY - Bedspreads, HEAVY

mattress pads, quilts HIGH

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS -

Sheets, pillowcases, cotton

underwear,diapers

LIGHTWEIGHT COllONS - Batistes,

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS-Work clothes,

jackets,raiixoats .,............,._.._.

MEDIUMWEIGHT FABRICS - Shirts, play

clothes, sheets, slacks..

LIGHTWEIGHT FABRICS-Lingerie,

blouses, dresses

KNITS

HEAVYWEIGHT - Cottons, rayons,

blend&T-shirts, slacks,shirts

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels)

Gauze, lace, etc.

AUTOMATIC PERM’T PRESS

REGULAR MED

KNITS GENTLE

LOW

PERMIT PRESS

MED

AUTOMATIC

PERMANENT

PRESS MED

LOW

AUTOMATIC MED LOW

PERMANENT KNITS GENTLE

PRESS LOW

AUTOMATIC

PERMANENT Ex LOW

PRESS

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stuffedtoys.........................

PLASTIC-Shower curtains,

tablecloths.........................

RUBBER-BACKED RUGS . . .

OLEFIN. POLYPROPYLENE. SHEERNYLON

FLUFF

AIR Ex LOW

. Select a CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

. Push the STARTButton

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start.

The Cycle Co ntrol Knob sho

not In use. If the dryer Is stopp

Control Knob to an OFF area.

luld poll

ed befa

- Set

TEMPERATURE

SELECTOR

The Temperature Selector can be set

on any desired temperature or any-

where between 2 temperatures.

Tostop and restart

the drver

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

It to an OFF area when the dryer is

re the cycle is finished, turn the Cycle

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Cycle Control Knob will not

move until the clothes load is almost

dry, or the COOL-DOWN portion

of the cycle has been reached. After

COOL-DOWN, the knob automati-

cally moves to an OFF area and

tumbling stops.

Use

AUTOMATIC

REGULAR to

dry heavy

and medium-

weight cotton items. The load tumbles

wllhout heat during the last 5 mln-

utes. This helps make the load easier

to handle.

press, knits and other synthetic

fabrics. The load tumbles wllhout

heat during the last 10 mlnutes. This

helps keep wrinkles from setting in

and makes the load easier to

handle.

For the first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

Timed drying

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want-from 10 to 70.

The last 5 minutes of this cycle are

without heat - a cool-down time. This

helps make the load easier to

handle.

Drying tips

The dry& does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

Electronic DRY-MISER@

Control

An electronic sensor determines

the amount of moisture in the

clothes and automatically shuts off

when the proper dryness is reached.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/MED.

3. Push STARTButton.

The load will tumble in heated air

for 15 minutes. The heat shuts off and

the dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLE PRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops.

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVY HIGH and

PERMIT PRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

Drying times Mixed loads

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the dryer

temperature of the wash rinse water

amount of lint in the lint screen.

dryer temperature selection.

See your “Dryer Guide” for

more information.

End-of-cycle signal

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics. When the dryer stops, remove dry

items and reset the control.

The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

Lint signal

Clean lint screen before each load. If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone] signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase dtvina time and may be a FIREHAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more often, depending

on dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid injury or damage-do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric]

or lower access panel (gas).

2. Avoid damaging wires,

thermostats, funnel or igniter,

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer. 9

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Wipe off ail spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc

Cleaning dryer interior

WARNING: Before

cleaning interior, unplug

power supply cord or,

turn off electrical power to

avoid electrical shock hazard.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. If the

interior is discolored, clean with

one of the following methods to

avoid staining later load items,

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

Liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

Clean lint screen.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool AWZ8377 Bedienungsanleitung

Whirlpool

Whirlpool 8527902 Bedienungsanleitung

Whirlpool

Whirlpool CEM2940TQ Bedienungsanleitung

Whirlpool

Whirlpool 3LWED4830FW Bedienungsanleitung

Whirlpool

Whirlpool WED99HEDW0 Bedienungsanleitung

Whirlpool

Whirlpool LE7000XK Bedienungsanleitung

Whirlpool

Whirlpool LE5725XP Bedienungsanleitung

Whirlpool

Whirlpool LE4905XM Bedienungsanleitung

Whirlpool

Whirlpool YWED7500VW Bedienungsanleitung

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool LGC6848AQ2 Bedienungsanleitung

Whirlpool

Whirlpool W10240584C Bedienungsanleitung

Whirlpool

Whirlpool Electric and Gas Dryers Bedienungsanleitung

Whirlpool

Whirlpool WED8200YW Bedienungsanleitung

Whirlpool

Whirlpool WGD9750WW1 Bedienungsanleitung

Whirlpool

Whirlpool GGN2000H Bedienungsanleitung

Whirlpool

Whirlpool W10562337C-SP Bedienungsanleitung

Whirlpool

Whirlpool 7MWGD1860EM0 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WED7300X Bedienungsanleitung

Whirlpool

Whirlpool 7MWGD6620HW Bedienungsanleitung

Whirlpool

Whirlpool WED7000DW Bedienungsanleitung

Whirlpool

Whirlpool W10151595B Bedienungsanleitung

Whirlpool

Whirlpool FT M10 71Y EU Bedienungsanleitung

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
