SUPERCAPACITY

AUTOMATICDRYERS

LE9380XTLG9381XT

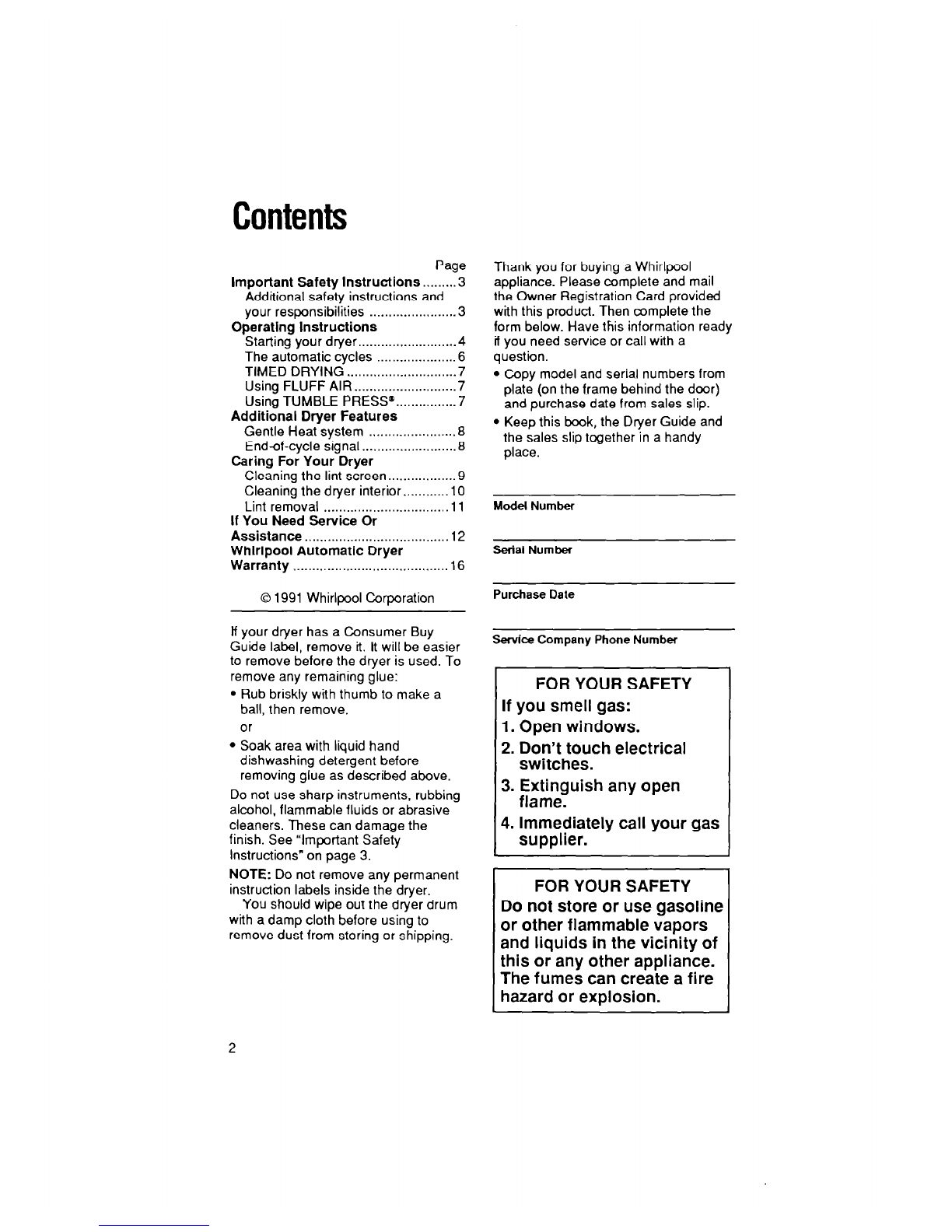

Contents

Page

Important Safety Instructions.. ...... .3

Additional safety instructions and

your responsibilities ...................... .3

Operating Instructions

Starting your dryer.. ....................... .4

The automatic cycles ..................... 6

TIMED DRYING ............................ .7

Using FLUFF AIR.. ........................ .7

Using TUMBLE PRESS’. .............. .7

Additional Dryer Features

Gentle Heat system ....................... 8

End-of-cycle signal.. ...................... .6

Caring For Your Dryer

Cleaning the lint screen.. ................ 9

Cleaning the dryer interior..

.......... 10

Lint removal

................................. 11

If You Need Service Or

Assistance ...................................... 12

Whirlpool Automatic Dryer

Warranty ......................................... 16

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers from

plate (on the frame behind the door)

and purchase date from sales slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

0 1991 Whirlpool Corporation

Purchase Date

if your dryer has a Consumer Buy

Guide label, remove it. lt will be easier

to remove before the dryer is used. To

remove any remaining glue:

. Rub briskly with thumb to make a

ball, then remove.

Soak area with liquid hand

dishwashing detergent before

removing glue as described above.

Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive

cleaners. These can damage the

finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your gas

supplier.

FOR YOUR SAFETY

Do not store or use gasoline

or other flammable vapors

and liquids in the vicinity of

this or any other appliance.

The fumes can create a fire

hazard or explosion.

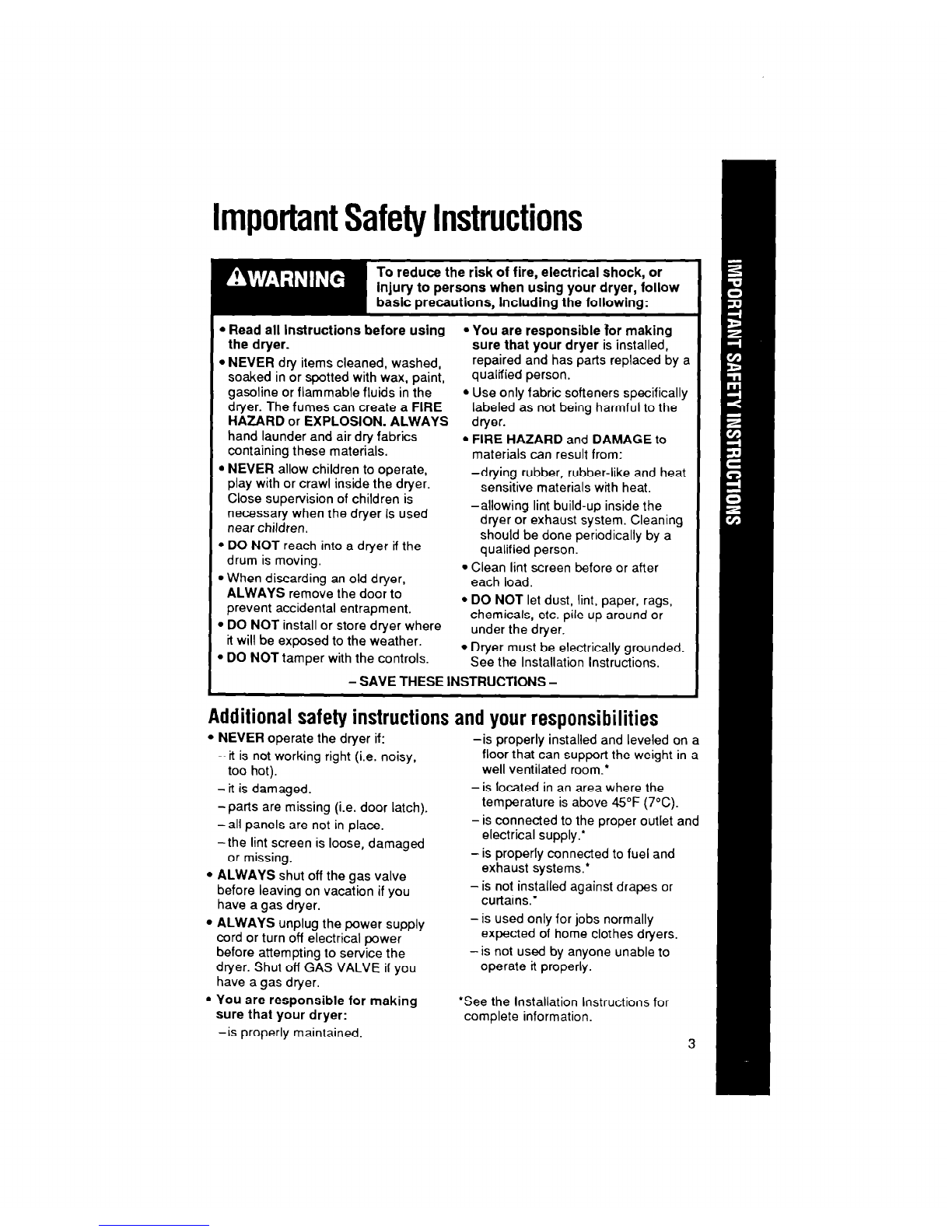

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or

Injury to persons when using your dryer, follow

basic precautions, Including the following:

Read all Instructions before using . You are responsible for making

the dryer. sure that your dryer is installed,

NEVER dry items cleaned, washed, repaired and has parts replaced by a

soaked in or spotted with wax, paint, qualified person.

gasoline or flammable fluids in the

Use only fabric softeners specifically

dryer. The fumes can create a FIRE labeled as not being harmful to the

HAZARD or EXPLOSION. ALWAYS dryer.

hand launder and air dry fabrics

FIRE HAZARD and DAMAGE to

containing these materials. materials can result from:

NEVER allow children to operate,

play with or crawl inside the dryer. -drying rubber, rubber-like and heat

sensitive materials with heat.

Close supervision of children is

necessary when the dryer is used -allowing lint build-up inside the

near children. dryer or exhaust system. Cleaning

DO NOT reach into a dryer if the should be done periodically by a

drum is moving. qualified person.

Clean lint screen before or after

When discarding an old dryer, each load.

ALWAYS remove the door to

prevent accidental entrapment.

DO NOT let dust, lint, paper, rags,

DO NOT install or store dryer where chemicals, etc. pile up around or

it will be exposed to the weather. under the dryer.

DO NOT tamper with the controls.

Dryer must be electrically grounded.

See the Installation Instructions.

- SAVE THESE INSTRUCTIONS -

Additionalsafetyinstructionsandyourresponsibilities

NEVER operate the dryer if:

-it is not working right (i.e. noisy,

too hot).

-it is damaged.

-parts are missing (i.e. door latch).

-all panels are not in place.

-the lint screen is loose, damaged

or missing.

-is properly installed and leveled on a

floor that can support the weight in a

well ventilated room.*

-is located in an area where the

temperature is above 45°F (7°C).

- is connected to the proper outlet and

electrical supply.’

-is properly connected to fuel and

exhaust systems.*

- is not installed against drapes or

curtains.’

ALWAYS shut off the gas valve

before leaving on vacation if you

have a gas dryer.

ALWAYS unplug the power supply

cord or turn off electrical power

before attempting to service the

dryer. Shut off GAS VALVE if you

have a gas dryer.

You are responsible for making

sure that your dryer:

-is properly maintained.

-is used only for jobs normally

expected of home clothes dryers.

-is not used by anyone unable to

operate it properly.

*See the Installation Instructions for

complete information.

OperatingInstructions

Startingyourdryer

Be sure

to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting your dryer.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY-Bedspreads, mattress

pads, quilts

HEAVYWEIGHT-Towels, jeans, corduroys,

work dothes

MEDIUMWEIGHT-Sheets, pillowcases.

cotton, underwear, diapers

LIGHTWEIGHT-Batistes. organdies,

lingerie

AUTOMATIC

REGULAR HEAVY HIGH

HEAVY HIGH

PERM’T PRESS

KNITS GENTLE

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work dothes, jackets. AUTOMATIC PERM’T PRESS

raincoats PERMANENT PRESS

MEDIUMWEIGHT-Shiw, play clothes, PERM’T PRESS

sheets, slacks

LIGHTWEIGHT-Lingerie. blouses, dresses EX LOW

Knits

HEAVYWEIGHT-Cottons, rayons, blends, AUTOMATIC PERM’T PRESS

T-shirts, slacks, shirts PERMANENT PRESS

MEDlUMWElGHTSynthetic (polyester, KNITS GENTLE

acrylic, etc.), dress slacks, skirts, sweaters

LIGHTWEIGHT-Synthetic (polyester, KNITS GENTLE

acrylic, etc.) and blends, lingerie, blouses,

dresses

Delicate fabrics

Sheer curtains (2 or 3 panels)

gauze, lace, etc. AUTOMATIC EX LOW

PERMANENT PRESS

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER-Pillows, bras, stuffed toys

PLASTIGShower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

20 minutes

15-20 minutes

(No temperature

needs to be

selected.

Cyde is

unheated.)

DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage

some

fabrics.

Select a cycle by turning the Cycle

Control Knob either way. Stop

when the indicator on the knob’s

outer ring points to the cycle and

setting you want. See pages 6-6 for

further cycle information.

Press a temperature selection

which matches the type of fabric

being dried. The indicator will

appear over the temperature

selection you have chosen.

Push the Start Button to start

the dryer.

To stop and restart the dryer:

Open the door or turn the Cycle

Control Knob to OFF to stop the

dryer.

Close the door, select a cycle (if

necessary) and push the Stat-t

Button to restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not

in use. ff the dryer is stopped before

the cycle is finished, turn the Cycle

Control Knob to an OFF area.

Operating Instructions

Continued

-. _.

IheautomaticCyCleS

The automatic cycles allow you to

select the degree of dryness you

prefer for the clothes being dried.

The automatic DRY-MISEFPcontrol

is a thermostat that senses the dryer

air temperature. The dryer automati-

cally shuts off when the selected

dryness is reached.

The Cycle Control Knob will not

move until the load is almost dry or the

Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

Use AUTOMATIC REGULAR to dry

heavy or mediumweight cotton items.

The load tumbles without heat during

the last 5 minutes. This helps make

the load easier to handle.

Use AUTOMATIC PERMANENT

PRESS to dry permanent press, knits

and other synthetic items. The load

tumbles without heat during the last 10

minutes. This helps keep wrinkles from

setting in and makes the load easier to

handle.

For the first few loads, set the Cycle

Control Knob to point to the * in either

automatic cycle. When the dryer stops,

feel the dried items.

ff items are drier than you like, use a

setting to the right of the +rthe next

time you dry a similar load.

ff items are not as dry as you like,

use a setting to the left of the *the

next time you dry a similar load.

NOTE: Overdrying can cause shrink-

age, static cling and damage to some

fabrics.

TIMEDDRYING

Use the TIMED DRYING

load you want to dry by ti

Turn the Cycle Control

number of minutes you w

70. The last 5 minutes of

without heat to help make

easier to handle.

cycle for

me.

Knob to 1

‘ant from

this cycle

3the load

the

lot0

! are

UsingFLUFFAIR

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result In fire or damaged items.

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry bed-

ding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to the

number of minutes you want in

FLUFF AIR.

2. Push the Start Button.

UsingTUMBLEPRESS@

The TUMBLE PRESS setting removes

wrinkles from clothing that has been

packed in a suitcase or closet, and from

items not removed from the dryer at the

end of a cycle.

1. Set the Cycle Control Knob on

TUMBLE PRESS.

2. Press the PERMIT PRESS Tem-

perature Selector.

3. Push the Start Button.

The load will tumble in heated air for 15

minutes. Then the dryer will tumble the

clothes for 5 more minutes without heat.

For best results, put only a few items

at a time in this cycle. As soon as the

dryer stops, put the items on hangers or

fold them. 7

AdditionalDryerFeatures

GentleHeatsystem

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERMIT PRESS. During the last few

minutes of each of these temperature

settings, the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent overdrying.

End-of-cyclesignal

The dryer sounds a signal to let you

know when the cycle is finished. The

signal cannot be turned off and is not

adjustable.

The signal is helpful when you are

drying permanent press, synthetic and

other items that should be taken out as

soon as the dryer stops.

CaringForYourDryer

Cleaningthe lint screen

The lint screen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

Product and Fabric Damage Hazard

Do not run the dryer with the lint screen loose,

damaged, blocked or missing. Doing so can

cause overheating and damage to both the

dryer and fabrics.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

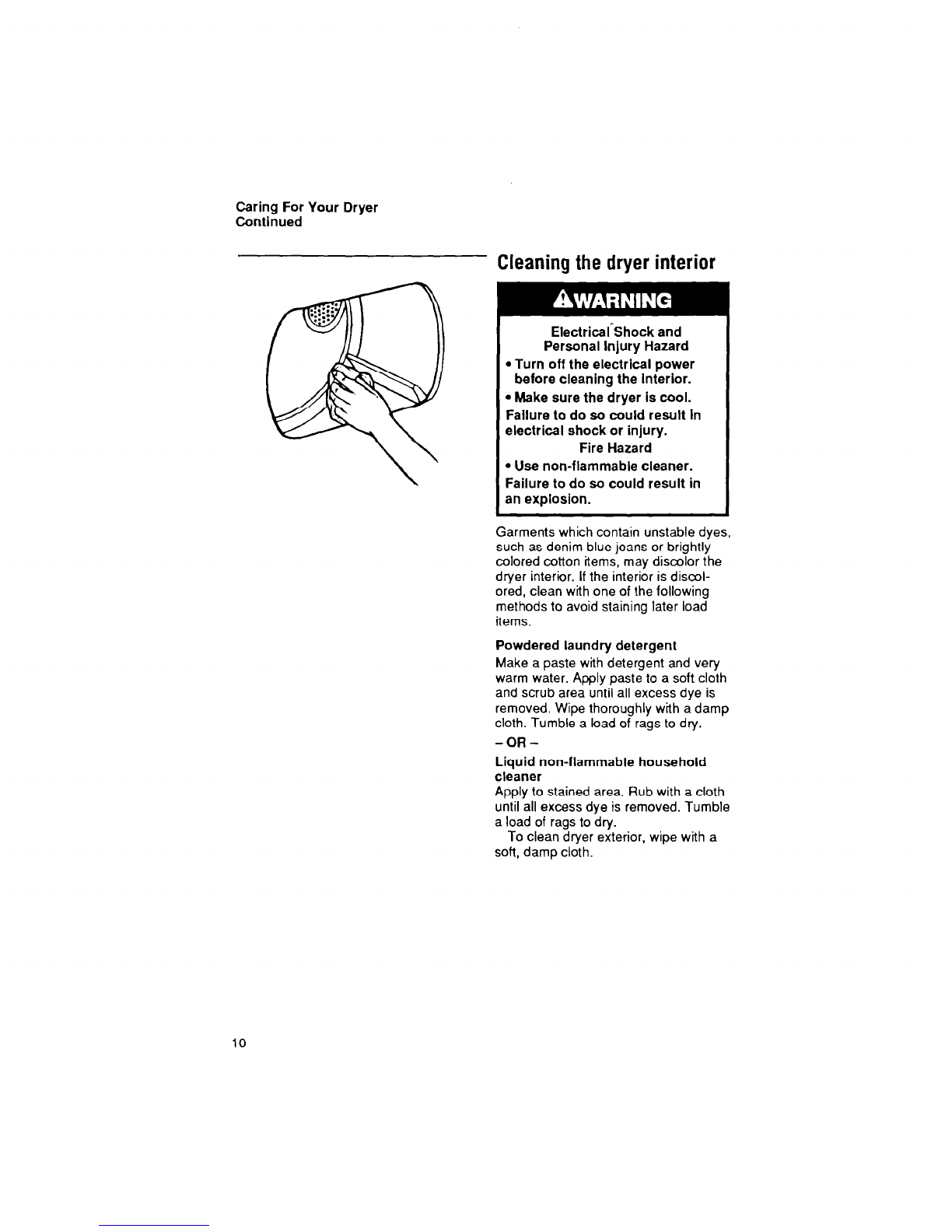

Caring For Your Dryer

Continued

Cleaningthedryerinterior

ElectricafShock and

Personal Injury Hazard

Turn off the electrical power

before cleaning the Interior.

Make sure the dryer is cool.

Failure to do so could result In

electrical shock or injury.

Fire Hazard

Use non-flammable cleaner.

Failure to do so could result in

an explosion.

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer interior. If the interior is discol-

ored, clean with one of the following

methods to avoid staining later load

items.

Powdered laundry detergent

Make a paste with detergent and very

warm water. Apply paste to a soft cloth

and scrub area until all excess dye is

removed. Wipe thoroughly with a damp

cloth. Tumble a load of rags to dry.

-OR-

Liquid non-flammable household

cleaner

Apply to stained area. Rub with a cloth

until all excess dye is removed. Tumble

a load of rags to dry.

To clean dryer exterior, wipe with a

soft, damp cloth.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool Gold YGEQ9800PW2 Bedienungsanleitung

Whirlpool

Whirlpool W10057250 Bedienungsanleitung

Whirlpool

Whirlpool Duet Steam WGD9600T Benutzerhandbuch

Whirlpool

Whirlpool 3RAWZ480E Bedienungsanleitung

Whirlpool

Whirlpool REC3622B Montageanleitung

Whirlpool

Whirlpool Duet GEW9250PW Bedienungsanleitung

Whirlpool

Whirlpool 3SWED5205SQ1 Bedienungsanleitung

Whirlpool

Whirlpool LER3624PQ Bedienungsanleitung

Whirlpool

Whirlpool 3XWGD5705 Bedienungsanleitung

Whirlpool

Whirlpool LE5720XS Bedienungsanleitung

Whirlpool

Whirlpool AWZ 241 Bedienungsanleitung

Whirlpool

Whirlpool WHD5090GW Bedienungsanleitung

Whirlpool

Whirlpool WGD49STBW Bedienungsanleitung

Whirlpool

Whirlpool AWD60A Bedienungsanleitung

Whirlpool

Whirlpool AZA-HP 7771 Bedienungsanleitung

Whirlpool

Whirlpool Duet WGD9300VU Bedienungsanleitung

Whirlpool

Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE Bedienungsanleitung

Whirlpool

Whirlpool LE5200XT Bedienungsanleitung

Whirlpool

Whirlpool HybridCare WHD862CHC Bedienungsanleitung

Whirlpool

Whirlpool AWZ 2413 Bedienungsanleitung

Whirlpool

Whirlpool Gold GGQ8831LL0 Bedienungsanleitung

Whirlpool

Whirlpool WED5100SQ Bedienungsanleitung

Whirlpool

Whirlpool WED5700SW0 Bedienungsanleitung

Whirlpool

Whirlpool W10110521 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
