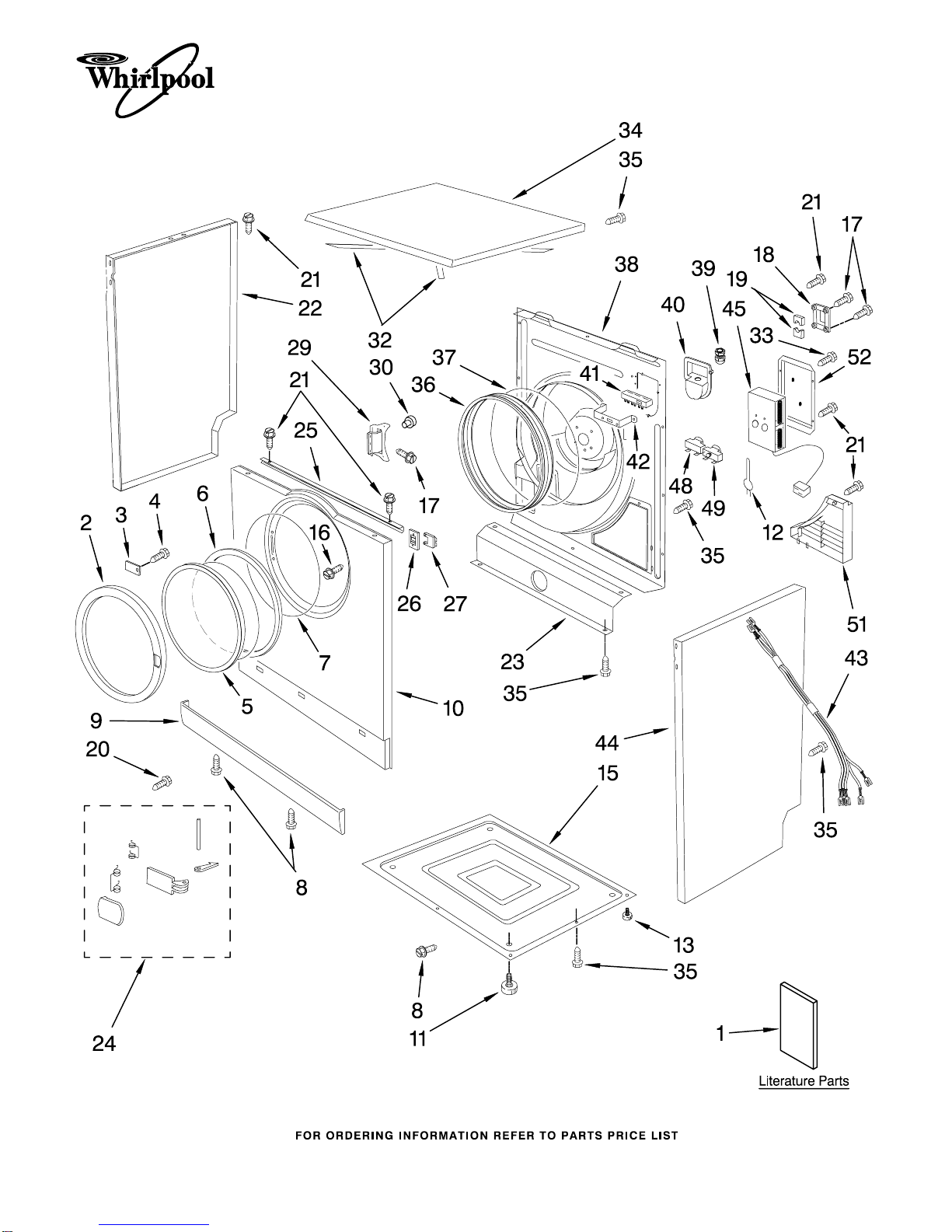

CABINET AND DOOR PARTS

For Model: LEW0050PQ3

(White)

8−06 Litho in U.S.A. (djc) Part No. W10113986

COMPACT

ELECTRIC DRYER

CABINET AND DOOR PARTS

For Model: LEW0050PQ3

(White)

W10113986

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8183131 Use & Care Guide

8182608 Wiring Diagram

2 8182406 Frame, Door Outer

3 8183106 Retainer Insert

(Glass Door)

4 8182333 Screw,

Retaining Insert

5 8182516 Glass, Door

6 8182414 Frame, Inner Door

7 8182515 Gasket, Door

8 8182518 Screw

9 8182503 Toe Panel

10 Front Panel

(Part Not A

Serviceable Item)

11 8182479 Foot, Adjustable

12 8183097 Spring, Thermostat

13 8182459 Screw, Cabinet

15 8182480 Base

16 8182401 Screw, Door Catch

17 8183089 Screw,

Drum Support

18 8182534 Cover, Drum

Shaft Support

19 8182533 Support,

Drum Shaft

20 8182412 Screw,

Door Handle

21 8182323 Screw

22 8182509 Side Panel (LH)

23 8182535 Panel,

Lower Rear

24 8182574 Kit, Door Handle

25 8182511 Bracket,

Front Panel

26 8182531 Plate,

Door Switch

27 8182530 Door Switch

29 Door Hinge

(Part Not A

Serviceable Item)

30 Rivet, Hinge

(Part Not A

Serviceable Item)

32 8183109 Cross−Bar, Cabinet

33 8182526 Screw,

Element Cover

34 8182524 Top

35 8182338 Screw

36 8182507 Seal, Rear Drum

37 8182540 Retaining Ring,

Rear Seal

38 8182590 Panel, Rear

39 8182506 Nut, Power Cord

40 8182514 Cover,

Terminal Block

41 8182525 Terminal Block

42 8182513 Mounting Bracket,

Terminal Block

43 8183104 Wire Harness

44 8182520 Side Panel (RH)

45 8182528 Heater Element

48 8182508 Thermostat,

194 F (98C)

49 8182502 Thermostat, (TCO)

(150 )

51 8182510 Cover, Inlet

52 8183110 Cover, Element

CONTROL PANEL PARTS

For Model: LEW0050PQ3

(White)

W10113986

CONTROL PANEL PARTS

For Model: LEW0050PQ3

(White)

W10113986

Illus. Part

No. No. DESCRIPTION

1 8182338 Screw

2 8182521 Kit,

Control Panel

(Includes

Illus. 4, 5

& 12)

4 8182576 Switch & Button

Assembly

(Start)

5 8182395 Switch & Button

Assembly

(On/Off)

6 8183107 Timer & Indicator

Light Assembly

(Indicator Light

Not Serviced

Separately)

7 8182575 Button, Push

8 8182323 Screw, Timer

9 8182361 Clip, Knob

10 8182519 Knob

11 8182532 Lens, Indicator

12 8182577 Switch & Button

Assembly

(Temperature)

DRUM AND MOTOR PARTS

For Model: LEW0050PQ3

(White)

W10113986

DRUM AND MOTOR PARTS

For Model: LEW0050PQ3

(White)

W10113986

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8182489 Filter, Screen

2 8182485 Lint Duct &

Drum Support

Assembly

3 8182470 Thermostat,

203 F (95C)

4 8182477 Thermostat,

Operating 122 F

5 8182323 Screw

6 8182478 Extension, Housing

7 8182631 Housing, Outer

8 8182492 Insert Pad,

Drum Seal

9 8182692 Seal, Front Drum

10 8182471 Drive Motor

(Includes Bracket

& Capacitor)

11 Capacitor

(Part Not A

Serviceable Item)

12 8182499 Support, Arm

(Brush)

13 8182494 Spring, Arm

14 8182501 Pin, Arm

15 8182498 Arm,

Brush Holder

16 8182500 Brush, Detector

17 8183100 Screw

18 8182539 Nut,

Blower Wheel

19 8182538 Blower Wheel

(Includes

Illus. 18)

20 8183099 Housing, Inner

21 8182472 Blower Motor

Assembly

22 8183098 Capacitor

23 8182580 Washer, Capacitor

24 8182579 Nut, Capacitor

25 8182486 Screw, Motor

26 8182488 Screw, Baffle

27 8182483 Baffle (1)

(No Steel Strip)

28 8183113 Baffle (2)

(With Steel Strip)

30 8183103 Plug, Probe

31 8182497 Band, Insulation

32 8182496 Band, Steel

33 8183101 Belt, Drive

35 8182493 Spring Hook

(Steel Band)

36 Drum Flange

with Shaft

(Part Not A

Serviceable Item)

37 Rivet,

Drum Flange

(Part Not A

Serviceable Item)

38 8182482 Drum Assembly

(Includes

Illus. 26, 27, 28

30, 31, 32, 35

36, & 37)

39 8182468 Shield, Exhaust

OPTIONAL PARTS (NOT INCLUDED)

For Model: LEW0050PQ3

(White)

W10113986

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

8182452 Stack Kit

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)
