ELECTRONIC DRYER

USE AND CARE GUIDE

Table of Contents Table des matières

DRYER SAFETY ............................................................2

CHECK YOUR VENT SYSTEM

FOR GOOD AIR FLOW .................................................4

CONTROL PANEL AND FEATURES ............................5

CYCLE GUIDE...............................................................6

USING YOUR DRYER ...................................................7

DRYER CARE................................................................9

TROUBLESHOOTING.................................................11

WARRANTY.................................................................13

ASSISTANCE OR SERVICE....................BACK COVER

SÉCURITÉ DE LA SÉCHEUSE ...................................14

VÉRIFICATION D’UNE CIRCULATION D’AIR

ADÉQUATE POUR LE SYSTÈME D’ÉVACUATION ..16

TABLEAU DE COMMANDE

ET CARACTÉRISTIQUES ...........................................17

GUIDE DE PROGRAMMES ........................................18

UTILISATION DE LA SÉCHEUSE...............................20

ENTRETIEN DE LA SÉCHEUSE.................................22

DÉPANNAGE. ..............................................................24

GARANTIE...................................................................26

ASSISTANCE OU SERVICE.. COUVERTURE ARRIÈRE

SÉCHEUSE ÉLECTRONIQUE

GUIDE D’UTILISATION ET

D’ENTRETIEN

Para una versión de estas instrucciones en español, visite www.whirlpool.com

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

DRYER SAFETY

WARNING: If the information in this manual is not followed exactly, a fire or explosion 

may result causing property damage, personal injury or death.

–Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this 

or any other appliance.

–WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch.

•Do not use any phone in your building.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's 

instructions.

•If you cannot reach your gas supplier, call the fire department.

–Installation and service must be performed by a qualified installer, service agency or 

the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the “What to do if you smell gas” instructions.

State of California Proposition 65 Warnings:

WARNING: This product contains a chemical known to the State of California to cause cancer.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

WARNING:

■Read all instructions before using the dryer.

■Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

■Do not dry articles that have been previously cleaned in,

washed in, soaked in, or spotted with gasoline, dry-

cleaning solvents, or other flammable or explosive

substances as they give off vapors that could ignite or

explode.

■Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is

used near children.

■Before the dryer is removed from service or discarded,

remove the door to the drying compartment.

■Do not reach into the dryer if the drum is moving.

■Do not repair or replace any part of the dryer or attempt

any servicing unless specifically recommended in this

Use and Care Guide or in published user-repair

instructions that you understand and have the skills to

carry out.

■Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric

softener or product.

■Do not use heat to dry articles containing foam rubber or

similarly textured rubber-like materials.

■Clean lint screen before or after each load.

■Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust,

and dirt.

SAVE THESE INSTRUCTIONS

■The interior of the dryer and exhaust vent should be

cleaned periodically by qualified service personnel.

■Do not install or store the dryer where it will be exposed

to the weather.

■Do not tamper with controls.

■See installation instructions for grounding requirements.

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Good Air Flow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying

times and improve your energy savings. See Installation

Instructions.

The venting system attached to the dryer plays a big role in

good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintain good air ow by:

Good Better

Use Automatic cycles for Better Fabric Care and Energy Savings

Use the Automatic Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles,

drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer

shuts off when the load reaches the selected dryness. With Timed Dry, the dryer runs the amount of time set and sometimes

results in shrinkage, wrinkling, and static due to over-drying. Use Timed Dry for the occasional damp load that needs a little more

drying time or when using the drying rack.

n Cleaning your lint screen before each load.

n Replace plastic or foil vent material with 4" (102 mm)

diameter heavy, rigid vent material.

n Use the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the Installation Instructions supplied with your

dryer for nal product check.

n Clear away items from the front the dryer.

CONTROL PANEL & FEATURES

POWER BUTTON

Press to turn the dryer on and off.

DRYER CYCLE Knob

Use your Dryer Cycle Knob to select available cycles on

your dryer. Turn the knob to select a cycle for your laundry

load. See “Cycle Guide” for detailed descriptions of cycles.

Timed Dry

Will run the dryer for the specied time on the control.

On models with a selectable temperature knob, you may

choose a setting based on the fabrics in your load. Drying

time and temperature will depend on your dryer model.

Automatic Cycles with ACCUDRY™ Control

Senses moisture in the load and air temperature and shuts

off when the load reaches the selected dryness level. Gives

the best drying in the shortest time. Drying time will vary

based on fabric type, load size, and dryness setting.

START/PAUSE BUTTON

Press to start a cycle, or press once while a cycle is in

process to pause it.

OPTIONS AND SETTINGS

Temp

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher setting.

NOTE: The Air Dry Temp Feature is not available on the

Automatic Cycles.

Wrinkle Shield™ Feature

When you are unable to remove a load of clothes from the

dryer as soon as it stops, wrinkles can form. The WRINKLE

SHIELD™ feature periodically tumbles, rearranges, and

uffs the load to help keep wrinkles from forming.

n Get up to 60 or 150 minutes for models with two

choices, 90 minutes for models with only one choice of

heat-free, periodic tumbling at the end of a cycle. Press

the WRINKLE SHIELD™ button to turn ON or OFF at any

time before the cycle has ended.

Cycle Signal

The Cycle Signal produces an audible sound when the

drying cycle is nished. Promptly removing clothes at the

end of the cycle reduces wrinkling.

Press CYCLE SIGNAL until the desired volume (Loud, Soft,

or off) is selected.

NOTE: When the Wrinkle Shield™ setting is selected

and the Cycle Signal is on, the tone will sound every

20 minutes until the clothes are removed, or the Wrinkle

Shield™ setting ends.

DAMP DRY SIGNAL (for use with Automatic

Cycles only)

Selecting the Damp Dry Signal will alert you when your

clothes are approximately 80% dry. This is useful when

you want to remove lightweight items in a mixed load to

avoid overdrying or remove partially dry items that may

need ironing.

CYCLE STATUS LIGHTS

Lights indicate the progress of the drying cycles.

2 31

Not all features and options are available on all models.

Appearance may vary.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

AUTOMATIC DRY - Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Depending on model, temperature may be selected on cycle knob or be a separate control.

Items to dry: Cycle: Drying

Temperature: Dryness

Level:

Available

Options: Cycle Details:

Jeans, heavy work

clothes, towels Automatic

Automatic

High

Medium

Low

Normal

Damp Dry Signal

Wrinkle Shield™

Cycle Signal

Gives the best drying in the shortest time.

Drying time varies based on fabric type,

load size, and dryness setting.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

CYCLE GUIDE — AUTOMATIC CYCLES

CYCLE GUIDE — TIMED DRY

Items to dry: Cycle: Drying

Temperature: Available

Options: Cycle Details:

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

TIMED DRY - Will run the dryer for the specied time on the control. Depending on model, temperature may be selected on cycle

knob or be a separate control.

Setting the Drying Temperature

If your dryer has multiple heat settings:

A High heat setting may be used for drying heavyweight items

such as towels and work clothes.

A Low to Medium heat setting may be used for drying

medium-weight items such as sheets, blouses, dresses,

underwear, permanent press fabrics, and some knits.

Use a no heat (air dry) setting for foam, rubber, plastic, or

heat-sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for

various loads, refer to the care label directions.

Any load

Rubber, plastic, heat

sensitive fabrics

Timed Dry

Timed Dry Air Dry

Temp

Wrinkle Shield™

Time Adjustment

Temp

Wrinkle Shield™

Time Adjustment

Dries items to a damp level for items that

do not require an entire drying cycle.

Select a drying temperature based on the

fabrics in your load. If you are unsure of the

temperature to select for a load, select the

lower setting rather than the higher setting.

Use a no heat (air dry) setting for foam,

rubber, plastic, or heat-sensitive fabrics.

NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you

like, select Less Dry next time you dry a similar load.

Work clothes, medium

weight fabrics, sheets

Casual, shirts, pants,

lightweight items,

synthetics, delicates,

athletic wear

Any load Wrinkle

Shield™ No heat After a cycle is complete, the load is

periodically tumbled to avoid wrinkles until

you are ready to remove it.

These settings are added at the end of certain cycles to reduce wrinkling.

SPECIAL SETTINGS:

N/A

Any

Damp Dry Signal

Wrinkle Shield™

Cycle Signal

Damp Dry Signal

Wrinkle Shield™

Cycle Signal

USING YOUR DRYER

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen straight

up. Roll lint off the screen with your ngers. Do not rinse or wash

screen to remove lint. Push the lint screen rmly back into place.

For additional cleaning information, see Dryer Care.

2. Load the dryer

Place laundry in the dryer. Close the door.

Do not overload the dryer; clothes should be able

to tumble freely.

3. Press POWER

Press the POWER button to turn on the dryer.

7. Press START/PAUSE to begin cycle

Press the START/PAUSE button to begin the cycle.

8. Remove garments promptly

after cycle is nished

Promptly remove garments after cycle has completed to

reduce wrinkling. If you are unable to remove the load

promptly, press the Wrinkle Shield button to turn ON or

OFF at any time before the cycle has ended.

5. Set cycle settings

The default cycle settings will be shown. For some cycles,

you may select alternate settings by pressing the button for

that setting. Time adjusts for Manual Cycles only.

NOTE: Not all options and settings are available with all cycles.

Temp

Press the TEMP button to change the drying temperature

from the default setting.

Wrinkle Shield™ feature

n Get up to 60 or 150 minutes for models with two choices,

90 minutes for models with only one choice of heat-free,

periodic tumbling at the end of a cycle. Press the WRINKLE

SHIELD™ button to turn ON or OFF at any time before the

cycle has ended.

n The WRINKLE SHIELD™ feature is preset to “OFF.” If

selected for other cycles, the WRINKLE SHIELD™ feature

setting will remain “ON” the next time that cycle is selected.

4. Select the desired cycle

Select the desired cycle for your load. See the Cycle Guide

or the display for more information about each cycle.

6. Select cycle options (if desired)

Add additional options by pressing the button.

NOTE: Not all options and settings are available with all

cycles.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the door opening of the dryer.

A screen blocked by lint can increase drying time.

To clean:

1. Pull the lint screen straight up. Roll lint off the screen

with your ngers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

2. Push the lint screen rmly back into place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements.”

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains are not harmful to your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Changing the Automatic Cycle

Settings to Increase Drying Time

If all your loads on all Automatic cycles are consistently not

as dry as you would like, you may change the default

settings to increase the default dryness level.

Your automatic drying settings can be adjusted to adapt to

different installations, environmental conditions or personal

preference. This change is retained and will affect all of your

Automatic cycles, not just the current cycle/load. There

are 3 drying settings, which are displayed using the Cycle

Status light (Wet, Damp, Cool Down LEDs)

1Factory preset dryness level.

2Slightly drier clothes, 15% more drying time.

3Much drier clothes, 30% more drying time.

To change the drying settings (on some models):

NOTE: The settings cannot be changed while the dryer is

running or paused. The dryer must be in standby mode (the

power button is off) to adjust the default settings.

1. Before starting a cycle, press and hold the TEMP button

for 6 seconds.

2. Press the TEMP button to select the dryness level

shown in the cycle status light display: Wet light on

= level 1, Wet and Damp lights on = level 2, and Wet,

Damp and Cool Down lights on = level 3.

3. Press START/PAUSE to save the new dryness level

setting.

Vacation, storage, and moving care

Install and store your dryer where it will not freeze. Because

some water may stay in the hoses, freezing can damage

your dryer. If storing or moving your dryer during freezing

weather, winterize it.

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Steam models only: Shut off water faucet.

3. Steam models only: Disconnect the water inlet hose

from faucet, then drain the hose. Remove the hose from

the back of the dryer. Transport hose separately.

4. Make sure leveling legs are secure in dryer base.

5. Use tape to secure dryer door.

For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Steam models only: Shut off water faucet.

4. Steam models only: Disconnect the water inlet

hose from faucet, then drain the hose. Transport

hose separately.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level,

and connect the dryer.

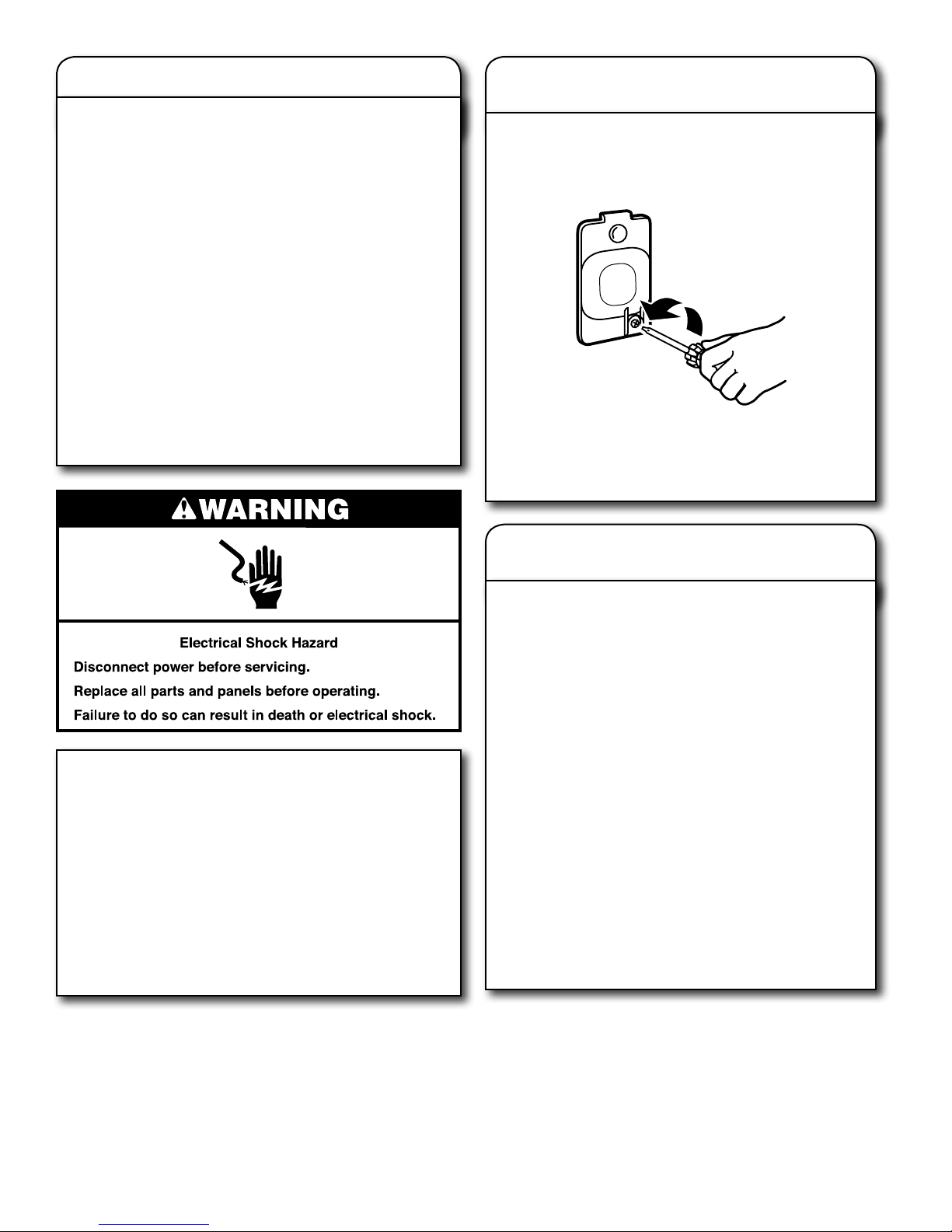

Changing the drum light

(on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover on

the back wall of the dryer. Using a Phillips-head screw

driver, remove the screw located in the lower right-hand

corner of the cover. Remove the cover.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and

secure with the screw.

4. Plug in dryer or reconnect power.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool LE5200XT Bedienungsanleitung

Whirlpool

Whirlpool GCGM2991TQ Bedienungsanleitung

Whirlpool

Whirlpool W10097005A - SP Bedienungsanleitung

Whirlpool

Whirlpool LE6680XK Bedienungsanleitung

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool CEM2750JQ0 Bedienungsanleitung

Whirlpool

Whirlpool GLE5700XS Bedienungsanleitung

Whirlpool

Whirlpool W10240579C Bedienungsanleitung

Whirlpool

Whirlpool WED9250 Bedienungsanleitung

Whirlpool

Whirlpool Duet Steam Bedienungsanleitung

Whirlpool

Whirlpool LER6611LQ0 Bedienungsanleitung

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool LET7646DQ0 Bedienungsanleitung

Whirlpool

Whirlpool WGD9750WW1 Bedienungsanleitung

Whirlpool

Whirlpool Gold 8578191A Bedienungsanleitung

Whirlpool

Whirlpool AWZ 7303 Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9500T Bedienungsanleitung

Whirlpool

Whirlpool W10189310B Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WED6200SW0 Bedienungsanleitung

Whirlpool

Whirlpool WGD4870BW Bedienungsanleitung

Whirlpool

Whirlpool CEM2750KQ Bedienungsanleitung

Whirlpool

Whirlpool 8562113 Bedienungsanleitung

Whirlpool

Whirlpool LEV7646AW2 Bedienungsanleitung

Whirlpool

Whirlpool 3LWED5500 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
