DRYER SAFETY

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Good air ow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying times

and improve your energy savings. See “Installation

Instructions.”

The venting system attached to the dryer plays a big role in

good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintain good air ow by:

Good Better

USE ACCUDRY™/AUTOMATIC DRY CYCLES FOR BETTER

FABRIC CARE AND ENERGY SAVINGS

Use the ACCUDRY™/Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer.

During ACCUDRY™/Automatic Dry cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs

throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will

provide optimal energy savings.

With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying.

Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

n Cleaning your lint screen before each load.

n Replace plastic or foil vent material with 4" (102 mm)

diameter heavy, rigid vent material.

n Use the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the “Installation Instructions” supplied with your

dryer for nal product check.

n Clear away items from the front the dryer.

CONTROL PANEL & FEATURES

WRINKLE SHIELD™ Feature (on some models)

When you are unable to remove a load of clothes from the

dryer as soon as it stops, wrinkles can form. The WRINKLE

SHIELD™ feature periodically tumbles, rearranges, and uffs

the load to help keep wrinkles from forming.

n Get 90minutes of heat-free, periodic tumbling at the end

of a cycle. Turn the WRINKLE SHIELD™ knob to on or off

at any time before the cycle has ended.

DRYER CYCLE KNOB

Use your Dryer Cycle Knob to select available cycles on

your dryer. Turn the knob to select a cycle for your laundry

load. See “Cycle Guide” for detailed descriptions of cycles.

TIMED DRY

Will run the dryer for the specied time on the control.

On models with a selectable temperature knob, you may

choose a setting based on the fabrics in your load. Drying

time and temperature will depend on your dryer model.

ACCUDRY™/AUTOMATIC DRY

Senses moisture in the load or air temperature and shuts

off when the load reaches the selected dryness level.

Gives the best drying in the shortest time. Drying time will

vary based on fabric type, load size, and dryness setting.

3TEMPERATURE

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher setting.

NOTE: The No Heat temperature setting (on some models)

is not available on ACCUDRY™ cycles.

CYCLE SIGNAL/PUSH TO START

The Cycle Signal produces an audible sound when the

drying cycle is nished. Promptly removing clothes at the

end of the cycle reduces wrinkling.

Turn the CYCLE SIGNAL knob to select the desired setting

(On or Off). Press the PUSH to START knob to start the

dryer.

NOTE: When the Wrinkle Shield™ setting is selected

and the Cycle Signal is on, the tone will sound every

5minutes until the clothes are removed, or the Wrinkle

Shield™ setting ends.

2 31

Not all features and options are available on all models.

Appearance may vary.

234

Not all cycles and settings are available on all models.

ACCUDRY™ - Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Choose ENERGY PREFERRED cycle for optimal energy savings.

Items to dry: Temperature: Available

Options: Cycle Details:

Wrinkle Shield™

Temperature

Cycle Signal

CYCLE GUIDE — ACCUDRY™/AUTOMATIC DRY CYCLES

CYCLE GUIDE — TIMED DRY CYCLES

Items to dry: Temperature:Cycle: Available

Options: Cycle Details:

Not all cycles and settings are available on all models.

TIMED DRY - Will run the dryer for the specied time on the control.

Large or heavy items

such as thick towels or

robes

Any load

Heavy Dry

Damp Dry Any

Temperature

Choose high to dry large or heavy loads.

Dries items to a damp level or for items

that do not require an entire drying

cycle.

NOTE: If loads do not seem as dry as you would like, select More or Very Dry next time you dry a similar load. If loads seem drier

than you like, select Less Dry next time you dry a similar load.

Casual, shirts, pants,

lightweight items,

synthetics, delicates,

athletic wear

Any

Wrinkle Shield™

Temperature

Cycle Signal

Setting the Drying Temperature

If your dryer has multiple heat settings:

A High temperature setting may be used for drying

heavyweight items such as towels and work clothes.

A Low to Medium temperature setting may be used for drying

medium-weight items such as sheets, blouses, dresses,

underwear, permanent press fabrics, and some knits.

Use the No Heat setting for foam, rubber, plastic, or heat-

sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for

various loads, refer to the care label directions.

Jeans, heavy work

clothes, towels

Energy Preferred

Delicate or Less Dry

Jeans, More, or

Very Dry Wrinkle Shield™

Temperature

Cycle Signal

Automatic cycles give the best drying

in the shortest time. Drying time varies

based on fabric type, load size, and

dryness setting.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

Cycle:

High

Medium

Low

Work clothes, medium

weight fabrics, sheets

Rubber, plastic, heat

sensitive fabrics Fluff Air No Heat Temperature No heat drying.

USING YOUR DRYER

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen out of

its holder. Roll lint off the screen with your ngers. Do not rinse or

wash screen to remove lint. Push the lint screen rmly back into

place.

For additional cleaning information, see “Dryer Care”.

2. Load the dryer

Place laundry in the dryer. Close the door.

NOTE: Your model may have a different door than the

one shown. Some models have drop down doors.

Do not tightly pack the dryer; clothes should be able to

tumble freely.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this dryer.

Before using your dryer, wipe the dryer drum with a damp cloth

to remove dust from storing and shipping.

6. Press PUSH to START to

begin cycle

Push and hold the PUSH to START knob to begin the cycle.

Promptly remove garments after cycle has completed to reduce

wrinkling. Use the Wrinkle Shield™ feature to avoid wrinkling

when you are unable to remove a load from the dryer as soon

as it stops.

4. Set cycle settings and options

Select cycle settings and options by turning the knob to the

desired position.

NOTE: Not all options and settings are available with all cycles.

Temperature

Turn the TEMPERATURE knob to change the drying

temperature setting. See “Setting the Drying Temperature”.

Wrinkle Shield™ feature (on some models)

n Get 90 minutes of heat-free, periodic tumbling at the end of

a cycle. Turn the WRINKLE SHIELD™ knob to select on or

off at any time before the cycle has ended.

n On some models with a WRINKLE SHIELD™ cycle will

automatically get 40 minutes of heat-free, periodic tumbling

at the end of a cycle.

3. Select the desired cycle

Select the desired cycle for your load. See the Cycle Guide

for more information about each cycle.

ACCUDRY™/AUTOMATIC DRY Cycles

You can select a different dryness level, depending on your

load, by turning the knob to dryness level.

Selecting More or Very Dry, ENERGY PREFERRED, or Less Dry

automatically adjusts the dryness level at which the dryer will

shut off. Once a dry level is set, it cannot be changed without

stopping the cycle.

ACCUDRY™/AUTOMATIC DRY cycles give the best drying in

the shortest time. Drying time varies based on fabric type, load

size, and dryness setting.

NOTE: More or Very Dry removes more load moisture.

ENERGY PREFERRED is used for a starting point for

ACCUDRY™ cycles. Choose ENERGY PREFERRED for

optimal energy savings. Less Dry removes less moisture and

used for loads you may want to put on a hanger to complete

drying.

5. Select Cycle Signal (if desired)

Turn the CYCLE SIGNAL knob to select the desired setting

(On or Off). The Cycle Signal produces an audible sound

when the drying cycle is nished. Promptly removing clothes

at the end of the cycle reduces wrinkling.

NOTE: When the Wrinkle Shield™ setting is selected and the

Cycle Signal is on, the tone will sound every 5minutes until

the clothes are removed, or the Wrinkle Shield™ setting ends.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the dryer. A screen blocked by

lint can increase drying time.

To clean:

1. Pull the lint screen out of its holder. Roll lint off the

screen with your ngers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

2. Push the lint screen rmly back into place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements.”

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains are not harmful to your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Vacation, storage, and moving care

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. (For gas dryers only): Close shut off valve to gas supply

line.

3. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

For direct-wired dryers:

1. Turn off power at fuse or breaker box.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

For gas dryers:

1. Unplug or disconnect power to dryer.

2. Close shutoff valve in gas supply line.

3. Disconnect gas supply line pipe and remove ttings

attached to dryer pipe.

4. Cap the open fuel supply line.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level,

and connect the dryer.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

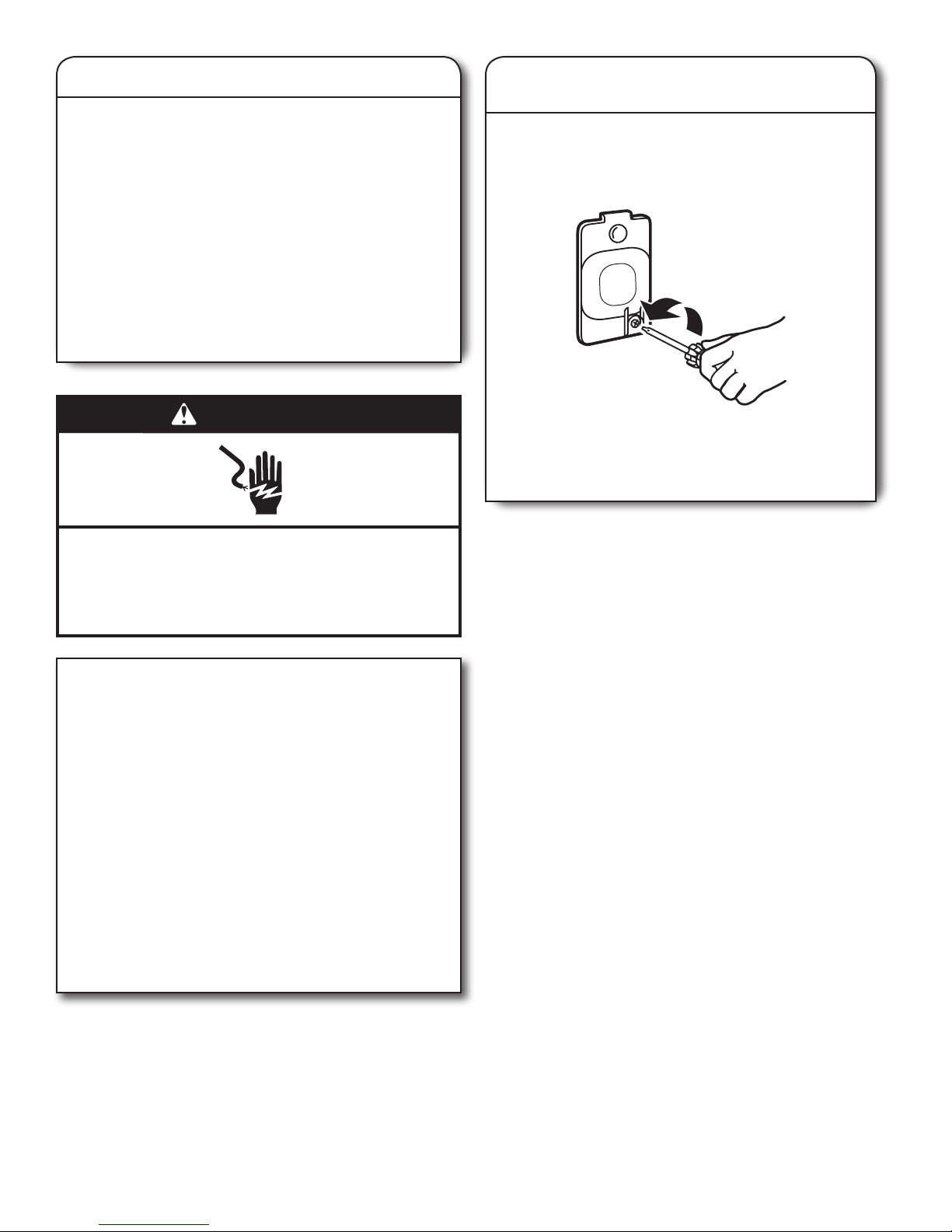

Changing the drum light

(on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover on

the back wall of the dryer. Using a Phillips-head screw

driver, remove the screw located in the lower right-hand

corner of the cover. Remove the cover.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and

secure with the screw.

4. Plug into a grounded outlet or reconnect power.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool CGM2745FQ Bedienungsanleitung

Whirlpool

Whirlpool 3XKER5437 Bedienungsanleitung

Whirlpool

Whirlpool WED8300SB0 Bedienungsanleitung

Whirlpool

Whirlpool WED95HEDW Bedienungsanleitung

Whirlpool

Whirlpool LER3622PQ Benutzerhandbuch

Whirlpool

Whirlpool WED5010LW Bedienungsanleitung

Whirlpool

Whirlpool ELECTRONIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool LGQ8000JQ1 Bedienungsanleitung

Whirlpool

Whirlpool CSP2761TQ Bedienungsanleitung

Whirlpool

Whirlpool LE5720XS Bedienungsanleitung

Whirlpool

Whirlpool Roper REX3514RQ1 Bedienungsanleitung

Whirlpool

Whirlpool WGD5605MC Bedienungsanleitung

Whirlpool

Whirlpool LE9800XPW1 Bedienungsanleitung

Whirlpool

Whirlpool W11356336A Bedienungsanleitung

Whirlpool

Whirlpool Duet WGD9400SB0 Bedienungsanleitung

Whirlpool

Whirlpool 3405338 Bedienungsanleitung

Whirlpool

Whirlpool WCD5090JW Bedienungsanleitung

Whirlpool

Whirlpool WED97HEXW1 Bedienungsanleitung

Whirlpool

Whirlpool W10680128B Bedienungsanleitung

Whirlpool

Whirlpool LER6611LQ0 Bedienungsanleitung

Whirlpool

Whirlpool CGM2793BQ Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9200SQ0 Bedienungsanleitung

Whirlpool

Whirlpool CGM2745FQ0 Bedienungsanleitung

Whirlpool

Whirlpool W10858720B - SP Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
