Whirlpool CSP2761TQ Bedienungsanleitung

c2008 WHIRLPOOL CORPORATION

COMMERCIAL

GAS DRYER

MODELS

CSP2761TQ0

(WHITE)

CSP2761TQ1

(WHITE)

11−08 Litho in U.S.A. (LT)(bay) Part No. W10128962 Rev. B

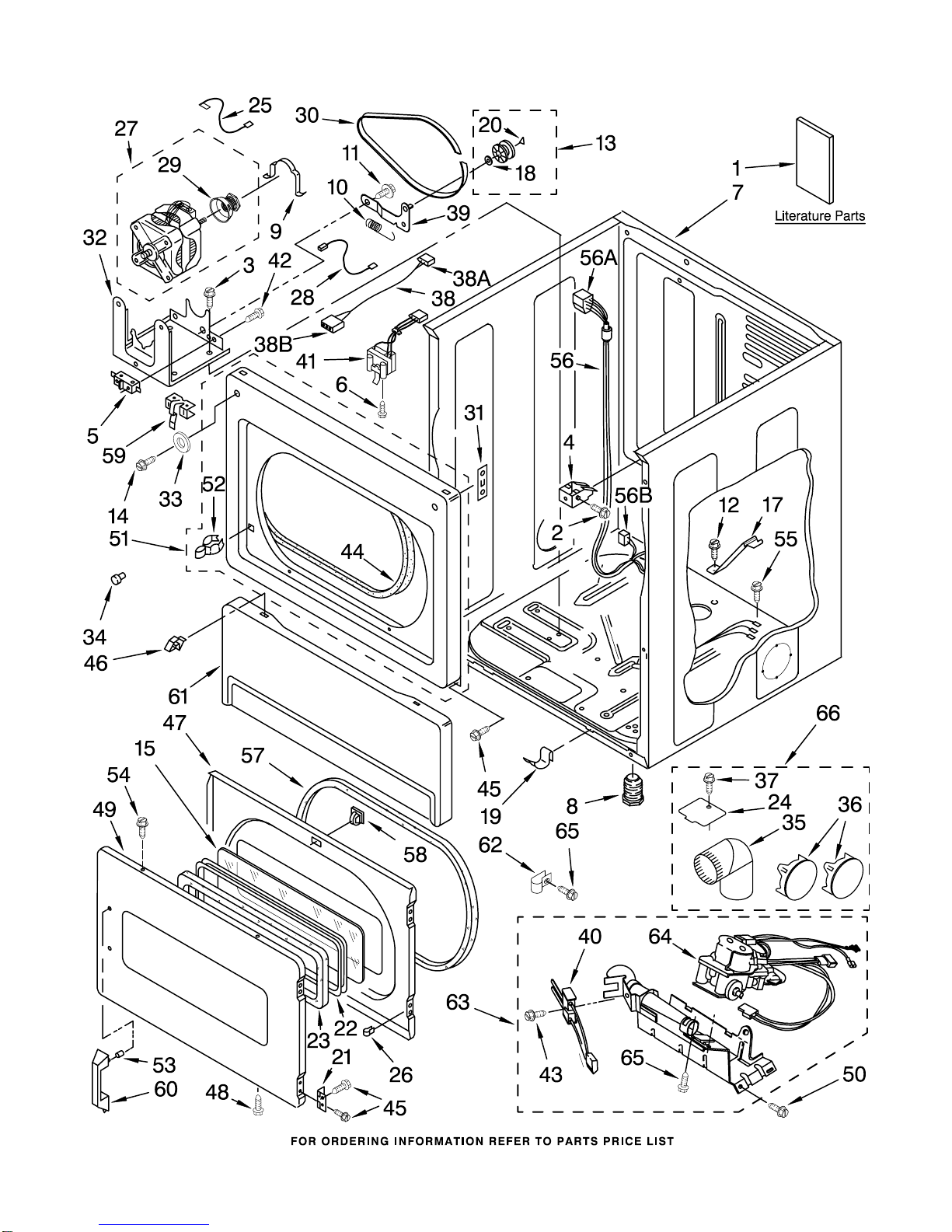

LOWER CABINET AND FRONT PANEL PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

LOWER CABINET AND FRONT PANEL PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

(Located Behind

Toe Panel)

W10135152

Installation

Instructions

8576825 Wiring Diagram

W10128962

Repair Parts List

2 3391915 Screw, 10−16 x 1

3 3390663 Screw, 10−16 x 1/2

4 3391846 Clip, Front

Panel (2)

5 3394881 Switch, Broken

Belt

6 697773 Screw, 6−20 x 7/8

7 8310656 Cabinet, Lower

8 3392100 Foot, Dryer

Plastic (4)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 693995 Screw, 8−18 x 3/8

13 3388672 Pulley Assembly

14 3393258 Screw, 10−16 x 1/2

15 3392918 Window

(Not Shown Part

3396122, Window

Pack. Includes

Illus. 15 & 23)

17 8529757 Bracket, Burner

W10121334

Washer, Thurst

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

22 3392914 Frame, Window

23 3392915 Gasket, Window

24 3394331 Plate Cover

(Bottom Exhaust)

25 3398948 Wire, Jumper

26 3389249 Nut, "U" (4)

27 8538264 Motor Assembly

(60 Hz.)

W10167612

Wire, Jumper

29 8066184 Pulley 60 Hz

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 3392186 Washer

34 693152 Bumper

35 279731 4"−90

Elbow

36 697750 Plug−Multivent

37 488729 Screw

38 8283298 Jumper,

Door Switch

38A 717253 Plug, 2−Way

38B 3936144 Connector

39 3388674 Bracket, Idler

40 686590 Ignitor

41 3406109 Door Switch

Assembly

42 98129 Screw,

6−20 x 1 1/16

43 3393909 Screw, 8−32 x 3/4

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

W10205622

Door, Rear

48 694091 Screw, 8−18 x 3/8

W10205649

Door, Front

50 343641 Screw, 10−16 x 1/2

51 3393081 Upper Front Panel

52 696144 Strike, Door

53 3393933 Fastener

54 718032 Screw, 8−18 x 3/4

55 3390647 Screw, 8−18 x 1/2

56 8529990 Harness (Lower)

56A 3390423 Plug, Mult−

Terminal

56B 717252 Receptacle

57 3390735 Seal, Door

58 3392538 Catch, Door

Assembly

59 8066120 Lever, Snap

Switch

W10213202

Handle, Door

61 697215 Panel, Toe

(Includes

Illus. 34)

62 3387561 Clamp−Pipe

63 3401797 Burner Assembly

60 Hz.

(Refer To Pages

10 & 11 For

Breakdown)

64 8281911 Valve, Gas

(Complete)

60 Hz

65 3387057 Screw, 8−18 x 3/8

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

66 279818 White

CONTROL PANEL AND SEPARATOR PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

CONTROL PANEL AND SEPARATOR PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8283295 Harness, Wire (2)

2 3400000 Screw, 10−24 x 3/8

3 3391018 Tie, Cable

4 697776 Screw, 10−32 x 5/8

5 98139 Screw, 8−32 x 5/16

6 3390115 Bracket, Timer (2)

7 3389668 Timer (Includes

4−Pin Cam) (2)

8 Cam

3387974 3−Pin (60 Min.)

339855 4−Pin (45 Min.)

343777 6−Pin (30 Min.)

Also Available

339854 9−Pin (20 Min.)

339853 12−Pin (15 Min.)

9 385421 Funnel, Coin (2)

10 303921 Screw, 8−32 x 3/8

11 3954761 Plate,

Chute Adapter (2)

(Includes

Illus. 9)

12 3979100 Panel, Control

13 8527831 Insert, Decorative

14 Lamp, Indicator

3979325 Red

3979326 Amber

3979327 Blue

15 354239 Rivet (4)

16 8283296 Wire Jumper (2)

(Light & Switch)

17 8316437 Switch,

Pushbutton (2)

18 8316433 Pushbutton

19 3390189 Strain Relief

20 8539882 Jumper Wire

21 3400029 Nut, 10−32 (6)

22 3400500 Bolt,

5−16 x 18 (2)

23 3978853 Collar

24 3401402 Cord, Power

25 3401699 Jumper Wire

(Ground)

26 3400094 Screw, 10−32 x 3/8

27 3396795 Cover, Terminal

Block (2)

28 3390443 Retainer,

Terminal (2)

29 353424 Connector, Sensor

30 94614 Terminal (Female)

31 94613 Terminal

32 3395683 Connector, Motor

33 3403498 Connector,

(3−Position)

Gas Valve

34 3403499 Connector,

(2−Position)

Gas Valve

35 98997 Clip, Harness

Follwoing Parts Optional

Are Not Supplied On This

Whirlpool Model. But Are

Available For Purchase.

36 96435 Screw, 10−32 x 3/8

37 8316520 Slide Mechanism

(Vertical 8−Coin)

(Dollar Vend)

Inserts

(Not Shown)

8316264 Blank

8316265 25¢

38 8316525 Money Box W/Lock

39 Key (Money Box)

(When Ordering

Specify Vendor

And Key Number)

40 8316526 Security Lock/Key

And Cam Assembly

41 Key (Service Door)

(When Ordering

Specify Vendor

And Key Number)

42 8318517 Bolt, Slide

Mechanism

43 3390424 Slide Extension

44 3390615 Screw & Cam

Bag Assembly

Coin Mechanism Parts May Be

Ordered From Whirlpool Or

Vendor(s) Listed Below.

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

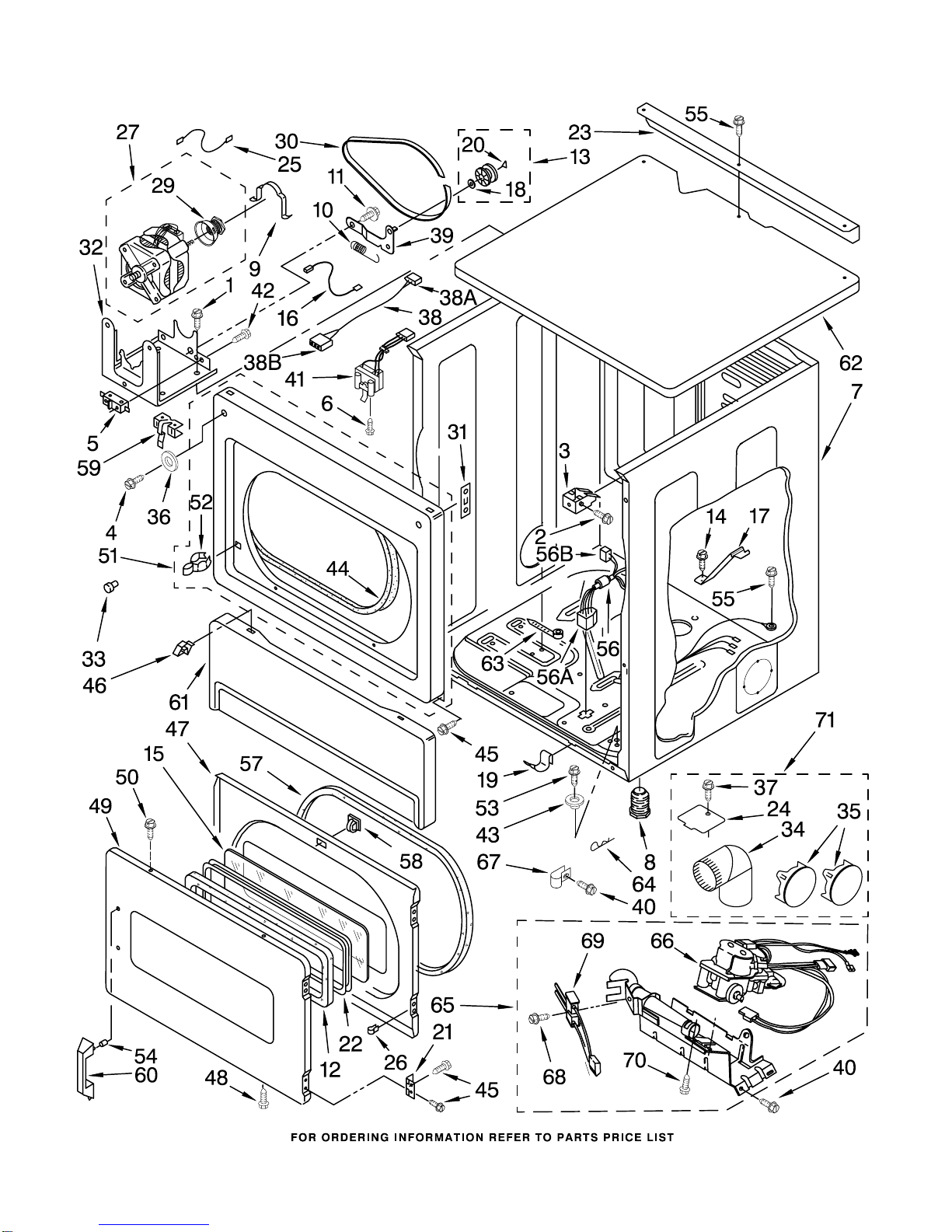

UPPER CABINET AND FRONT PANEL PARTS

W10128962

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

UPPER CABINET AND FRONT PANEL PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3390663 Screw, 10−16 x 1/2

2 3391915 Screw, 10−16 x 1

3 3391846 Clip, Front

Panel (2)

4 3393258 Screw, 10−16 x 1/2

5 3394881 Switch, Broken

Belt

6 697773 Screw, 6−20 x 7/8

7 3978859 Cabinet (Upper)

8 689172 Foot, Dryer

Plastic (2)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 3392915 Gasket, Window

13 3388672 Pulley Assembly

14 693995 Screw, 8−18 x 3/8

15 3392918 Window

(Not Shown Part

3396122, Window

Pack. Includes

Illus. 12 & 15)

W10167612

Wire, Belt Switch

17 8529757 Bracket, Burner

W10121334

Washer, Thrust

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

22 3392914 Frame, Window

23 3979115 Bracket, Angle

24 3394331 Plate, Cover

(Bottom Exhaust)

25 3398948 Wire, Jumper

26 3389249 Nut, "U" (4)

27 8538264 Motor Assembly

60 Hz.

29 3389627 Pulley (60 Hz.)

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 693152 Bumper

34 279731 4"−90

Elbow

35 697750 Plug−Multivent

36 3392186 Washer

37 488729 Screw

38 8283298 Jumper,

Door Switch

38A 717253 Plug, 2−Way

38B 3936144 Connector

39 3388674 Bracket, Idler

40 343641 Screw, 10−16 x 1/2

41 3406109 Door Switch

Assembly

42 98129 Screw,

6−20 x 1 1/16

43 3389233 Bushing

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

W10205622

Door, Rear

48 694091 Screw, 8−18 x 3/8

W10205649

Door, Front

50 718032 Screw, 8−18 x 3/4

51 3393081 Upper Front Panel

52 696144 Stike, Door

53 3400523 Screw, Security

(Includes

Illus. 64 )

54 3393933 Fastener

55 3390647 Screw, 8−18 x 1/2

56 8529989 Harness

(Upper)

56A 3390423 Plug, Multi−

Terminal

56B 717252 Receptacle

57 3390735 Seal, Door

58 3392538 Catch, Door

Assembly

59 8066120 Lever, Snap

Switch

W10213202

Handle, Door

61 697215 Panel, Toe

(Includes

Illus. 33)

62 3389351 Top (Upper)

63 3391018 Tie, Cable

W10117347

Cotter Pin

65 3401797 Burner Assembly

60 Hz.

(Refer To Pages

10 & 11 For

Breakdown)

66 8281911 Valve, Gas

(Complete)

60 Hz.

67 3387561 Clamp, Pipe

68 3393909 Screw, 8−32 x 7/8

69 686590 Ignitor

70 3387057 Screw, 8−18 x 3/8

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

71 279818 White

UPPER AND LOWER BULKHEAD PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

UPPER AND LOWER BULKHEAD PARTS

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 8544362 Housing, Blower

3 8533971 Screw, 8−18 x 5/16

4 90767 Screw, 8−18 x 3/8

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,

3/8 x 16 (R.H.)

9 8066224 Exhaust Pipe

10 8572105 Clip, Exhaust

11 3357011 Screw, 10−16 x 1/2

12 8066208 Clip−Spring

13 3390647 Screw, 8−18 x 1/2

14 8066168 Lint Duct Assembly

15 8066047 Funnel, Burner

W10001120

Nut,

3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 338906 Sensor, Radiant

23 3394985 Housing, Outlet

24 3391912 Thermostat 255

(124 C)

25 8318215 Drum Complete

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

28 3394986 Spring, Lint

Screen

30 697693 Baffle, Drum (3)

31 487909 Screw, 8−15 x 1/2

32 697557 Bulkhead, Front

33 8299979 Grille, Outlet

34 3392519 Thermal Fuse

35 697770 Seal, Cover Plate

W10049370

Screen, Lint

W10168564

Wheel, Blower

38 3394984 Door, Lint Screen

39 3387138 Thermostat,

Internal−Bias

40 3387230 Screw,

10−16 x 13/16

3401797 BURNER ASSEMBLY

BA−133−A

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Model: CSP2761TQ0, CSP2761TQ1

(White) (White)

W10128962

Andere Handbücher für CSP2761TQ

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WGD9470WW Stücklistenhandbuch

Whirlpool

Whirlpool WGD9050X Handbuch

Whirlpool

Whirlpool LEC8858EQ1 Bedienungsanleitung

Whirlpool

Whirlpool 4GWED5500 Bedienungsanleitung

Whirlpool

Whirlpool 3XWED5705 Bedienungsanleitung

Whirlpool

Whirlpool LE9480XW Bedienungsanleitung

Whirlpool

Whirlpool 4GWED5500 Bedienungsanleitung

Whirlpool

Whirlpool WGD500RLW Bedienungsanleitung

Whirlpool

Whirlpool Gold Resource Saver YGEW9877JQ1 Bedienungsanleitung

Whirlpool

Whirlpool W10097005A - SP Bedienungsanleitung

Whirlpool

Whirlpool 8533582 Bedienungsanleitung

Whirlpool

Whirlpool ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool LEQ8000JQ Bedienungsanleitung

Whirlpool

Whirlpool AWZ 3303 Bedienungsanleitung

Whirlpool

Whirlpool WED5300ST Bedienungsanleitung

Whirlpool

Whirlpool WHD5090GW Bedienungsanleitung

Whirlpool

Whirlpool HYBRIDCARE YWHD560CHW0 Bedienungsanleitung

Whirlpool

Whirlpool CAM2752 Bedienungsanleitung

Whirlpool

Whirlpool 96273100 Bedienungsanleitung

Whirlpool

Whirlpool WGD94HEX Handbuch

Whirlpool

Whirlpool Cabrio WED6200SW0 Bedienungsanleitung

Whirlpool

Whirlpool ELECTRIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool 8314841B Bedienungsanleitung

Whirlpool

Whirlpool LDR3822D Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
