Whirlpool WED5300ST Bedienungsanleitung

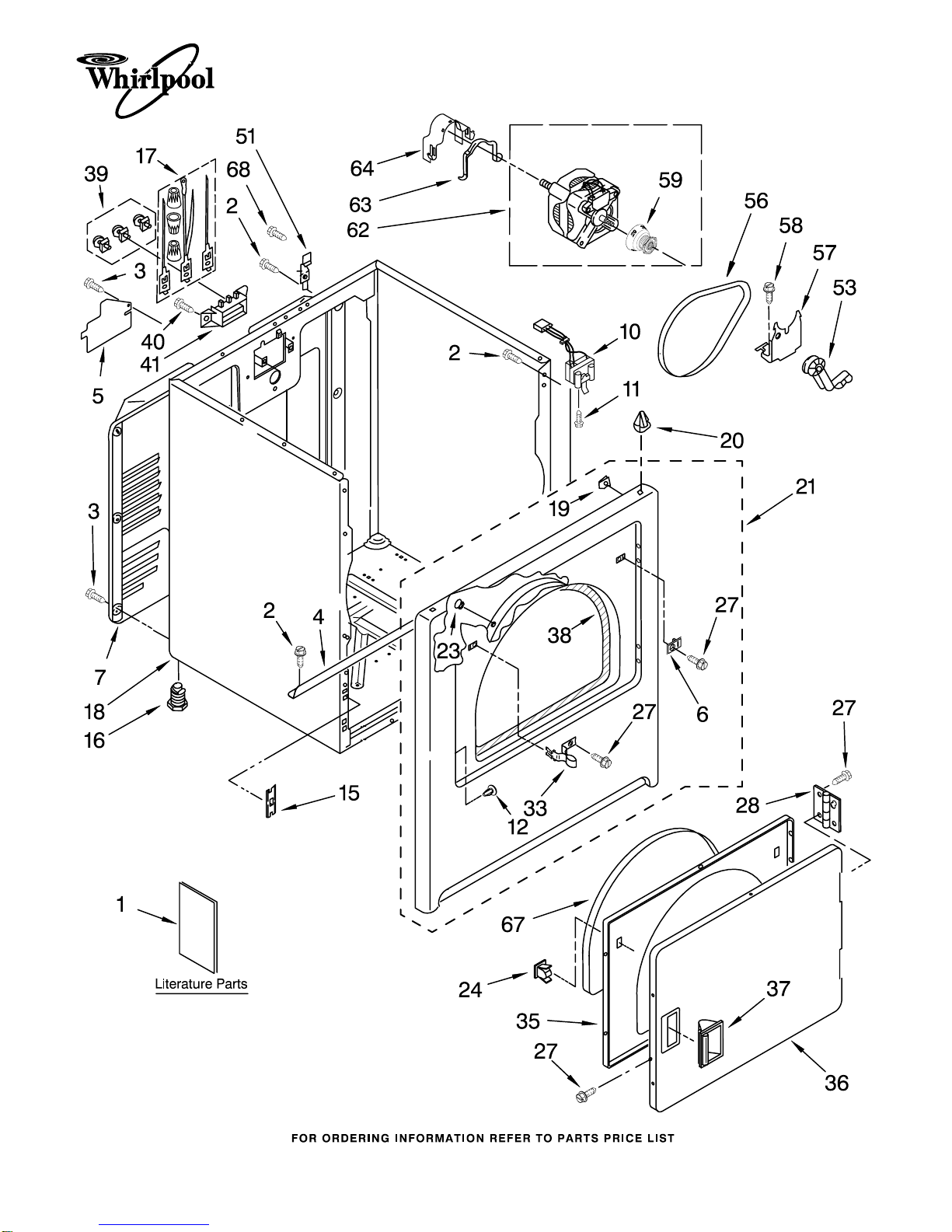

CABINET PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

5−06 Litho in U.S.A.(LT.) Part No. 8181243

29"ELECTRIC DRYER

CABINET PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

8181243

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8577188 Installation

Instructions

W10042960

Sheet,

Cycle Feature

8578183 Use & Care Guide

8528187 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 Plug,

Strike Hole

3403630 White

3403632 Biscuit

7 3396805 Panel, Rear

10 3406109 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 Plug,

Hinge Hole

3404413 White

3404415 Biscuit

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes

Illus. 39)

18 Cabinet

(Includes

Illus. 4)

8530603 White

8530606 Biscuit

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 Panel, Front

3403444 White

8282481 Biscuit

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

27 342055 Screw, 8−18 x 1/2

28 3405514 Hinge, Door

33 3403431 Strike, Door

35 3402341 Door, Rear

36 Door, Front

3402335 White

3402337 Biscuit

37 Handle, Door

8566059 White

8566071 Biscuit

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)

40 3393008 Screw, 10−16 x 1/2

41 3397659 Block, Terminal

51 8066217 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 8066065 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 8066184 Pulley, 60 Hz.

62 8066206 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3405246 Seal, Door

68 697776 Screw, 10−32 x 5/8

(External Ground)

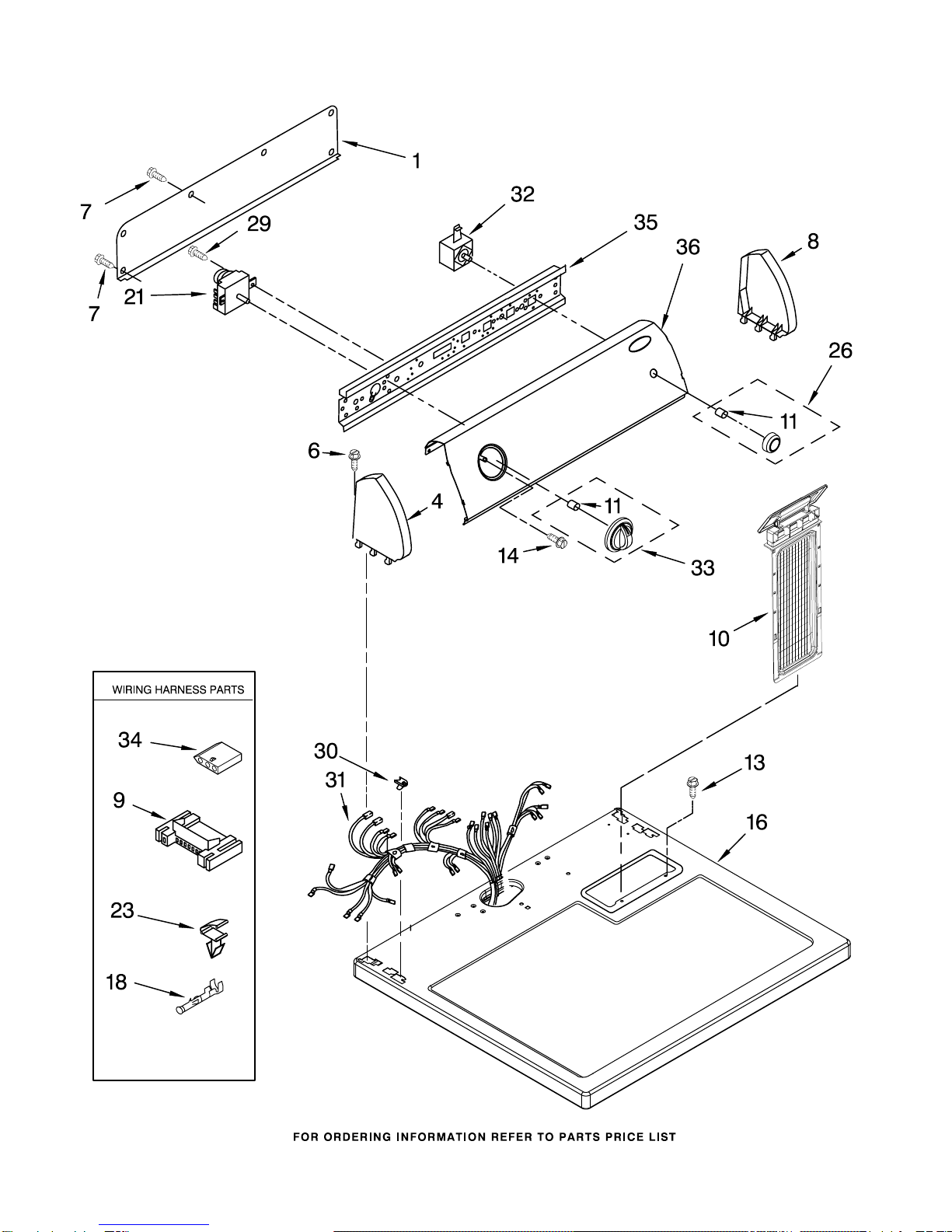

TOP AND CONSOLE PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

8181243

TOP AND CONSOLE PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

8181243

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

4 Cap, End (L.H.)

8271365 White

8271368 Biscuit

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 Cap, End (R.H.)

8271359 White

8271362 Biscuit

9 3395683 Housing, Connector

(Motor)

10 Screen, Lint

8557857 White

8557858 Biscuit

11 8536939 Clip, Spring

13 688983 Screw, 8−18 x 5/8

14 8533951 Screw, Grounding

16 Top

8557930 White

8557931 Biscuit

18 94614 Terminal

21 8299778 Timer, 60 Hz.

23 3394427 Clip, Harness

26 Knob,

Push−To−Start

8566065 White

8566068 Biscuit

29 8533971 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 8299867 Harness, Wiring

32 3977456 Switch,

Push−To−Start

33 Timer Knob

Assembly

8566061 White

8566064 Biscuit

34 3936144 Connector

35 8544895 Bracket, Control

36 Panel, Control

8578844 White

8579482 Biscuit

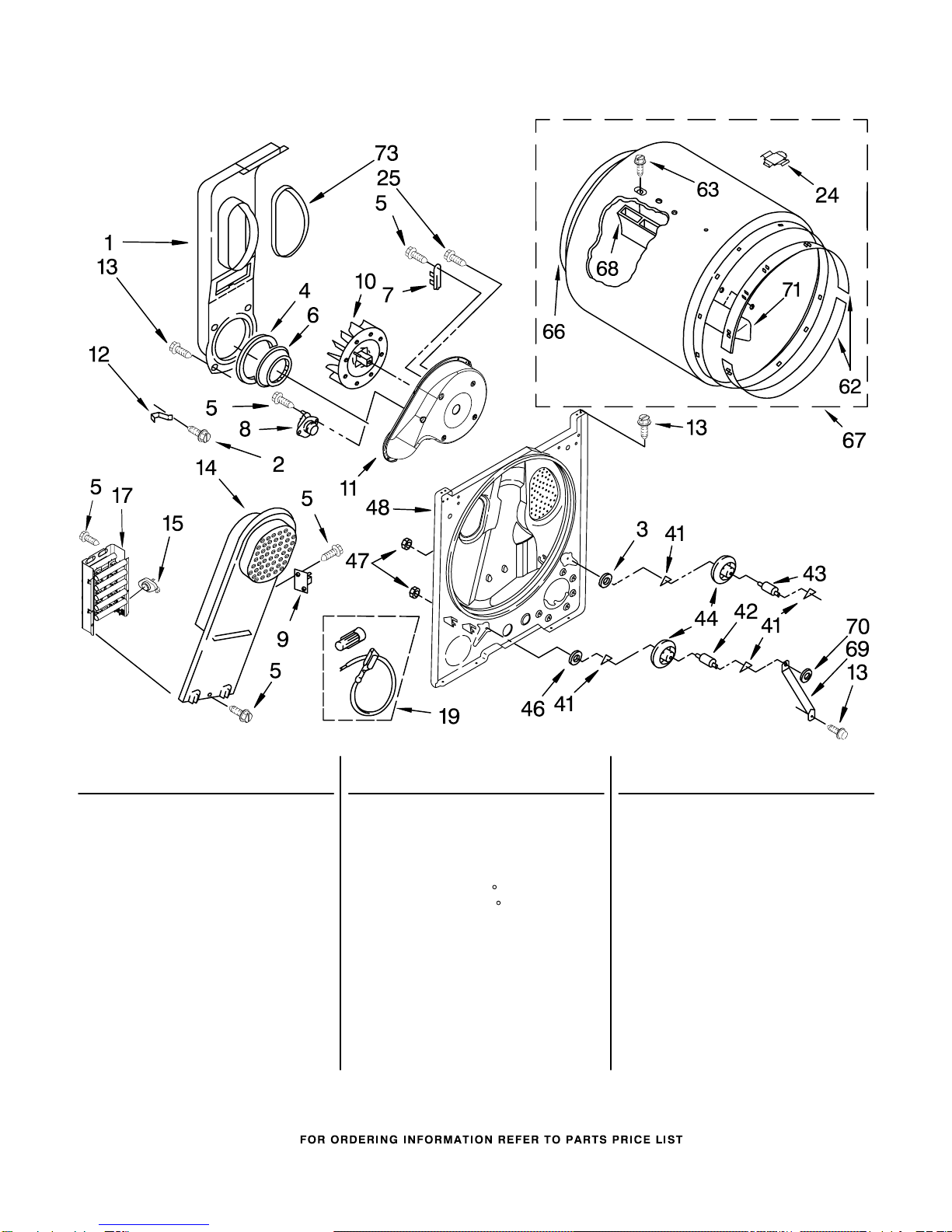

BULKHEAD PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

8181243

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Thermal Fuse

8 3387134 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

(Includes

Illus. 22)

11 8577230 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

17 8565582 Element, Heater

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

24 8066086 Drum Hole

Plug

25 3390647 Screw, 8−18 x 1/2

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397590 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3403491 Bulkhead

62 692526 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 3406130 Seal, Rear Drum

67 695587 Drum Assembly

68 692490 Baffle, Drum (2)

69 3976434 Bracket, Support

70 90296 Clip

71 3403636 Baffle, Drum (1)

73 339956 Seal

OPTIONAL PARTS (NOT INCLUDED)

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

8181243

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3404351 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
