Whirlpool LE7OlOXP Bedienungsanleitung

AUTOMATIC

DRYERS

Electric Model

LE7OlOXP

and

Gas Model

LG7OIlXP

wave Ovens Trash Compactors Room Air Condltloners Oehumldllwrs Automallc Washers Clothes Oryerr Freezers Refrl$erator-Freeze'

Parts and features

CYCLE CONTROL KNOB

CENTER

RE SELECTOR

START BUTTON

LINT SCREEN

LOADING DOOR

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

Complete Model Number

I. Complete Model and Serial Numbers

(from-the plate located as shown)

2. Purchase date from sales slip.

Complete Serial Number

Copy this information in these spaces.

Keep this book, your warranty, sales slip

Purchase Dote

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console. Telephone Number

Contents

Page Page

-2

PARTS AND FEATURES

YOUR RESPONSlBlLltlES

SAFETY FIRST

SELECTING A CYCLE AND

STARTING YOUR DRYER 4

OPERATING INSTRUCTIONS 6

The Automatic Cycles. 6

Timed Drying 6

DRYING TIPS. . 7

FLUFFAIR Setting . 7

TUMBLE PRESS@Setting 7

Gentle Heat

Drying Times . ;

Mixed Loads.. 8

01986 Whirlpool Corporation

kd-of-Cycle Signal

Lint Signal

LINT SCREEN

LINT REMOVAL

CARING FOR YOUR DRYER

Cleaning Dryer Interior.

Vacation Care. . . . . .

IF YOU NEED SERVICE OR

ASSISTANCE. .

1. Before Calling for

Assistance .

2. IfYou Need Assistance

3. IfYou Need Service .

4. If You Have a Problem

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room* on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2”C).

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes,

is not used by children or anyone

unable to operate it properly.

*See the “Installation Instructions” for

complete information.

FOR YOUR SAFETY

, IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH ELECTRI-

CAL SWITCHES.

3. EXTINGUISH ANY OPEN

FLAME.

4. IMMEDIATELY CALL

YOUR GAS SUPPLIER.

FOR YOUR SAFETY

DO NOT STORE OR USE

GASOLINE OR OTHER

TYPE OF LOAD

COTTONS; LINENS

EXTRA HEAVY - Bedspreads,

mattress padsquilts.

HEAVYWEIGHT FABRICS -Towels,

jeanscorduroyswork clothes

MEDIUMWEIGHT COTTONS -

Sheets, pillowcases, cotton

underwear,diapers

LIGHTWEIGHT COTTONS - Batistes,

oraandies, lingerie

SUGGESTED SUGGESTED

CYCLE TEMPERATURE

HEAVY

HIGH

AUTOMATIC PERM7 PRESS

REGULAR MED

KNITS GENTLE

LOW

PERMANENT PRESS. SYNTHETICS

AND BLENDS ’

HEAVYWEIGHT FABRICS -Work clothes, PERM’T PRES!

jackets, raincoats AUTOMPr’fi - ---

. . .

MEDIUMWEIGHT FABRICS - Shirts, play PERMAN

clothessheetsslacks . . . PRESS

LIGHTWEIGHT FABRICS - Lingerie, MED LOW

blouses, dresses .

KNITS

HEAVYWEIGHT - Cottons, rayons, MED LOW

blend&T-shirtsslacks, shirts . . . AUTOMATIC

LIGHTWEIGHT - Synthetics (polyester, PERMANENT

PRESS KNITS GENTLE

acrylic, etc.) and blends, lingerie, LOW

blouses, dresses . . .

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC

Sheer Curtains (2 or 3 panels] . . . . PERMANENT

Gauze,lace,etc. . . . . . . . . . . . . . . . . . . . . . . . . PRESS Ex LOW

RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys 20-30 MINS. FLUFF

PLASTIC - Shower curtains, AIR

tablecloths . . 20-30 MINS.

RUBBER-BACKED RUGS . . . 40-50 MINS.

the cycles.

Turn the Control Knob either way to The Temperature Selector can be set

point to the cycle and setting you on any desired temperature or any-

want. See page 6 for information On where between 2 temperatures.

To stop and restart

the dryer

Push the

3. START Button

Select a

1. CYCLE Set TEMPERATURE,

SELECTOR

The dryer will start tumbling when

you push the START Button. To stop the dryer, open the door (or

turn the Control Knob to OFF].

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

I’

Operating instructions

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Control Knob moves and stops

several times until the load reaches

the dryness setting you selected. Then

the knob automatically moves to

OFF and tumbling stops.

weight cotton items. The load tum-

bles without heat during the last 5

minutes. This helps make the load

easier to handle.

press, knits and other synthetic fab-

rics The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in.

For the first few loads, set the Control

Knob to point to an* in either auto-

matic cycle. When the dryer stops,

feel the dried items.

If items are drier than you like, use

a setting to the right of the* the next

time you dry a similar load.

If items are not as dry as you like,

use a setting to the left of the * the

next time you dry a similar load.

llmeddryins

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want - from 10 to 70.

The last 10 minutes of this

CyCle

are

without heat - a cool-down time. This

helos make the load easier to

handle.

Drying tips

The dryer does not heat when the

Control Knob is set on FLUFFAIR. This

setting can be used to fluff bedding,

plastic tablecloths, foam rubber pil-

lows, stuffed toys, sneakers, etc.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

TUMBLE PRESS”

Setting

The TUMBLE PRESS setting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Seledor to PERM’T

PRESS/ MED.

3. Push START Button.

The load will tumble in heated air

for 10 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best resultsTUMBLE PRESS only

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Gentle Heat

The dryer automatically reduces the

heat setting in HEAVY HIGH and PERM’T

PRESSMED cycles. The last 7 minutes

of each of these cycles gradually

reduces the dryer temperature to a

lower heat setting. Thls helps prevent

over drying.

Drying times Mixed loads

Drying times will vary depending on:

0 amount of moisture in the clothes.

0 type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen,

dryer temperature selection.

See page 6 in your “Dryer Guide”

for more information.

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested forthe lightest fab-

rics. When the dryer stops, remove

dry items and reset the control.

End-of-cycle signal

The dryer sounds a signal to let you know

when the cycle is finished. The signal cannot be

turned off and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

Lint signal

Clean lint screen before each load. If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air How is being restricted. Restricted air flow

reduces drying efficiency

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

y be a FIRE HAZARD.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more often, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avold electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric)

or lower access panel (gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner.

4. Replace panel: reconnect and

re-level dryer.

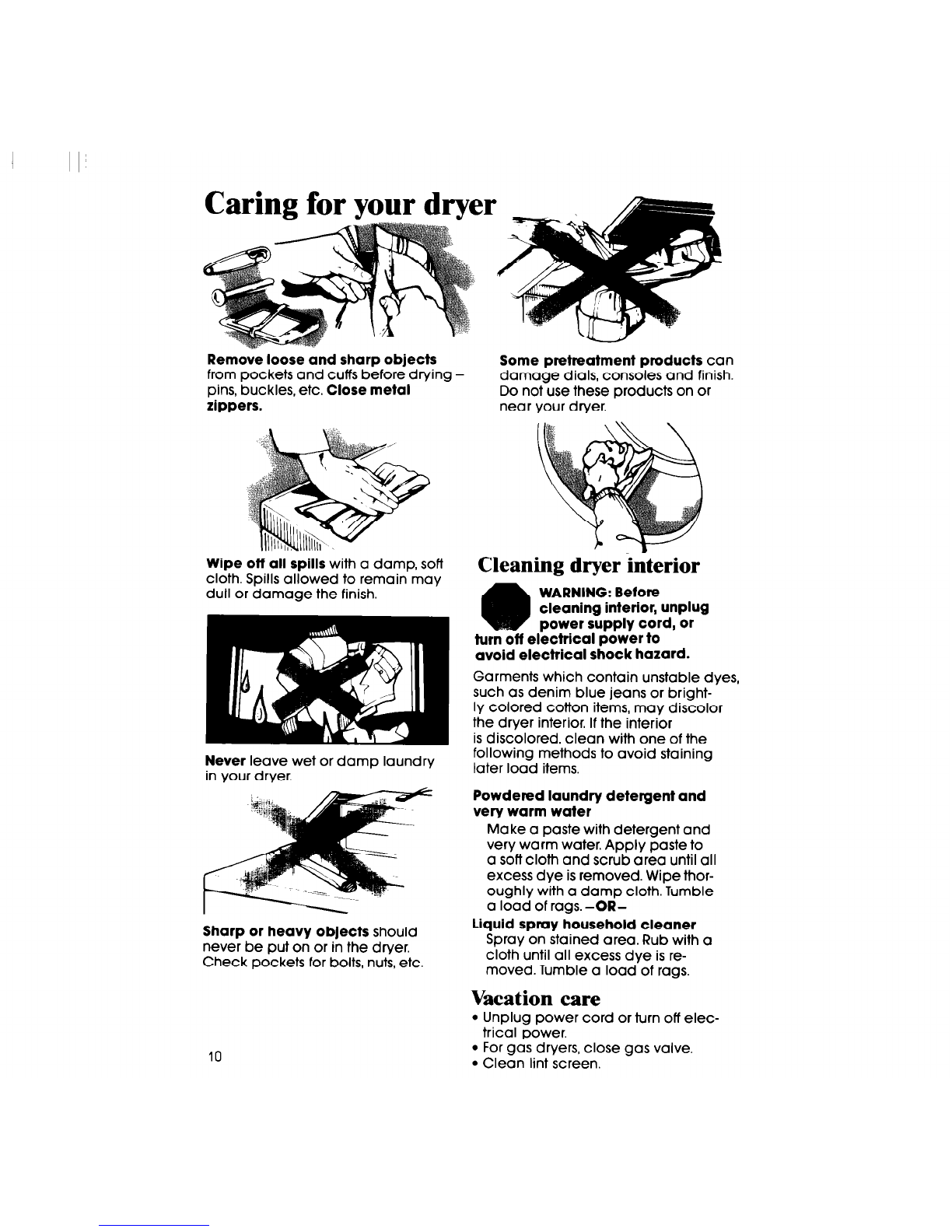

Caring for your dryer

Remove loose and sharp objects Some pretreatment products can

from Dockets and cuffs before drying - damaae dials. consoles and finish.

pins, buckles, etc. Close metal -

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Do not’;se these products on or

near your dryer.

Cleaning dryer interior

WARNING: Before

cleaning interior, unplug

power supply cord, or

turn off electrical power to

avoid electrical shock hazard.

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until all

excess dye is removed. Wipe thor-

oughly with a damp cloth. Tumble

a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

For gas dryers, close gas valve.

Clean lint screen.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool W10310420B - SP Bedienungsanleitung

Whirlpool

Whirlpool AZA9791 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WGD5500X Stücklistenhandbuch

Whirlpool

Whirlpool LE6600XK Bedienungsanleitung

Whirlpool

Whirlpool LE4900XK Bedienungsanleitung

Whirlpool

Whirlpool WED5700SW0 Bedienungsanleitung

Whirlpool

Whirlpool YWED9550WR0 Bedienungsanleitung

Whirlpool

Whirlpool LGR4634EQ3 Bedienungsanleitung

Whirlpool

Whirlpool Duet W10110850A Bedienungsanleitung

Whirlpool

Whirlpool LE8650XW Bedienungsanleitung

Whirlpool

Whirlpool CGM2941TQ Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WED8000D Bedienungsanleitung

Whirlpool

Whirlpool W10054080A Bedienungsanleitung

Whirlpool

Whirlpool WED8410SW Bedienungsanleitung

Whirlpool

Whirlpool WGD500RLW Bedienungsanleitung

Whirlpool

Whirlpool CSP2760TQ0 Bedienungsanleitung

Whirlpool

Whirlpool Exhausting Dryers Bedienungsanleitung

Whirlpool

Whirlpool 3401083 Bedienungsanleitung

Whirlpool

Whirlpool FFT M11 8X1WS GCC Bedienungsanleitung

Whirlpool

Whirlpool Duet Sport W10151582A Bedienungsanleitung

Whirlpool

Whirlpool LG6881XS Bedienungsanleitung

Whirlpool

Whirlpool HYBRIDCARE YWHD560CHW0 Bedienungsanleitung

Whirlpool

Whirlpool LE6098XFQ0 Bedienungsanleitung

Whirlpool

Whirlpool LE6090XS Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
