TOP AND CONSOLE PARTS
1
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
4−07 Litho in U.S.A. (LT) Part No. W10118843 Rev. A
29"GAS DRYER

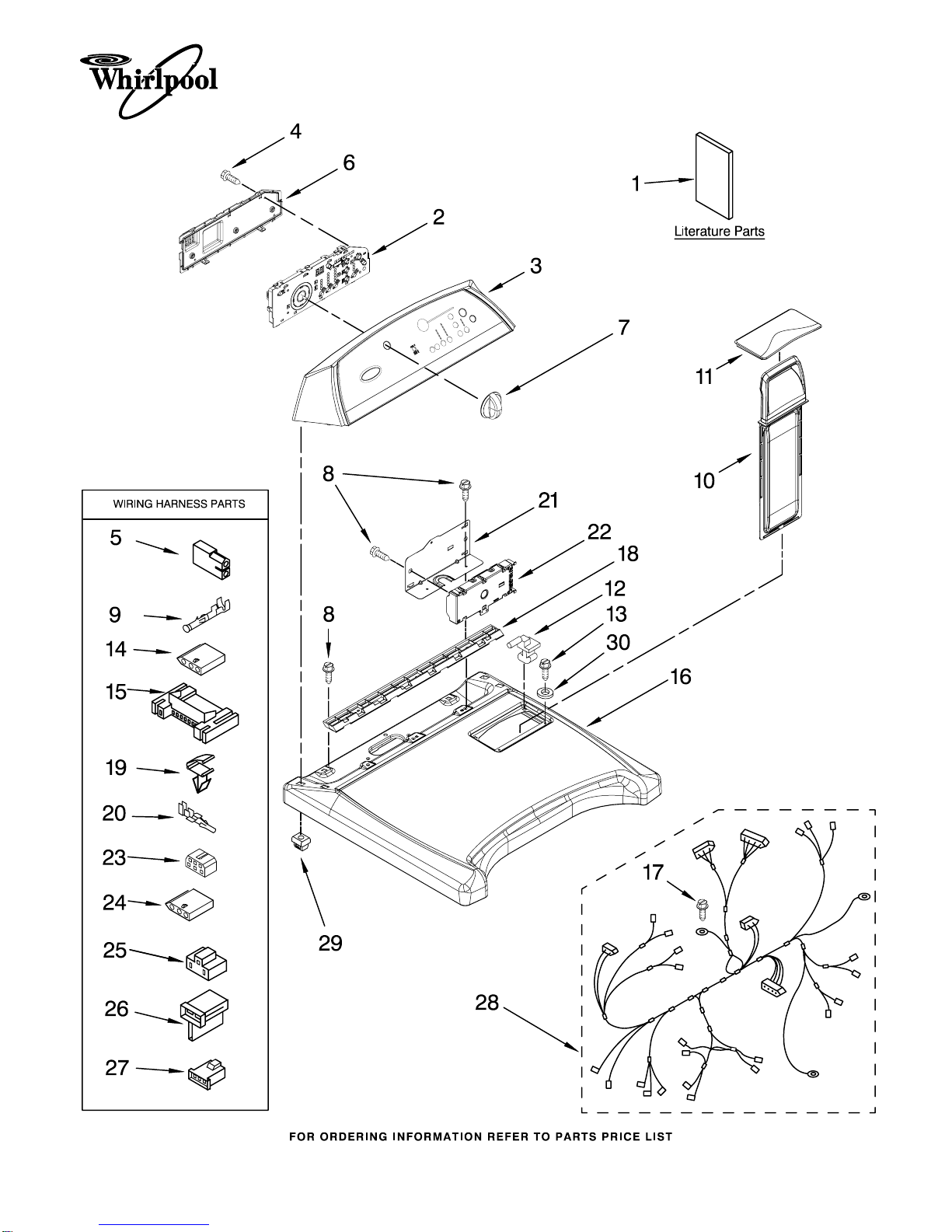

TOP AND CONSOLE PARTS
2
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10054090
Guide,
Quick Start
W10054080
Use & Care Guide
W10054160
Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677818 Dryer
2 8563974 Assembly,
User Interface
3 Panel, Console
W10110325
White
W10110330
Black
W10110328
Biscuit
4
W10003770
Screw, 6−19 x 3/64
5 717252 Plug, 2 Way
Terminal
6 8564265 Cover, Rear
UI−Assembly
7 Knob, Assembly
8574957 White
8574959 Black
8574958 Biscuit
8 337686 Screw, 8−18 x 1/2
9 94614 Terminal, Female
10 8572270 Assembly,
Lint Screen
11 Cover, Lint Screen
W10044320
White
W10044360
Black
W10044330
Biscuit
12
W10044470
Hinge, R.H.
W10044480
Hinge, L.H.
13 3196537 Screw, 8−18 x 5/8
14 3936144 Connector
15 3395683 Connector
(Motor)
16 Top
8565025 White
8565028 Black
8565027 Biscuit
17 343641 Screw, 10−16 x 1/2
18 8558863 Bracket, Console
19 3394427 Clip−Harness
20 94613 Terminal
21 8563853 Bracket,
Machine Controller
22
W10111608
Control,
Electronic
23 3347243 Connector
6−Circuit
24 353424 Connector Sensor
25 3401144 Connector,
(PTS Relay)
26 3403499 Connector,
2−Position
(Gas Valve)
27 3403498 Connector,
3−Position
(Gas Valve)
28
W10111432
Harness, Wiring
29 8558853 Screw, Grommet (2)
30 237446 Washer (Top/Chute)
CABINET PARTS
3
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843

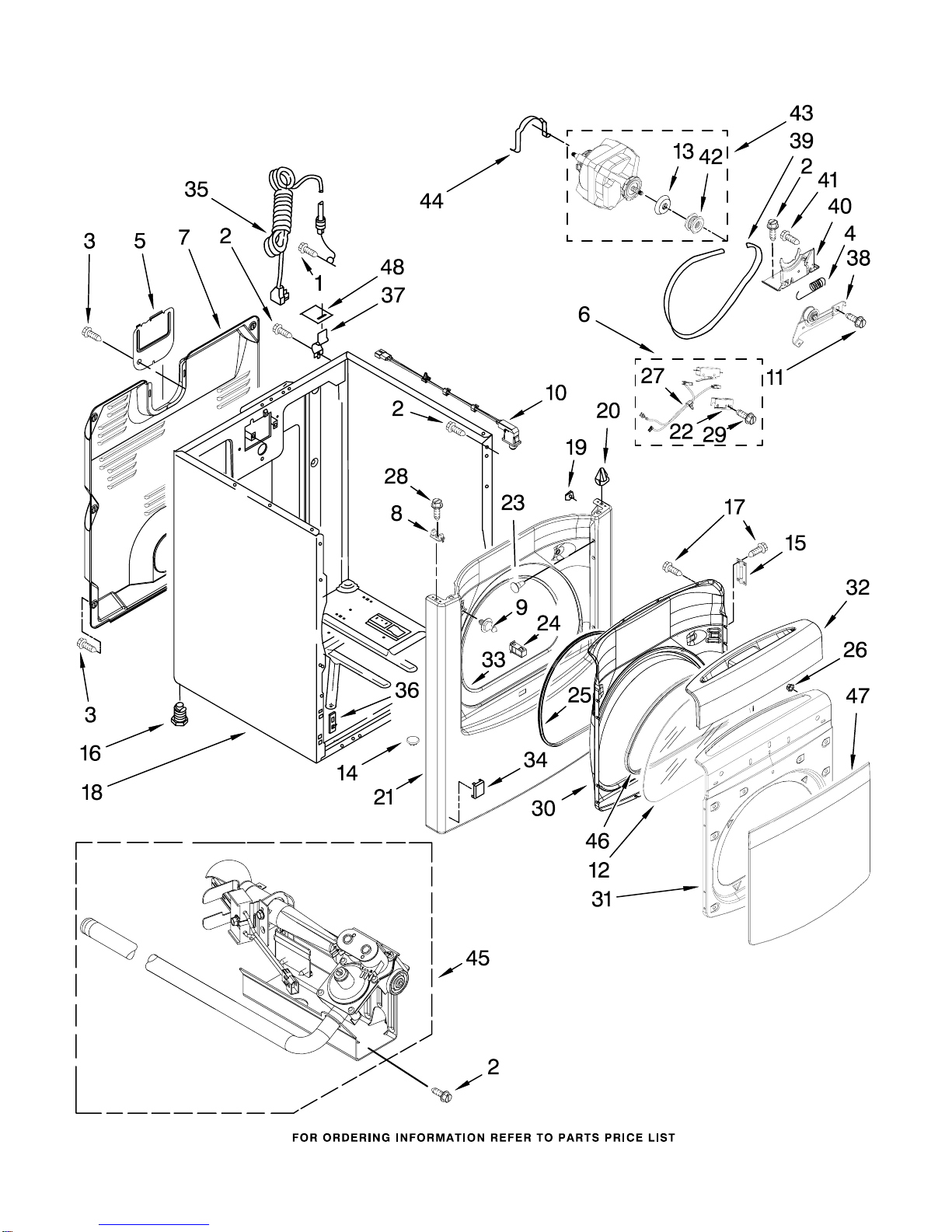

CABINET PARTS
4
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8533974 Screw, Ground
2 3390631 Screw, 10−16 x 1/2
3 693995 Screw, Hex Head
4 3387374 Spring, Idler
5 8558833 Cover,
Terminal Block
6 8566208 Assembly, Switch
7 8558830 Panel, Rear
8 8568303 Locator,
Snap Down
9 8572983 Door Strike
10 3978977 Door Switch
Assembly
11 3389420 Retainer−Idler
1/4−20 x 1/16
12 8565015 Glass, Inner Door
13 8578538 Belt Restrainer
14 8578560 Hole−Plug
15 Assembly,
Hinge & Pin
8565018 White
W10050090
Black
W10050050
Biscuit
16 3392100 Foot, Dryer
279810 Foot−Optional
(Extended Length)
(Package of 2)
(Not Included.)
17 342055 Screw, 8−18 3/64
18 Cabinet
8557569 White
W10045390
Black
8572115 Biscuit
19
W10007520
Clip, Ground (2)
20 8576625 Lock, Front Top (2)
21 Panel, Front
(Includes Illus.
34.)
8565033 White
8565036 Black
8565035 Biscuit
22 8564011 Bracket, Switch
23 Plug−Hole
3404413 White
3404416 Black
3404415 Biscuit
24 8572982 Assembly, Door
Catch
25 8575027 Seal, Door
26 308499 Pal Nut (4)
27 8539897 Jumper,
(Belt Switch)
28
W10100830
Screw,
10−16 x 3/64
29 8539897 Screw
30 Door Inner
8565037 White
8575052 Black/Grey
31 Door Outer
W10116925
White
W10116927
Black
W10116926
Biscuit
32 Handle, Door
W10111246
White
W10111248
Black
W10111247
Biscuit
33
W10044490
Seal, Front Panel
34 Plug,
Front Panel
8564457 White
8573008 Black
8573005 Biscuit
35 344020 Power Cord
36 3394083 Clip, Front Panel
37 238088 Hinge, Top (2)
38 8547174 Idler & Pulley
Assembly
39 8547168 Belt, Drive
40 8547166 Base Motor
41
W10002600
Screw
42 8578565 Pulley, 60 HZ
43 8566152 Motor, Assembly
60 HZ
44 660658 Clamp, Motor
45 8557890 Burner, Assembly
60 HZ
(See Pages 7 &
For Further
Burner Breakdown )
46
W10076060
Seal−Window
47 Window Outer
8575030 White
8575049 Black
8575050 Biscuit
48 18849 Pad, Top Hinge
BULKHEAD PARTS
5
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843
BULKHEAD PARTS
6
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843

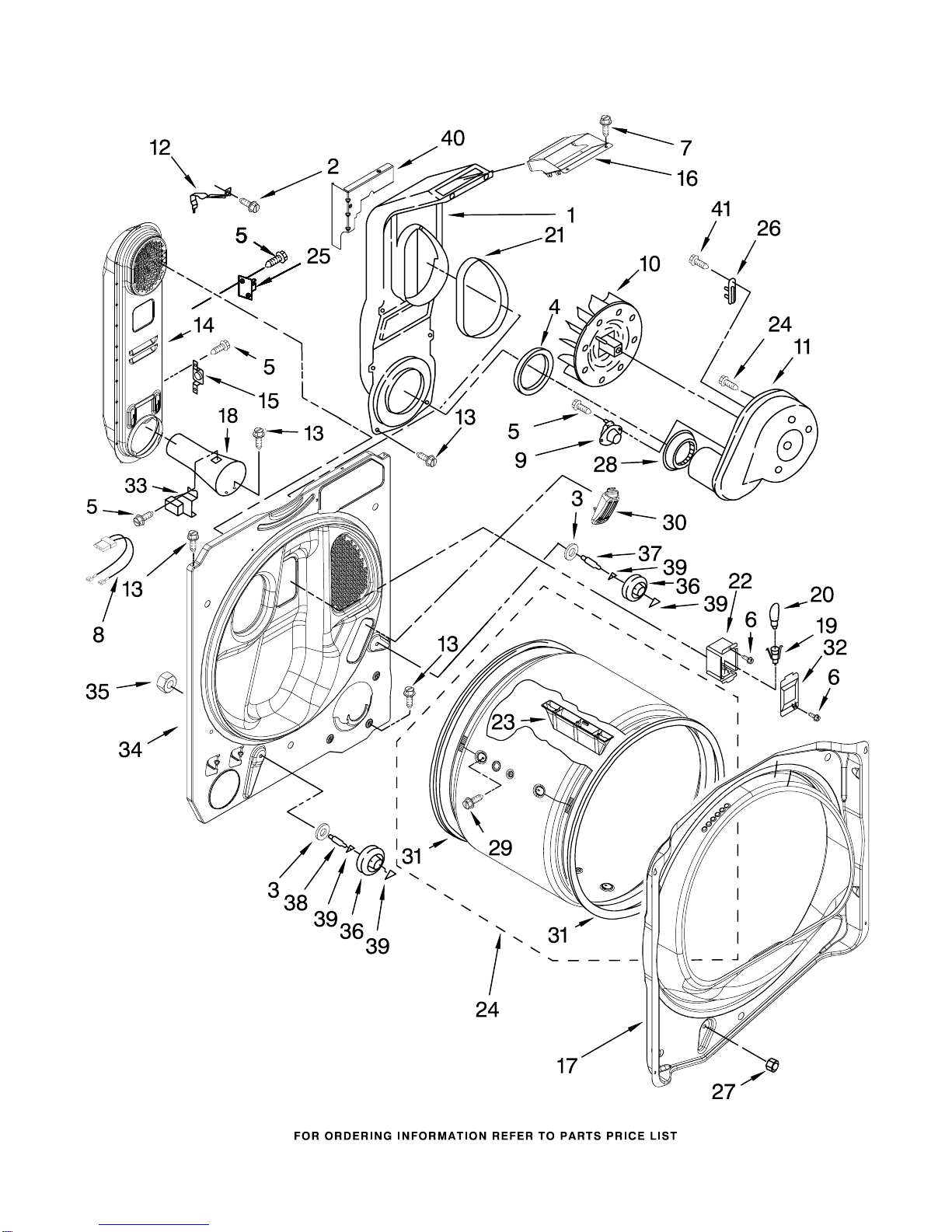

Illus. Part
No. No. DESCRIPTION
1 8544805 Lint Chute
Assembly
2 489463 Screw, 8−18 x 5/8
3 3387459 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 487909 Screw, 8−15 x 1/2
7 3196537 Screw
8 8539889 Harness,
Flame Switch
9 8577274 Thermister,
Internal−Bias
10 694089 Wheel, Blower
11 8577230 Housing, Blower
12 8546149 Clip−Heater Box
13 343641 Screw, 10−16 x 1/2
14 8544803 Box, Heater
15 3403140 Thermostat, 205 F
(96 C)
16 8544810 Collar, Lint Chute
17 8558890 Bulkhead, Front
18 8066049 Funnel, Burner
19 3403634 Socket Assembly
20 3406124 Bulb
21 8544813 Seal, Lint Chute
22 3977373 Bracket, Drum
Light
23 8565688 Baffle, Drum (3)
24 8557270 Drum, Assembly
25 280010 Kit,
Thermal Cut−Off
(Includes
Illus. 15)
26 3392519 Thermal−Fuse
27 3934666 Nut, 3/8−16 (R.H.)
28 8573836 Shield, Exhaust
29
W10109200
Screw, 11−16 x 3/4
30 8576468 Pad, Sensor
31 8557277 Seal, Drum
32 3402841 Lens, Drum Light
33 338906 Sensor, Radiant
34 8557242 Bulkhead
35
W10001120
Nut, 3/8−16
36 8536973 Roller Support
37 8575324 Shaft (R.H.)
38 8575325 Shaft (L.H.)
39 690997 Ring, Tri
40
W10053480
Bracket,
Lint Chute
41 3390631 Screw,
10−16 x 1/2
BA−155
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

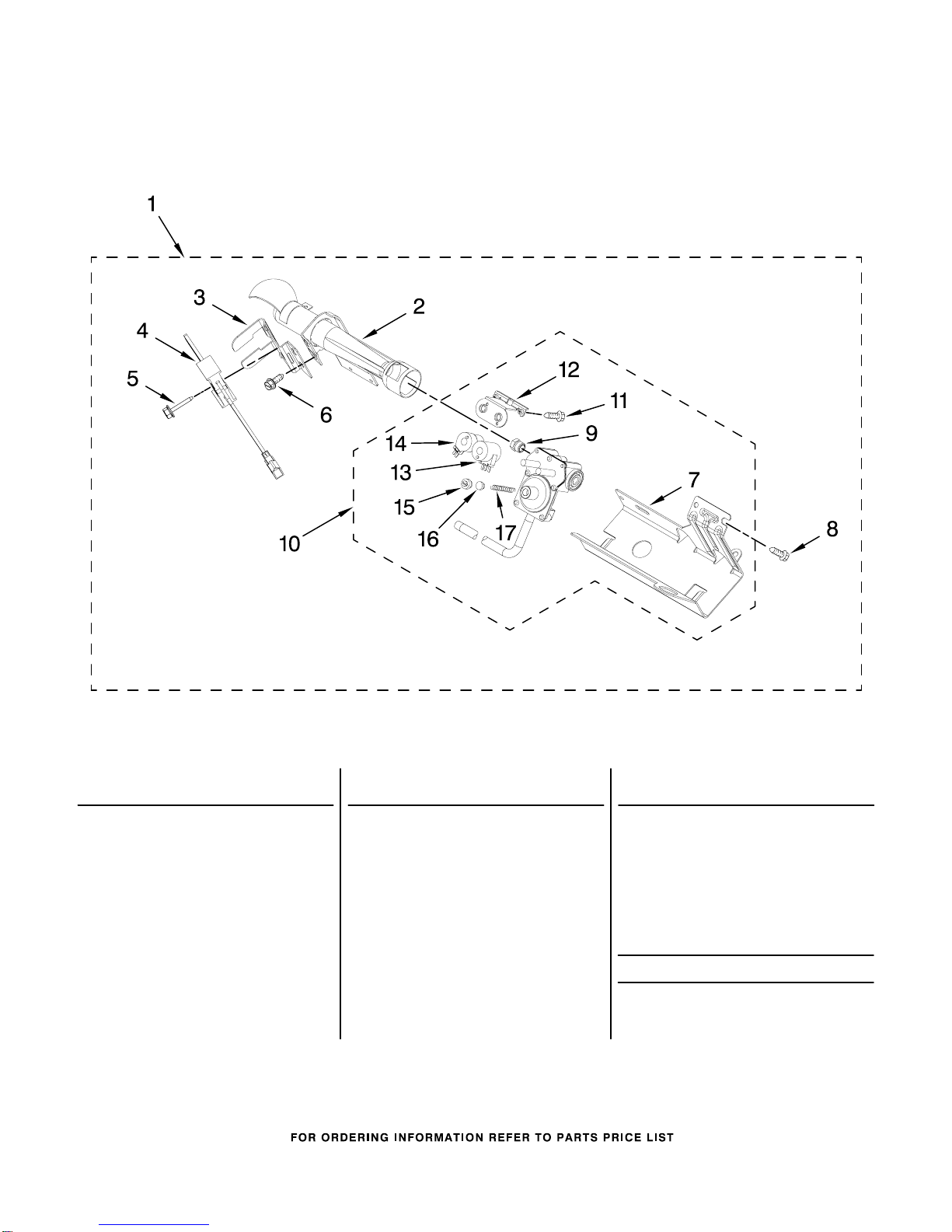

8557890 BURNER ASSEMBLY
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8557890 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 7/8)
6 3390631 Screw, 10−16 x 3/8
7 8544751 Base, Burner
8 3387057 Screw,
8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8281924 Valve, Gas
60 Hz. (Complete)
(Includes Pipe &
Illus. #7).
11 694421 Screw,
8−32 x 1/2 (2)
12 8182790 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak, Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
Following Parts Not Illustrated
49572 Conversion Kit
(Type (1)
to Type (4) LPG).
7
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843
OPTIONAL PARTS (NOT INCLUDED)
8
For Models: WGD6400SW1, WGD6400SB1, WGD6400SG1
(White/Grey) (Black) (Biscuit/Gold)
W10118843
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
W10071550
Dry Rack
8522199 Kit, Dryer
Vent Testing
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Black
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
