Whirlpool YLEQ5000KQ1 Bedienungsanleitung

CABINET PARTS

For Models: YLEQ5000KQ1, YLEQ5000KW1

(Designer White) (White/Grey)

06−03 Litho in U.S.A. (djc) Part No. 4377994 Rev. A

29"ELECTRIC DRYER

CABINET PARTS

For Models: YLEQ5000KQ1, YLEQ5000KW1

(Designer White) (White/Grey)

4377994

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8535831

Installation

Instructions

LIT8535828

Sheet,

Cycle Feature

(For Model

YLEQ5000KQ1)

LIT8535824

Sheet,

Cycle Feature

(For Model

YLEQ5000KW1)

LIT8535902

Label,

Energy Guide

LIT3979614

Use & Care Guide

LIT8528189

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

4 694415 Clip, Strain

Relief

5 3394202 Cover, Block

6 3403630 Plug, Strike

Hole

7 3396805 Panel, Rear

8 3394208 Cord, Power

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 3404413 Plug, Hinge

Hole (4)

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 8530603 Cabinet

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 3403444 Panel, Front

23 685203 Clip, Felt Pad (3)

24 690081 Catch, Door

Assembly

27 342055 Screw, 8−18 x 1/2

28 3405514 Hinge, Door

29 3403431 Strike, Door

30 3402341 Door, Rear

31 3402335 Door, Front

32 3405184 Handle, Door

33 3406129 Seal & Bearing

Assembly

34 279393 Terminal Block

Kit (For

Terminal Block)

35 238088 Hinge, Top (2)

36 3394332 Idler & Slide

Assembly

37 8066065 Belt, Drive

38 348780 Base, Motor

39 3400500 Bolt,

5/16−18 x 3/4

40 3394341 Pulley, 60 Hz.

41 8538262 Motor Assembly

60 Hz.

42 660658 Clamp, Motor

43 3404162 Clamp, Motor

(W/Shield)

44 3405246 Seal, Door

45 697776 Screw, 10−32 x 5/8

(External Ground)

TOP AND CONSOLE PARTS

For Models: YLEQ5000KQ1, YLEQ5000KW1

(Designer White) (White/Grey)

4377994

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Models: YLEQ5000KQ1, YLEQ5000KW1

(Designer White) (White/Grey)

4377994

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 3955775 Medallion

3 694419 Buzzer

4 8271365 Cap, End (L.H.)

5 3401674 Jumper, Wire

(Black)

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 8271359 Cap, End (R.H.)

9 3395683 Housing, Connector

(Motor)

10 349639 Screen, Lint

11 8283378 Cover, Lint

Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 688805 Clip

16 8271390 Top

17 297535 Bumper, Lint Lid

18 94614 Terminal

19 8536939 Clip, Spring

21 8299778 Timer, 60 Hz.

22 3405152 Switch,

End of Cycle

23 3394427 Clip, Harness

24 8283292 Wire, Jumper

(Guard On/Off)

25 3347243 Connector,

(6−Circuit)

26 Knob,

Push−To−Start

8271341 White

8538959 Grey

29 3390646 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 8299870 Harness, Wiring

32 3977456 Switch,

Push−To−Start

33 Timer Knob

Assembly

8312687 White

8538953 Grey

34 Knob, Control

8271339 White

8538957 Grey

35 3936144 Connector

36 8271418 Bracket, Control

37 Panel, Control

(Includes

Illus. 2)

3977849 White

8532637 Grey

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

3404351 Dry Rack

8522199 Kit, Dryer

Vent Testing

279948 Kit,

Dryer Repair

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

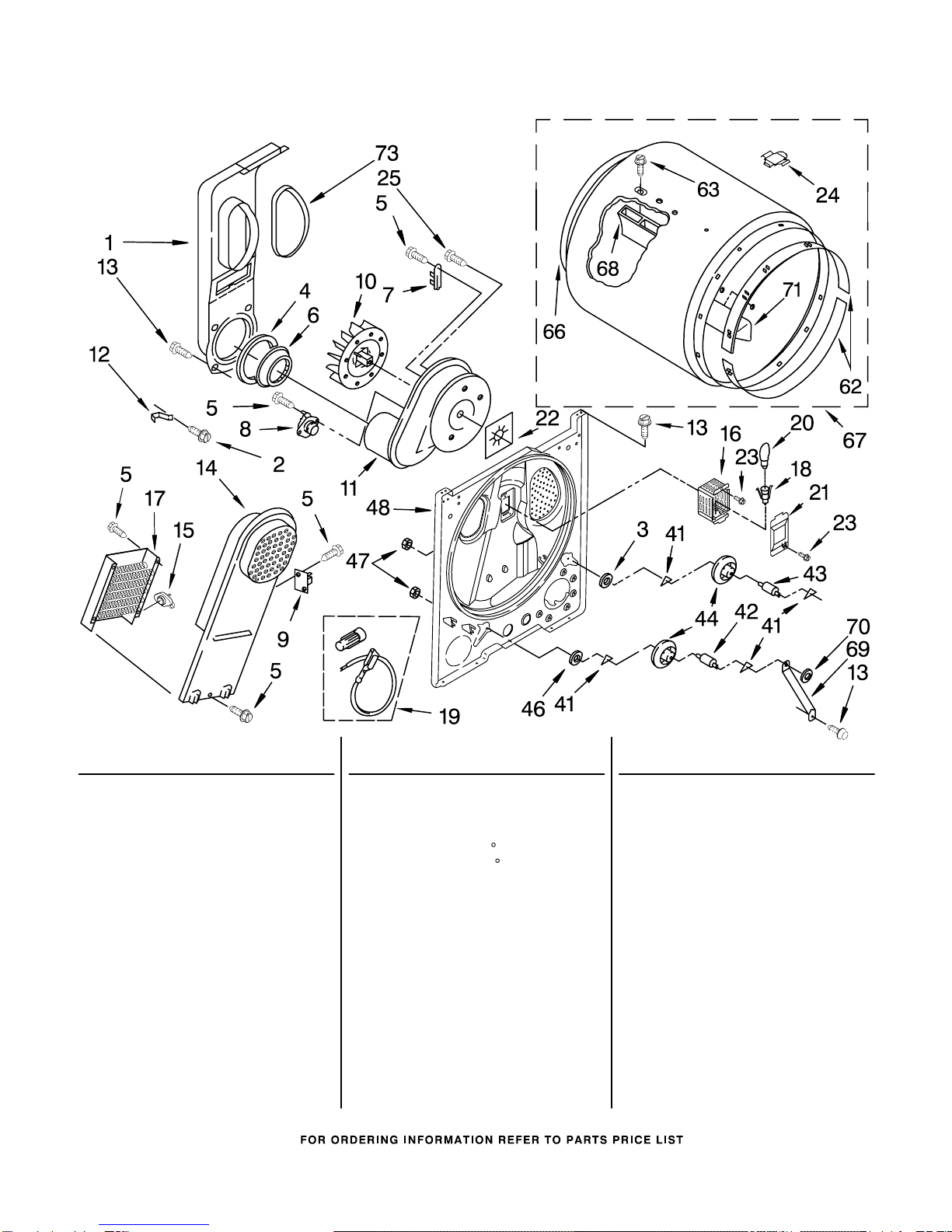

BULKHEAD PARTS

For Models: YLEQ5000KQ1, YLEQ5000KW1

(Designer White) (White/Grey)

4377994

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Thermal Fuse

8 3387134 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

(Includes

Illus. 22)

11 3405016 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket,

Drum Light

17 3403585 Element, Heater

18 3403634 Socket Assembly

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 3406124 Bulb, Light

21 3402841 Lens,

Drum Light

22 3394196 Seal, Blower

23 487909 Screw, 8−15 x 1/2

24 8066086 Drum Hole

Plug

25 3390647 Screw, 8−18 x 1/2

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3403493 Bulkhead

62 692526 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 3406130 Seal, Rear Drum

67 695587 Drum Assembly

68 692490 Baffle, Drum (2)

69 3976434 Bracket, Support

70 90296 Clip

71 3403636 Baffle, Drum (1)

73 339956 Seal
