Whirlpool EV201NZRQ00 Bedienungsanleitung

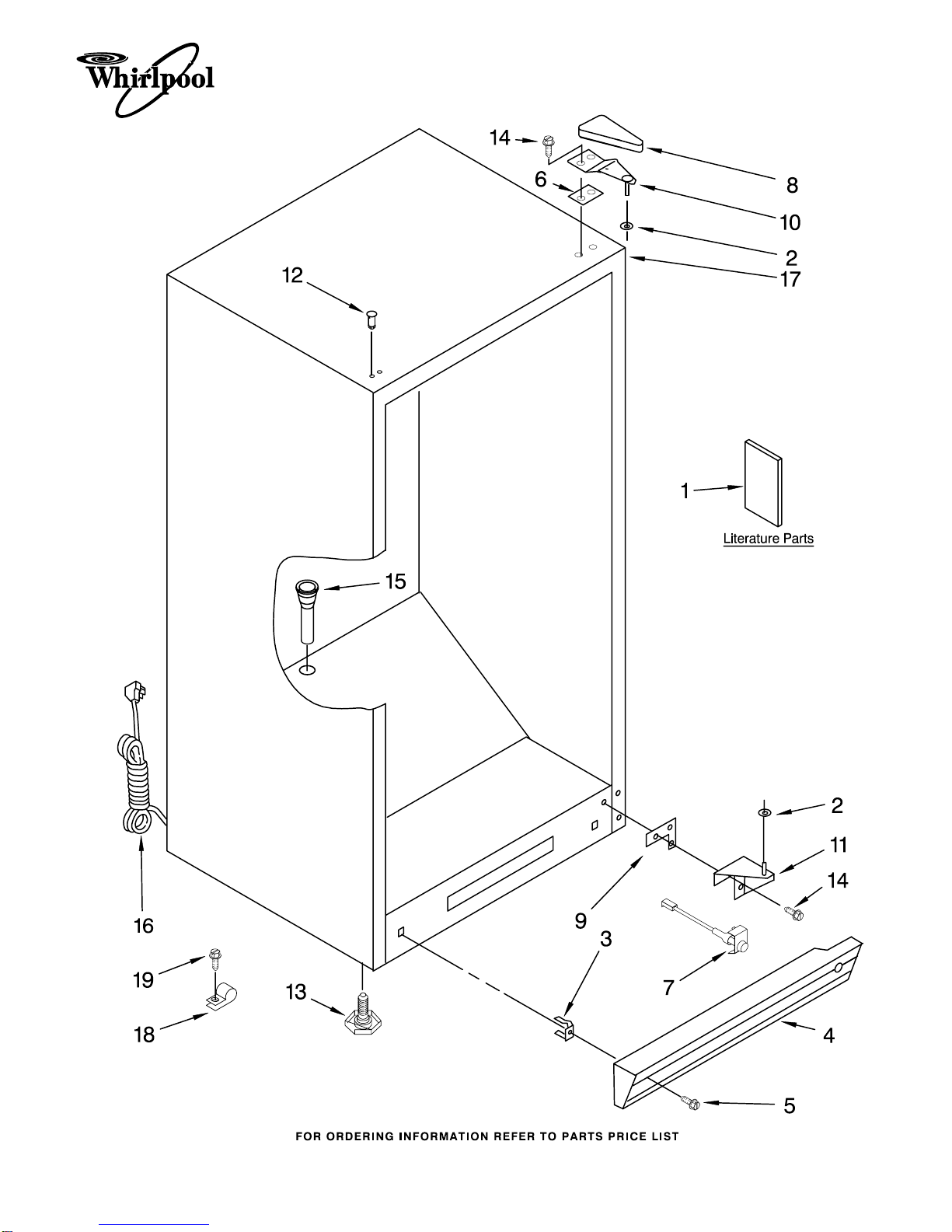

CABINET PARTS

For Model: EV201NZRQ00

(White)

3−06 Litho in U.S.A. (tpm) Part No. 8214782

VERTICAL FREEZER

CABINET PARTS

For Model: EV201NZRQ00

(White)

8214782

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210432 Owners Manual

8210427 Energy Label/Tag

2 4390520 Washer, Door

Spacer

3 4356803 Clip, Grille

4 8210310 Grille

5 4357243 Screw

6 4390489 Shim, Hinge

7 4390905 Power Light

Assembly

8 4357279 Cover, Hinge

9 4390489 Shim, Bottom

10 8210222 Hinge, Top

11 8210238 Hinge, Bottom

12 4390596 Plug (White)

13 4390866 Leg, Leveler

14 4356830 Screw

15 4357268 Grommet, Drain

16 8210375 Cord, Power

17 Cabinet (Not A

Serviceable Part)

18 4356643 Clamp, Tube

19 4356583 Screw

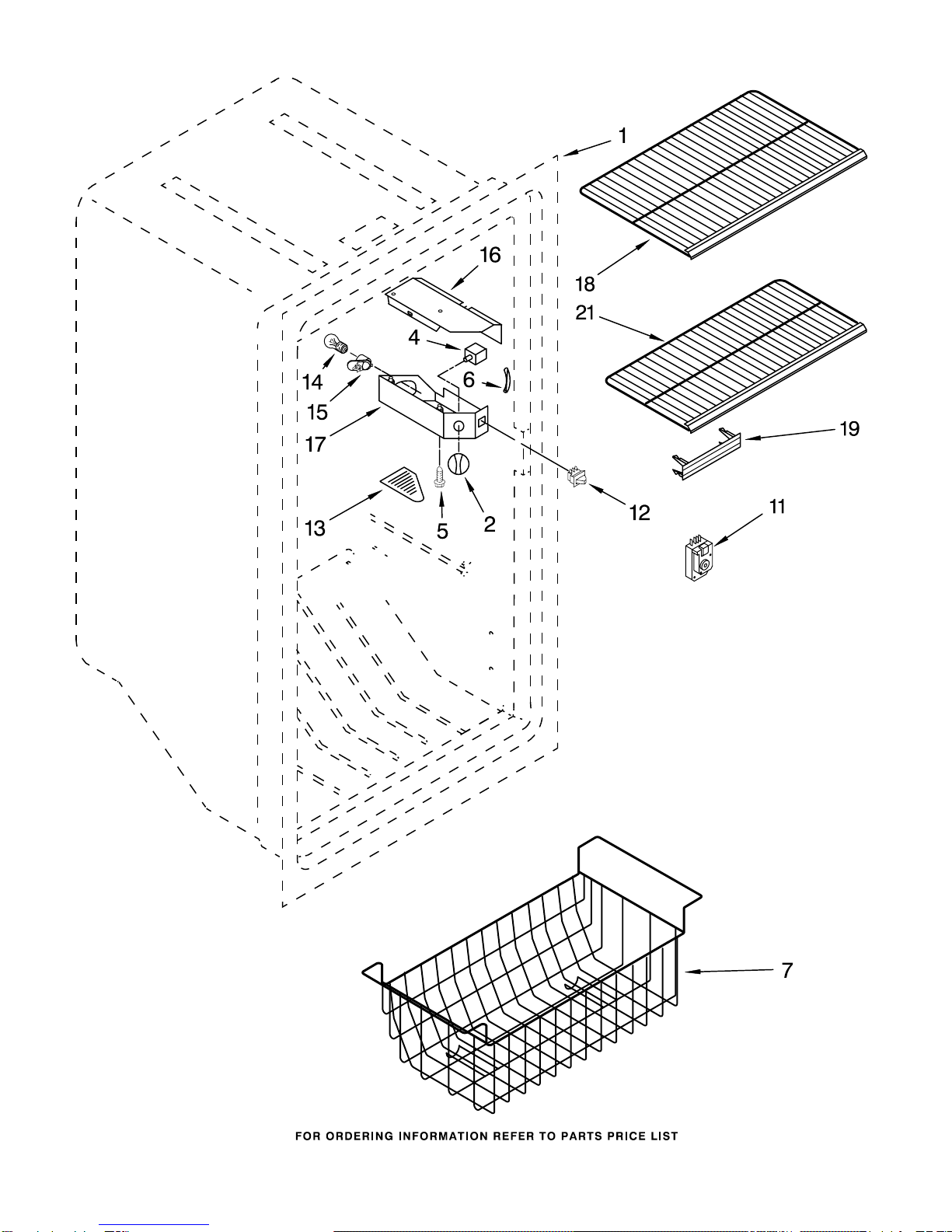

LINER PARTS

For Model: EV201NZRQ00

(White)

8214782

LINER PARTS

For Model: EV201NZRQ00

(White)

8214782

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8210348 Knob, Control

4 8210344 Thermostat

5 4357042 Screw

6 4356800 Tubing,

Thermostat

7 4390632 Basket, Wire

11 4357124 Defrost Timer

12 4390513 Switch, Light

13 8210349 Lens, Light

14 4390465 Bulb, Light

15 8210350 Socket, Light

16 8210351 Shield, Light

17 8210377 Box, Control

18 8210274 Shelf, Upper Wire

19 4357295 Vent Plug (4)

21 8210275 Shelf, Lower Wire

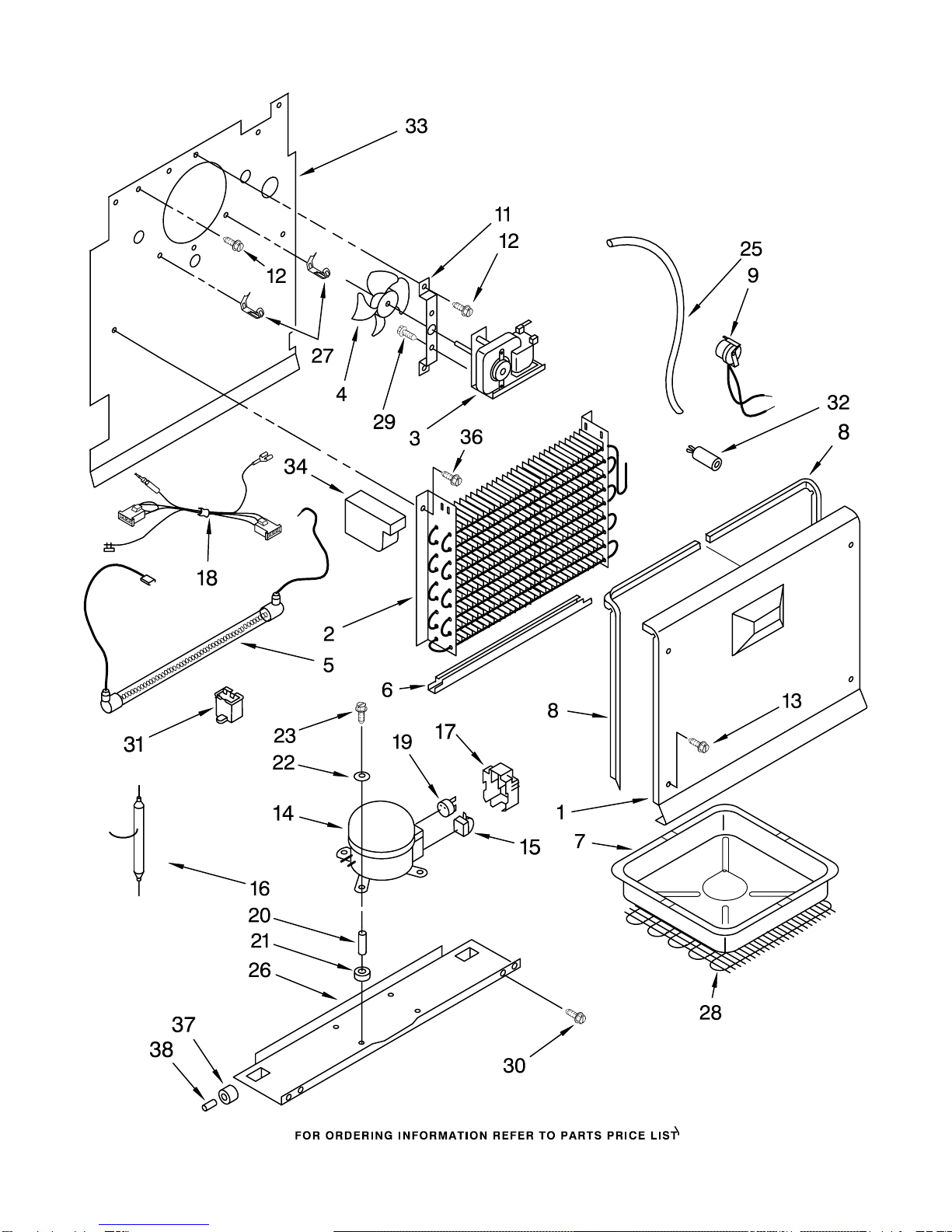

UNIT PARTS

For Model: EV201NZRQ00

(White)

8214782

UNIT PARTS

For Model: EV201NZRQ00

(White)

8214782

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4357244 Evaporator

3 4390914 Motor, Fan

4 4390912 Blade, Fan

5 4390913 Heater, Defrost

6 4356924 Shield, Heater

7 4390675 Pan, Drain

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 4356928 Bi−Metal Defrost

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357110 Screw (4)

14 4356775 Compressor

(Includes Items

15,16,17,19 & 21)

15 4356738 Relay

16 4357299 Drier

17 4356777 Cover

18 8210426 Harness, Fan

19 4356776 Overload

20 4356846 Sleeve

21 4356335 Compressor,

Grommet

22 4356847 Washer

23 8210220 Bolt, Compressor

25 4357263 Exchanger, Heat

26 8210279 Pan, Compressor

27 4356952 Clip, Thermostat

28 8210248 Condenser

29 4356970 Screw

30 4357277 Screw

31 8210224 Capacitor

32 4357020 Grommet

33 4357123 Plate, Evaporator

Mount

34 8210261 Block, Foam

36 4357110 Screw

37 4390754 Roller, Rear

38 4390755 Axle

REFRIGERANT CHARGE

6.2 oz.

(R−134A)

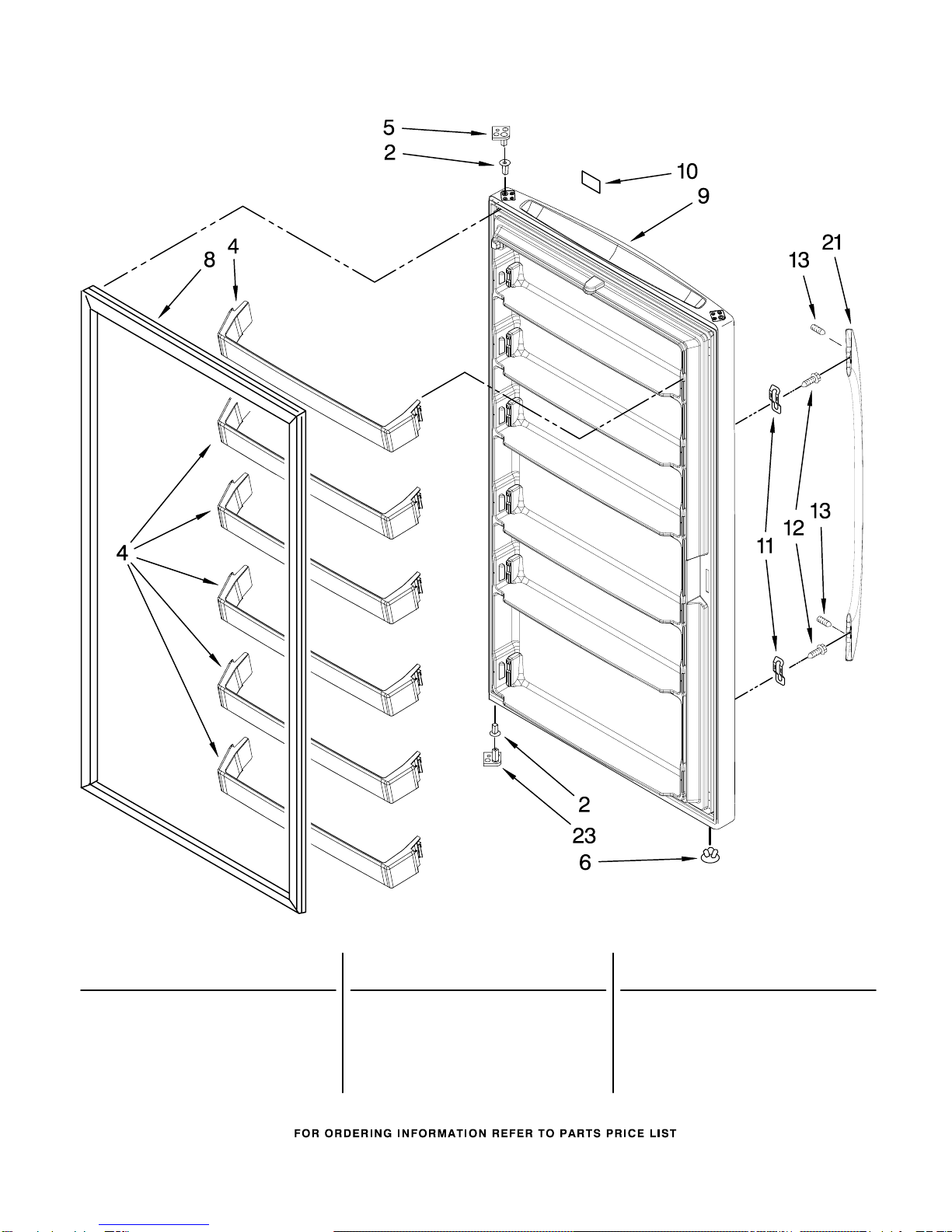

DOOR PARTS

For Model: EV201NZRQ00

(White)

8214782

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4390731 Bushing, Hinge

4 8210428 Rail, Door (6)

5 8210401 Stop, Door

(Upper)

6 4357067 Vent Plug

8 8210341 Gasket, Door

9 8210355 Door Assembly

(Includes Interior

Door Liner)

10 4390670 Nameplate

11 2255411 Clip

12 489491 Screw

13 8533920 Screw

21 2313345W Handle

23 8210400 Stop, Door

(Lower)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EV201NZRQ00

(White)

8214782

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
