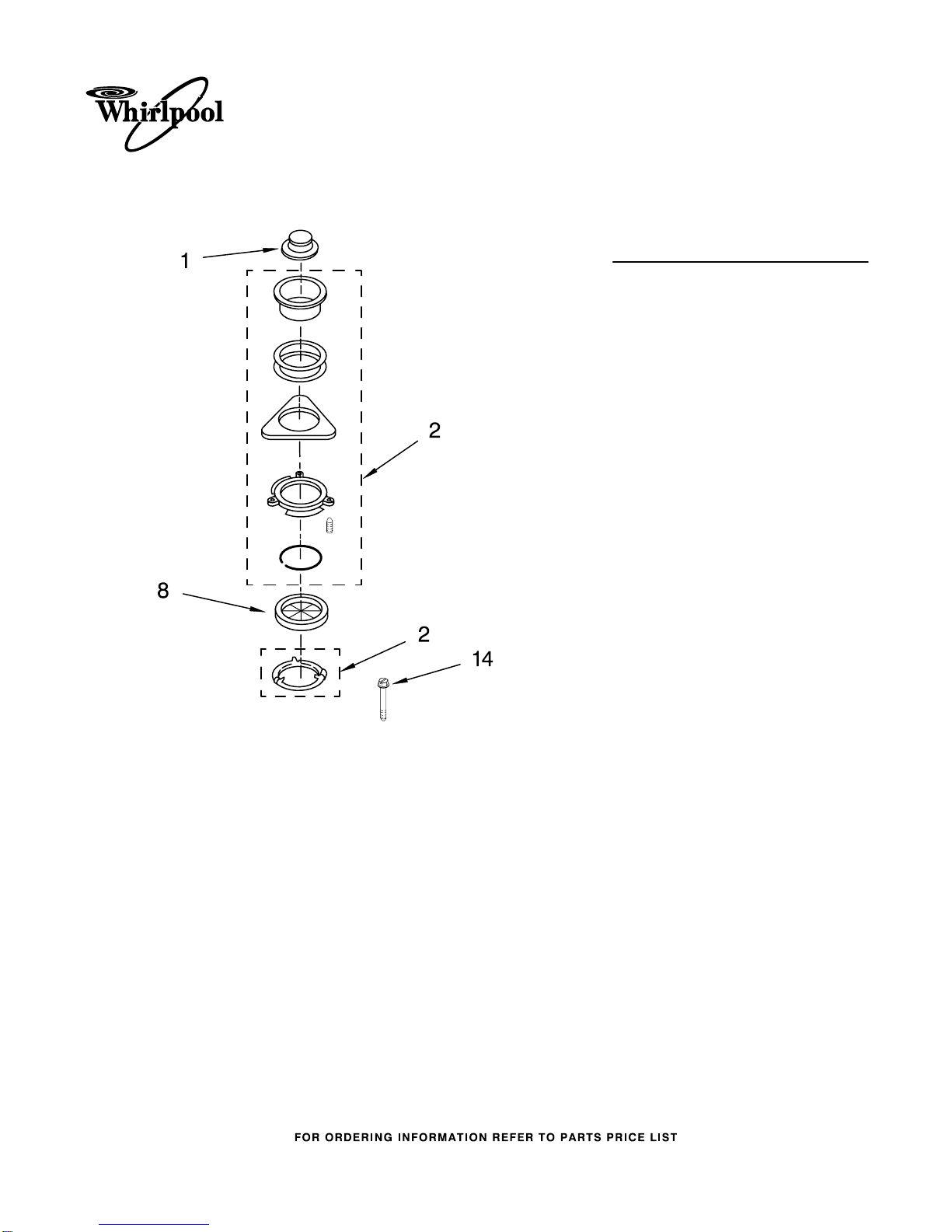

UPPER HOUSING AND FLANGE PARTS
1
For Model: GC1000XE1, GC1000PE1
6−01 Litho in U.S.A. (kdj) Part No. 8174330
DISPOSER
Illus. Part
No. No. DESCRIPTION
1 4211300 Stopper Assembly
2 8174328 Mounting Assembly
8 4211615 Gasket, Mounting
14 4211645 Bolt, Thru
LOWER HOUSING AND MOTOR PARTS
2
For Model: GC1000XE1, GC1000PE1
8174330
Illus. Part
No. No. DESCRIPTION
1 Enclosure Assy
(Not Serviceable)
6 4211322 Actuator Assembly,
Centrifugal
7 8174322 Stator Assembly
8 8174312 Switch Assembly,
Start
9 4211549 Protector,
Overload
10 4211647 End Frame Assembly,
Lower
12 8174317 Kit, Installation
15 4211472 Plug & Cord
(GC1000PE1 Only)
16 4211351 Shield, Wire
17 8174315 Cover, Terminal
18 8174329 Bushing
(GC1000PE1 Only)
20 8174310 Wrench, Emergency
Following Parts Not Illustrated
LIT4211613
Guide,
Use And Care
LIT4211614
Instructions,
Installation
