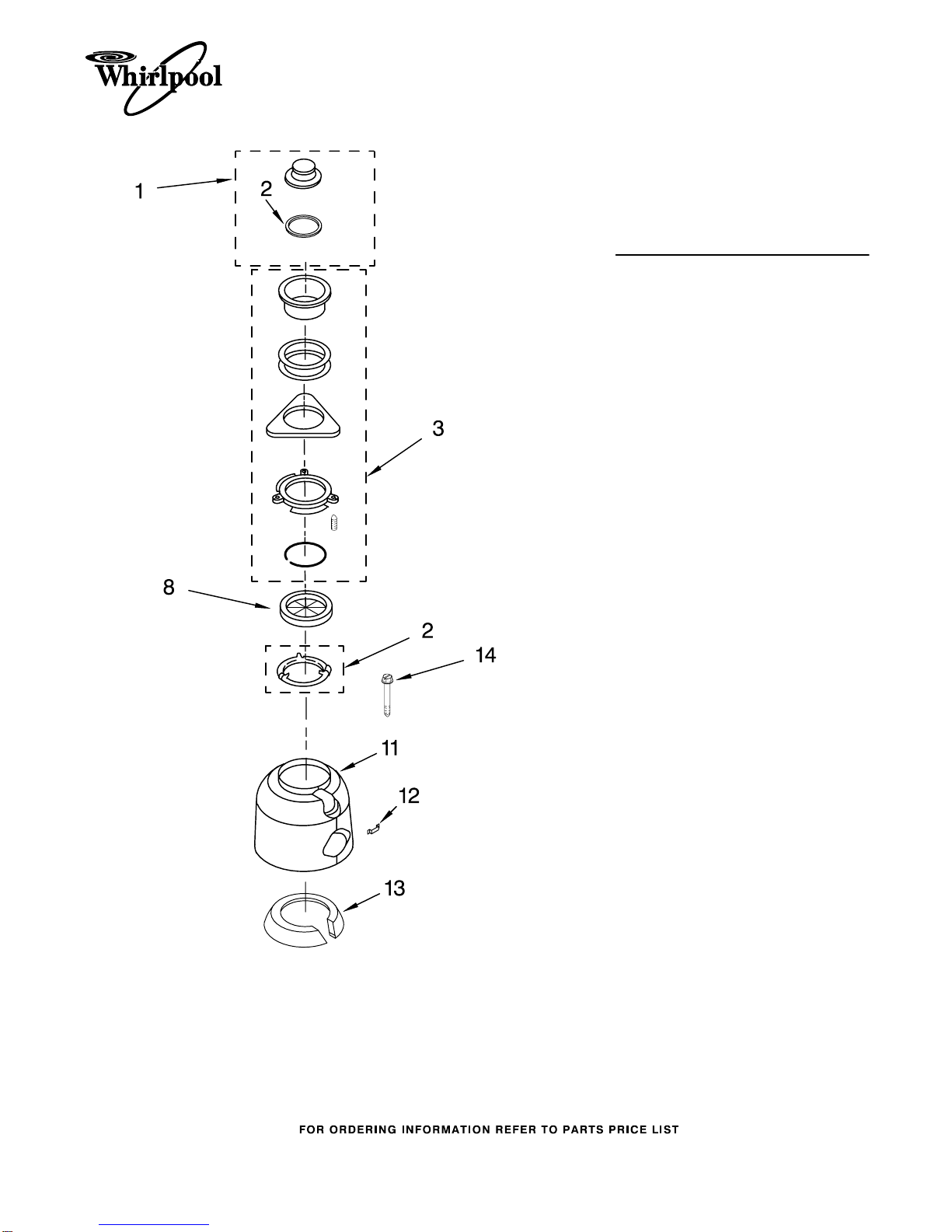

UPPER HOUSING AND FLANGE PARTS
1
For Model: GC5000XE
7−01 Litho in U.S.A. (kdj) Part No. 8174339
DISPOSER
Illus. Part
No. No. DESCRIPTION
1 4211577 Stopper Assembly
2 4211333 Gasket, Stopper
3 8174335 Mounting Assembly
8 4211615 Gasket, Mounting
11 8174336 Trim Shell
12 4211339 Clip
13 4211649 Insulation
14 8174309 Bolt, Thru
LOWER HOUSING AND MOTOR PARTS
2
For Model: GC5000XE
Part No. 8174339
Illus. Part
No. No. DESCRIPTION
1 Enclosure Assy
(Not Serviceable)
6 4211322 Actuator Assembly,
Centrifugal
7 8174337 Stator Assembly
8 8174312 Switch Assembly,
Start
9 8174334 Overload,
Protector
10 4211647 End Frame Assembly
12 8174293 Kit, Installation
16 4211326 Shield, Wire
17 8174315 Cover, Terminal
20 8174310 Wrench, Emergency
Following Parts Not Illustrated
LIT4211613
Guide,
Use And Care
LIT4211614
Instructions,
Installation
LIT8174338
ICU Booklet
