Whirlpool GBS307PRB00 Bedienungsanleitung

OVEN PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

6−06 Litho in U.S.A. (cre) Part No. 8186301 Rev.A

30" BUILT−IN

ELECTRIC OVEN

SELF CLEAN CONVECTION

(GOLD LINE)

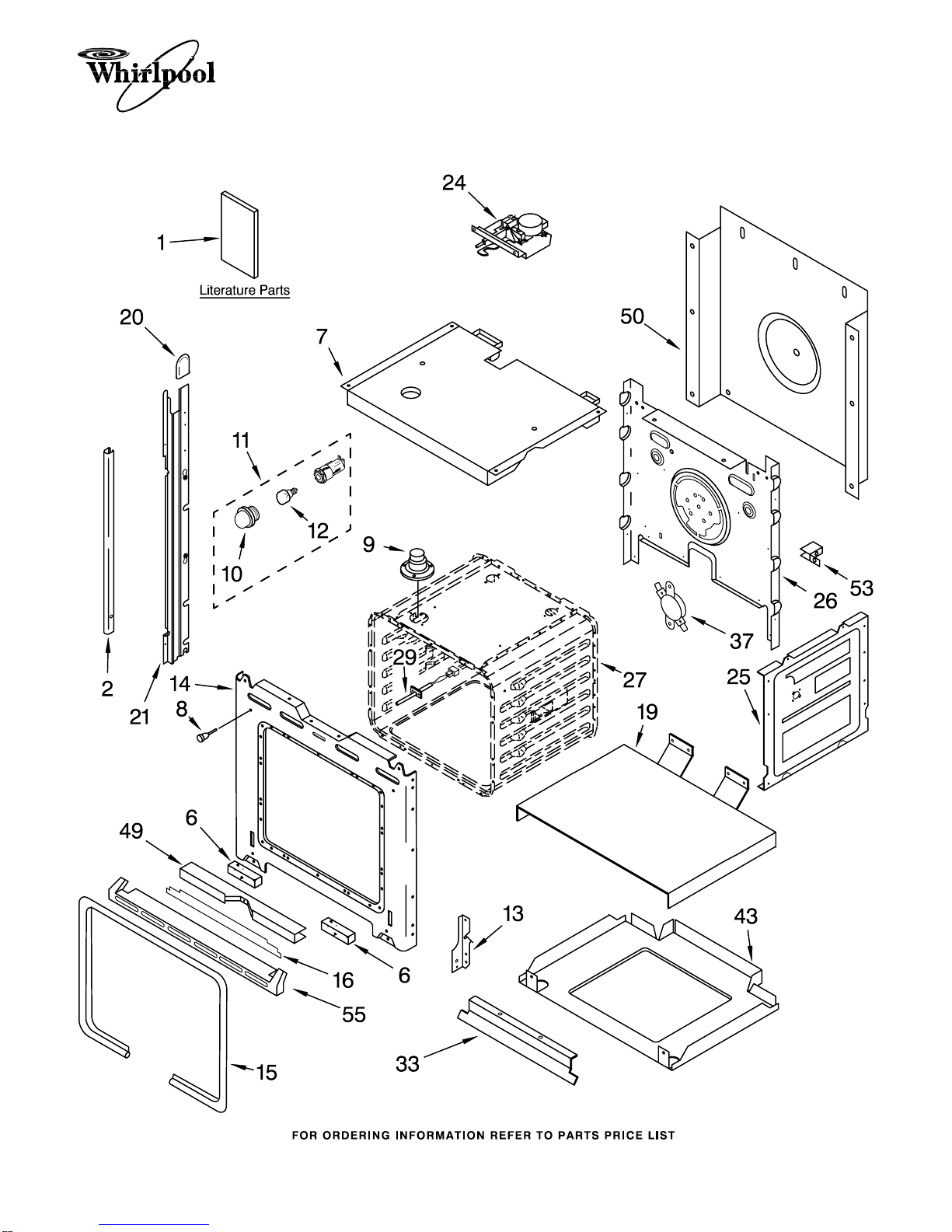

OVEN PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303647 Installation

Instructions

8303645 Use & Care Guide

8301758 Tech Sheet

4449237 Cookbook Conv.

8302333 Installation/

Undercounter

9759133 Safer Cooking Tips

8301928 Installation

Instructions,

M/W Trim Kit

2 Trim, Side

(Right Hand)

8302908 Black

8303213 S.Steel

8302909 White

(Left Hand)

8302907 Black

8303214 S.Steel

8302910 White

3400832 Screw

6 4452490 Spacer, Foam

7 4455865 Top, Chassis

4449809 Screw

8 4448520 Bumper, Door

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 9759060 Frame, Front

4449040 Screw

4450118 Nut

15 4455382 Gasket, Door

16 4452337 Insulation,

Bottom Vent

19 4451478 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

8303115 Right Side

8303116 Left Side

4448444 Grommet

4449154 Screw

24 9759525 Latch, Motorized

4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452234 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

33 4452496 Deflector (Btm)

4449809 Screw

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 9759713 Base, Chassis

4449809 Screw(2)

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

53 4449845 Support, Bracket

4449809 Screw

55 Trim, Bottom

8303583 Black Model

8303584 White Model

8303582 S.Steel

4452152 Bracket, Bottom

Mounting

3400832 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

OVEN DOOR PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Door Liner

4448520 Bumper

2 Hinge, Door

8300577 Right Hand

8300578 Left Hand

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4457132 Retainer, Glass

4449809 Screw

7 9759225 Glass, Inner

12 Assy, Door Glass

8303300 Black

8303306 White

8303288 Stainless

13 Door Handle

8302813 Black

8302814 White

8303164 S. Steel

14 8303167 Bracket, Handle

4451040 Screw

4449743 Screw (2)

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

19 4457103 Shield, Heat

4449809 Screw

22 4457114 Shield, Heat (Btm)

INTERNAL OVEN PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 4448717 Rack, Oven

9759322 Pad, Rack

7 4452153 Element, Bake

4449154 Screw

9 4451583 Motor, Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448988 Cover, Fan

12 4452227 Nut

CONTROL PANEL PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302848 Black Model

8302849 White Model

8302877 S.Steel

4449745 Screw

2 Assy, Switch

8303180 S.Steel & Black

Models

8303222 White Model

3 8303505 Assy, Control

3400832 Screw

4449745 Screw

4 8302990 Backer, Control

5 8302877 Trim−Panel

(Use on S.Steel

model only)

TOP VENTING PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

4449040 Screw

4449809 Screw

2 4455178 Elbow, Vent−Top

3 4457289 Blower 65MM

4449809 Screw (3)

4 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

3400080 Screw

12 4451985 Suppressor

13 8303497 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Top

4451597 Right

4451598 Left

4449809 Screw

15 9759135 Back, Control

4449809 Screw

16 4450551 Cover, Top Rear

4449809 Screw

17 4448664 Clamp

4449809 Screw

18 4450554 Cover, Top Front

4449809 Screw

21 4451758 Seal, Foam

OPTIONAL PARTS

For Models: GBS307PRB00, GBS307PRQ00 GBS307PRS00

(Black) (Designer White) (S.Steel)

8186301

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4451761 Support, Wiring

4454842 Tie, Cable

8301399 Harness (conv)

4450952 Conduit

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4454835 Tie, Cable

4452222 Spacer, Harness

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)
