Whirlpool RBD305PRB00 Bedienungsanleitung

LOWER OVEN PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

12−06 Litho in U.S.A. (dmm) Part No. 8186429

24" BUILT−IN ELECTRIC

DOUBLE OVEN

STD−CLEAN LOWER

SELF−CLEAN UPPER

LOWER OVEN PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303647 Installation

Instructions

8303870 Use & Care Guide

(Oven)

8302068 Tech Sheet

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

8302917 RH Black

8302919 RH White

8302921 RH Biscuit

8303209 LH Stainless

8302918 LH Black

8302920 LH White

8302922 LH Biscuit

8303210 RH Stainless

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

6 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

7 8303099 Top Chassis

8 4452490 Spacer, Foam

9 4452159 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452337 Insulation,

Bottom Vent

14 9759060 Frame, Front

15 4450493 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

(Bottom Vent)

19 4451478 Support, Insulation

20 4450935 Plug, Door

22 4451664 Fan & Bracket Assy

23 4449154 Screw

24 4449743 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 3196176 Screw

29 4455636 Sensor

33 9760677 Deflector, Vent

37 4451354 Fuse−Thermal

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302947 Black

8302948 White

8302949 Biscuit

8302950 Stainless

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

8186429

UPPER OVEN PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186429

UPPER OVEN PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION

1 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4449743 Screw

6 3196176 Screw

7 4455864 Top Chassis

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4455611 Frame, Front

15 4455381 Gasket, Door

16 4449809 Screw

17 4449040 Screw

19 4451477 Support, Insulation

21 Rail, Side

8302793 Right Side

8302794 Left Side

4448444 Grommet

23 4449154 Screw

24 9759525 Latch Assy

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452233 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4452267 Sensor

34 4452266 Vent, Center

37 9759243 Thermostat (TOD)

(Temp.) SPST

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4459316 Insulation, Wrap

4450365 Insulation, Back

8186429

LOWER OVEN DOOR PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Liner, Door

3 4449259 Glass, Inner

5 9759743 Retainer, Glass

6 Hinge, Door

9760565 Right Side

9760566 Left Side

(SS Model Only)

9760567 Right Side

9760568 Left Side

12 Door Glass, Assy

8303330 Black

8303339 White

8303342 Biscuit

8303314 Stainless

13 Door Handle

8302813 Black

8302814 White

8302815 Biscuit

14 8303167 Bracket, Handle

18 Retainer, Door

8303389BL

Black

8303389WH

White

8303389BT

Biscuit

20 4451040 Screw

21 8303878 Seal, Door

23 4451432 Retainer, Clip

8186429

UPPER OVEN DOOR PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Liner, Door

2 Hinge, Door

9760571 Right Side

9760572 Left Side

(SS Model Only)

9760573 Right Side

9760574 Left Side

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4457132 Retainer, Glass

7 9759225 Glass, Inner

11 3400832 Screw

12 Door Glass, Assy

8303330 Black

8303339 White

8303342 Biscuit

8303314 Stainless

13 Door Handle

8302813 Black

8302814 White

8302815 Biscuit

14 8303167 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 8303811 Nameplate

18 Retainer, Door

8303389BL

Black

8303389WH

White

8303389BT

Biscuit

19 4457103 Shield, Heat

20 4451040 Screw

21 8303878 Seal, Door

22 4457114 Shield, Heat (Btm)

23 4451432 Retainer, Clip

24 9759228 Glass, Inner

8186429

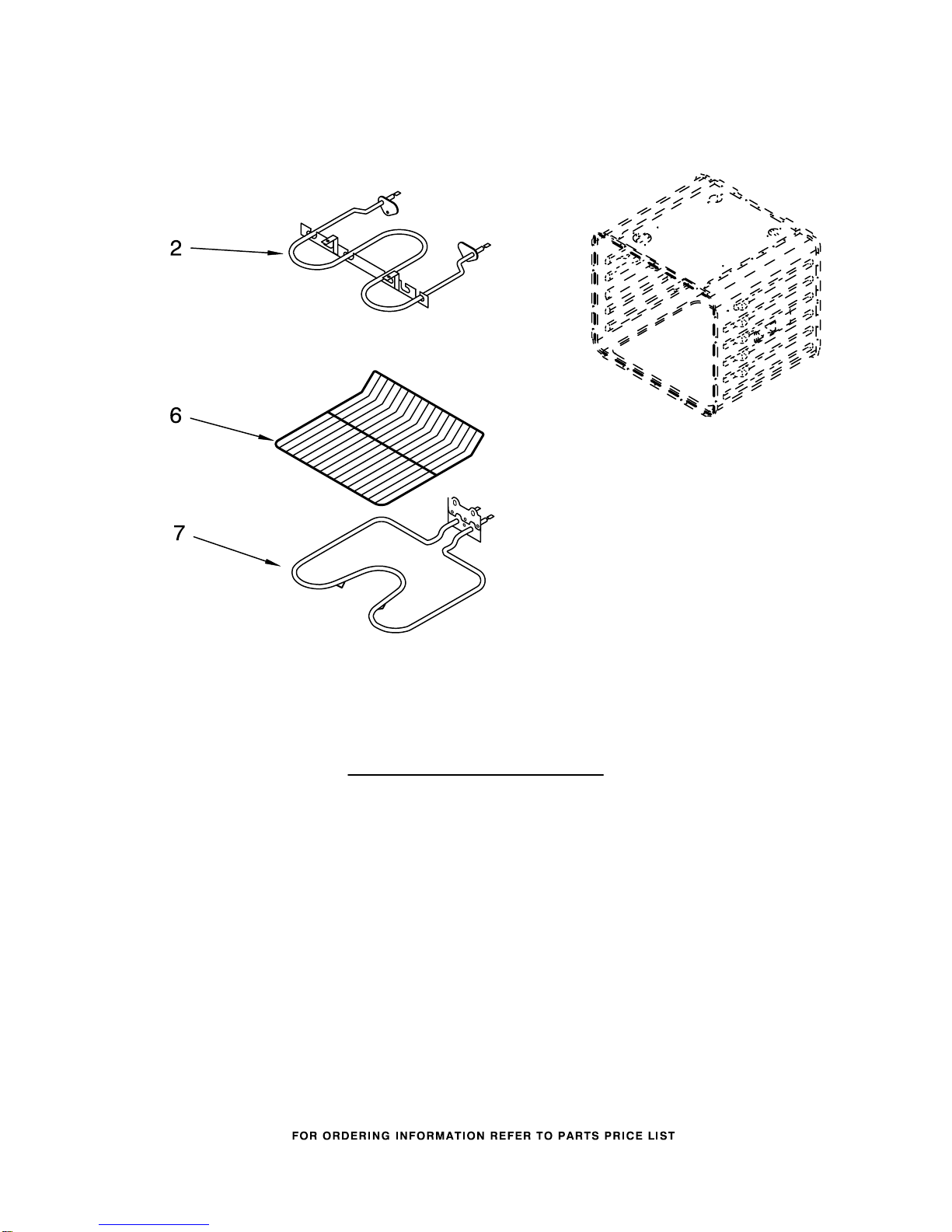

INTERNAL OVEN PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

6 4448717 Rack, Oven (4)

7 4452153 Element, Bake

4449154 Screw

8186429

CONTROL PANEL PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302848 Black

8302849 White

8302850 Biscuit

2 Membrane Switch

8304248 Black

8304249 White

8304250 Biscuit

3 8303883 Microcomputer

4 8304161 Bracket, Control

5 8301848 Board, Mtrzd Latch

6 4449745 Screw

7 8302877 Cover, Stainless

8186429

TOP VENTING PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 Blower

8186429

4457289 65mm (Upper)

w10016550 45mm (lower)

3 4451758 Foam, Block

4 4455178 Elbow, Vent−Top

5 4455177 Elbow, Vent−Bottom

6 4449809 Screw

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

11 4449868 Block, Terminal

13 8303497 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450551 Cover, Top Rear

17 4448664 Clamp

18 4452367 Cover, Top Front

19 4454943 Plate, Fan

20 8302143 Suppressor

21 8300642 Transformer,

Single Control

OPTIONAL PARTS

For Models:RBD305PRB00, RBD305PRQ00, RBD305PRT00,RBD305PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8302154 Harness, Wire STD

(Main)

8301878 Stainless Model

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

Miscellaneous

4448950 Screw, Install.

8−14 x 1" (4)

814381 Pin Hinge Kit

4396923 Broiler Pan Assy

8186429
