OVEN PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

27" BUILT−IN ELECTRIC

SINGLE OVEN

SELF−CLEAN

6−06 Litho in U.S.A. (cre) Part No. 8186431 Rev.A

OVEN PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303648 Installation

Instructions

8303870 Use & Care Guide

8303946 Installation/

Undercounter

8301928 Installation/

MWO Trim Kit

8301758 Tech Sheet

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

8302908 RH Black

8302909 RH White

8302911 RH Biscuit

8302907 LH Black

8302910 LH White

8302912 LH Biscuit

8303213 RH S. Steel

8303214 LH S. Steel

3 Hinge, Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

7 4455864 Top Chassis

8 4452490 Spacer, Foam

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452336 Insulation,

Bottom Vent

14 4455611 Frame, Front

15 4455381 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

(Bottom Vent)

19 4451477 Support, Insulation

21 Rail, Side

8303115 Right Side

8303116 Left Side

22 9759481 Latch, Motorized

23 4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452233 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

33 9760676 Deflector, Vent

37 9759243 Thermostat (TOD)

43 4455529 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302937 Black

8302938 White

8302939 Biscuit

8302940 Stainless

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

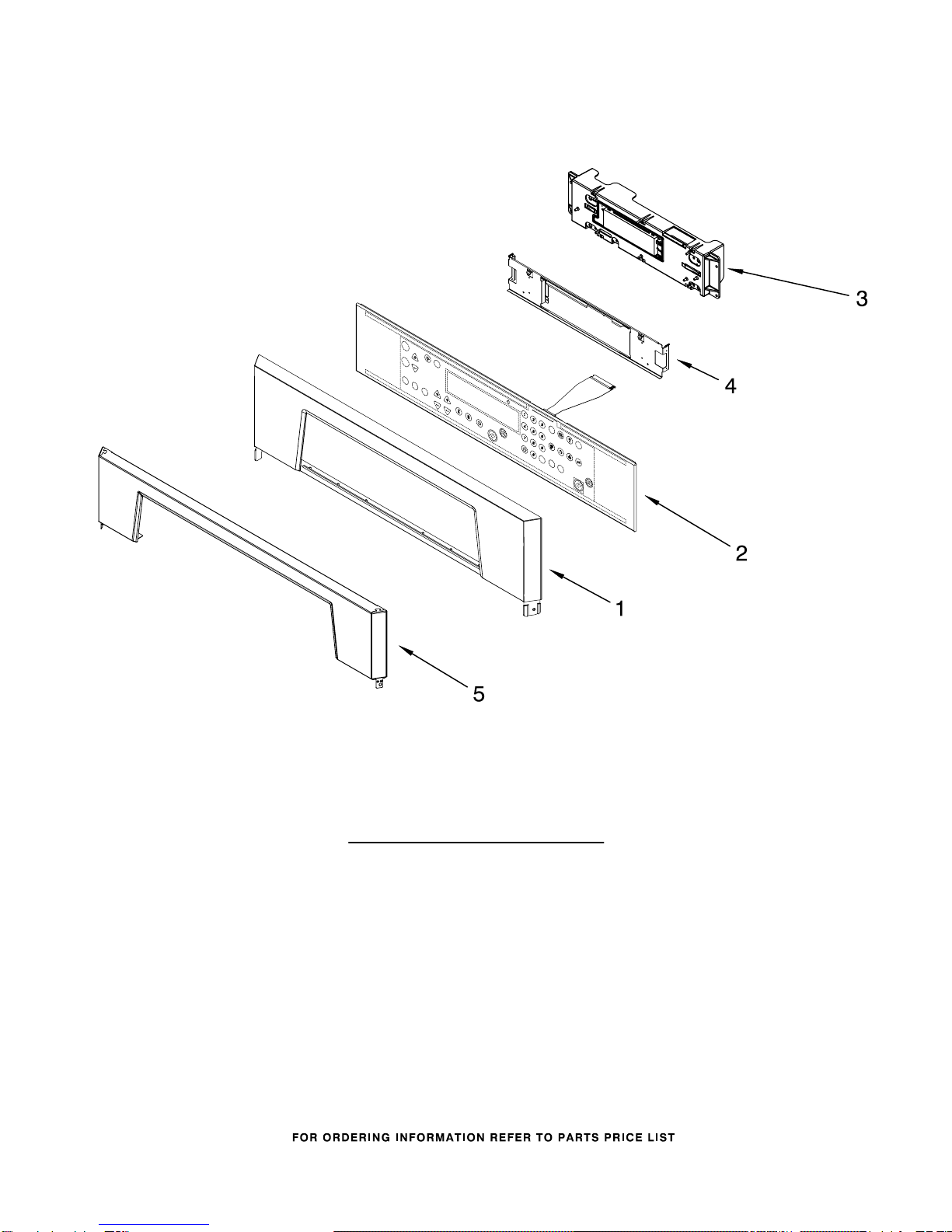

CONTROL PANEL PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302844 Black

8302845 White

8302846 Biscuit

8281179 Screw

2 Membrane Switch

8304242 Black

8304243 White

8304244 Biscuit

3 8303885 Microcomputer

4449745 Screw

3400832 Screw

4 8304162 Bracket, Control

5 8302878 Trim−Panel

(Use on S.Steel

model only)

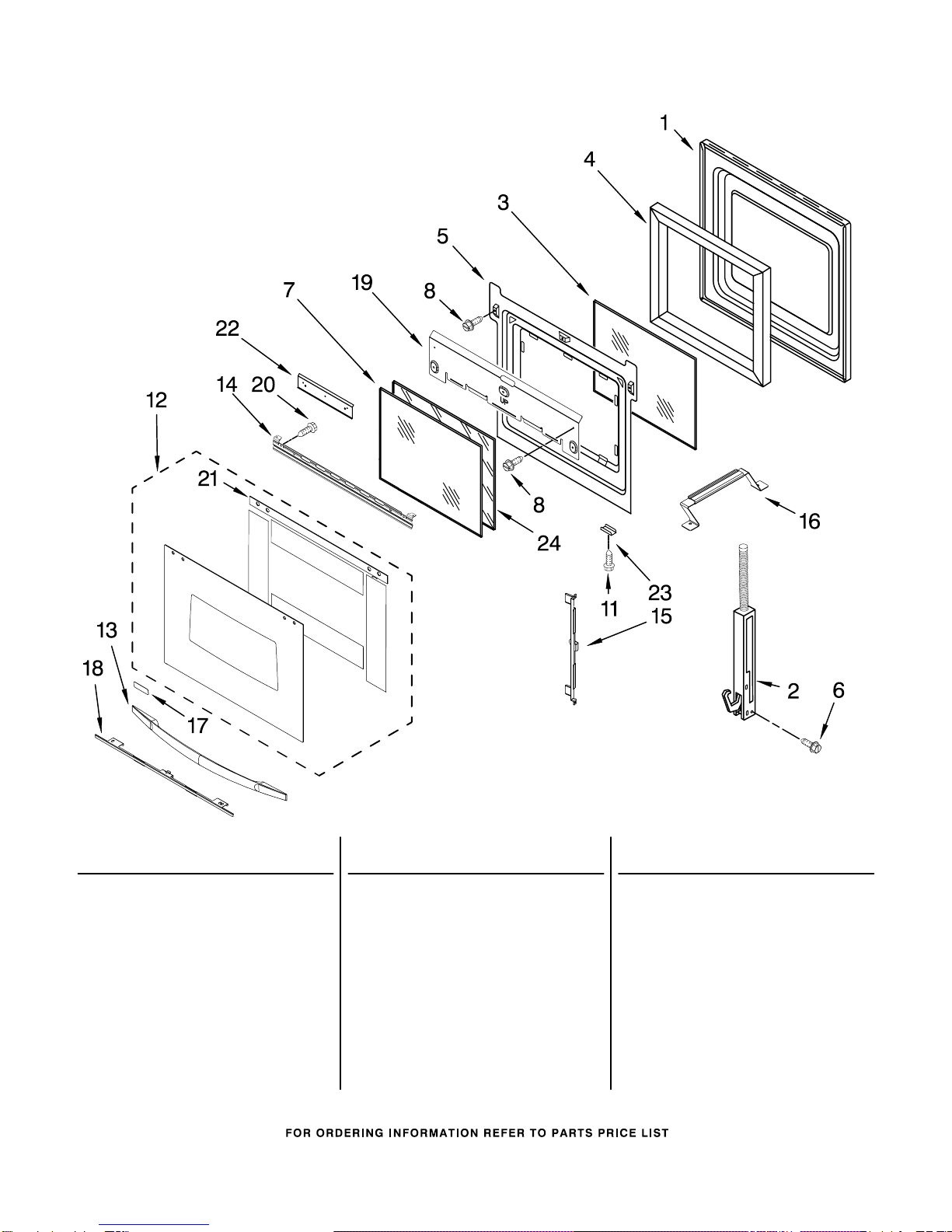

OVEN DOOR PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303699 Door Liner

2 Hinge, Door

9760569 R.Side

9760570 L.Side

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4457131 Retainer, Glass

6 4449743 Screw

7 9759224 Glass, Inner

8 4449809 Screw

11 3400832 Screw

12 Door Glass, Assy

8303320 Black

8303338 White

8303341 Biscuit

8303313 S.Steel

13 Door Handle

8302810 Black

8302811 White

8302812 Biscuit

14 8303166 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 8303811 Nameplate

18 Retainer, Door

8303388BL

Black

8303388WH

White

8303388BT

Biscuit

19 4457102 Shield, Heat

20 4451040 Screw

21 8303877 Seal, Door

22 4457113 Shield, Heat (Btm)

23 Retainer, Clip

4451432 Stainless

24 9759227 Glass, Inner

INTERNAL OVEN PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448715 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

TOP VENTING PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 4457289 Blower, 60MM

4 4451758 Foam, Block

5 4455177 Elbow, Vent−Bottom

6 4449809 Screw

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

11 4449868 Block, Terminal

13 8303498 Vent, Control

Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450550 Cover, Top Rear

17 4448664 Clamp

18 4452366 Cover, Top Front

19 8302143 Suppressor

OPTIONAL PARTS

For Models:RBS275PRB00, RBS275PRQ00, RBS275PRT00, RBS275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186431

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301400 Harness, Wire

(Main)

4450952 Conduit

4448664 Clamp

4450800 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

98997 Clip, Wire

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)
