Whirlpool RF110AXSQ2 Bedienungsanleitung

COOKTOP PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

1−08 Litho in U.S.A. (mo) Part No. W10185580 Rev. A

30" ELECTRIC FREESTANDING

STANDARD CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10141166

Instructions,

Installation

W10162203

Owners Manual

W10114281

Sheet, Tech

9762761 Safer Cooking Tips

Template,Anti−Tip

9757142 English/Spanish

9757143 English/French

2 Bowl, Drip

3195208 6" Chrome (3)

3195209 8" Chrome (1)

3 Cooktop

3186235 White

4 3195060 Hinge, Cooktop (2)

5 3196178 Screw

6 308605 Strain Relief

7 3195812 Rod, Support (2)

9 814399 Receptacle, Elmnt

10 3196154 Screw

11 Element, Surface

9761348 6" (3)

9761346 8" (1)

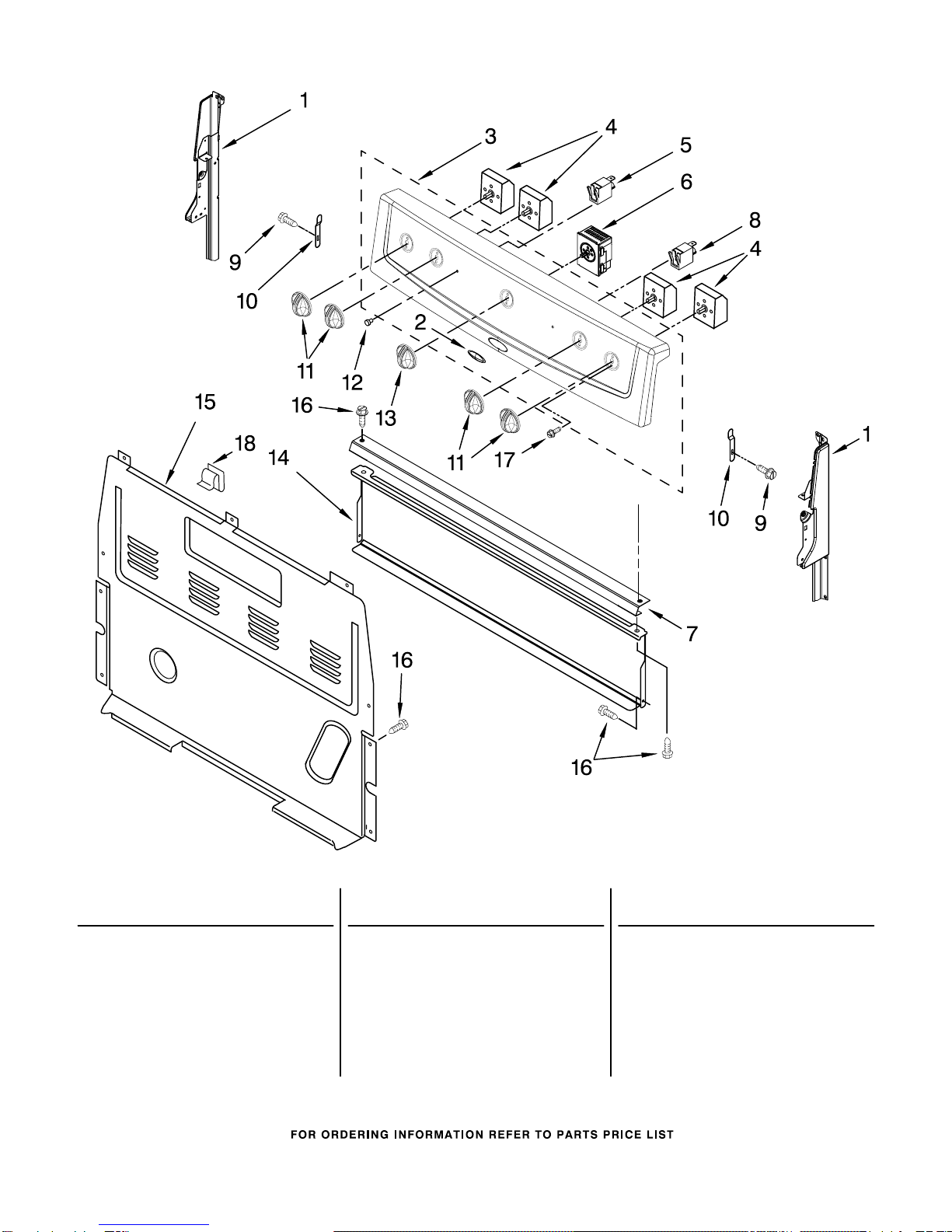

CONTROL PANEL PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

Left Hand White

W10009050

Right Hand White

2 9757609 Nameplate

3 Panel, Backguard

9762010 White

4 Switch, Infinite

3148953 Use W/ 8" Element

3148951 Use W/ 6" Element

5 8523265 Indicator, 125V

6 9762215 Cntrl−Elec ROC60

7 9762095 Brkt−Mntg,Console

8 8523266 Indicator, 250V

9 3196166 Screw

10 3196200 Clip, Spring (2)

11 Knob (4)

9761962 White

12 3196068 Lens, Ind. (2)

13 Knob, Thermostat

9762526 White

14 8053912 Shield, Heat

15 8272473 Cover, Upper Rear

16 3196178 Screw

17 3400882 Screw

18 8273564 Clip

CHASSIS PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

CHASSIS PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

Illus. Part

No. No. DESCRIPTION

1 3169143 Vent Tube

2 3186144 Box, Burner

3 Panel, Side (2)

8053830 White−Textured

W10129032

Seal, Oven Door

5 9757340 Element, Broil

6 9758541 Element, Bake

W10031780

Screw

8 9760407 Brkt, Mounting

W10114344

Glide, Drawer Frnt

10 3196037 Foot, Front (2)

12 8054068 Tray, Insulation

13 3196576 Clip, Panel (6)

14 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

16 3195809 Bumper, Side (2)

17 3186116 Support, Oven (2)

18 3186034 Bracket, Service

19 9761958 Block, Terminal

112432 Nut (3)

20 8274034 Back, Main

21 9758283 Cover, Box

22 3196567 Screw

23 3196168 Screw

24 3196174 Screw

25 3196165 Screw

26 3196179 Screw

27 3196178 Screw

28 3400016 Screw

W10131826

Sensor

30 3196169 Screw

INSULATION

8273263 Insulation, Wrap

8272611 Insulation, Back

DRAWER & BROILER PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

5 Panel, Drawer Frnt

8053339 White

6 8053334 Glide, Drawer (2)

7 3196168 Screw

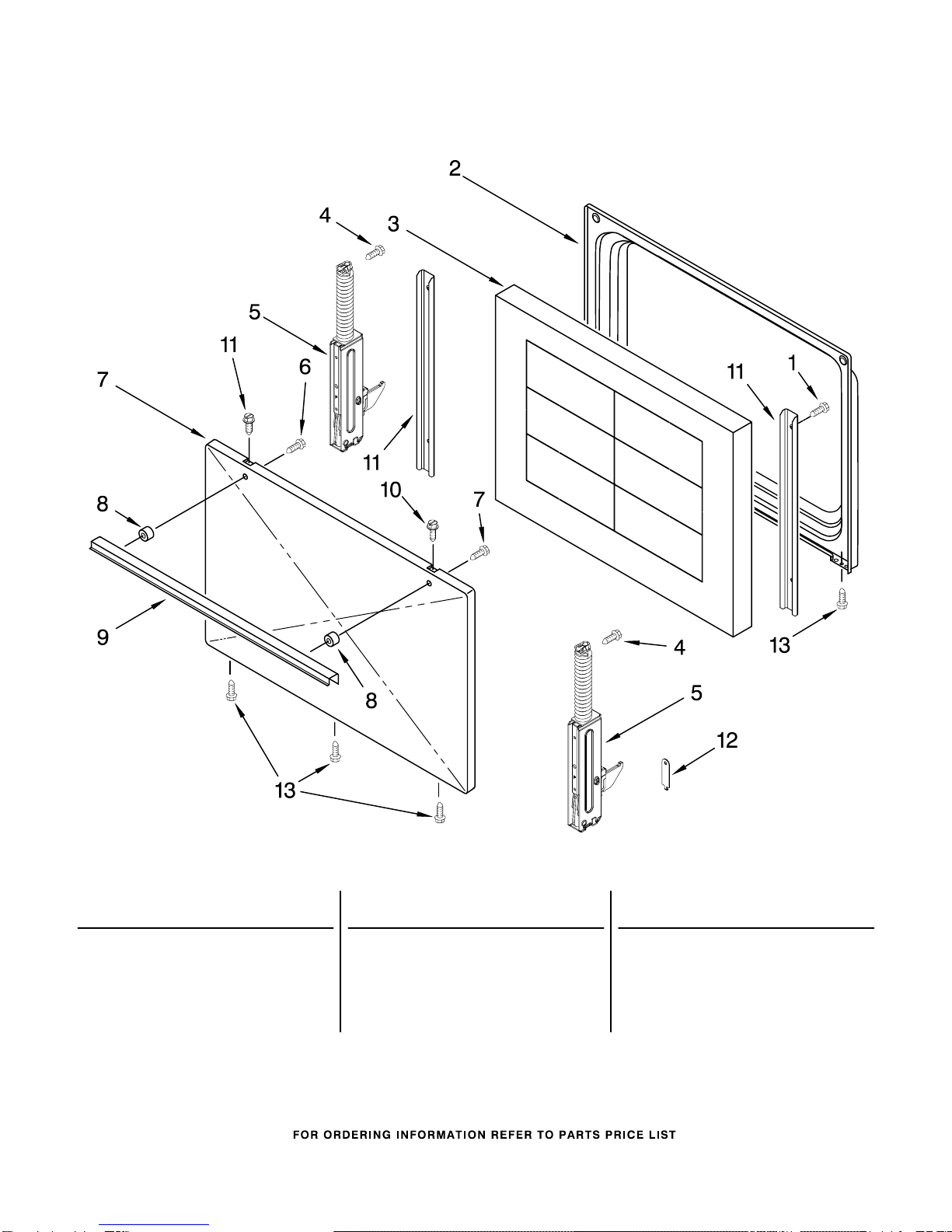

DOOR PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10031790

Screw

2 9761342 Liner

3 8272618 Insulation, Door

W10031780

Screw

5 9761495 Hinge (2)

6 3196163 Screw

7 Panel, Steel

3195560 White

8 Spacer, Handle

3196143 White

9 Handle, Oven Door

3195263 White

10 Screw, Top

3196558 White

11 9761503 Brkt−Door

12 9761517 Clip−Door, Mntg

13 3196165 Screw

OPTIONAL PARTS

For Models: RF110AXSQ2, RF110AXST2

(Designer White) (Designer Biscuit)

W10185580

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

8316781 Wire, Black

14 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

4396923 Pan−Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10113076

Harness, Main

9761476 Harness, Cooktop

3196154 Screw, Grnd−Cktop

3196174 Screw, Grnd−Back

311227 Wire, Ground

313660 Clip, Ground Wire

3196173 Screw, Ground
