COOKTOP PARTS

7−97 Litho in U.S.A. (rmb) Part No. 4364138

20" ELECTRIC

FREESTANDING RANGE

STANDARD CLEAN OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)

1 Cooktop

4364352 White

4364353 Almond

2 4364346 Knob, Burner (4)

3 4364157 Strikepin, Cooktop

(Includes Nut)

4 4364366 Panel, Manifold

(Includes #7)

5 4364347 Knob, Thermostat

6 4364181 Thermostat

4364249 Screw, 6−32 x 3/8

7 4364111 Decal, Manifold

8 4364217 Rod, Support

9 4364218 Clip, Rod Support

4364151 Screw, 8−18 x 3/8

10 4364158 Catch, Strikepin

11 Bowl, Chrome

4364192 8"(1)

4364193 6" (3)

12 4364345 Indicator, Surf/Ov

13 Switch, Infinite

4364180 Use W/8" Element

4364179 Use W/6" Element

14 Element, Surface

4364175 8" (1)

4364174 6" (3)

15 4364354 Cover, Switch

4364151 Screw, 8−18 x 3/8

16 4364178 Receptacle, Elmnt

(Includes Wires)

4364177 Brkt, Receptacle

4364043 Screw, 6−32 x 1/4

17 Wire, Element

4364188 Red (Left Front)

4364189 Yellow (Rt. Front)

4364190 Blue (Left Rear)

4364191 Black (Rt. Rear)

18 4364351 Switch, Oven Light

OVEN PARTS

4364138

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)

OVEN PARTS

34364138

Illus. Part

No. No. DESCRIPTION

1 4364130 Clip, Thermobulb

2 4364088 Anti−Tip Kit

4 4364176 Switch, Limit

4364246 Screw, #8 x 1/2

5 4364355 Bottom, Upper Box

4364151 Screw, 8−18 x 3/8

6 4364356 Bottom, Lower Box

4364255 Screw, #10 x 1/2

7 4364076 Bottom, Main

4364246 Screw, #8 x 1/2

4364153 Screw, 10−12 x 1/2

8 4364357 Cover, Rear

4364153 Screw, 10−12 x 1/2

9 Panel, Side

4364081 White

4364082 Almond

10 4364358 Back, Main

4364153 Screw, 10−12 x 1/2

11 4364078 Insulation, Back

12 4364079 Insulation, Wrap

14 4364080 Leg, Leveler

15 4364207 Vent, Oven Tube

17 4364083 Gasket, Oven Top

18 4364084 Gasket, Oven Side

19 4364136 Frame, Front

20 4364085 Rack, Oven

21 4364359 Bottom, Oven

22 4364348 Element, Broil

4364151 Screw, 8−18 x 3/8

23 4364349 Element, Bake

4364151 Screw, 8−18 x 3/8

25 4364187 Block, Terminal

4364256 Screw, 8A x 1

4364257 Hex Nut, 10−32

26 4364078 Insulation, Bottom

27 4364360 Retainer, Bottom

29 4364133 Brace, Back

4364153 Screw, 10−12 x 1/2

31 4364090 Support, Rt. Rear

32 4364089 Support, Lt. Rear

33 4364065 Grill, Broiler

34 4364216 Pan, Broiler

35 4364092 Bulb, Light

36 4364091 Receptacle, Light

37 4364093 Ring, Oven Light

38 4364350 Guard, Oven Light

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)

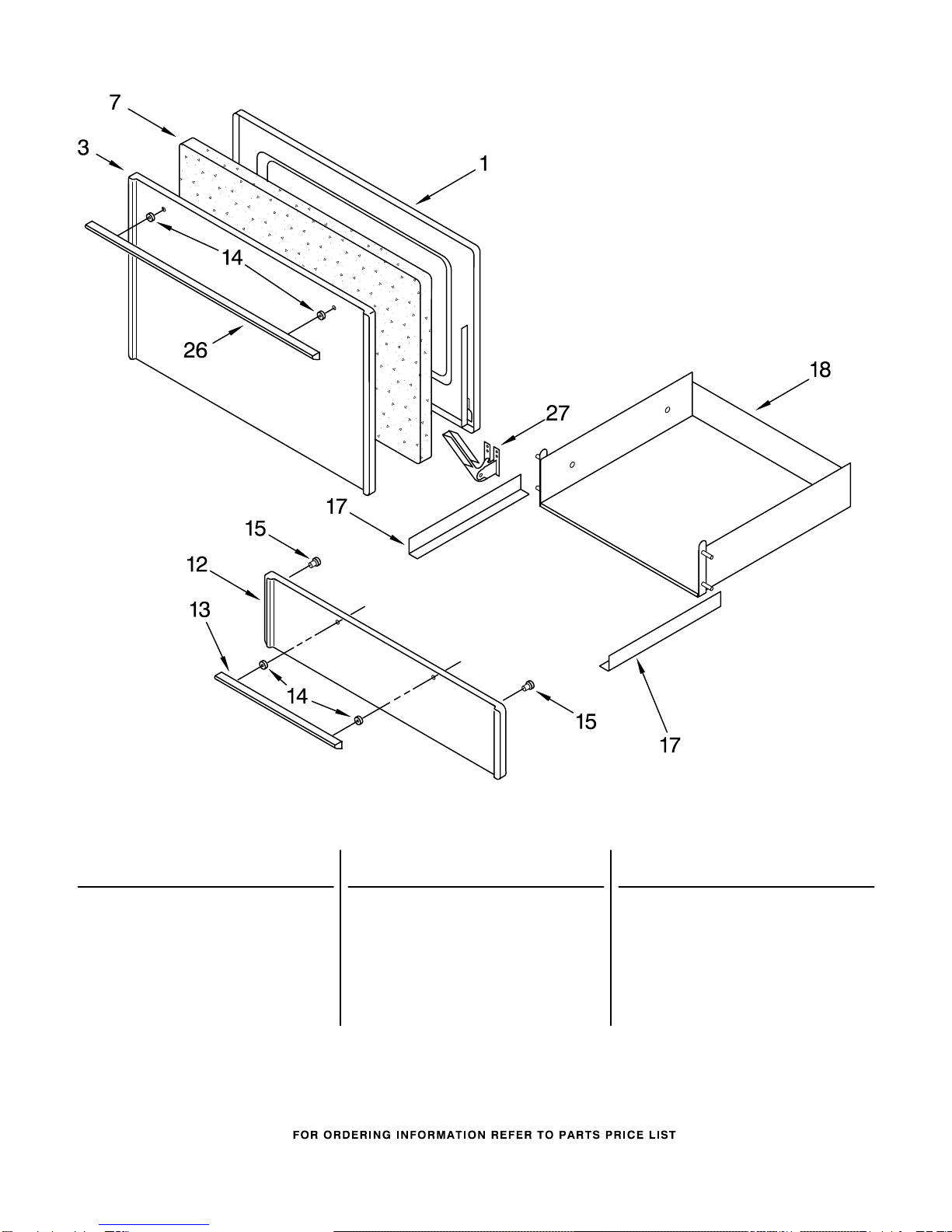

OVEN DOOR AND DRAWER PARTS

4364138

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4364049 Liner, Door

3 Panel, Oven Door

4364050 White

4364051 Almond

7 4364071 Insulation, Door

12 Panel, Drawer

4364361 White

4364362 Almond

13 4364054 Handle, Drawer

14 4364055 Spacer, Handle

4364057 Screw, 10−24 x 3/8

15 4364305 Bumper, Drawer

17 Broiler Drawer

4364363 Left

4364364 Right

18 4364365 Body, Drawer

26 4364070 Handle, Oven Door

27 4364072 Hinge, Oven Door

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)

BACKGUARD PARTS

Illus. Part

No. No. DESCRIPTION

54364138

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)

1 Backguard

(Includes No.5)

4364370 White

4364377 Almond

3 4364102 Hinge Pin (2)

4 4364369 Support, Backguard

5 4364106 Overlay, Backguard

6 Backguard,Complete

4364119 White

4364378 Almond

4364121 Screw, 8 x 1/2

4364046 Wing Nut, 10 x 24

MISCELLANEOUS PARTS

Illus. Part

No. No. DESCRIPTION

4364138

WIRING HARNESS PARTS

4364095 Wire Bushing

4364222 Harness, Wire

(14 Ga. Blk Jumpr)

4364224 Harness, Wire

(14 Ga Red Jumper)

4364225 Wire, Black Bake

4364226 Wire, Yellow Brlr

4364227 Wire, Blue Switch

4364367 Wire, Orange Ind.

4364368 Wire, Red Ind.

LITERATURE PARTS

LIT4364040

Use & Care Guide

For Model: RF3010XEW0, RF3010XEN0

(White) (Almond)
