A Note To You

Thank you for buying a WhirlpooP appliance.

You have purchased a quality, worMclass home appliance. Years of engineering experience

have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free

operation, we have developed this Use and Care Guide. lt is full of valuable information on

how to operate and maintain your appliance properly and safely. Please read it carefully. Also,

please complete and mail the Ownership Registration Card provided with your appliance. This

will help us not-e you about any new information on your appliance.

Your safety is importalnt to us.

This guide contains safety symtols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

Our Consumer Assistalnce Center number, 1-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 29. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number plate (see diagram on page 6). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and

your dealer’s name and telephone number. Keep this book and the sales slip together in a

safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, injury to

persons, or damage when using the range, follow

basic precautions, including the following:

General

oRead all instructions before

using the range.

Install or locate the range only

in accordance with the pro-

vided Installation Instructions.

@Usethe range only for its-in-

t;;M;fluse as described In this

ADOnot touch surface units,

areas near units, heating ele-

ments or interior surfaces of

oven. Surface units and heating

elements may be hot even

though they are dark in color.

Areas near surface units and

*WARNING: To reduce the risk

of ti ping of the appliance, the

app iance must be secured by

a proper1 installed anti-tip

bracket. o check if the bracket

is installed properly, see “The

anti-tip bracket” on page 19.

QZAUTION: Do not store things

children mi ht want above the

range. Chil%ren could be

burned or injured while climb-

ing on it.

Do not operate the range if it

is damaged or not working

properly.

*Do not use the range for

warming or heatin the room.

Persons could be %urned or

injured, or a fire could start.

Do not leave children alone or

unattended in area where the

range is in use. They should

never be allowed to sit or stand

on an

could ‘bpart of the range. They

e burned or injured.

interior surfaces of an oven

become hot enou h to cause

burns. During an2 after use,

do not touch, or let clothing

or other flammable materials

contact surface units, areas

near units, heatin elements or

interior surfaces 0 oven until

they have had sufficient time

to cool. Other surfaces of the

range, such as the oven vent

opening, the surface near the

vent o

oven oor and window, could

8 ening, the cooktop, the

also become hot enough to

cause burns.

.Do not wear loose or hanging

garments when using the

range. They could ignite if they

touch a hot surface unit and

you could be burned.

~. .

continued on next page 3

4Jse only d potholders. Moist

or damp po holders on hot sur-

faces may result in bums from

steam. Do not let potholder

touch hot heating elements. Do

not use a towel or bulFircloth

foOnr~~!otholder.It coul catch

.Keep range vents unobstructed.

@Donot heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

Injury.

*Do not store flammable materi-

als on or near the range. The

fumes can create an explosion

and/or fire hazard.

When using the cooktop

.Make sure the reflector bowls

are in place during cooking.

Cookin %

without reflector bowls

may su ject the wiring and

components underneath them to

damage.

@Donot line reflector bowls with

aluminum foil or other liners.

Improper installation of these

liners ma

): result in a risk of

electric s ock or fire.

*Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is smaller

than the surface unit, some of

the heating element will be

exposed and may result in the

8 niting of clothing or potholders.

orrect pan size also improves

cooking efficiency.

l Check to be sure lass cook-

ing utensils are sa e for use on

the range. Only certain types

of glass, glass-ceramic, ce-

ramic, earthenware or other

glazed utensils are suitable for

cooktops without breaking due

to the sudden change in

temperature.

eNever leave surface units

unattended at high heat set-

tings. A boilover could result

and cause smoking and

gre;.y sprllovers that may

l Tum pan handles inward, but

not over other surface units.

This will help reduce the

chance of burns, i niting of

flammable materia s, and

spills due to bumping of the

pan.

When usina the oven

Always position oven rack(s)

in desired location while oven

is cool. If a rack must be re-

moved while oven is hot, do

not let potholder contact hot

heating element in oven.

4Jse care when opening oven

door. Let hot air or steam

escape before removing or

replacing food.

Grease

l Grease is flammable. Do not

allow grease to colleci around

cooktop or in vents. V\c’ipespill-

overs immediately.

Do not use water on grease

iires. Never pick up a flaming

Ian. Smother flamin

range by coverin ! pan on

WI h

a well-

fitted lid, cookie s eet or flat

:ray. Flaming grease outside of

Dancan be extin uished with

Daking soda or, i?available, a

nultipurpose dry chemical or

foam-type extinguisher.

:are and cleaning

l Small amounts of formaldehyde

and carbon monoxide are iven

off in the Self-Cleaning cyc e

from fiberglass insulation and

food decomposition. Si

nificant

exposure to these subs antes

can cause cancer or rleproduc-

tive harm. Exposure can be

minimized by venting $witha

hood or open window and

wipin out excess food spills

pnor 0 self-cleaning.?

@Donot use oven cleaners. No

commercial oven cleaner or

oven liner

any kind s

I!rotective coating of

ould be used in or

around any part of the oven.

*Before self-cleaning the oven.,

remove broiler

8 an, broiler

oven racks an 9rid,

other utensl s.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

*Do not soak removable heating

elements in water. The element

will be damaged and shock or

fire could result.

*Do not clean door heat seal. It

is essential for a good seal.

Care should be taken not to rub,

damage or move the seal.

Clean only parts recommended

in this Use and Care Guide.

*Do not repair or replace any

part of the range unless specifi-

cally recommended in this

manual. All other servicing

should be referred to a qualified

technician.

*Disconnect the electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Parts And Features

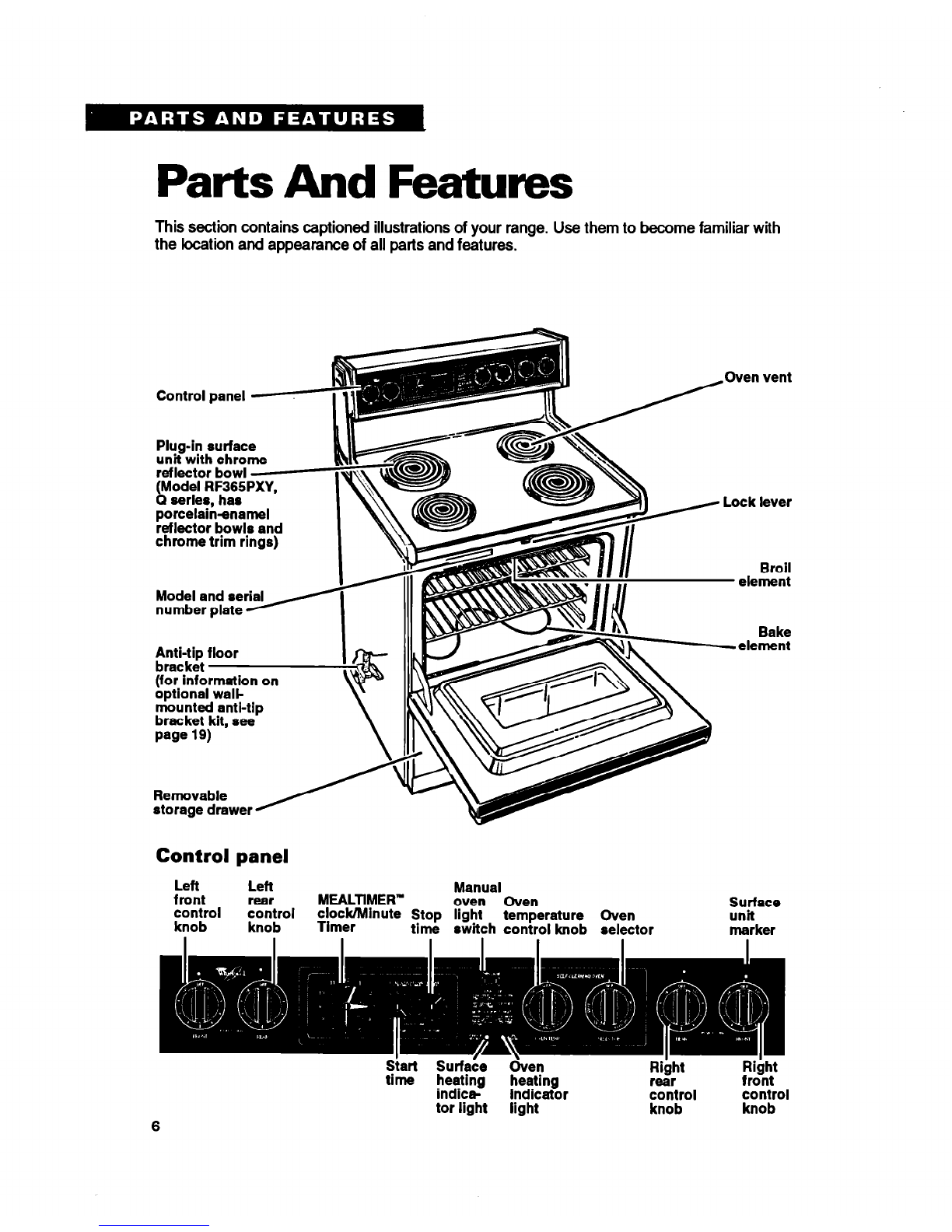

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features.

Control panel -

Plug-in surface

unit with chrome

reflector bowl

Model RF365

Oven vent

Broil

page

19)

Control panel

Left Left Manual

front rear MEALTIMER’= oven Oven

control Surface

control unit

knob knob clock/Minute Stop light

Timer temperature Oven

time switch control knob selector marker

6 tor light light knob knob

Using Your Range

In This Section

Page Page

Using the surface units ...,.................. 7 Broiling ...........m..........................w.......

Positioning racks and pans ...............9 Broiling tips ....m..................................15

For best air circulation .....................10 Energy saving tips ...............a............15

Using aluminum foil for baking .......10 Using the MEALTIMER’“clock .........16

Setting the clock ..............I................ 11 The oven vent ...................................16

Using the Minute Timer ....................11 The storage drawer ..........................18

Baking/roasting ...............m................12 The anti-tip bracket .............m............

tt$juJ;ng the oven tempelrature Optional door panel pat ..................19

..............................................m

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important infotmation for efficient and safe use of your range.

Using the surface units

Push in control knobs before Wrning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker

shows which surface unit is turned on by

that knob.

Surface heating indicator light

The SURFACE HEATING Indica:tor Light on

the control panel will glow when a surface

unit is turned on.

Burn and Fire H~KI

Be sure all control knobs are turned to

OFF and all indicator lights are OFF

when you are not cooking.

Someone could be burned or a fire

could start if a surface unit is alxiden-

tally left ON.

Until you get used to the settings, use

the following as a guide.

For b’est results,

start cooking at the high setting; then turn

the control knob down to continLle cooking.

SElTiNG 1 RECOMMENDED USE

To start foods cooking.

To bring liquids to a boil.

Medium-high

To hoM a rapid boil.

To fry chicken or pan-

cakes.

Medium

For gravy, puclding and

[opposite OFF) icing.

To cook large amounts of

vegetables.

Medium-low

To keep food cooking

after starting ii on

higher setting.

LO I

To keep food warm until

readv to sews!.

Cookware tips

Select a pan

that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware) or dented bottoms could

cause severe overheating, which damages

the cookware ancVor surface unit.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fitting lid.

Choose medium to heavy g;ruge

(thick-

ness) pans that are fairly lightrveight.

Handles

should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

The pan material

(metal or glass)

affects how fast heat transfers from the

surface unit through the pan material

and how

evenly heat spreads over the

pan bottom. Choose pans that provide

the best cooking resufts.

Product Damage Hazard

If a surface

unit stays red for a long

time, the bottom of the pan is not flat

enough or is too small for the surface

unit. Prolonged usage of incorrect

utensils could result in damage to the

surface unit, cooktop, wiring and

surrounding areas. To prevent dam-

age, use correct utensils, start cooking

on HI and turn control down to con-

tinue cooking.

Do not leave an empty utensil, or one

which has boiled dry, on a hot surface

unit. The utensil could overheat and

could damage the utensil or surface

unit.

Home canning informaation

To protect your range:

Use

flat-bottomed canners/pans for best

results.

Use the largest surface unit for best

results. Also, use a canner/pan which can

be centered over the surface unit and

which does not extend more than one inch

outside surface unit area. Largle diameter

canners/pans, if not property centered, trap

heat and can cause damage to the

cooktop.

Do not place canner on two

surface units

at the same time. Too much heat will build

up and will damage the cooktcp.

Start with hot water. This

reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Keep reflector bowls clean

for best heat

reflection.

To prolong the life of the elements:

- Prepare small batches

at a time.

- Do not use elements

for canning all

day.

Optional canning kit

The large diameter of most water-bath or

pressure canners combined with high heat

settings for long periods of time can shorten

the life of regular surface units and cause

damage to the cooktop.

If you plan to use the cook-top for canning,

we recommend the installation of a Canning

Kit. Order the kii (Part No. 242905) from

your Whirlpool dealer or authorized

WhirlpoolSM service company.

Positioning racks and pans

For baking/roasting with one

wrack,place

the rack so the top of the food will be

centered in the oven.

Rack placement for specific foods:

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 14.

FOOD

Frozen pies, large

roasts, turkeys

Angel and bundt

cakes, most quick

breads, yeast breads,

casseroles, meats

Cookies, biscuits,

muffins, cakes, non-

frozen pies

ilki-

Lowest level or

2nd level from

bottom

--I

2nd level from

bottom

2nd or

3rd level

from bottom

Personal injury Hazard

Always position oven rack(s) in desired

location before turning oven on. Be

sure the rack(s) is level.

If rack(s) must be moved while oven is

hot, use potholders or oven mitts to

protect hands.

Failure to follow the above precautions

could resutt in personal injury.

When baking on

two

racks,

arrange racks

on bottom and third level from bottom.

For best air circulation

The hot air must circulate around the pans in

the oven for even heat to

reach

all parts of

the oven. This results in better baking.

Place

the pans so that one is not directly

over the other.

For best results, allow

1l/z to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must

be a minimum space of 1 inch (2.5 cm).

Use

only one cookie sheet in the oven at

one time.

Use the following as a guide t13determine

where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven

rack. Stagger pans so no pan is directly over

another.

Using aluminum foil for baking

Use aluminum foil to catch

splliovers

from pies or casseroles:

Place

the foil on the oven rack below the

rack with the food.

Turn up foil edges and

make

sure foil is about 1 inch (3 cm)

larger all around than the dish holding the

food.

Do not cover

the entire rack with alumi-

num foil. It will reduce air circulation and

cause poor cooking results.

Do not line oven bottom or entire oven

rack with foil or other liners. Paor baking

will result.

Electrical Shock and Fire Hazard

Do not allow foil to touch the heating

elements.

Failure to follow this precautic’n could

result in electrical shock or fin: hazard

and damage to the elements.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool Roper RME30000 Bedienungsanleitung

Whirlpool

Whirlpool IEL730C Bedienungsanleitung

Whirlpool

Whirlpool FGS387Y Bedienungsanleitung

Whirlpool

Whirlpool Roper FGS325RQ0 Bedienungsanleitung

Whirlpool

Whirlpool SF360BEE W/N Bedienungsanleitung

Whirlpool

Whirlpool RF345PXP Bedienungsanleitung

Whirlpool

Whirlpool RF315PXD Bedienungsanleitung

Whirlpool

Whirlpool Gold GGE388LX Bedienungsanleitung

Whirlpool

Whirlpool RF262LXSB4 Bedienungsanleitung

Whirlpool

Whirlpool RF265LXTB2 Bedienungsanleitung

Whirlpool

Whirlpool WFG500M4HS Bedienungsanleitung

Whirlpool

Whirlpool WEE510S0FB Bedienungsanleitung

Whirlpool

Whirlpool RY160LXT Bedienungsanleitung

Whirlpool

Whirlpool RF310PXD Bedienungsanleitung

Whirlpool

Whirlpool SF365BEY Bedienungsanleitung

Whirlpool

Whirlpool RF315PXX Bedienungsanleitung

Whirlpool

Whirlpool RF367LXSS4 Bedienungsanleitung

Whirlpool

Whirlpool IES355RQ2 Bedienungsanleitung

Whirlpool

Whirlpool SF216LXS Bedienungsanleitung

Whirlpool

Whirlpool WGG555S0B Bedienungsanleitung

Whirlpool

Whirlpool GR438LXRQ0 Bedienungsanleitung

Whirlpool

Whirlpool RS6755XY Bedienungsanleitung

Whirlpool

Whirlpool GAS DOUBLE OVEN RANGE Bedienungsanleitung

Whirlpool

Whirlpool RF387PXV Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
