SELF-CLEANING ELECTRIC RANGE

PART NO. 3189071 Rev. C

MODELS RF366BXD RF366PXD

IO/95

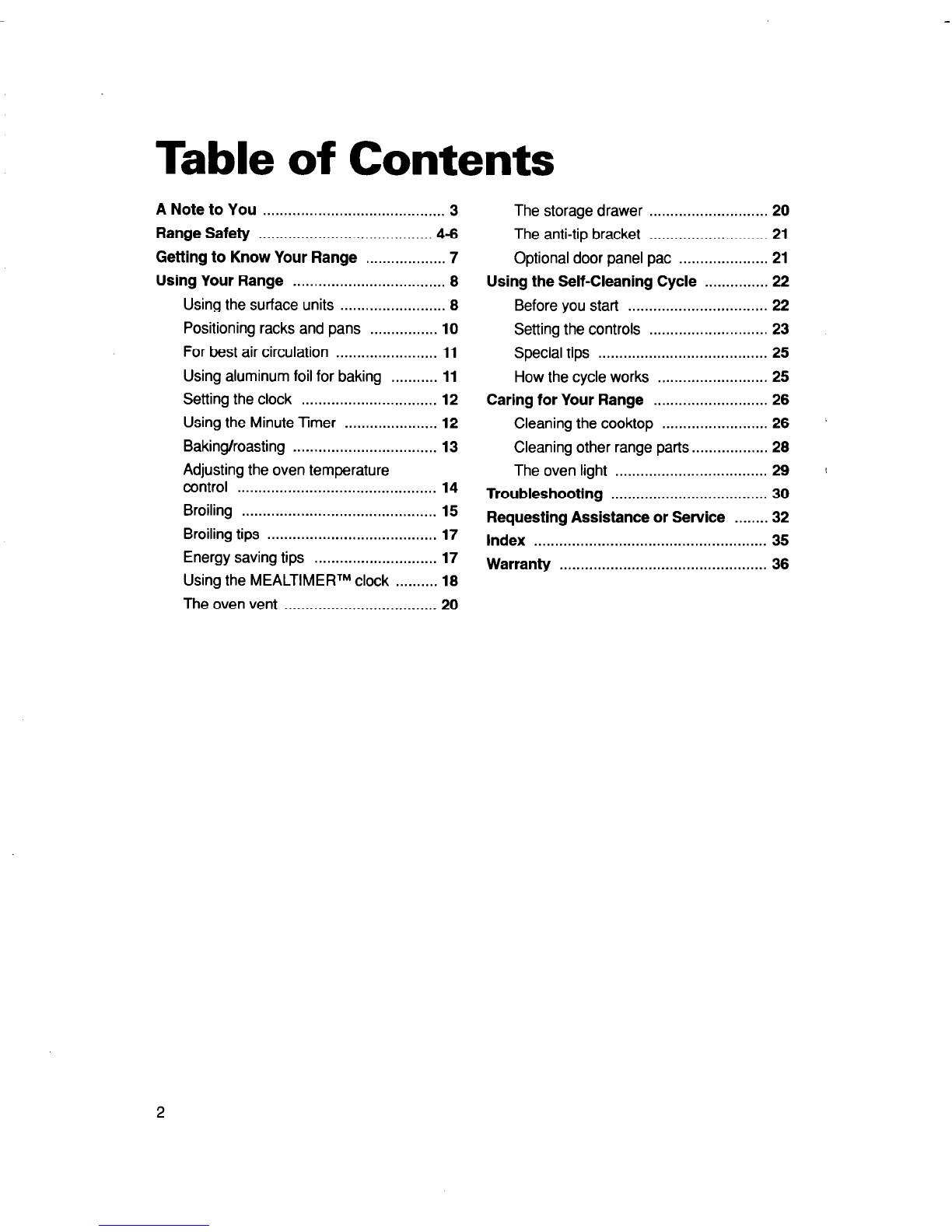

Table of Contents

A Note to You ........................................... 3

Range Safety ......................................... 4-6

Getting to Know Your Range ................... 7

Using Your Range .................................... 8

Using the surface units ......................... 8

Positioning racks and pans ................ 10

For best air circulation ........................ 11

Using aluminum foil for baking ........... 11

Setting the clock ................................ 12

Using the Minute Timer ...................... 12

Baking/roasting .................................. 13

Adjusting the oven temperature

control ............................................... 14

Broiling .............................................. 15

Broiling tips ........................................ 17

Energy saving tips ............................. 17

Using the MEALTIMERTM clock .......... 18

The oven vent .................................... 20

The storage drawer ............................ 20

The anti-tip bracket ............................ 21

Optional door panel pat ..................... 21

Using the Self-Cleaning Cycle ............... 22

Before you start ................................. 22

Setting the controls ............................ 23

Special tips ........................................ 25

How the cycle works .......................... 25

Caring for Your Range ........................... 26

Cleaning the cooktop ......................... 26

Cleaning other range parts.. ................ 28

The oven light .................................... 28

Troubleshooting ..................................... 30

Requesting Assistance or Service ....... .32

Index ....................................................... 35

Warranty ................................................. 36

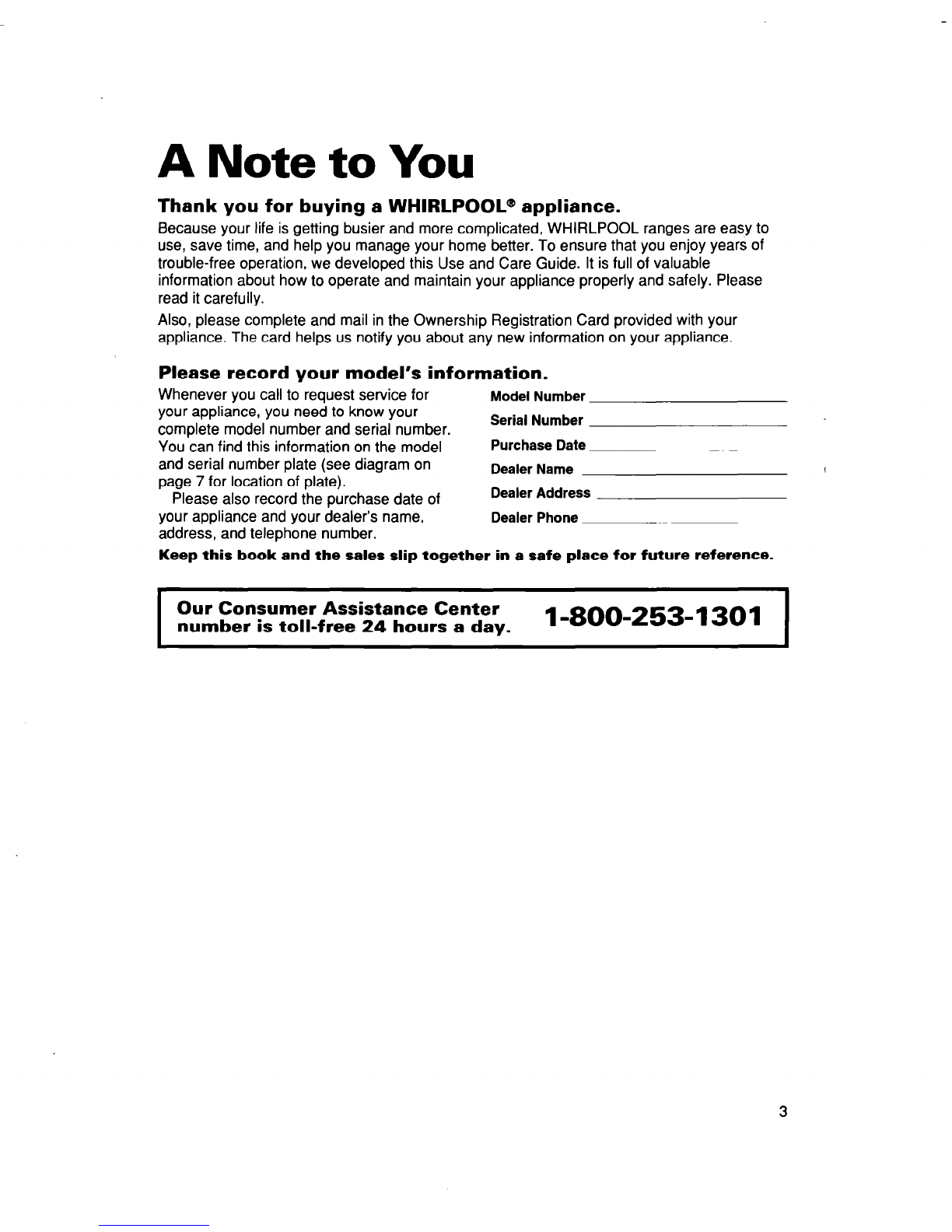

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Dealer Name

page 7 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Range Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

General

To reduce the risk of fire, electrical shock,

injury to persons, or damage when using

the range, follow basic precautions,

includina the followina:

@Read all instructions before using

the range.

Install or locate the range only in

accordance with the provided

Installation Instructions.The

range must be installed by a

qualified installer. The range must

be properly connected to electri-

cal supply and grounded.

*WARNING: To reduce the risk

of tipping the appliance, the

appliance must be secured by

a properly installed anti-tip

bracket. To check if the bracket

is installed properly, see “The

anti-tip bracket” on page 21.

@CAUTION: Do not store things

children might want above the

range. Children could be burned

or injured while climbing on it.

@Do not leave children alone or

unattended in area where the

range is in use. They should

never be allowed to sit or stand on

any part of the range. They could

be burned or injured.

@Do not operate the range if it is

damaged or not working properly.

@Do not use the range for warming

or heating the room. Persons

could be burned or injured, or a

fire could start.

@Use the range only for its intended

use as described in this manual.

llldll

*Do not touch surface units, areas

near units, heating elements, or

interior surfaces of oven. Surface

units and heating elements could

be hot even though they are dark

in color. Areas near surface units

and interior surfaces of an oven

become hot enough to cause

burns. During and after use, do not

touch, or let clothing or other flam-

mable materials contact surface

units, areas near units, heating

elements, or interior surfaces

of oven until they have had suffi-

cient time to cool. Other surfaces

of the range, such as the oven

vent opening, the surface near the

vent opening, the cooktop, and the

oven door and window, could also

become hot enough to cause

burns.

~DO not wear loose or hanging

garments when using the range.

They could ignite if they touch

a hot surface unit and you could

be burned.

muse only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

@Keep range vents unobstructed.

@Do not heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

injury.

*Use only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

@Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

When using the cooktop

ADO not cook on a broken cooktop.

If cooktop should break, cleaning

solutions and spillovers could

penetrate the broken cooktop and

create a risk of electrical shock.

Contact a qualified technician

immediately.

*Select a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller than

the surface unit, some of the

heating element will be exposed

and could result in the igniting of

clothing or pot holders. Correct

pan size also improves cooking

efficiency.

*Check to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, earthen-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

@Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers

that could ignite.

@Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of the

pan.

continued on next page

When using the oven @Small amounts of formaldehvde

Always position oven rack(s) in

desired location while oven is

cool. If a rack must be removed

while oven is hot, do not let pot

holder contact hot heating ele-

ment in oven.

Use care when opening oven

door. Let hot air or steam escape

before removing or replacing

food.

Grease

@Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

avers immediately.

.Do not use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range by

covering with a well-fitted lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be

extinguished with baking soda

or, if available, a multipurpose

dry chemical or foam-type extin-

guisher.

and carbon monoxide are given

off in the Self-Cleaning cycle from

fiberglass insulation and food

decomposition. Significant expo-

sure to these substances could

cause cancer or reproductive

harm. Exposure can be minimized

by venting with a hood or open

window and wiping out excess

food spills prior to self-cleaning.

@Donot use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils. Do

not use your oven to clean miscel-

laneous parts unless you are

instructed to do so in this Use and

Care Guide.

ADO not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

parts recommended in this Use

Care and cleaning and Care Guide.

*Clean cooktop with care. Some

cleaners could produce noxious

fumes if applied to a hot surface.

If a wet paper towel is used to

wipe spills on a hot cooking area,

be careful to avoid steam burns.

@Donot repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

@Disconnect the electrical supply

before servicing the range.

-SAVE THESE INSTRUCTIONS -

Getting to Know Your Range

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

Control panel

Model and

serial number

;I;;;;

Anti-tip

floor bracket

(for informatio

on alternate

wall-mounted

anti-tip bracket,

see p.

21)

Removable

storage

drawer

(P. 20)

ceramic

- cooktop

(PP. 9,26)

Automatic

oven light

switch

Broil

RF366PXD

only)

Control panel

Left front Left rear

control control MEALTIMEFP Manual oven

clock/minute timer Oven temperature Oven selector

control knob

(P. 12)

(pp.

13, 15, 19,

Surface unit

marker

(P. 6)

Start ilme Stdp time Oven heatlAg Right rea: Surfatce Btight

control unit

(pp.

18, 23)

(pp.

18, 19, Indicator front

23, 24) light knob indicator control

(pp. 13, 15) (P. 6) light knob

(P. 6) (P. 6)

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

SurFace unit markers

The solid dot in the Surface Unit Marker

Surface unit indicator lights

One of the Surface Unit Indicator Lights

on the control panel will

glow when a surface unit is

turned on.

Hot surface indicator lights

One of the Hot Surface Indicator Lights on

the cooktop will glow when a

surface unit becomes too hot

to touch. The Indicator Light

will continue to glow as long

as the surface unit is too hot

to touch, even after it is turned off.

Fire Hazard

Turn all controls off when done

cooking.

Failure to do so can result in death,

fire, or burns.

Until you get used to the settings, use

the following as a guide. For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

6-8 l To hold a rapid boil.

l To fry chicken or

oancakes.

2-4

l For gravy, pudding, and

icing.

l To cook large amounts

of vegetables.

l To keep food cooking

after starting it on a

higher setting.

l To keep food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

l The surface unit will glow red when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HI

setting -to maintain the proper tempera-

ture setting you have selected.

l Sliding metal pans on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 26 and 27 for care and cleaning

suggestions.

Cookware tips

l Select a pan that is about the same size

as the surface unit.

l NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

l The pan should have straight sides and a

tight-fitting lid.

l Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

l The pan material (metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

l Handles should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

l With your hand, feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

l Make sure bottoms of pans are clean and

dry before using on cooktop.

l Avoid spillovers on cooktop. Use pans

with tall sides.

l Do not cook food directly on cooktop.

NOTE: Do not leave an empty utensil, or

one which has boiled dry, on a hot surface

unit. The utensil could overheat and damage

the utensil or surface unit.

Home canning information

Pan

Surface unit

l Star-l with hot water. This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

l Refer to your canner manual for specific

instructions.

l Use the largest surface unit for best

results. Also, use a canner/pan which can

be centered over the surface unit.

Positioning racks and pans

General guidelines

l Always position oven rack(s) in desired

location before turning oven on.

l To move rack(s), lift rack(s) at front and

pull out.

l Be sure the rack(s) is level.

l If rack(s) must be moved while oven is

hot, use pot holders or oven mitts to

protect hands.

l For baking/roasting with one rack, place

the rack so the top of the food will be

centered in the oven.

l When baking on two racks, arrange

racks on the bottom and third level from

the bottom.

Rack placement for specific

foods:

FOOD RACK POSITION

Frozen pies, large Lowest level or

roasts, turkeys, angel 2nd level from

food cakes bottom

Bundt cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Cookies, biscuits,

muff ins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

NOTE: For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 16.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool WEE760H0DS Bedienungsanleitung

Whirlpool

Whirlpool RF111PXSQ3 Bedienungsanleitung

Whirlpool

Whirlpool SF316PES Bedienungsanleitung

Whirlpool

Whirlpool RS696PXG Betriebsanleitung

Whirlpool

Whirlpool SF350BEE W Bedienungsanleitung

Whirlpool

Whirlpool RS600BXY Bedienungsanleitung

Whirlpool

Whirlpool GW395LEPB01 Bedienungsanleitung

Whirlpool

Whirlpool KSGG700ESS2 Bedienungsanleitung

Whirlpool

Whirlpool YWFE745H0FS Bedienungsanleitung

Whirlpool

Whirlpool WERP4120SS0 Bedienungsanleitung

Whirlpool

Whirlpool WEG515S0FBK Bedienungsanleitung

Whirlpool

Whirlpool 98014106 Bedienungsanleitung

Whirlpool

Whirlpool RS385PCE Bedienungsanleitung

Whirlpool

Whirlpool TES325MQ1 Bedienungsanleitung

Whirlpool

Whirlpool RF3OlOXV Bedienungsanleitung

Whirlpool

Whirlpool RF110AXSQ Bedienungsanleitung

Whirlpool

Whirlpool RF316PXP Bedienungsanleitung

Whirlpool

Whirlpool Roper STANDARD CLEANING GAS RANGE Bedienungsanleitung

Whirlpool

Whirlpool SS373PEX Bedienungsanleitung

Whirlpool

Whirlpool 220038-1010 Bedienungsanleitung

Whirlpool

Whirlpool WFE745H0FS Bedienungsanleitung

Whirlpool

Whirlpool GFE461LVS - 30" Ing Electric Range Bedienungsanleitung

Whirlpool

Whirlpool GR563LXS Stücklistenhandbuch

Whirlpool

Whirlpool RF310BXY Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
