Whirlpool ED25PM Bedienungsanleitung

NO-FROST

REFRIGERATOR-

FREEZER

Model ED25PM

Please read this

Use and Care Guide

before you do anything else...

This booklet tells you how to start your refrig-

erator, clean it, move shelves and adjust con-

trols. It even tells you what new sounds to expect

from your refrigerator.

Treat your new refrigerator with care. Use it

only to do what home refrigerators are de-

signed to do.

Parts and features

Alr Control H

Ice Maker-

Ice Bln WY

Freezer Light

(behlnd Ice bin) -

Adjustable-

Shelves

Meat Pan wlth

Cold Control \

Slide-Out

Base Grille

Number label

Copy your Model and Serial Numbers here...

When you need sewice or call with a question.

have this InformatIon ready

Model Number

1. Complete Model and Serial Numbers [from the

label located as shown]

2. Purchase date from soles slip.

Serial Number

Copy this information In these spaces. Keep this

book. your warranty and sales slip together In a

Purchase Date

handy place

Please complete and mail the Owner Regis-

tration card furnished with this product.

Service Company and Telephone Number

Contents

SAFETYFIRST ......................

BEFOREYOU PLUG IT IN ............

Install Properly ..................

Level Refrigerator-Freezer .......

Remove Sales Labels. ...........

Clean It .........................

Plugltln ........................

USING YOUR REFRIGERATOR.......

Setting the Controls. .............

Changing the Control Settings ...

Power Saving Control ...........

Adjusting Meat Pan Temperature

Adjusting Refrigerator Shelves ...

Removing Freezer Shelves .......

Removing the Freezer Basket ....

Page

. 3

Page

Removing the Crisper, Meat Pan

and Covers ....................... 7

Changing the Light Bulbs ............ 7

Removing the Base Grille ............ 7

Cold Water and Ice Dispenser ...... 8

Sounds You May Hear ............... 10

Energy Saving Tips .................. IO

CLEANING YOUR REFRIGERATOR.......

Cleaning Chart ..................... 11

FOOD STORAGE GUIDE ................

Storing Fresh Food .................. 12

Freezing and Storing Frozen Foods . 13

VACATION AND MOVING CARE........

IF YOU NEEDSERVICEOR ASSISTANCE.

REFRIGERATORWARRANTY ............ 20

01986 Whirlpool Corporation

Before you plug it in

IMPORTANT

Before using your refrigerator, you are personally

responsible for making sure that it...

is installed and leveled on a floor that will hold

the weight, and in an area suitable for its size

and use.

isconnected only to the right kind of outlet, with the

right electrical supply and grounding. (Refer to

your “Electrical Requirements and Grounding

Instructions:‘)

is used only for jobs expected of home re-

frigerators

ISnot near an oven, radiator or other heat source.

is properly maintained,

is out of the weather

isused in an area where the room temperature will

not fall below 55” F (13” C).

ISnot used by those who may not understand how

it should be used.

is not loaded with food before it has time to get

properly cold.

Install properly.. .

I, Allow % inch (1.25 cm) space on each side and at

the top of the refrigerator for ease of installation.

2. If the refrigerator is to be against a wall, you might

want to leave extra space so the door can be

opened wider

3. The refrigerator back can be flush against the wall.

Level refrigerator-freezer.. .

Use Screwdriver

Right to Raise;

Left to Lower

I, Remove base grille (see page 7).

2. To raise front, turn each screw to the right

3. To lower front, turn each screw to the left,

4. Check with level.

Remove sales labels.. .

Remove the Consumer Buy Guide label, tape and

any

inside

labels before using the refrigerator.

To remove any remaining glue:

I, Rub briskly with thumb to make a ball then remove.

2. Soak area with liquid hand dishwashing

detergent before removing glue as described

in step 1.

DO NOT USErubbing alcohol or flammable or

toxic solvents, such as acetone, gasoline, car-

bon tetrachloride, etc. These can damage the

material.

NOTE: DO NOT REMOVE ANY PERMANENT IN-

STRUCTION LABELSINSIDE YOUR REFRIGERATOR.

Do not remove the Tech Sheet fastened under

the refrigerator at the front.

..:.. i-/,,I”i,.. ;<a::.il ,_ lul*$$%;,~r., ,iv : i:

Clean it.. .

Clean your refrigerator

before using it.

See cleaning instruction

on page 11,

* i ,(rl .I ‘I ‘i c.,*,

Plug it in...

3-prong grounding

type wall receptacle,

Refrigerator

Power Cord

RECOMMENDED GROUNDING METHOD

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused

and properly grounded electrical supply is re-

quired. It IS recommended that a separate circuit

serving only this appliance be provided.

Do not use an extension cord. Use a recep-

tacle which cannot be turned off with a switch

or pull chain.

See individual electrical require-

ments and grounding instruction sheet in your liter-

ature package.

Using your refrigerator

Temperature Control

Air Control

Setting the controls.. .

The Temperature Control is in the refrigerator and

the Air Control is in the freezer section. When the

refrigerator is plugged in for the first time.

1. Set the TEMPERA-

TURECONTROL to 3.

?I.

2. Set the AIR CON-

TROL to 3.

Do not block the air outlet

on the control panel.

Blocking it can slow the air movement needed to

keep temperatures at the level you set.

Changing the control settings.. .

If you need to adjust temperatures In the refrlger-

Adjust the Temperature Control first.

ator or freezer. use the setttngs listed in the chart

Wait at least 24 hours between adjustments.

below.

Then adjust the Air Control, if needed.

CONDITION :

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

QUESTItiNS?

...call your If Refrigerator

COOL-LINE” Section is

service TOO COLD

assistance If ICE isn’t

telephone MADE FAST ENOUGH

number

(paw

18).

If BOTH SECTIONS

are TOO WARM

Air Outlet /

Power Saving Control

Give the relrigerator time to cool down com-

pletely before adding food.

(This may take sev-

eral hours.)

These settings should be about right for

normal household refrigerator usage.

The controls will be set about right when milk or

juice IS as cold as you like and when ice cream

1sfirm.

REASONS:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

Heavy ice usage

Very cold room temperature

[can’t cycle often enough)

Door opened often

Large amount of food added

Very warm OTvery cold

room temperatures

Power Saving Control.. .

The Power Saving Control

on the Control Con-

RECOMMENDED SETTINGS:

Temperature Control 4

Air Control 3

Temperature Control 3

Air Control 4

Temperature Control 2

Air Control 3

Temperature Control 3

Air Control 4

Temperature Control 3

Air Control 2

sole operates elect%c heaters around the door 1. Use the “OFF” set-

openings. These heaters help keep moisture from ting when humidity

forming on the outside of the refrigerator. is low

2. Use the “0N”setting

if moisture fotms

on the outside of the

refrigerator.

Adjusting meat pan temperature.. .

Cold air flows against the

meat pan through an opening

between the freezer and the

refrigerator This helps keep the

meat pan colder than the rest

of the refrigerator

Set the control to let more or

less cold air through.

Use Control to Adjust

Meat Pan Temperatures

Adjusting the refrigerator shelves...

Shelves can be adjusted to match the way you use

your refrigerator. Glass shelves are strong enough to

hold bottles, milk and other heavy food items.

Gloss shelves ore

heovy Be carefui.

To remove glass shelves:

1. Xlt up at front.

2. Lift up at back.

3. Pull shelf straight out.

To replace:

1. Guide the rear hooks into the slots In the shelf

supports.

2. Tit up front of shelf until hooks drop into slot. Lower

front of shelf to level position.

Removing the freezer shelf...

1. Lift front slightly.

2. Lift back off supports.

3. Replace in reverse order

Lift the Front

Then the Back

To remove door shelves:

Lift up and out

To replace:

Insert hooks into guides

on both sides.

Push down.

Removing the freezer basket.. . I+==-=ll I

For proper air movement, keep the freezer basket

in place when the freezer is operating.

To remove the basket:

Slide out to the stop.

Lift the front to clear the stop.

Slide out the rest of the way.

To replace the basket:

Place basket on the slides.

Make sure the wire stops

clear the front of theslides.

Slide basket in

Removing the crispeq meat pan and covers...

To remove the crisper and meat pan:

1. Slide crisper and meat pan straiaht out to stab.

2 Lift the front.

Slide the rest of the way out

4. Replace in reverse order

Push the Tab

-. -

To remove the covers:

Covers are held in place by two

and two notched tabs in front.

1 Press front tabs out of the way

2. Lift cover front.

3. Lift back off the pegs.

4 Replace in reverse order

Changing the light bulbs.. .

WARNING: Before removing a light shield for

cleaning or for replacing the bulb,

either unplug refrigerator or discon-

nect electricity leading to re-

frigerator at the main power supply.

Shock and injury can occur if eiec-

tricity remains connected.

Pull Off the Dial;

Pull Out at the Bottom

Removing the base grille...

1. Open the doors.

2. Pull grille outwards as shown

3. Do not remove Tech sheet

fastened behind grille

light bulbs behind refrigerator and freezer con-

trol consoles:

1. Pull control knob straight off.

2 Pull bottom of control panel straight out.

3 Lift top of panel off supports.

4 Replace with a 40-watt appliance bulb.

5. Replace panel in reverse order

light bulb behind ice maker:

1 Remove the ice bin (see ice maker instructions

wge91.

2 Replace with a 40.watt appliance bulb.

3 Replace ice bin

Dispenser light:

1. Reach the bulb through the dispenser area

2. Replace with a heavy-duty IO-watt bulb.

To replace:

Support Tabs

1 Line up grille support tabs with metal clips

2 Push firmly to snap into place,

Close the doors.

Cold Water and Ice Dispenser.. .

FORICE:

Press

o sturdy

glass against the

Ice dispenser bar. (Pressure and

tumbling can break a fragile

glass.) Remove the glass to stop

dispensing.

The first few batches of Ice

the Ice maker may have a

taste. Throw them away. T

from new plumbing and pa

Ice Dispenser Bar

FORCHILLEDWATER:

Press a

sturdy

glass against the

water dispenser bar. [Pressure

can break a fragile glass.) Re-

move the glass to stop

dispensing.

Ifthe dispenser ISnot used reg-

ularly. dispense enough every

weektofreshen thesupply. Allow

2-3 hours for chilling.

The small. heated tray beneath the dispenser is designed to evaporate

small

spills.

There is no drain In this tray. Do not pour water into It.

Ice is dispensed

from the ice maker storage bin

in the freezer. When the dispenser bar

pressed, a

trapdoor opens in a chute between the dispenser

and the ice bin. Ice is moved from the bin and falls

through the chute. When the dispenser bar is re-

leased, a faint buzzing sound may be heard for a

few seconds.

Chllled water

comes from a tank behind the

meat pan. It holds about 50 ounces (1.5 L).

When the refrigerator is first hooked up, press the

water dispenser with a glass or a jar until you have

drawn and discarded 2 or 3 quarts (1.9to 2.8 L).

Only air will come out to start with. The water you

draw and discard will rinse the tank and pipes.

Allow about 24 hours to chill the first tankful.

PROBLEM CAUSE

Dispenser won’t

Freezer door open

work.

ice dispenser

Ice bin not properly installed.

won’t work.

Wrong ice in ice bin.

SOLUTION

Close the freezer door.

Make sure bin is pushed all the way in.

l Use only ice crescents from ice maker.

Other shapes won’t dispense properly.

,. , .x., ..,.3 :., :,,,<. ..

ice dlspenser stops

Ice dispenser bar held in too long.

Wait about 3 minutes for the dispenser motor

working.

to reset.

Large amounts of ice should be taken from

the bin,

not through the dispenser.

” _,,,-* j pl.r.

Off-taste or odor

Ice attracts airborne odors.

Use rapidly or store in covered container.

in ice.

Old ice.

Dump old ice and make new supply.

Water quality.

Water containing minerals [such as sulfur)

may require a filter to remove.

Foods not properly wrapped.

Wrap properly. See pages 13 and 14.

Ice bin and freezer may need

Clean freezer and ice bin. See Cleaning

cleaning. Chart on page 11.

Plumbing to ice maker.

Follow installation instructions for proper ice

maker water supply hook-up.

New ice maker.

The first few loads of ice from a new ice

maker may have an off-taste. Dump ice and

make new supply.

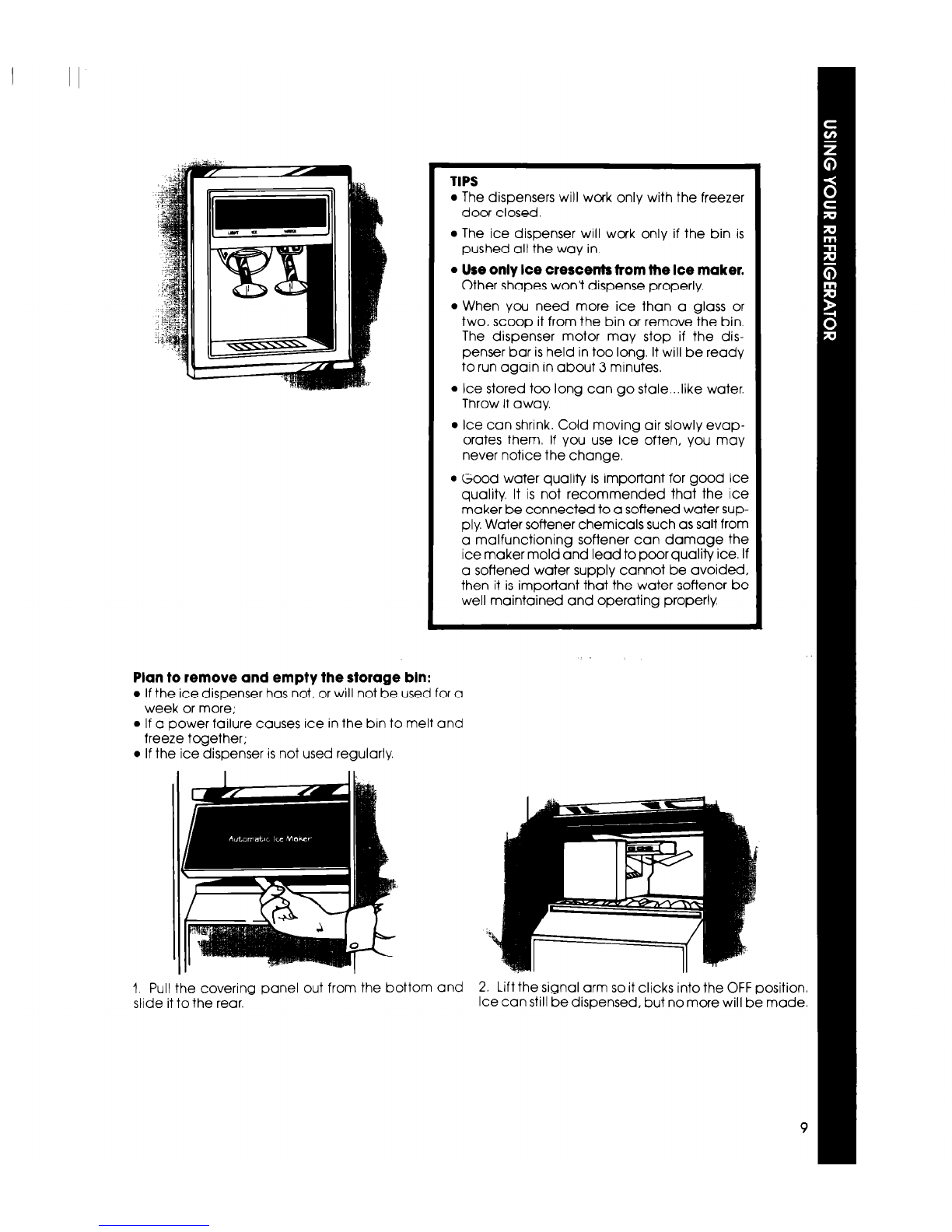

TIPS

The dispensers will work only with the freezer

door closed.

The ice dispenser will work only if the bin is

pushed all the way in.

l Use only Ice crescents trom the Ice maker.

Other shapes won’t dispense properly.

When you need more ice than a glass or

two, scoop it from the bin or remove the bin.

The dispenser motor may stop if the dis-

penser bar is held in too long. It will be ready

to run again in about 3 minutes.

Ice stored too long can go stale...like water.

Throw it away.

Ice can shrink. Cold moving air slowly evap-

orates them. If you use ice often, you may

never notice the change,

Good water quality is important for good ice

quality. It is not recommended that the ice

maker be connected to a softened water sup-

ply. Water softener chemicals such as salt from

a malfunctioning softener can damage the

ice maker mold and lead to poorquality ice. If

a softened water supply cannot be avoided,

then it is important that the water softener be

well maintained and operating properly.

Plan to remove and empty the storage bln:

Ifthe ice dispenser has not, or will not be used for a

week or more;

If a power failure causes ice in the bin to melt and

freeze together;

If the ice dispenser is not used regularly.

1 Pull the covering panel out from the bottom and ‘2. Lift the signal arm so it clicks into the OFF position

slide it to the rear. Ice can still be dispensed, but no more will be made

3. Lift the front of the storage bin. Pull it out. The

night light

uses a heavy-duty IO-watt bulb. It

4. Empty the bin. Use hot or warm water to melt the should last about 10,000 hours. When it burns out,

ice if necessary.

Never use anythlng sharp to

break purchase another from your dealer.

up ice in the bin. This can damage the bin and

dispenser mechanism.

5. Wash with mild detergent. Rinse well.Do not use

harsh or abrasive cleansers or solvents.

6. When replacing the bin, make sure it is pushed in

all the way. Push the signal arm down to the ON

position to restart ice production.

Sounds you may hear...

‘/

Your new refrigerator may make sounds that your old one didn’t.

Because the sounds are new to you, you might be concerned about

’ ,\+

them. Don’t be. Most of the new sounds are normal. Hard surfaces like

the floor, walls and cabinets can make the sounds seem louder.

The following chart describes the kinds of sounds that might be new

to you, and what may be making them.

Possible Sounds:

Slight Hum, Soft Hiss:

Clicking or Snapping

Souhds:

Probable Causes:

You may hear the refrigerator’s fan motor and

moving air.

The defrost thermostat makes a definite click when the refrigerator stops

running. It also makes a sound when the refrigerator starts. The defrost timer

will click when the defrost cycle starts and stops.

Water Sounds: When the refrigerator stops running, you may hear gurgling in the tubing for a

few minutes after it stops. You may also hear defrost water running into the

defrost water pan.

Ice Maker Sounds:

-trickling water

-thud (clatter of ice)

Running Sounds:

If your refrigerator has an ice maker, you may hear buzzing [from the water

valve), trickling water and the clatter of ice dumped into the bin.

Your refrigerator has a high-efficiency compressor and motor. It will run longer

than older designs. It may even seem to run most of the time,

Energy saving tips...

You can help your refrigerator use less electrlclty.

Check door gaskets for a tight seal Level the cabI-

net to be sure of a good seal

Clean the condenser coil regularly.

Open the door as few times as possible. Think about

what you need before you open the door. Get

everything out at one time. Keep foods organized

so you won’t have to search for what you want

Close door as soon as food is removed.

Go ahead and fill up the refrigerator, but don’t over-

crowd it so air movement is blocked.

a waste of electricity to set the refrigerator and

freezer to temperatures colder than they need to

be If ice cream

firm in the freezer and drinks are

ascoldasyourfamilylikesthem,that’scoldenough.

Keep the Power Saving Control on OFF unless

moisture forms on the refrigerator exterior.

Make sure your refrigerator

not next to a heat

source such as a range, water heater, furnace, radi-

ator, or in direct sunlight.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool Roper RS22AQXKQ02 Bedienungsanleitung

Whirlpool

Whirlpool ET18NKXDG01 Bedienungsanleitung

Whirlpool

Whirlpool WRT348FMEW Bedienungsanleitung

Whirlpool

Whirlpool GB2SHDXPB01 Bedienungsanleitung

Whirlpool

Whirlpool W8RXEGMV Gebrauchsanweisung

Whirlpool

Whirlpool ED2VHEXVB Bedienungsanleitung

Whirlpool

Whirlpool W10131410A Bedienungsanleitung

Whirlpool

Whirlpool 3XRA700-JWARG480PW01 Betriebsanleitung

Whirlpool

Whirlpool E2BGH 19 F Series Bedienungsanleitung

Whirlpool

Whirlpool Gold GR2SHWXP Gebrauchsanweisung

Whirlpool

Whirlpool WT4535D Bedienungsanleitung

Whirlpool

Whirlpool W2RXEMMWQ - 21.7 cu. Ft. Top-Freezer... Bedienungsanleitung

Whirlpool

Whirlpool ET8WTMXKQ04 Bedienungsanleitung

Whirlpool

Whirlpool ED2FHAXS Stücklistenhandbuch

Whirlpool

Whirlpool ARC 2000 Bedienungsanleitung

Whirlpool

Whirlpool WH31S1E Bedienungsanleitung

Whirlpool

Whirlpool NWT8501Q Bedienungsanleitung

Whirlpool

Whirlpool 4370077 Bedienungsanleitung

Whirlpool

Whirlpool ET22MK Bedienungsanleitung

Whirlpool

Whirlpool ED19MT Bedienungsanleitung

Whirlpool

Whirlpool GZ25FSRXY Stücklistenhandbuch

Whirlpool

Whirlpool G32026PEKS5 Bedienungsanleitung

Whirlpool

Whirlpool WBA33992 NFC IX Betriebsanleitung

Whirlpool

Whirlpool WRT5L1SMYB Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
