Whirlpool ED26MM Bedienungsanleitung

NO-FROST

REFRIGERATOR-

FREEZER

Model ED26MM

ers. Freezers. Refrlgeralor-freezers. Ice Makers, Dlshwashers. Built-In Ovens and Surface Un~ls. Ranges, Microwave Ovens. Trash Compactors, Room Air Condltloners, Dehumid~ll

Please read this

Use and Care Guide

before you do anything else...

This booklet tells you how to start your refrig-

erator, clean it, move shelves and adjust con-

trols. It even tells you what new sounds to expect

from your refrigerator.

Treat your new refrigerator with care. Use it

only to do what home refrigerators are de-

signed to do.

Parts and features

(behind ice bin

Shelves

Light

Crisp

tlumi

Meat

Pan with -

Cold

Control

Base

erwith -

dity Control

Temperature

Control

‘Model and Serial

Number Plate

Copy your Model and Serial Numbers here...

When you need service or call with a question,

have this InformatIon ready, Model Number

1. Complete Model and Serial Numbers (from the

plate located as shown].

Serial Number

2. Purchase date from sales slip

Purchase Date

Copy this Information in these spaces. Keep this

book, your warranty and sales slip together in a

handy place.

Service Company and Telephone Number

Contents

BEFOREYOUPLUGITIN 3 Removing the Crisper, Meat Pan and

Install Properly 4 Covers ,,.,..,.I....I.I..I......I...I. 8

Level Refrigerator-Freezer 4 Changing Light Bulbs 8

Remove Sales Labels 4 Sounds You May Hear 9

Clean It 4 Energy Saving Tips 9

Plug It In 4 CLEANING YOUR REFRIGERATOR 9

USING YOUR REFRIGERATOR 5 Removing the Base Grille 9

Setting the Controls 5 Cleaning Chart 10

Power Saving Control 5 FOOD STORAGE GUIDE

Changing the Control Settings 5 Storing Fresh Food 11

Adjusting Crisper Humidity Control 7 Freezing and Storing Frozen Food 12

Adjusting Meat Pan Temperature 6 VACATION AND MOVING CARE 15

Adjusting Shelves. 6 IF YOU NEED SERVICE OR ASSISTANCE 16

Cold Water and Ice Dispenser 6 I. Before Calling for Assistance 16

Removing the Roll-Out Shelf 8 2. If You Need Assistance 17

Removing Freezer Shelves 8 3. IfYouNeedService .,........,,..... 17

Removing the Freezer Basket 8 4. If You Have a Problem 17

_-_ --.-“_--.

01983 Whirlpool Corporation

Before you plug it in

IMPORTANT

Before using your refrigerator, you are personally

responsible for making sure that it..

is installed and leveled on a floor that will hold

the weight, and in an area suitable for its size

and use.

is connected only to the right kind of outlet, with

the right electric supply and grounding.

is used only for jobs expected of home

refrigerators.

is not near an oven, radiator or other heat source.

is properly maintained.

is out of the weather.

is used in an area where the room temperature

will not fall below 55” F (13” C].

is not run where there are explosive fumes.

is not used by children or others who may not

understand how it should be used.

is not loaded with food before it has time to get

properly cold.

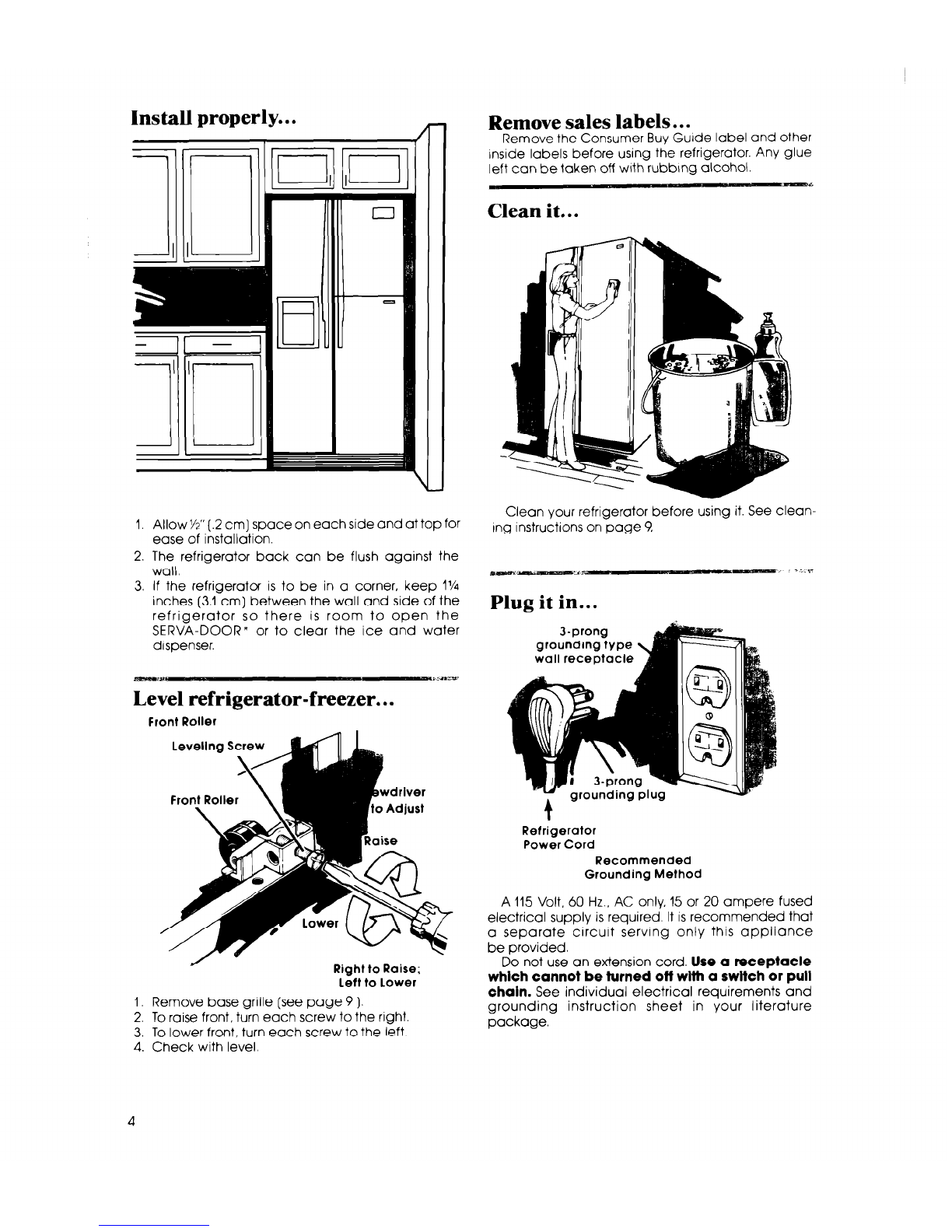

Install properly.. .

I. Allow

%”

(.2 cm] space on each side and at top for

ease of installation.

2. The refrigerator back can be flush against the

wall.

3. If the refrigerator is to be in a corner, keep 1%

inches (3.1 cm] between the wall and side of the

refrigerator so there is room to open the

SERVA-DOOR” or to clear the ice and water

dispenser.

Level refrigerator-freezer.. .

Front Roller

Right to Raise;

Left to Lower

I, Remove base grrlle [see page 9 1,

2. To raise front, turn each screw to the right.

3. To lower front, turn each screw to the left.

4. Check with level.

Remove sales labels.. .

Remove the Consumer Buy Guide label and other

insrde labels before using the refrigerator. Any glue

left can be taken off with rubbing alcohol.

Clean it.. .

Clean your refrigerator before using it. See clean-

rng Instructions on page 9.

Plug it in...

grounding type

wall receptacle

Refrigerator

Power Cord Recommended

Grounding Method

A 115 Volt, 60 Hz., AC only, 15 or 20 ampere fused

electrical supply is required. It ISrecommended that

a separate circuit serving only this appliance

be provided.

Do not use an extension cord. Use a receptacle

which cannot be turned off wlth a switch or pull

chain. See individual electrical requirements and

grounding instruction sheet in your literature

package

Using your refrigerator

Temperature Control

Air Outlet Power Saving Control

.i .. ~-riimnYX-1-“~,i :LTI(!.-Drl*EIT-tilEYI

m*w---

Setting the controls.. . Give the refrigerator time to cool down com-

The Temperature Control is in the refrigerator and pietely before adding food. (This may take sev-

the Air Control is in the freezer section When the era1 hours.)

refrigerator ISplugged in for the first time. These settings should be about right for

normal household refrigerator usage.

The controls will be set about right when milk or

‘4@,’ 195 Isfirm.

juice IS as cold as you like and when ice cream

1. Set the TEMPERA- 2 Set the AIR CON-

Do not block the air outlet

on the control panel.

TURECONTROL to 3. TROL to 3. Blocking it can slow the air movement needed to

keep temperatures at the level you set.

Power Saving Control.. .

The Power Saving Control on the Control Con-

sole operates electric heaters around the door 1. Use the “OFF” set

openings. These heaters help keep moisture from 2 Use the “0N”setting

ting when humidity if moisture forms on

forming on the outsrde of the refrigerator. is low the outside of the

refrigerator.

Changing the control settings.. .

If you need to adjust temperatures In the refrlger-

ator or freezer, use the settings lIsted in the chart

below

Adjust the Temperature Control frrst.

Wait at least 24 hours between adjustments

Then adjust the Air Control, if needed.

CONDITION : REASONS: RECOMMENDED SETTINGS:

If Refrigerator Door opened often Temperature Control 4

Section is Large amount of food added Air Control 3

TOO WARM Room temperature too warm

-a-s- ,.a-.. .*_1- .- --,- ----- “---w-- e---

If Freezer Door opened often Temperature Control 3

Section is Large amount of food added Air Control 4

TOO WARM Very cold room temperature

QUESTIONS? xo._..L_I.-...,I- ., .,I. II -.-.-~ --.. ----“----~.~l_-.~- -s-

...call your If Refrigerator Controls not set correctly Temperature Control 2

COOL-LINE E Section is for your conditions Air Control 3

service TOO COLD ---.,..----.,

assistance If ICE isn’t

telephone Heavy Ice usage Temperature Control ----z

MADE FAST ENOUGH Air Control 4

number Very cold room temperature

[can’t cycle often enouqh)

@we 17). b-m, -.-es z. --.-,, . .-a -.~~ -.o-.vL---.-

If BOTH SECTIONS Door opened often Temperature Control 3

are TOO WARM Large amount of food added Air Control 2

Very warm or very cold

room temperatures

#.IIWj,c-. _._..I~.-_, I.._ II -__-.--_ -“-- ..,---..__--II-- --1.---. “-----.-,~-~..~. -.._w*

Adjusting crisper

Humidity Control...

You can control the amount of humrdrty in the mols-

ture-sealed crisper

The control can be adjusted to any setting be-

tween LO and HI.

Adjusting meat pan temperature.. .

I&-.

& Cold arr flows against the

\ meat pan through an opening

between the freezer and the

refrigerator. This helps keep the

meat pan colder than the rest

of the refrigerator

Set the control to let more or

1 less cold arr through.

‘-

LO (open] lets morst

air out of crisper for

best storage of fruits

and vegetables

with skins.

HI (closed] keeps

morst air In the cris-

per for best storage

of fresh leafy vege-

Q -Use Control to Adjust Meat Pan Temperatures

Adjusting shelves.. .

Shelves can be adjusted to match the way you use

Your refrigerator. Glass shelves are strong enough to

hold bottles, mrlk and other heavy food Items.

The

roll-out she/f should be the bottom she/f in your

arrangement

The half-width shelf can be placed on either the

left or right side of the refrigerator section.

remove

glass shelves:

1 Tilt up at front. Eqi?zz+

2. Lift up at back.

3 Pull shelf strarght out.

Gloss sheives ore

heavy Be corefui

To replace:

To remove SERVA-DOOR’ shelves:

Lift up and out

To replace:

Insert hooks into guides on both sides

Push down.

1. Guide the rear hooks into the slots in the shelf

supports.

2 Tilt up front of shelf until hooks drop intoslot. Lower

front of shelf to level posltion

Cold Water and

FOR ICE:

1 FOR CHILLED WATER:

Press

a sturdy glass agarnst the

Ice dispenser bar. (Pressure and

tumbling can break a froglle

glass ) Remove the glass to stop

dispensing.

The firstfew batches of Ice frcm

the Ice maker may have o bad

taste Throw them away This 5

from new plumbing and parts

Press

CIsturdy glass against the

water dtspenser bar. [Pressure

can break o frogrle glass.) Re-

. move the glass to stop

~ dispensing.

If the dispenser ISnot used reg-

ularly. dispense enough every

tieek tofreshen thesupply. Allow

2-3 hours for chilling.

The small troy beneath the dispenser ISdestgned to hold small spills There ISno drown

In this tray Do not pour water into It.

Water from

small spills WIIIevaporate.

Ice Is dlspensed from the ice maker storage bin

in the freezer. When the dispenser bar is pressed, a

trapdoor opens in a chute between the dispenser

and the ice bin Ice is moved from the brn and falls

through the chute. When the dispenser bar

IS re-

leased, a faint buzzing sound may be heard for a

few seconds.

Chllled water comes from a tank behind the

meat pan. It holds about 50 ounces (1.5 L).

When the refrigerator is first hooked up, press the

water dispenser with a glass or a jar until you have

drawn and discarded 2 or 3 quarts (1.9

to 2.8 L].

Only air

WIII come out to start with. The water you

draw and discard will rinse the tank and pipes.

Allow about 24 hours to chill the first tankful

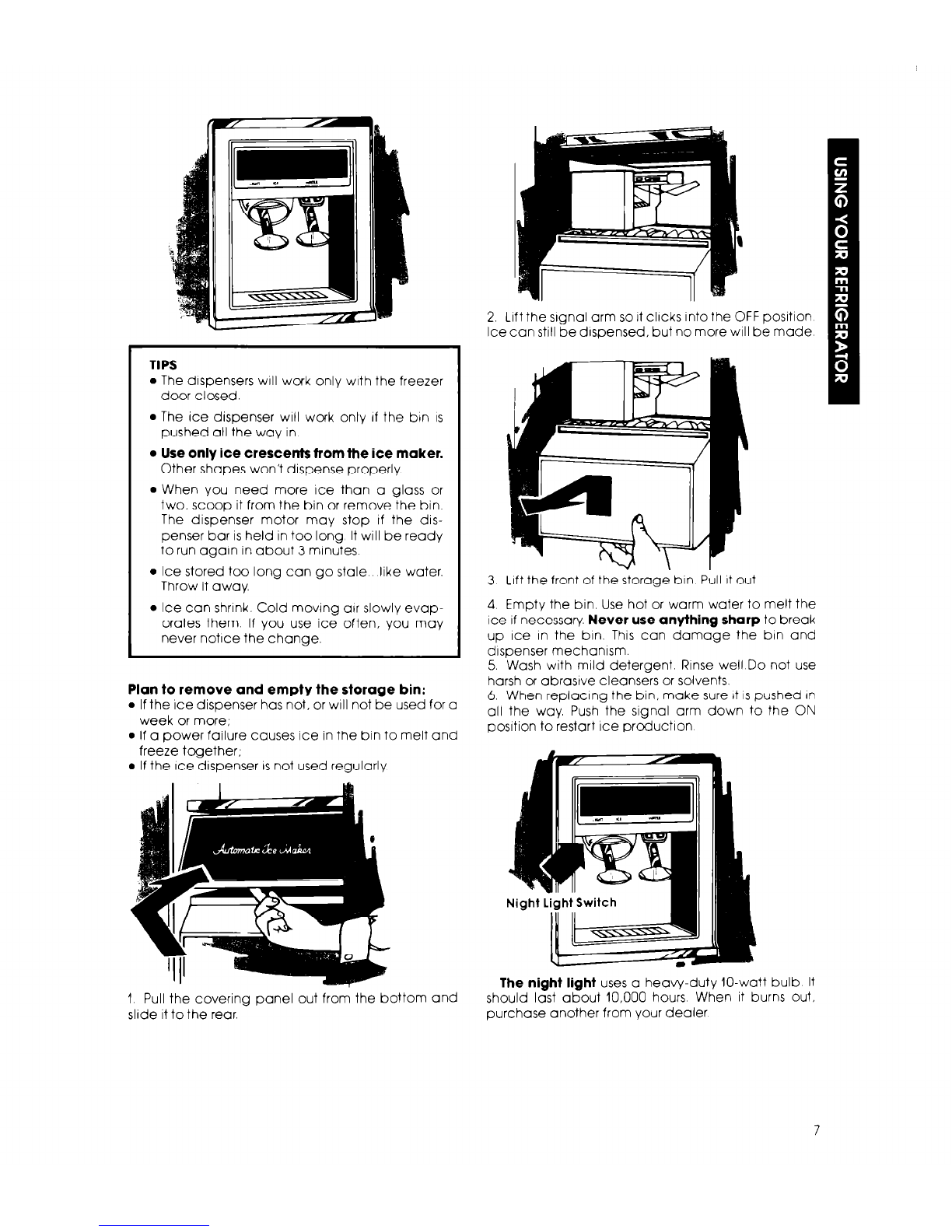

TIPS

The drspensers WIII work only with the freezer

door closed.

The ice dispenser WIII work only If the bin IS

pushed all the way in

Use only ice crescents tram the ice maker.

Other shapes won’t dispense properly

When you need more Ice than a glass or

two, scoop it from the bin or remove the bin

The dispenser motor may stop If the dis-

penser bar is held in too long It will be ready

to run again in about 3 minutes.

Ice stored too long can go stale like water.

Throw it away.

Ice can shrink. Cold moving arr slowly evap-

orates them. If you use ice often, you may

never notrce the change.

Plan to remove and empty the storage bin:

Ifthe Ice dispenser has not, or

will

not be used for a

week or more;

If a power failure causes ice in the bin to melt and

freeze together;

If the Ice dispenser ISnot used regularly

1 Pull the covering panel out from the bottom and

slide it to the rear.

2. Lift the srgnal arm so it clrcks into the Of

‘F position

Ice can still be drspensed. but no more will be made

3 Lift the front of the storage bin Pull It out.

4 Empty the bin Use hot or warm water to melt the

ice if necessary. Never use anything sharp to break

up Ice in the bin. This can damage the brn and

dispenser mechanism.

5. Wash with mild detergent. Rinse well Do not use

harsh or abrastve cleansers or solvents.

6. When replacing the bin, make sure it ISpushed In

all the way. Push the signal arm down to the ON

position to restart Ice production

The night light uses a heavy-duty IO-watt bulb It

should last about 10,000 hours When it burns out,

purchase another from your dealer

Removing the Roll-Out Shelf.. . Removing the crisper, meat pan

and covers.. .

Slide crisper and meat pan straight out to stop.

Lift the front.

Slide the rest of the way out

Replace in reverse order.

Lift Out the Tray

Tilt the Front;

Lift the Back

The tray rests on a frame that slides out fcr

easy loading or unloading It should be the bottom

shelf in your arrangement

The tray lifts out of the frame The frame Itself is

removed and replaced just like the shelves.

-mm

Removing freezer shelves.. .

Lift front slightly.

Lift back off supports. c

Replace in reverse order. D 7

Lift the Front

Then the Back

Removing the freezer basket.. .

For proper air movement, keep the freezer basket

In place when the refrigerator ISoperating.

To remove the basket:

Slide out to the stop.

I-

O Lift the front to clear _

the stop

Slide out the rest

of the way

To replace

the basket:

Place basket on the slrdes

Make sure the wire stops

clear the front of theslides

Slide basket In

Push the Tab

to Clear the Cover.

Covers are held in place by two pegs at the back

and two notched tabs In front.

- Press front tabs out of the way.

-Lift cover front.

- Lift back off the pegs.

- Replace in reverse order

Changing light bulbs...

Before removing a light shield for cleaning or for

replacing a bulb, unplug the refrigerator. Use op-

phonce bulbs only

Pull Out at the

Light bulbs behind retrigerator and freezer

control consoles:

-Pull control knob straight off.

- Pull bottom of control panel straight out.

-Lift top of panel off suppcfts.

-Replace wrth a 40.watt appliance bulb.

- Replace panel In reverse order.

light bulb behlnd ice maker:

- Remove the ice brn [see ice maker Instructions

page6).

- Replace with a 40-watt appliance bulb.

- Replace Ice bin

light bulb above crisper:

-Pull top of the light shield away from the back

wall.

- Lift shield off base supports.

- Replace with a 40-watt appliance bulb

- Replace shield in reverse order.

Dispenser light:

- Reach the bulb through the dispenser area

- Replace with a heavy-duty IO-watt bulb.

Sounds you may hear.. .

- _ .

Posslble Sounds:

Slight Hum, Soft Hiss:

Clicking or Snapping

Sounds:

Water Sounds:

Ice Maker Sounds:

Running Sounds:

Your new refrrgerator may make sounds that your old one didn’t.

Because the sounds are new to you, you might be concerned about

them. Don’t be. Most of the new sounds are normal. Hard surfaces like

the floor, walls and cabinets can make the sounds seem louder.

The following chart describes the kinds of sounds that might be new

to you. and what may be making them.

Probable Causes:

Your refrigeratcr has two fans, you may hear the fan motors and moving air.

. .- _..

--.- .--.. -.

The defrost timer makes a definite click when the refrigerator stops running. It

also makes a sound when the refrigerator starts.

When the refrigerator stops running. you may hear gurgling In the tubing for a

few minutes after it stops. You may also hear defrost water running into the

defrost water pan _ . ._

%J may hear a buzzing [from the water valve), trickling water and the clatter

of ice dumped into the bin.

Your refrigerator has a high-effrcrency compressor and motor. It will run

longer

than older designs. It may even seem to run most of the time.

_._ . ._.- _.“. _ .-

Energy saving tips.. .

You can help your refrigerator use less electricity.

Check door gaskets for a tight seal. Level the cab-

inet to be sure of a good seal.

Clean the condenser coil regularly.

Open the door as few times as possible. Think

about what you need before you open the door.

Get everything out at one time. Keep foods orga-

nized so you won’t have to search for what you

want. Close door as soon as food is removed.

Go ahead and fill up the refrigerator, but don’t

overcrowd it so air movement is blocked.

.,. ,. II I”_

a waste of electricity to set the refrigerator and

freezer to temperatures colder than they need

be. If ice cream is firm in the freezer and drinks are

as cold as your family likes them, that’s cold

enough.

Keep the Power Saving Control on OFF unless

moisture forms on the refrigerator exterior.

Make sure your refrigerator is not next to a heat

source such as a range, water heater, furnace,

radiator, or in direct sunlight.

Both the refrigerator and freezer sections defrost To clean your refrigerator, turn the Temperature

automatically. But both should be cleaned about Control to OFF, unplug It. take out all removable

once a month to help prevent odors from bullding parts, and clean It according to the following

up. Of course, spills should be wiped up rrght away directions

Removing the base grille.. .

Open the doors.

Pull grille outwards as shown

Do n&t remove Tech sheet fastened behind grille.

SUDDO~~

Tabs

To replace:

Line up grille support tabs with metal clips

Push firmly to snap into place.

Close the doors

Cleaning Chart.. .

....--_.---_-

Part

._--_~ _

Removable parts

[shelves, crisper, meat

pan etc.)

---,---___-..-- _.

Outside

-I-. ----~

What to use

Mild detergent and

warm water

Sponge, cloth or paper

towel; mild detergent;

appliance wax (or good

auto paste wax).

-- --.--

How to clean -.- ---

Wash removable parts with warm water

and a mild detergent.

Rinse and dry

~---__- .--e--.-e

Wash with warm water and a mild de-

tergent. Do not use abrasive or harsh

cleansers.

Rinse and dry.

Wax painted metal surfaces at least

twice a year with appliance wax or a

good auto paste wax. Apply wax with

a clean, soft cloth. Do not use wax

on plasttc parts.

Waxing painted metal surfaces provides rust protectton.

Inside walls (Freezer Sponge. soft cloth or

Wash with warm water and

should be allowed to paper towel, baking -mild detergent or

warm up so cloth won’t soda, warm water, mild -baking soda (2 tablespoons [26 g] to

stick.) detergent. 1quart [.95 I] warm water

Rinse and dry

-. _-I __-..._ ._- - _._._.-_ .I- ----_ ..-_. _- I - --I- I,- -.---. .--.--

Door liners and gaskets Sponge, soft cloth or

Wash with mild detergent and warm

paper towel; mild water.

detergent, warm water

Rinse and dry

DO NOT USE Cleaning waxes, concentrated detergents,

bleaches or cleansers containing p

---- __-, .--------I__ etroieum on plastic parts. _

Serva-Door back, slide- Mild detergent and

Wash with a soft grit-free cloth or

out tray, utility door, and warm water; soft, clean sponge.

other dark panels sponge and soft, clean

Rinse and dry with a damp grit-free

cloth. cloth or chamois

DO NOT USE paper towels, window sprays, scouring cleansers,

or solvents like acetone, benzine, carbon tetmchiorlde, etc.

Defrost pan I-I.- These can scmtch or damage the material. ~“-----

Warm water and mild

Remove base grille. (See page 9.)

detergent.

To remove defrost pan, lift pan over wire

brace [remove tape; if any).

Wash defrost pan with warm water and

mild detergent.

Rinse and dry

Replace with notched corner to the rear

Push it all the way in.

Condenser Coil

Floor under refrigerator

_.I-~

Vacuum cleaner; using

the extended narrow

attachment. --

Usual floor cleaners.

Make sure defrost drain tube is pointing t

into pan.

Replace base qrille.

-~ -I- I

Remove base grille.

Clean dust and lint from condenser at

least every other month.

Replace base arille.

Roll refrigerator out only as far as water

supply line allows.

Wash floor

Roll refrigerator back.

Check to see if the refrigerator is level,

Andere Handbücher für ED26MM

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool WRB533CZJZ Bedienungsanleitung

Whirlpool

Whirlpool BLF 8121 Bedienungsanleitung

Whirlpool

Whirlpool ED5DHEXWB - 25' Dispenser Refrigerator Montageanleitung

Whirlpool

Whirlpool WM1510W Bedienungsanleitung

Whirlpool

Whirlpool 1VET27DKGW1 Betriebsanleitung

Whirlpool

Whirlpool Gold GR2SHWXP Gebrauchsanweisung

Whirlpool

Whirlpool ETl8JK Bedienungsanleitung

Whirlpool

Whirlpool ED25DW Bedienungsanleitung

Whirlpool

Whirlpool G32026PELB12 Bedienungsanleitung

Whirlpool

Whirlpool 3ET16NKXDG00 Bedienungsanleitung

Whirlpool

Whirlpool ETIGJK Bedienungsanleitung

Whirlpool

Whirlpool WRS342FIAM00 Bedienungsanleitung

Whirlpool

Whirlpool W1RXNGFXQ00 Bedienungsanleitung

Whirlpool

Whirlpool ET20MK Bedienungsanleitung

Whirlpool

Whirlpool WB70E973W Bedienungsanleitung

Whirlpool

Whirlpool 2225405 Bedienungsanleitung

Whirlpool

Whirlpool Roper RT14BKXSQ00 Bedienungsanleitung

Whirlpool

Whirlpool ER2MHKXPB07 Bedienungsanleitung

Whirlpool

Whirlpool ER2MHKXPL Bedienungsanleitung

Whirlpool

Whirlpool ET8MHKXMB04 Bedienungsanleitung

Whirlpool

Whirlpool WBA33992 NFC IX Betriebsanleitung

Whirlpool

Whirlpool FRENCH DOOR BOTTOM MOUNT REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool 2195385 Montageanleitung

Whirlpool

Whirlpool GD5NHAXSB00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
