NO-FROST REFRIGERATOR-FREEZERS

MODELS ED27DQ ED25DQ ED22DQ

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, war/&c/ass home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. lt is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefuliy. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, 1-800-253-l 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 22. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, we have included a handy place below for you to record these numbers,

the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book

and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

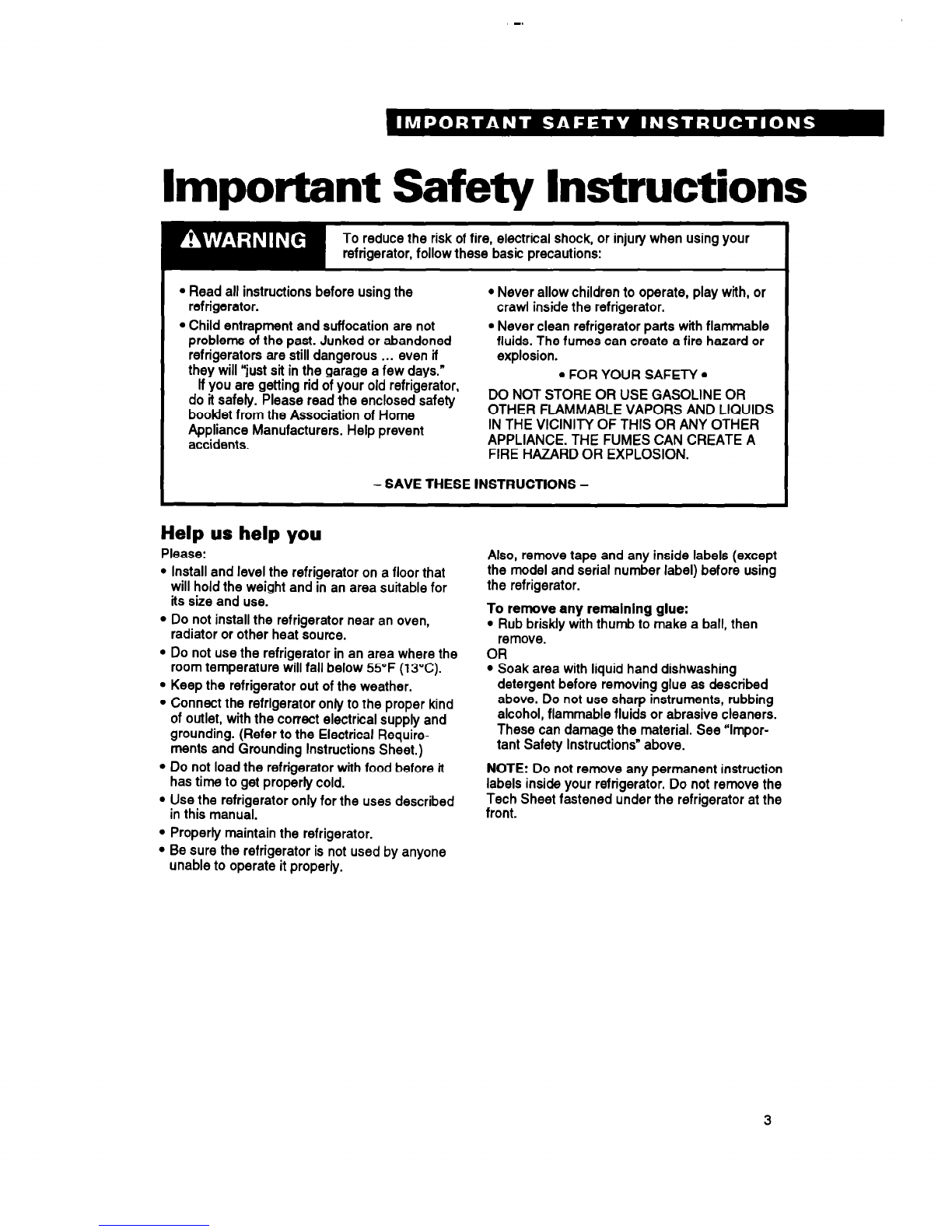

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even if

they will “just sit in the garage a few days.”

lf you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion. . FOR YOUR SAFETY.

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator onty to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remalnlng glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “Impor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like.

Liaht -

Conboilpsnei

tight

/ Model and

---I-I -..-L--

maker with

cubed and

crushed ice 1~

IIII uLzG+T#

ice bin ~!lII 1 IIp

Light

Removable

freezer shaives

(number varies

with model)

Snack bin

Slide-out

freezer baskets IIIII II

(number varise IIIII -!z.JllllJ

with model)

Meat drawer

Utility

-compartment

- Utility bin

-Wine rack

Door bin giidee

(number varies

with modsi)

1 Egg bin

Adjustabie

slide-out

\ spiiiguard

shelves

Mwt dreww II

;gyyb

(on side wail)

Crisper with

vmidity control

Leveling rollers \

(behind base grille) Base grille

Control panel

Model ED27W shown

Freezer control

Refrigerator control

Before Using Your

Refrigerator

In This Section Pa* Paw

.................................................................5 indali it property ..............................................5

Plug it in .........................................~.................... 5 Level it ..............................................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it

a power source, install it and level it.

Clean it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on oaae 18.

Plug it in

Recommended Grounding Method

A 115

Volt,

Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

Install it properly

Allow 55inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the refrigerator is to be against a wall, you

might want to leave extra space on the hinge

side closest to the wall so the door can be

opened wider.

For ED27W only:

A minimum of 1% inch

(2.9 cm) between the refrigerator door and

wall is required, or a minimum of 1% inch

(39 cm) between the freezer door and wall is

required.

3. The refrigerator can be flush against the wall.

4. Make sure ice maker water supply has been

connected. Refer to Installation Instructions.

l-prong grounding

type wail receptacle,

grounding plug

Level it

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these. follow the directions below.

Remove base grille. (See page 16.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

4. Check with level.

5. Replace base grille. (See page 16.)

Right to raise;

left to lower

Use a screwdriver

Using Your Refrigerator

In This Section

Paw

Setting the controls ............................................ 7

Changing the contrd settings ........................... 8

Adjusting the refrigerator sheives ................... .6

Adjusting the door bins ..................................... 9

Adjusting the door bin glides ........................... .9

Removing the crisper and crisper cover.. ....... .9

Adjusting the crisper humidity control ......... .I0

Removing the meat draww and cover..

..........10

Adjusting the meat drawer temperature.. ...... .I0

Removing the snack bin .................................. 11

Adjusting the wine rack ................................... 11

Paw

Removing the freezer baskets ...................... 11

Removing the frscwr shelf ...........................11

TRIRSTCRUSHER~ dispensing systsm ..... 12

Using the automattc ice maker .....................13

Removing the ice maker storage bin ...........14

Sotving common Ice maker problems .........15

Removing the door trim (dispsnser area) ... 15

Removing the base grille .............................. 16

Changing the light bulbs ...............................16

Understanding the sounds you may hear ...17

Saving energy ................................................ 17

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to 8.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when ice

cream is firm. If you need to adjust these

settings, see ‘Changing the control settings” on

page 3.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call our

Consumer Assistance Center number. (See

page 23.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SElTlNGS:

Refrigerator

Freezer ii

Refrigerator

Freezer :

Refrigerator 2

Freezer B

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator

Freezer i

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

items.

To remove glass shelves:

1. Remove items from shelf.

2. Slide shelf out with an even, constant pull.

3. Lift front and slide the rest of the way out.

To move shelf guides to a new position:

1. Lift front of guide. Pull guide forward off rear

support. Repeat for other guide.

2. To replace guide, push guide onto rear

support. Push front of guide down onto

support.

To replace glass shelves:

1. Guide rear of shelf into shelf guide.

2. Slide shelf into place.

Be careful when

handling giaso items.

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push bin down until it stops.

,. Support button

Adjusting the door bin glides

The door bin glides can be used to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin.

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Hold cover firmly with both hands and lift front

of cover off supports.

2. Lift cover out by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on walls

of refrigerator.

2. Lower front into place.

Lift the cover

front, than the

back.

out to the stop,

lift the front

and pull again.

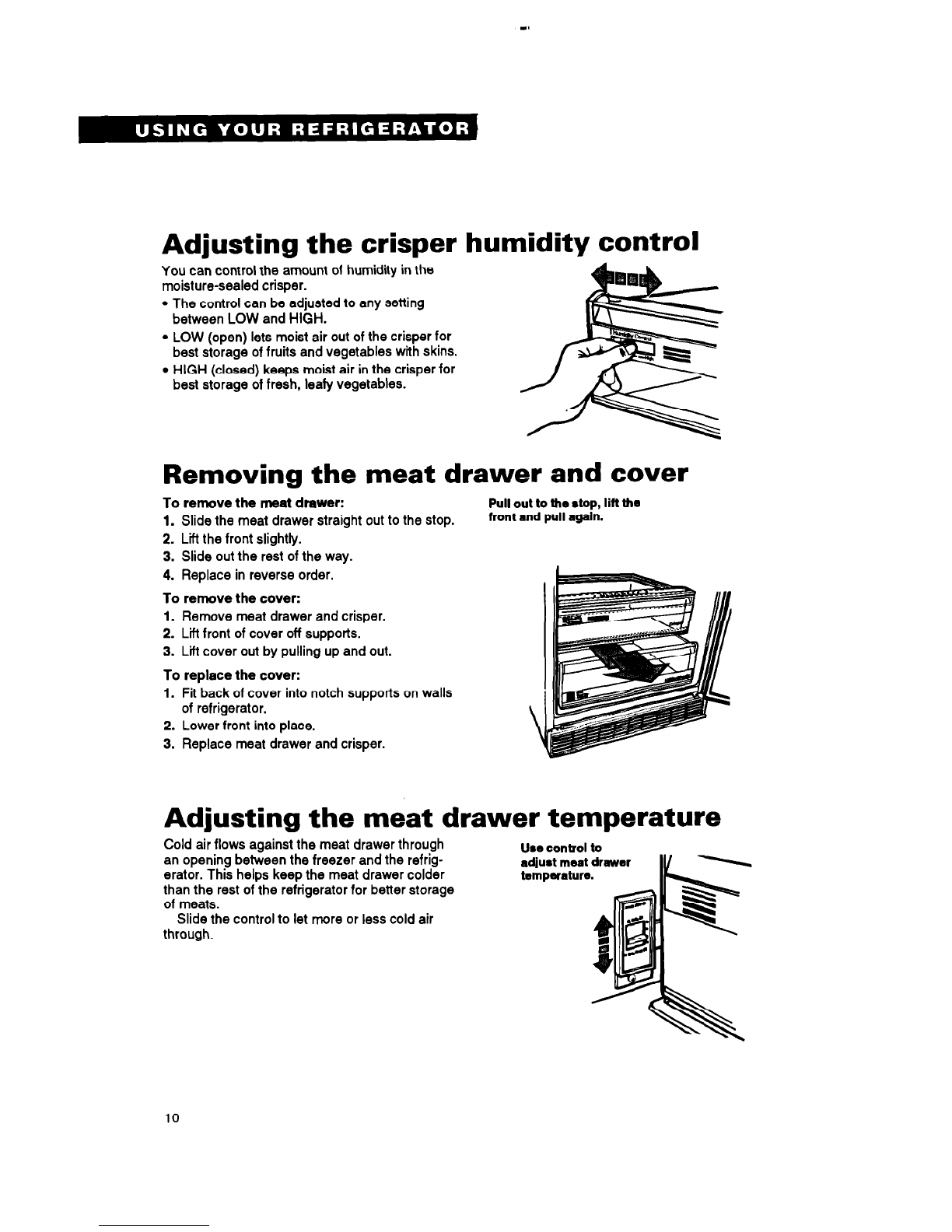

Adjusting the crisper humidity control

You can control the amount of humidity in the

moisture-sealed crisper.

The control can be adjusted to any setting

between LOW and HIGH.

LOW (open) lets moist air out of the crisper for

best storage of fruits and vegetables with skins.

HIGH (closed) keeps moist air in the crisper for

best storage of fresh, leafy vegetables.

Removing the meat drawer and cover

To remove the meat drawer:

Slide the meat drawer straight out to the stop.

2. Lift the front slightly.

Pull out to the stop, lift the

front and

pull

agaln.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove meat drawer and crisper.

2. Lift front of cover off supports.

3. Lift cover out by pulling up and out.

To replace the cover:

Fit back of cover into notch supports on walls

of refrigerator.

2. Lower front into place.

3. Replace meat drawer and crisper.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through

an opening between the freezer and the refrig-

erator. This helps keep the meat drawer colder

than the rest of the refrigerator for better storage

of meats.

Use control to

adjust meat drswer

temperature.

Slide the control to let more or less cold air

through.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool GB9SHKRMS00 Bedienungsanleitung

Whirlpool

Whirlpool WBE3433 A+DFCX Bedienungsanleitung

Whirlpool

Whirlpool GS5SHAXNT Bedienungsanleitung

Whirlpool

Whirlpool WB70I 953 X Bedienungsanleitung

Whirlpool

Whirlpool ED22DQ Bedienungsanleitung

Whirlpool

Whirlpool ET18PK Bedienungsanleitung

Whirlpool

Whirlpool 2225408 Bedienungsanleitung

Whirlpool

Whirlpool GB2SHTXTB11 Bedienungsanleitung

Whirlpool

Whirlpool ED5KVEXVQ - 25' Dispenser Refrigerator Montageanleitung

Whirlpool

Whirlpool WBA33992 NFC IX Betriebsanleitung

Whirlpool

Whirlpool 3VET21DK Bedienungsanleitung

Whirlpool

Whirlpool GD5DHAXVQ - 25 Cubic Foot 2008 Approved Sid Bedienungsanleitung

Whirlpool

Whirlpool 8ET18NK Bedienungsanleitung

Whirlpool

Whirlpool CB310 Bedienungsanleitung

Whirlpool

Whirlpool 6GC5THGXKS00 Bedienungsanleitung

Whirlpool

Whirlpool ET14HJXDN01 Bedienungsanleitung

Whirlpool

Whirlpool WRF535SMBB Gebrauchs- und Wartungshandbuch

Whirlpool

Whirlpool 2314472 Bedienungsanleitung

Whirlpool

Whirlpool GI7FVCXWA Bottom Bedienungsanleitung

Whirlpool

Whirlpool GR2FHMXVB00 Bedienungsanleitung

Whirlpool

Whirlpool EB2SHKXVD Montageanleitung

Whirlpool

Whirlpool ET8MTKXKQ01 Bedienungsanleitung

Whirlpool

Whirlpool EL87TRRRV - Satina-on - 35.3 Cu. Ft.... Bedienungsanleitung

Whirlpool

Whirlpool ET8WTMXKQ08 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
