Whirlpool ED5HVAXVL00 Bedienungsanleitung

CABINET PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

5−09 Printed In U.S.A. (jdc)(bay) Part No. W10174882 Rev. C

REFRIGERATOR

CABINET PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10166791

Energy Guide

2318584 Owner’s Manual

W10142162

Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

2216001 Instruction Sheet

(Door Removal)

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Rear Roller (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

10 3400113 Screw

11 8281227 Screw

12 Hinge Cover

2203407B Black

13 2304322 Hinge Bottom

14 Filler, Wrapper

2304848 Black

15 Grille

2260500B Black

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

21 2188735 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408B Black

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (2)

27 489483 Screw

28 2260507 Housing, Water

Filter

29 2313412 Water Filter

30 Cap, Water

Filter

2260502B Black

31 489500 Screw

32 2260519 Block, Housing

Support

33 Button, Water

Filter

2260503B Black

34 2319867 Tube, Filter

Outlet

35 2319867 Tube, Filter

Inlet

36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 2256035 Bracket,

Dual Crisper

Light

8 2311637 Wire Harness,

Dual Crisper

9 2319866 Shelf Ladder

10 489478 Screw

W10004810

Screw (2)

13 2256085 Bracket Retainer

14 489290 Screw

15 2209753 Air Diffuser

Assembly

16 2152019 Air Diffuser

Cover

17 2150331 Cover, Wiring

18 2162085 Socket

19 2307107 Reservoir

20 2255743 Light Bulb

21 2209769 Light Lens

22 488280 Screw

REFRIGERATOR SHELF PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION

1 2196485 Stud Assembly

3 2209698 Cover, Crisper

4 3400894 Screw

5 2196483 Stud Assembly

6 2179259 Glass, Meat Cover

7 2174150 Glass, Cover

8 2311726 Cover, Meat Pan

9 8281158 Screw

10 2188652 Crisper Pan

11 2179343 Body, Humidity

Control

12 2179342 Slide, Humidity

Control

13 2255593 Trim, Handle

14 2188724 Meat Pan

15 2188667 Snack Bin Assy.

16 2179350 Deflector

17 2255592 Trim, Meat Pan

W10141750

Shelf Assy

19 2179243 Trim, Snack Pan

25 2188695 Shelf Assembly,

Spillguard (2)

FREEZER LINER PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

FREEZER LINER PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2211746K Shelf, Slide Out

Upper

3 2301291 Track−Shelf (RS)

4 2301292 Track−Shelf (LS)

5 2211742K Shelf−Slide Out

6 2182971 Freezer Bin

11 3400893 Screw

14 2205837K Shelf (2)

W10004810

Screw (8)

17 842534 Clip, Air Duct (2)

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255588 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255558 Cover, Receiver

37 2255562 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2303234 Shield, Wiring

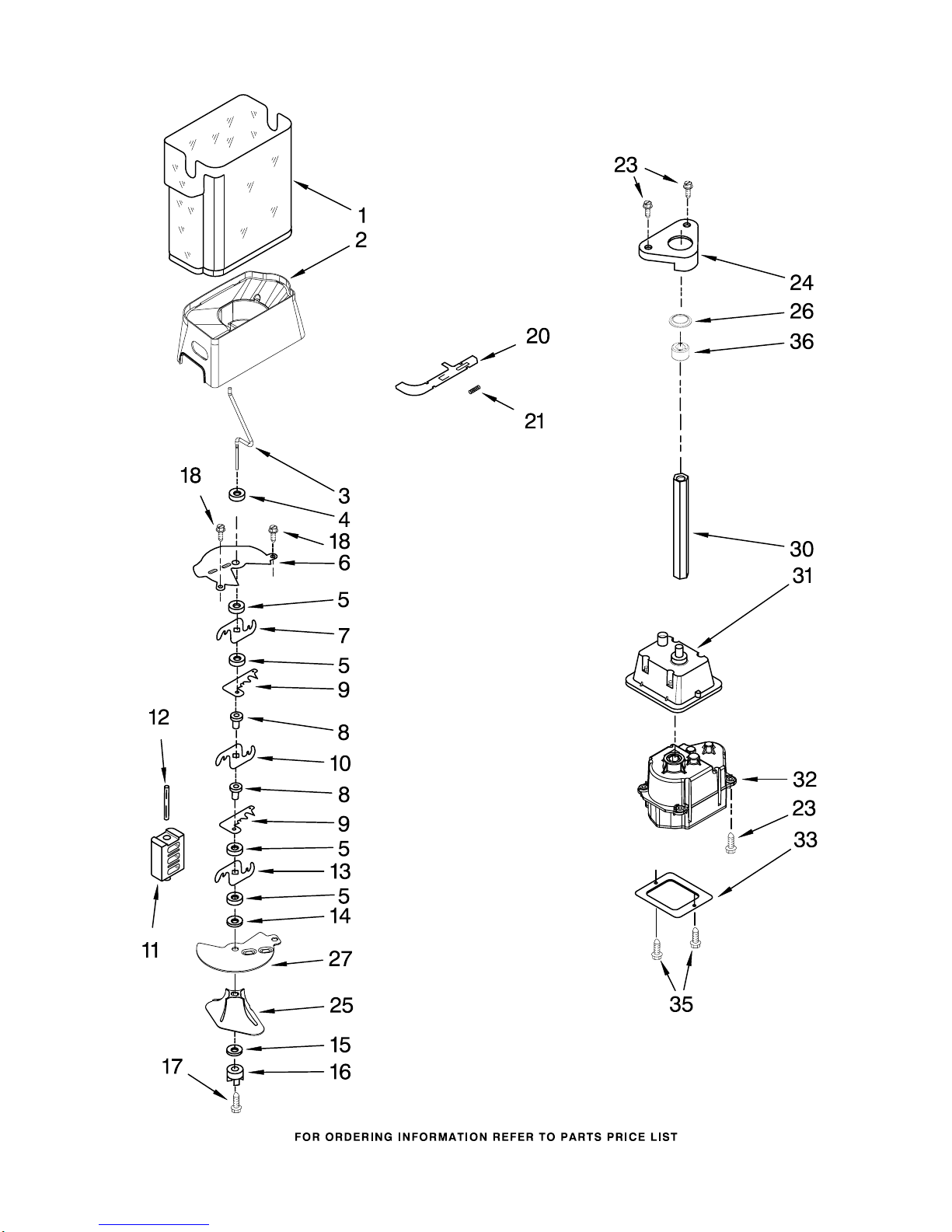

MOTOR AND ICE CONTAINER PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

MOTOR AND ICE CONTAINER PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2317254 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

20 2317262 Latch, Bin

21 2198608 Spring, Latch

23 8281163 Screw

24 2188919 Holder

25 2317243 Wiper

26 2198628 Seal

27 2317250 Divider, Chamber

30 2188916 Drive Shaft

31 2256154 Enclosure, Motor

32 2315544 Dispenser, Motor

33 2212305 Cover

35 489478 Screw

36 2315559 Sleeve, Coupling

100 2317251 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

REFRIGERATOR DOOR PARTS

For Model: ED5HVAXVL00

(Stainless VCM)

W10174882

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2326326LG

Stainless VCM

2 2256101 Compartment Door

3 2203828K Shelf Bin (3)

4 3400012 Screw

5 2255411 Clip, Mounting

6 Door Gasket,

Magnetic

2221313 Black

W10155511

Screw

W10127768

Handle, Extr

W10152862

Handle, Endcap

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2206629B Black

W10129563

Screw, Mounting

14 2308091 Thimble−Top

15 2255121 Nameplate
