CABINET PARTS

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

12−97 Litho In U.S.A. (sak) Part No. 4379516

REFRIGERATOR

CABINET PARTS

Illus. Part

No. No. DESCRIPTION

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

1 Cabinet (Not A

Serviceable Part)

2 2157591 Hinge (Top)

3 2166108 Roller−Front (2)

5 489385 Clamp, Tube

(Water Supply Line)

12 549193 Clamp−Cord

13 937360 Cord−Service

15 489423 Screw

16 2163758 Hinge, Center

17 2163757 Shim, Hinge

Center

18 489413 Screw

20 2172577 Hinge Butt

23 2172745 Shim, Bottom

Hinge

24 Fitting, Water Tube

(Not Serviced)

27 Hole Plug (6)

2151652 White

2151653 Almond

28 Seal, Front

(Not Serviced)

29 2163763 Cabinet, Wiring

Assembly

30 Seal, Rear

(Not Serviced)

31 2166251 Cover, Valve

35 Corner Filler (2)

2163733 White

2166187 Almond

36 2166134 Grille

38 487576 Washer

39 1123517 Shim

40 Cover−Hinge

2160403 White

2160404 Almond

41 Rail, Center

(Not Serviced)

42 2166205 Corner Filler,

Grille

43 2166160 Pin, Hinge

44 2163814 Cover, Unit

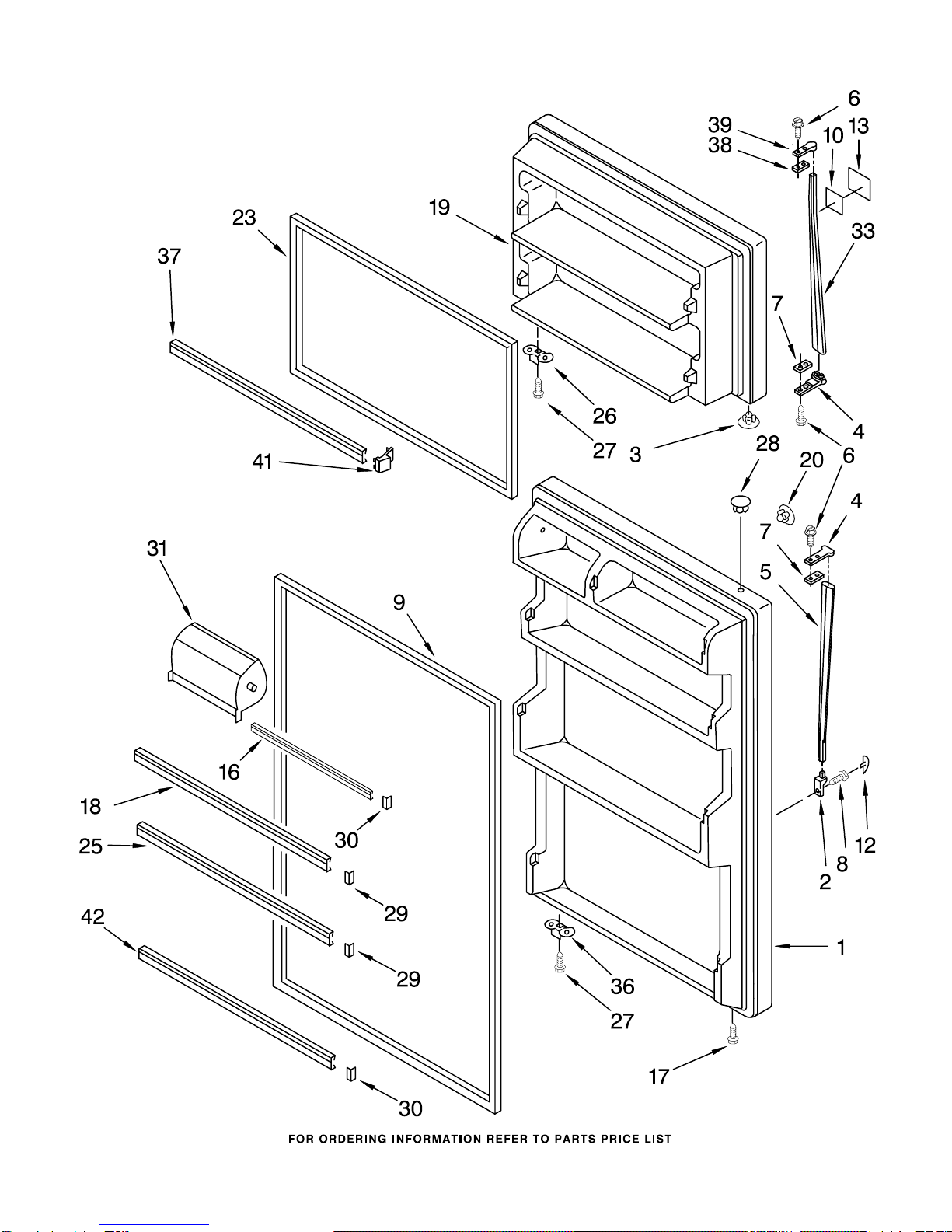

DOOR PARTS

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

DOOR PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

1 Refrigerator Door

Panel

2171269 White

2171270 Almond

2 End Cap

9791773 White

9791774 Almond

3 Hole Plug (2)

534927 White

989197 Almond

4 End Cap, Handle (2)

9791771 White

9791772 Almond

5 Handle Center

2148035 White

2148036 Almond

6 489006 Screw

7 943188 Spacer

8 487909 Screw

9 Door Gasket,

Magnetic

2159057 Mist Beige

10 991259 Tape

12 Cover, Screw

9791769 White

9791770 Almond

13 Nameplate

2162781 White Model

2162782 Almond Model

16 2159244 Trim, Door Shelf

17 489028 Screw

18 2159454 Trim, Door

19 Freezer Door

Panel

2159446 White

2159447 Almond

20 Hole Plug

1122653 White

1122654 Almond

23 Door Gasket,

Magnetic

2159056 Mist Beige

25 2159243 Trim, Door Shelf

26 2159367 Stop, Door

27 488921 Screw

28 Hole Plug

844478 White

989196 Almond

29 2156007 Plug−Trim (4)

30 2156006 Plug−Trim (4)

31 2171009 Compartment Door

33 Handle, F.C.

2159453 White

2159471 Almond

36 2159364 Stop−Door

37 2159455 Trim−Door (2)

38 943187 Shim

39 Handle End

9791776 White

9791777 Almond

41 2156003 Endcap (4)

42 2159456 Trim, Door

LINER PARTS

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

1 Liner (Not A

Serviceable Part)

2 531933 Grommet (2)

3 2166180 Gasket, Evaporator

Cover (Side)

4 2172691 Timer, Defrost

6 941839 Hole Plug

7 2172542 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

9 2172570 Damper, Air

10 2163766 Fan Motor

11 2163777 Fan Blade

12 2172566 Control Box

13 2172690 Thermostat

14 486214 Screw

15 489412 Screw

16 2163816 Cover−Evaporator

17 946059 Light Bulb (2)

18 2163802 Weight, Thermal

19 1108112 Rocker Arm

Switch

20 2163809 Post, Damper

21 2172560 Cover, Air

Diffuser

22 2163800 Control Knob

23 2172574 Air Tower

24 2172564 Air Diffuser,

Bottom

25 2172679 Freezer Floor

26 2172563 Air Diffuser, Top

27 944759 Cover, Hole

28 1103725 Hole Plug

29 2163827 Bracket,

Fan Motor

30 2166192 Gasket, Evaporator

Cover (Top)

31 2174629 Air Return & Foil

Assembly

32 487996 Cap

33 489242 Screw

34 2163801 Knob, Dampener

35 2163810 Bracket,

Damper Knob

36 2172532 Seal, Rear

Thermostat

37 2172594 Gasket, Air

Diffuser

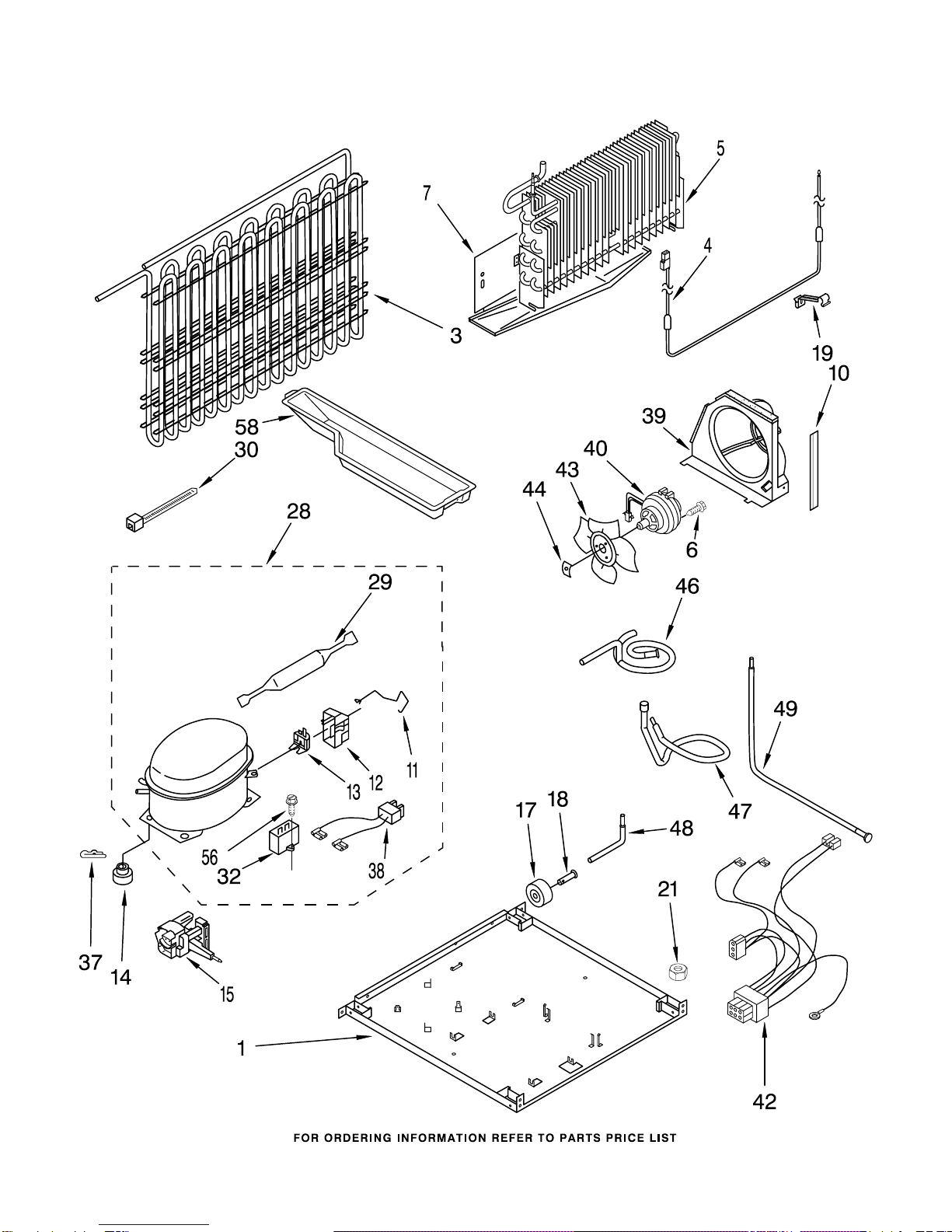

UNIT PARTS

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

1 2176202 Plate, Unit

Mounting

3 2172670 Condenser

4 2172692 Heater, Defrost

5 2172669 Evaporator Assy.

6 489414 Screw

7 2172618 Drain Pan

10 2163780 Extension, Air

Baffle

11 Clamp

2162400 Production

938384 Service

12 1108115 Cover

(Service

Compressor Only)

13 2154759 Overload

14 Grommet (4)

2163786 Production

1100826 Service

15 2163893 Module

17 2163782 Roller (2)

18 981126 Rivet

19 2166244 Clip, Heater

21 Nut

(Not Serviced)

28 2162352 Compressor

(Includes Items

11, 12, 13, 29,

32, 38 & 56)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 2164409 Drier

30 2155774 Clamp

32 2169137 Capacitor

37 2163787 Clip, Compressor (4)

38 1127675 Wire Assembly

39 2172697 Air Baffle

40 2166191 Motor, Condenser

42 2172600 Wire Assy. Unit

43 851732 Fan Blade

44 486692 Nut

46 2172673 Tube, Discharge

47 2172677 Tube, Suction

48 2154109 Tube, Process

49 2174670 Tube, Condenser

To Heat Loop

56 487240 Screw

58 2163795 Evap. Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

482278 Start Kit

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)

SHELF PARTS

Illus. Part

No. No. DESCRIPTION

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

1 841180 Ice Tray (2)

2 2166147 Shelf (2)

3 2163833 Cover, Crisper

4 2166256 Crisper Pan

5 2166255 Plug, Shelf Cup

6 2172541 Support, Crisper

Cover

7 2163835 Track, Crisper

8 483210 Shelf, Ice Tray

9 2166257 Crisper Pan

10 2166149 Insert

11 489242 Screw (2)

12 489415 Screw (2)

13 Spacer, Ice

Tray Shelf

(Not Required)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE AND OPTIONAL PARTS

For Models: ET16JKXBW01, ET16JKXBN01, ET16JKYBW01, ET16JKYBN01

(White) (Almond) (White) (Almond)

4379516

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

2172516 Door Reversal

Instructions

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

LITERATURE PARTS

LIT2169460 Service &

Wiring Sheet

LIT2170974 Energy Label

LIT2166259 Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677969 Do−It−Yourself

Manual Ref./Fzr.

LIT677971 Do−It−Yourself

Manual, Icemaker

FIELD INSTALLABLE

ICE MAKER

ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
