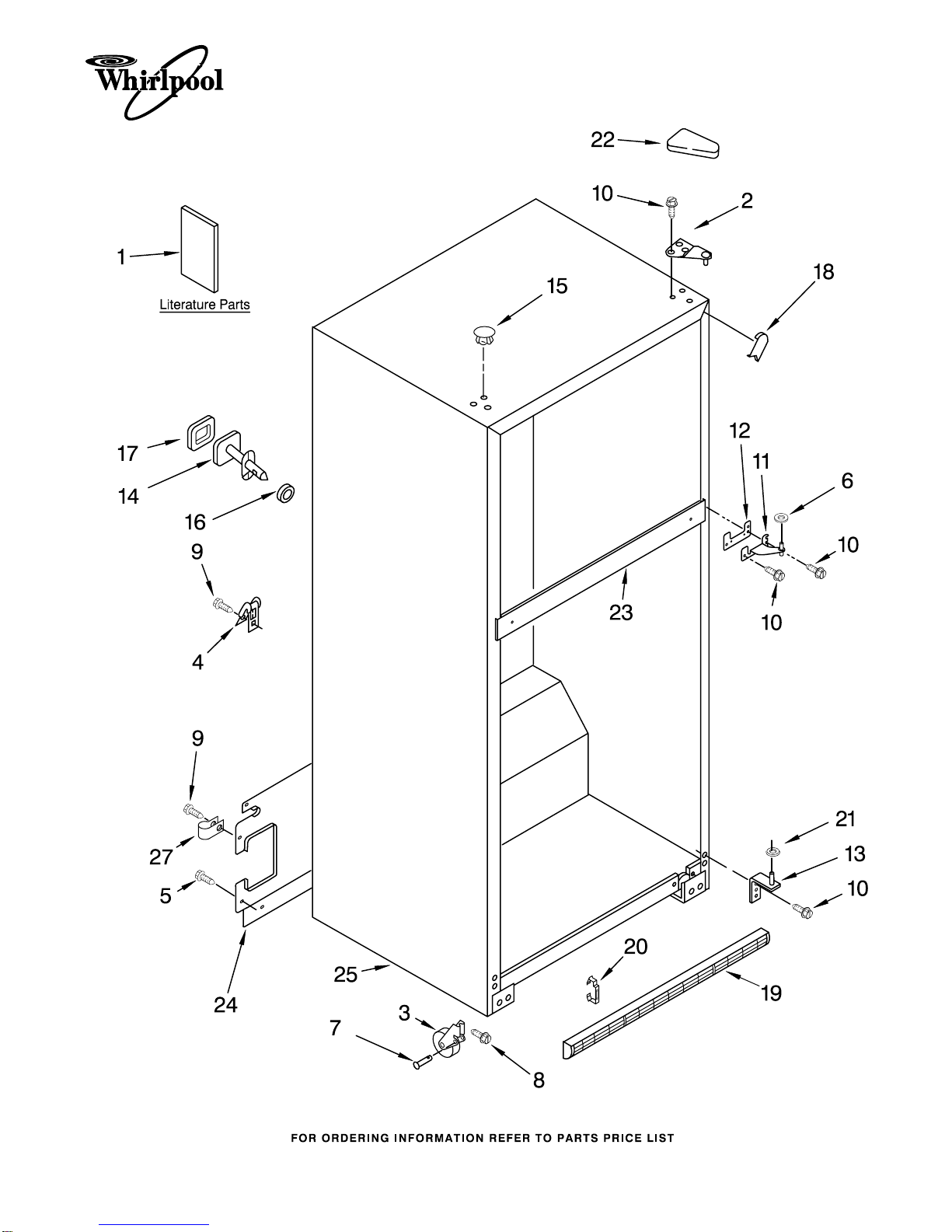

CABINET PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

1−07 Litho In U.S.A. (rrm) Part No. W10119813

REFRIGERATOR

CABINET PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2314274 Service &

Wiring Sheet

2319928 Energy Label

2314472 Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 549193 Clamp−Service Cord

5 489427 Screw

6 489341 Washer

7 2179826 Rivet

8 3400504 Screw

9 8281265 Screw

10 489497 Screw

11 2183972 Hinge, Center

12 2183854 Shim, Hinge

Center

13 2254473 Hinge Butt

14 Fitting, Water Tube

(Not Serviced)

15 Hole Plug (6)

2201012 White

2183998 Black

16 Seal, Front

(Not Serviced)

17 Seal, Rear

(Not Serviced)

18 Corner Filler (2)

2201014 White

2201017 Black

19 Grille

(Includes

Illus. 20)

2254313 White

2254315 Black

20 2189356 Clip, Grille (2)

21 487576 Washer

22 Cover, Hinge

2213360 White

2213363 Black

23 Rail, Center

(Not Serviced)

24 2254576 Cover, Unit

25 Cabinet (Not a

Serviceable Part)

27 489385 Tube Clamp

DOOR PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

DOOR PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 7 & 12)

2202519 White

2204867 Black

2218505 Stainless VCM

2 2195388 Tray, Door

3 Hole Plug, Endcap

2204837 White

2204840 Black

5 Endcap, Handle

2212624 White

2221644 Black

(Refrigerator)

6 489276 Screw

7 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

8 2210566 Housing

Compartment

9 2262218 Nameplate

10 2159306 Trim, Door Shelf

11 Freezer Door

(Includes

Illus. 12 & 13)

2202520 White

2204856 Black

2218508 Stainless VCM

12 2183003 Thimble

13 Door Gasket,

Magnetic

2214967 Mist Beige

2214969 Black

14 2204813 Bin, Door Shelf

15 2189202 Bracket, Door

Stop (2)

16 Hole Plug

2212648 White

2212651 Black

17 2177340 Endcap, Trim (2)

18 2156006 Plug, Trim

19 2218109 Compartment Door

20 Endcap, Handle

(Freezer)

2225094 White

2225108 Black

21 2195947 Trim, Door (2)

22 2195916 Endcap, Trim (4)

23 2195948 Trim, Door

LINER PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

LINER PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2304099 Defrost Timer

5 2204640 Thermostat, Tube

Barrier

6 941839 Hole Plug

7 2310077 Wire Assembly

Control Box

8 2162085 Socket, Light

9 8534009 Screw (2)

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218380 Control Box

13 2225460 Thermostat

14 489478 Screw

15 488208 Screw

16 2254263 Cover, Evaporator

17 2160708 Light Bulb

18 2254454 Bracket

Evap. Fan, Rear

19 1118894 Switch, Rocker Arm

20 2320183 Retainer−Screw (2)

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2212439 Air Separator

Assembly

27 2205003 Cover, Hole

28 2210509 Valve−Tube, Body

29 2254453 Bracket,

Fan Motor

31 2204639 Shield, Heat

32 487996 Cap

33 2310099 Wire Assembly

Freezer Compartment

(Includes Item 34)

34 2319915 Defrost, BI−Metal

UNIT PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

UNIT PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225596 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533859 Screw

7 2254295 Drain Pan

8 2319835 Grommet,Cond.(4)

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

12 4387731 Cover

(Service Only)

2162358 Production

13 4387938 Overload

(Service Only)

2302290 Production

14 Grommet (4)

1100826 Production

4387558 Service

15 2258450 Start−Device

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

23 2201185 Support Block

24 3400518 Screw

28 2225647 Compressor

(Includes Items

12,13,14,29

29 Drier

2317845 Service

30 2155774 Clamp

33 2315541 Air Baffle

34 2188728 Motor, Condenser

35 2310235 Wire Assy, Unit

36 2225834 Fan Blade

37 2205294 Tube, Discharge

38 2205293 Tube, Suction

39 2212848 Tube, Process

40 488500 Screw

41 2300635 Tray, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

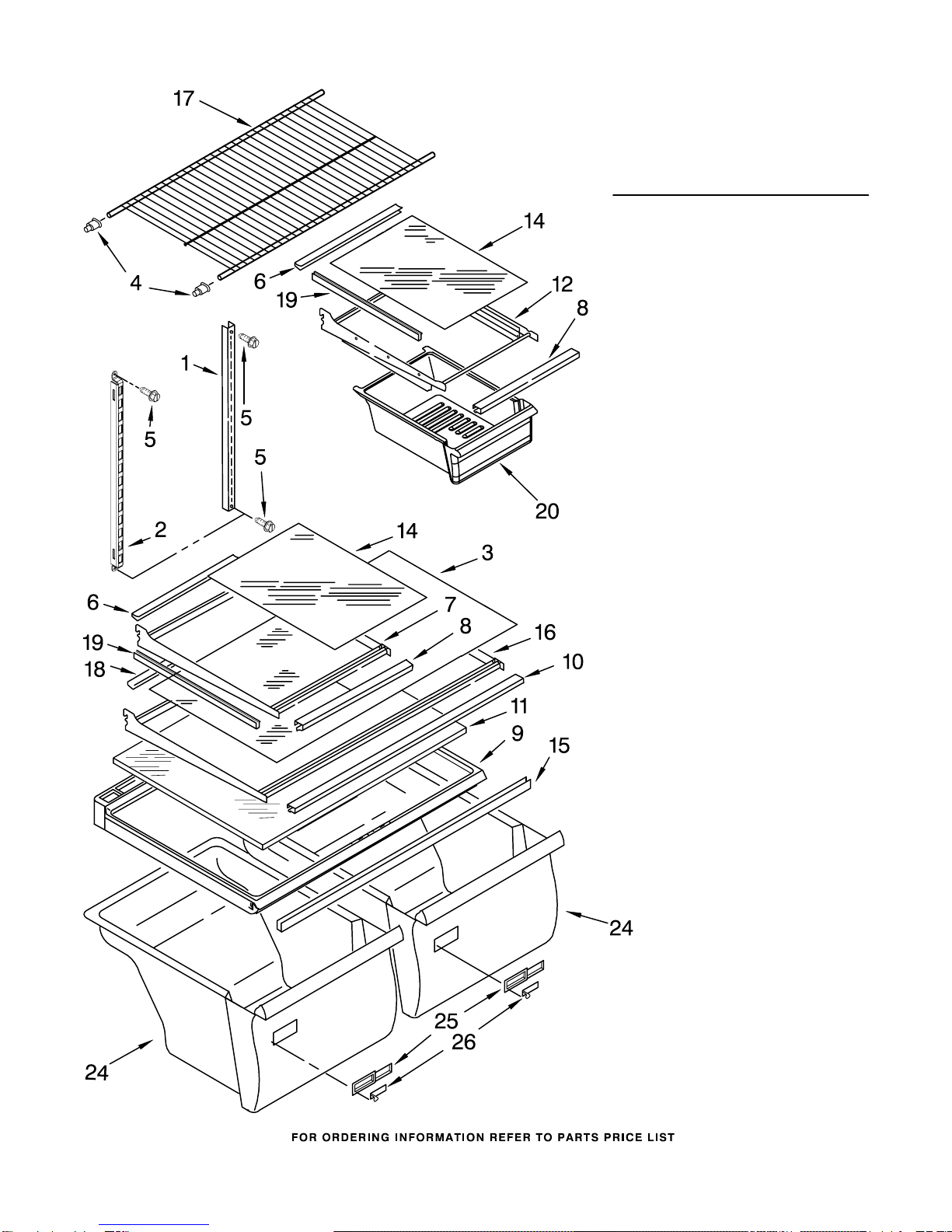

SHELF PARTS

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2200988 Glass, Full Shelf

4 2163762 Cup, Shelf Mtg.

5 489478 Screw

6 2188687 Trim Shelf, Rear

7 2201102E Shelf,

Cantilever

8 2188685 Trim, Shelf Front

9 2314502 Crisper Cover

10 2188691 Trim Shelf, Front

11 2210573 Insert, Crisper

Cover

12 2201106 Pan Shelf,

Cantilever

14 2200987 Glass, Shelf

15 2314478 Crisper Support

16 2201104E Shelf, Full

Cantilever

17 2189454 Shelf, Freezer

18 2188689 Trim, Shelf Rear

19 2188711 Trim Shelf, Side

20 2218132K Pan, Meat

24 2218130 Crisper Pan

(Includes 25 & 26)

25 2212446 Body, Humidity

Control

26 2176222 Slide, Humidity

Control

OPTIONAL PARTS (NOT INCLUDED)

For Models: ER2MHKXPL06, ER2MHKXPQ06, ER2MHKXPB06

(Stainless−VCM) (White) (Black)

W10119813

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
