Whirlpool GI6SDRXXQ Fehlerbehebungshandbuch

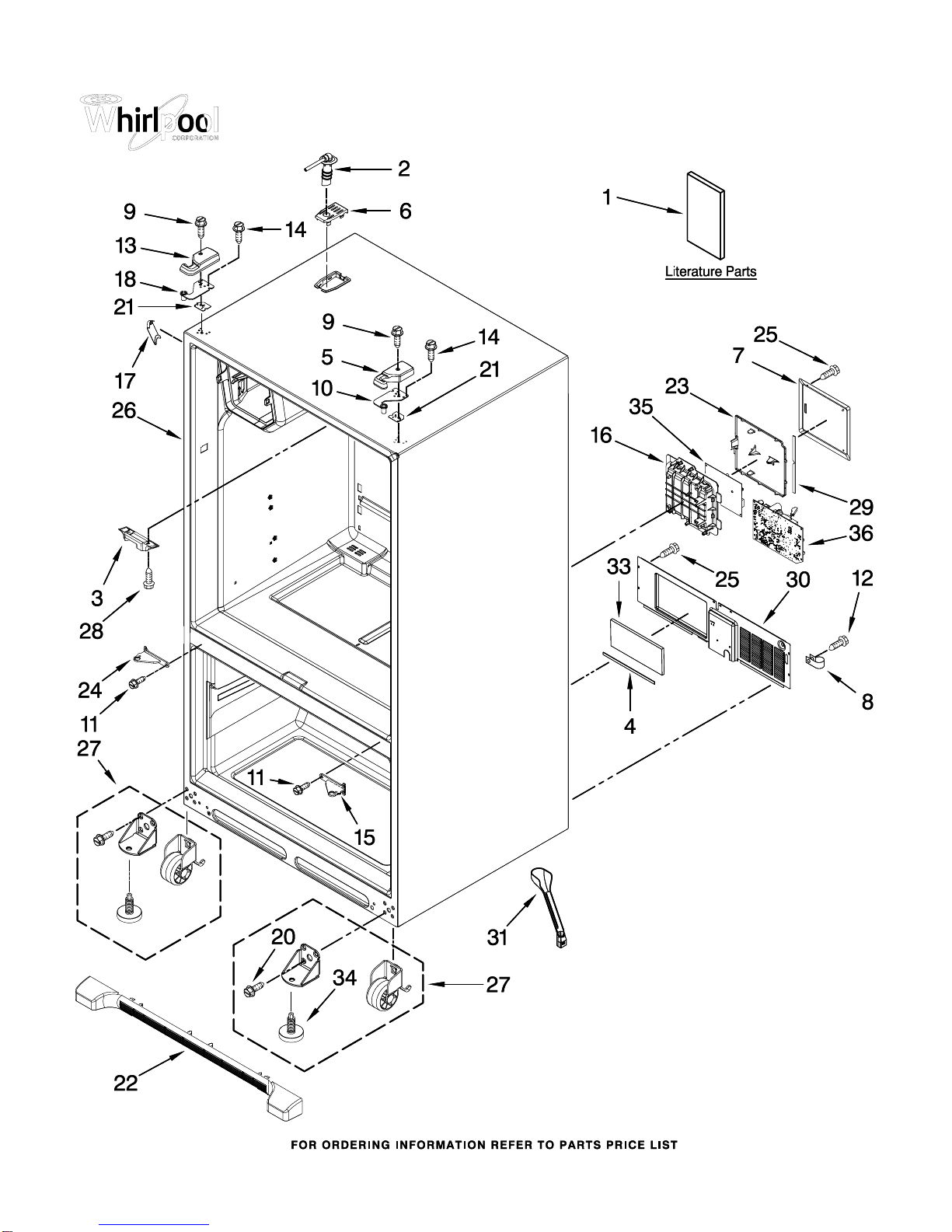

CABINET PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

REFRIGERATOR

1−11 Litho in U.S.A. (MMS) (psw) Part No. W10340671 Rev. B

CABINET PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10325984

Tech Sheet

W10314956

Use & Care Guide

W10310959

Guide, Energy

2 12961401 Tube W/Waterline,

Fill−IM

3 12698403 Block, Pivot

4 B5759655 Gasket, MC Back

5 Cover, Top Hinge

(Right)

12962302W

White

12962302B

Black

12962302AP

Apollo Grey

6 Cover, Fill Tube

12981401W

White

12981401B

Black

12981401AP

Apollo Grey

7 12961602 Cover, Control Box

8 M0108107 Clamp, Tube

9 12992602 Screw, Hinge Cover

12963205ED

Hinge, Top Right

11 12992201 Screw, Center

Hinge

12 12990511 Screw (3)

13 Cover, Top Hinge

(Left)

12962301W

White

12962301B

Black

12962301AP

Apollo Grey

14 12992403 Screw, Top Hinge

15 Hinge, Center (RT)

13000002WD

White

13000008ED

Black

13000002AP

Apollo Grey

W10285271

Box, HV Control

17 Cover, Corner (2)

12587703W

White

12587703B

Black

12587703AP

Apollo Grey

12963204ED

Hinge, Top Left

20 12991302 Screw (8)

21 Shim, Top Hinge

12999501 Left

12999502 Right

22 Grille, Toe

W10244559

White

W10244561

Black

W10244558

Apollo Grey

12957702K

Lid, HV Control

24 Hinge, Center (LT)

13000001WD

White

13000007ED

Black

13000001AP

Apollo Grey

25 12990702 Screw, Cover

26 Cabinet (Not A

Servicable Part)

27 Roller Assembly

W10275849

Right

W10275850

Left

28 12990302 Screw, Block

12957801K

Gasket, HV Control

W10319847

Cover, MC Back

W10210988

Tube, Drain

33 12820505 Fiber, Acoustic

W10141622

Brake, Foot

W10285199

Board, HV Control

W10226427

Supply, Power

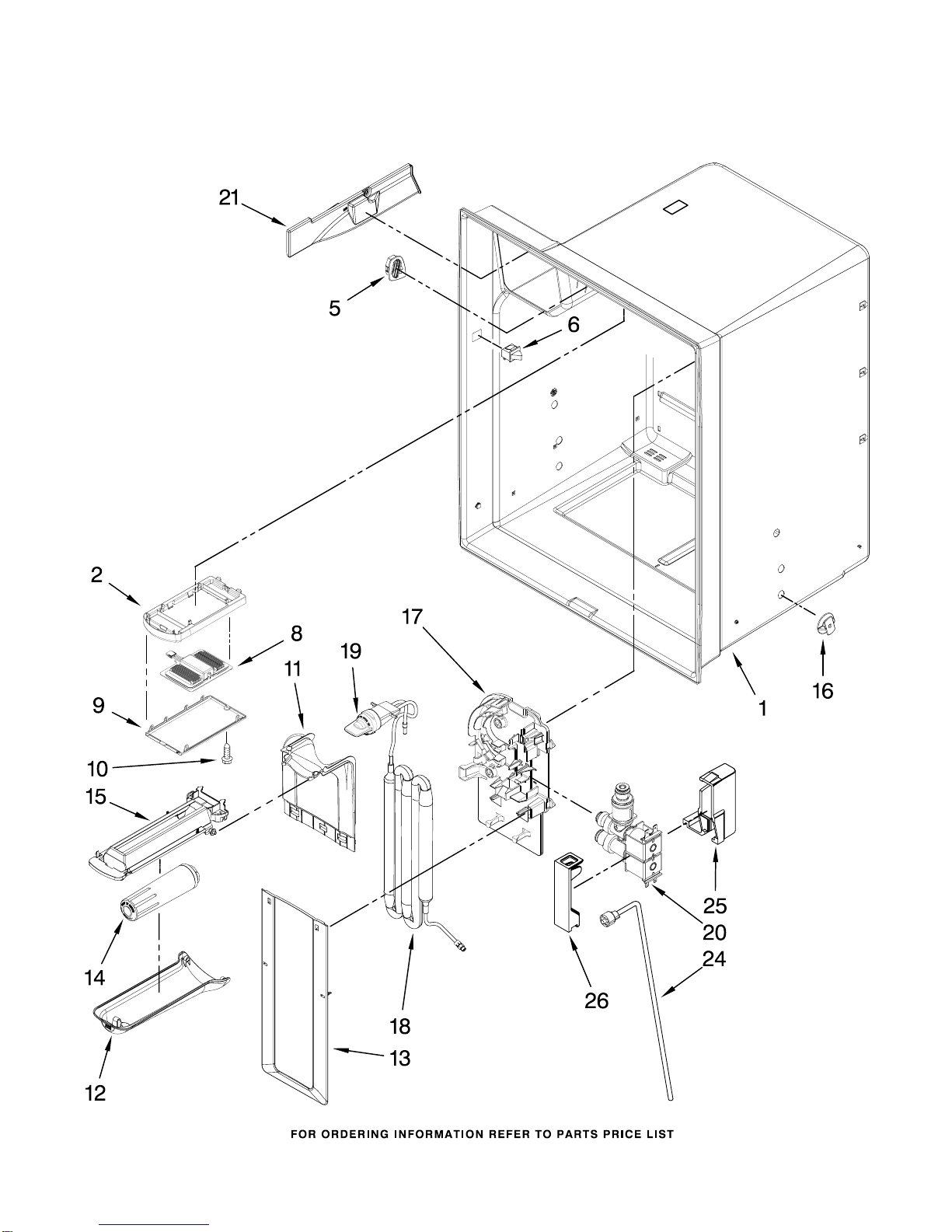

REFRIGERATOR LINER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

REFRIGERATOR LINER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10311734

Housing, Led

5 13008201 Grille, Air

6 12466103 Switch, Light (2)

W10289592

Light, Main Led

W10311756

Lens, RC Led

12990204N

Screw

11 12960101 Cover, Water Tank

(Upper)

12 12960301 Lid, Water Filter

13 12960001 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 12955901 Bracket, Filter

Base

W10190541

Mount, Crisper

17 12956001 Bracket, Water

Tank & Valve

W10336610

Water Tank &

Head Assembly

12664501SP

Plug, Bypass

W10312696

Valve, Dual Water

W10309869

Cover, Ice Box

Harness

W10290356

Waterline, Cabinet

(W/Nut)

W10118193

Enclosure, Water

Valve Connector

W10118194

Lid, Enclosure

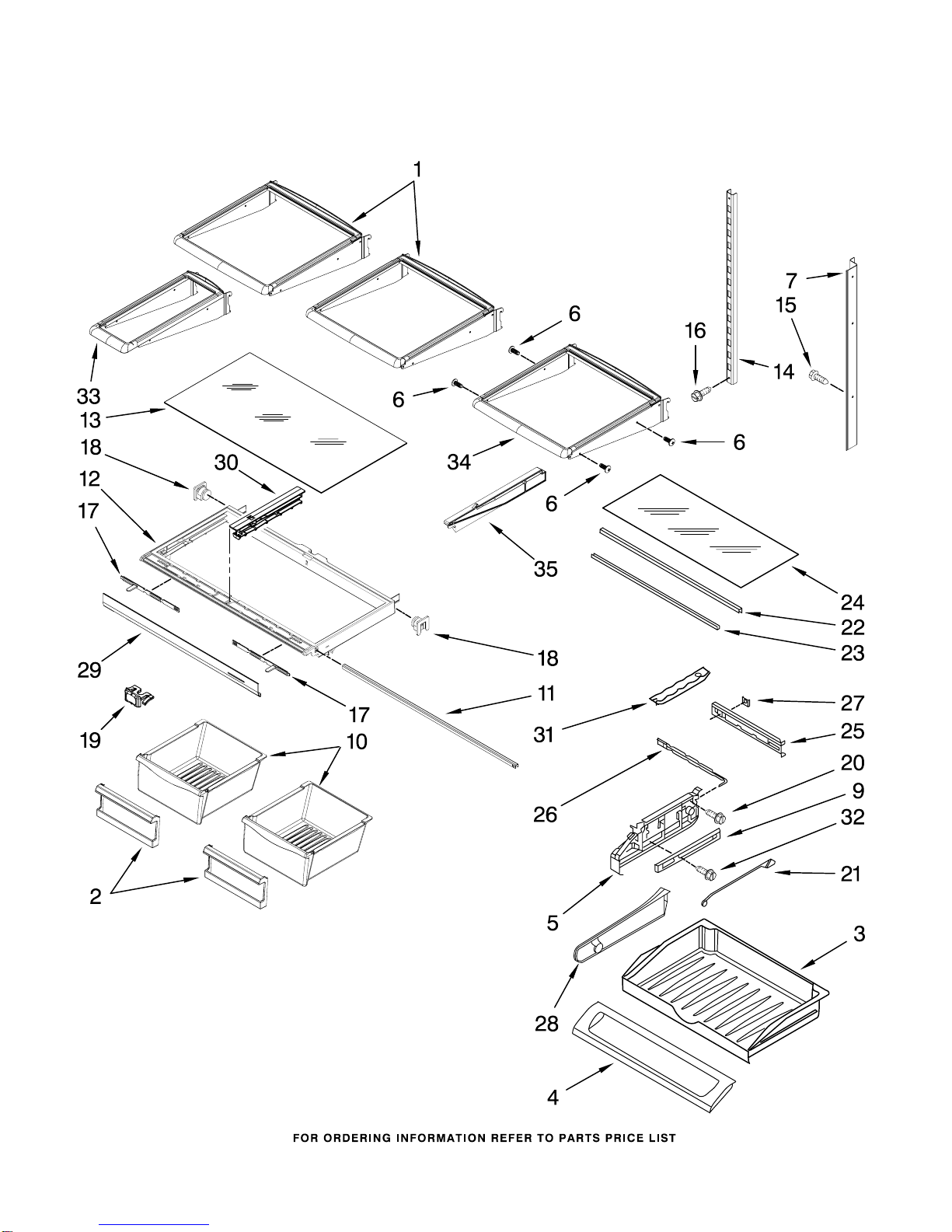

SHELF PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

SHELF PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

Illus. Part

No. No. DESCRIPTION

1 12883507 Shelf, Glide

12727402SP

Handle, Crisper

Pan (2)

3 12731302 Drawer, Pantry

4 12656815 Lid, Pantry

5 Endcap, Pantry

12656019 Right

12656106 Left

6 12990302 Track, Pantry

7 Ladder, Side

W10251965

Left

W10251966

Left

W10235370

Glide, Pantry

12804601SP

Pan, Crisper (2)

12642303WD

Brace, Crisper

Cover

12796301SP

Frame, Crisper

13 12204824 Glass, Crisper

Cover

W10273464

Ladder, Center

15 12990513 Screw

16 12990515 Screw (2)

12530805SP

Slide, Humidity

Control

18 13062602 Supports,

Crisper Frame

12655204V

Knob, Humidity

Control

12990504V

Screw

21 12655304 Rod, Temp Control

12655902SP

Extr,Glass Support

12227305WD

Brace, Pantry

24 12204830 Shelf, Glass

25 12656202 Control, Housing

26 12655402 Slide, Temperature

27 12656901 Gasket, Pantry

28 12731901 Divider, Pantry

W10323218

Trim, Crisper

30 12796401 Rail, Center

31 12531901 Track, Deli

32 12990512 Screw

12885501N

Shelf, Mini

12883508SP

Shelf, Glide

35 Glide, Snack Pan

W10194031

Left

W10194032

Right

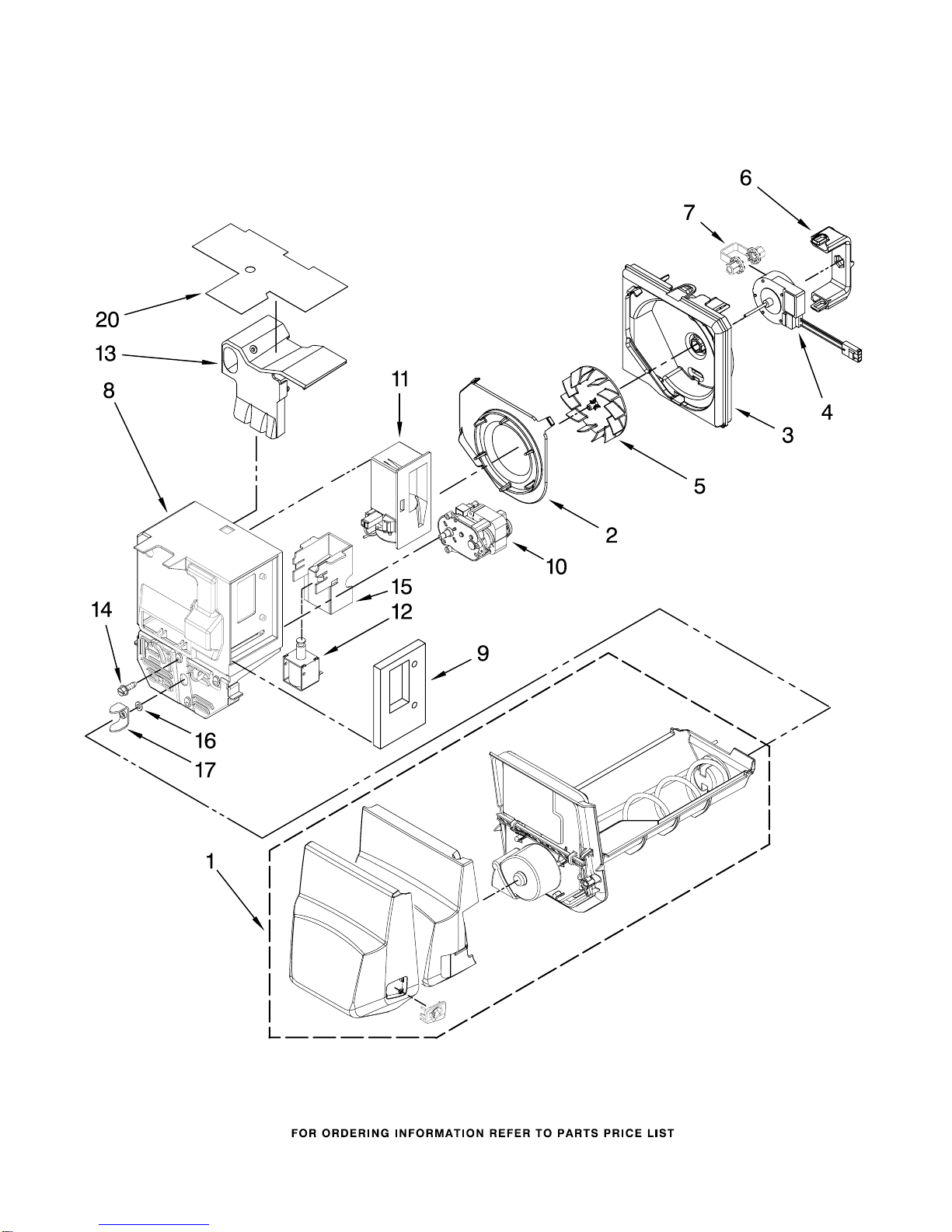

MOTOR AND ICE CONTAINER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

MOTOR AND ICE CONTAINER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

Illus. Part

No. No. DESCRIPTION

W10337301

Ice Bin Assembly

(Includes Auger)

W10121282

Inlet, Blower

W10309863

Scroll, Blower

W10308033

Motor, Fan

W10123444

Wheel, Blower

6 12956603 Clip, Fan Motor

W10151687

Grommet, Fan Motor

W10309864

Divider, Ice Box

9 12920001 Gasket, Damper

W10309868

Motor, Auger

W10196393

Damper, Control

W10309866

Solenoid

W10118612

Liner, Divider

14 12990511 Screw (3)

W10309865

Bracket, Solenoid

420107A700

Washer

63052A001

Yoke, Ice

Dispenser

W10142628

Foil, Ice Box

ICEMAKER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

ICEMAKER PARTS

For Models: GI6SDRXXQ00, GI6SDRXXB00, GI6SDRXXV00, GI6SDRXXY00

(White) (Black) (Apollo Grey) (Monochromatic Stainless)

W10340671

Illus. Part

No. No. DESCRIPTION

W10300025

Mold & Heater

Assembly (Also

Order 542638

Grease)

W10175514

Arm, Shutoff

W10122561

Cup, Fill

W10318914

Ejector

W10122563

Ice Stripper

6 2194712 Support, Housing

7 2315522 Retainer,

Thermostat

8 628532 Thermostat

(Also Order 542369

Cement)

W10001240

Screw (3)

W10121440

Extension, Shutoff

Arm

11 8533917 Screw (2)

W10290556

Cover

13 2188784 Valve, Single

W10312691

Impinger Assy.

W10322960

Harness, Icemaker

16 12990511 Screw, Impinger

17 626691 Module Assembly

W10001240

Screw (3)

19 628379 Clip

W10121434

Insert, Fill Cup

100

W10300024

Icemaker Assembly

Following Parts Not Illustrated

10244904SP

Coupling
