CABINET PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

03−06 Litho In U.S.A. (rrm) Part No. 8214849

REFRIGERATOR

CABINET PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2314273 Service &

Wiring Sheet

2302166 Energy Label

2314472 Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

5 489427 Screw

6 489341 Washer

7 2179826 Rivet

8 3400504 Screw

10 489497 Screw

11 2183972 Hinge, Center

12 2183854 Shim, Hinge

Center

13 2189194 Hinge Butt

14 Fitting, Water Tube

(Not Serviced)

15 2183998 Hole Plug (6)

16 Seal, Front

(Not Serviced)

17 Seal, Rear

(Not Serviced)

18 2201017 Corner Filler (2)

19 2254315 Grille

(Includes

Illus. 20)

20 2189356 Clip, Grille (2)

21 487576 Washer

22 2213363 Cover, Hinge

23 Rail, Center

(Not Serviced)

24 2202884 Cover, Unit

25 Cabinet (Not a

Serviceable Part)

26 2172743 Spacer, Hinge

Bottom

DOOR PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

DOOR PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION

1 2218505 Refrigerator Door

(Includes

Illus. 7 & 12)

2 2195388 Tray, Door

3 2204840 Hole Plug, Endcap

5 2221644 Endcap, Handle

(Refrigerator)

6 489276 Screw

7 2202882 Door Gasket,

Magnetic

8 2210566 Housing

Compartment

9 2262218 Nameplate

10 2159306 Trim, Door Shelf

11 2218508 Freezer Door

(Includes

Illus. 12 & 13)

12 2183003 Thimble

13 2214969 Door Gasket,

Magnetic

14 2204813 Bin, Door Shelf

15 2189202 Bracket, Door

Stop (2)

16 2212651 Hole Plug

17 2177340 Endcap, Trim (2)

18 2156006 Plug, Trim

19 2218109 Compartment Door

20 2225108 Endcap, Handle

(Freezer)

21 2195947 Trim, Door (2)

22 2195916 Endcap, Trim (4)

23 2195948 Trim, Door

LINER PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

LINER PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2314156 Defrost Timer

5 2204640 Thermostat, Tube

Barrier

6 941839 Hole Plug

7 2310078 Wire Assembly

Control Box

8 2162085 Socket, Light

9 98129 Screw (2)

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218381 Control Box

13 2225460 Thermostat

14 489478 Screw

15 488208 Screw

16 2254263 Cover, Evaporator

17 2160708 Light Bulb

18 2254454 Bracket

Evap. Fan, Rear

19 1118894 Switch, Rocker Arm

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2212439 Air Separator

Assembly

27 2205003 Cover, Hole

28 2210509 Valve−Tube, Body

29 2254453 Bracket,

Fan Motor

31 2204639 Shield, Heat

32 487996 Cap

33 2310043 Wire Assembly

Freezer Compartment

(Includes Item 34)

34 2314158 Defrost, BI−Metal

35 940014 Hole Plug,

Control Box

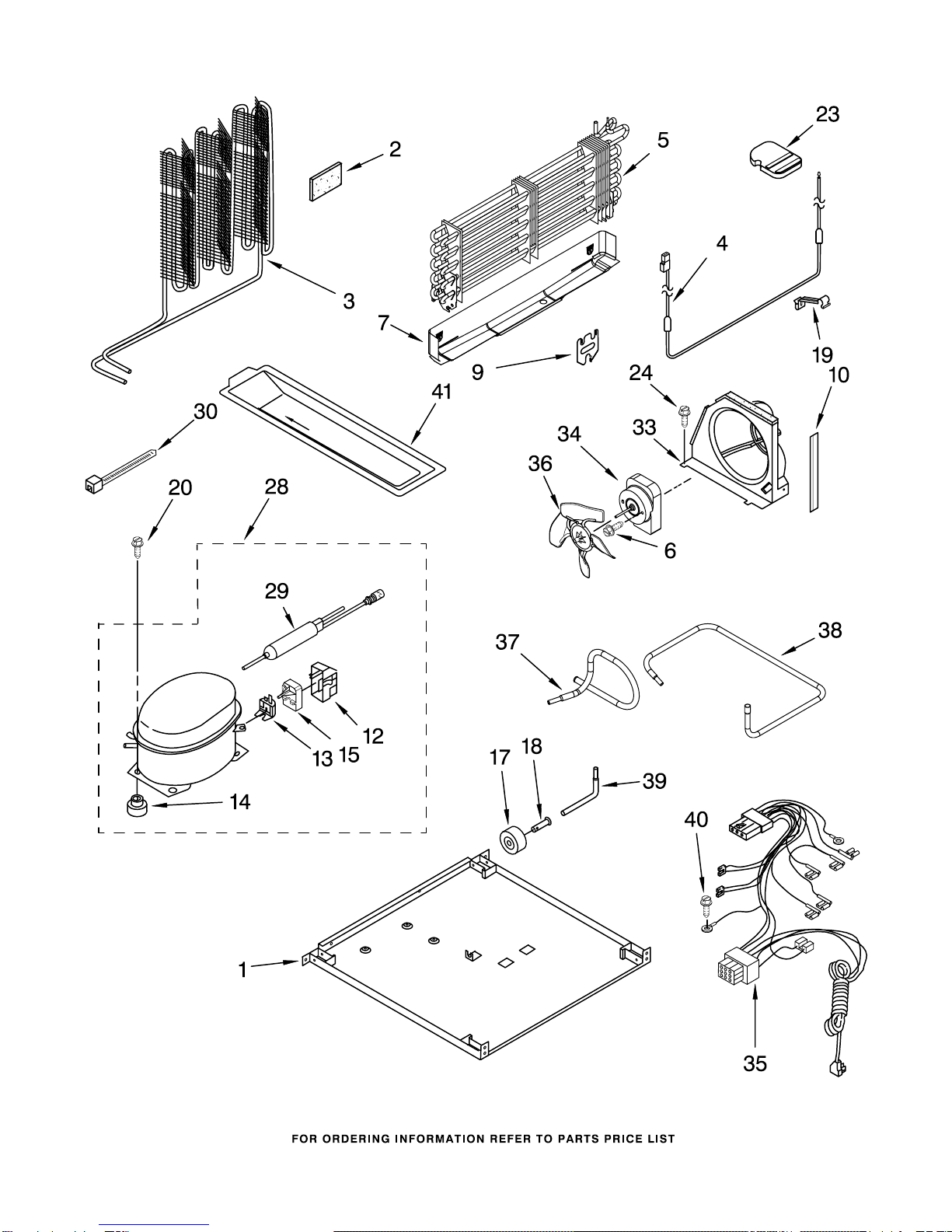

UNIT PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

UNIT PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225596 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533859 Screw

7 2254295 Drain Pan

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

12 4387731 Cover

(Service Only)

2162358 Production

13 4387938 Overload

(Service Only)

2302290 Production

14 Grommet (4)

1100826 Production

4387558 Service

15 2258450 Start−Device

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

23 2201185 Support Block

24 3400518 Screw

28 2225647 Compressor

(Includes Items

12,13,14,29

29 Drier

2319825 Production

4387019 Service

30 2155774 Clamp

33 2302249 Air Baffle

34 2188874 Motor, Condenser

35 2187764 Wire Assy, Unit

36 2225834 Fan Blade

37 2205294 Tube, Discharge

38 2205293 Tube, Suction

39 2212848 Tube, Process

40 488500 Screw

41 2300635 Tray, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

SHELF PARTS

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2200988 Glass, Full Shelf

4 2163762 Cup, Shelf Mtg.

5 489478 Screw

6 2188687 Trim Shelf, Rear

7 2201102E Shelf,

Cantilever

8 2188685 Trim, Shelf Front

9 2210526 Crisper Cover

10 2188691 Trim Shelf, Front

11 2210573 Insert, Crisper

Cover

12 2201106 Pan Shelf,

Cantilever

14 2200987 Glass, Shelf

15 2314478 Crisper Support

16 2201104E Shelf, Full

Cantilever

17 2189454 Shelf, Freezer

18 2188689 Trim, Shelf Rear

19 2188711 Trim Shelf, Side

20 2218132K Pan, Meat

24 2218130 Crisper Pan

(Includes 25 & 26)

25 2212446 Body, Humidity

Control

26 2176222 Slide, Humidity

Control

OPTIONAL PARTS (NOT INCLUDED)

For Models: ER2MHKXPL04

(Stainless−VCM)

8214849

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
