Whirlpool ET6WSKXSQ02 Bedienungsanleitung

CABINET PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

10−07 Litho In U.S.A. (rrm) Part No. W10169363 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10155304

Service &

Wiring Sheet

W10123841

Energy Label

2316016 Use & Care Guide

2 2261963 Hinge (Top)

3 2324094 Roller−Front

4 489341 Washer

5 488296 Washer

6 487576 Washer (7/64)

7 2222100 Screw

8 549193 Clamp−Cord

9 489497 Screw

10 2166086 Hinge, Center

11 2166043 Shim, Hinge

Center

12 2221926 Hinge Butt

13 9791682 Hinge−Pin Bott.

14 3428970 Screw

15 2201567 Shim, Bottom

Hinge

16 2174760 Fitting, Water

Tube

17 Hole Plug

2201012 White

2200924 Biscuit

18 1106508 Seal

19 2262176 Screw

20 Corner Filler

2166003 White

2202282 Biscuit

21 487996 Cap

Bushing

22 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

DOOR PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 9 & 14)

2316340W White

2316340T Biscuit

3 8281206 Screw

4 2156003 Trim, Endcap

5 Handle,

Refrigerator

2221946W White

2221946T Biscuit

6 489357 Screw

8 8281146 Screw

9 2264507 Door Gasket,

Magnetic

10 Screw Cover

2202819W White

2202819T Biscuit

11 2262218 Nameplate

13 2266729 Trim, Door Shelf

14 2262054 Thimble

15 2266738 Trim, Door

16 Freezer Door

2316341W White

2316341T Biscuit

(Includes

Illus. 14 & 18)

17 Hole Plug,

Handle

2189000 White

2200936 Biscuit

18 2263257 Door Gasket,

Magnetic

19 2189202 Bracket, Door Stop

20 488921 Screw

21 Hole Plug

2212648 White

2212649 Biscuit

22 2156007 Plug, Trim

23 2195916 Trim, Endcap

25 Handle, Freezer

2202098 White

2215015 Biscuit

26 2266727 Trim, Endcap

27 984493 Handle,Door

Snap in

29 2262996 Kit for Omit

Bow Handle Unit

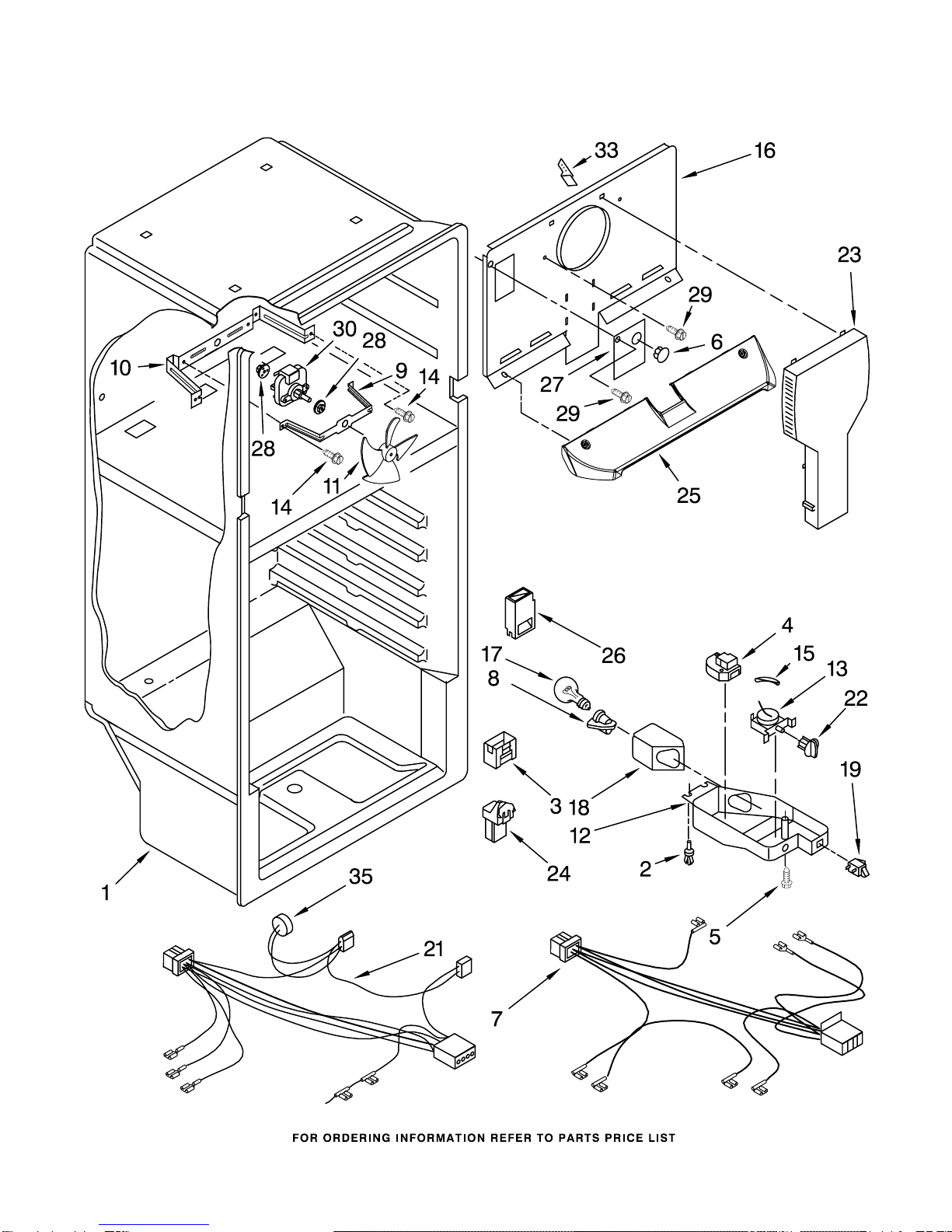

LINER PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

LINER PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet−Plastic

3 2183061 Cover, Air Diffuser

4 2188371 Timer, Defrost

5 489174 Screw

6 941839 Hole Plug

7 2265929 Wire Assy.

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

& Bracket Assy.

11 2169141 Fan Blade

12 2215213 Control Box

13 2325700 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264669 Cover−Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

21 2319440 Wiring−Freezer

(Includes Item 35)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2221992 Air Diffuser

27 2217784 Cover, Hole

28 2264462 Grommet−Motor

29 489478 Screw

30 2319208 Evaporator Fan

Motor

33 2197416 Deflector, Air

35 2266066 Defrost, BI−Metal

UNIT PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

UNIT PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10127453

Support Plate,

Compressor

2 489442 Screw

3 2252730 Condenser

4 2263749 Heater, Defrost

7 2319224 Heat Shield

W10141545

Retainer

10 8533892 Screw

11 VS611 Washer

12 2176844 Spacer

W10141543

Ext. Tube−Heat

14 Grommet

2222084 Production

4387558 Service

W10128791

Start−Device

Combination

(Start Relay &

Overload for

Production

Compressor Only)

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Rivet

19 2262191 Wedge−Evap.

20 2263920 Evaporator Assy.

W10140201

Tube, Process

23 2262192 Wedge−Evap.

24 489153 Hex Nut

25 2172892 Clip, Condenser

Mounting

26 2258452 Bracket, Condenser

27 2256637 Screw

W10141544

Compressor

(Includes Items

14,29,& 32)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

2317845 Service

30 2263990 Strap

31 2161302 Sleeve

32 Capacitator

1118576 Service

2264017 Production

37 24364001 Clip, Compressor

W10151654

Wire Assy. Unit

39 2176668 Tray Evaporator

W10141038

Tube, Discharge

(Incl. Pre−Cooler)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

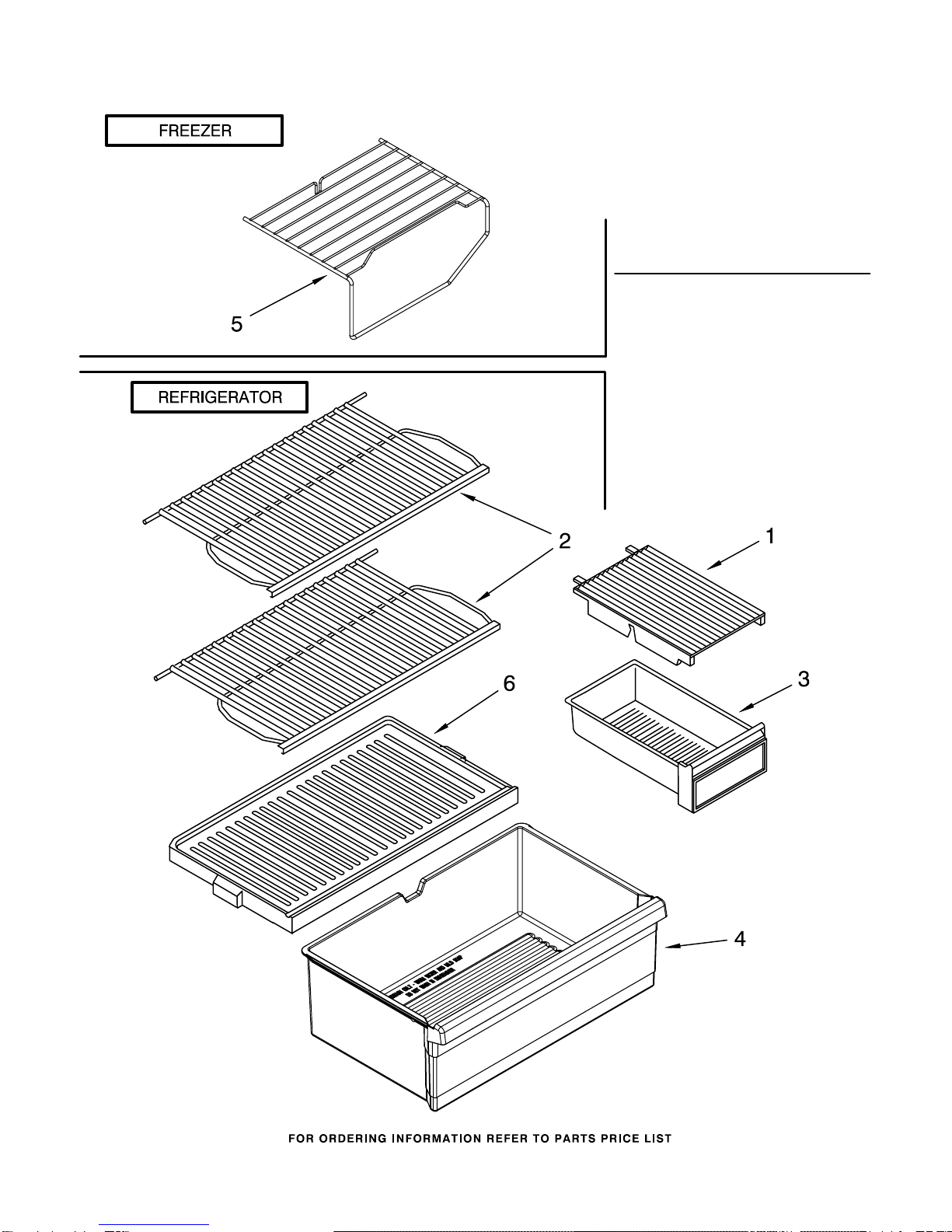

SHELF PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION

1 9790379 Cover, Meat Pan

2 2192515 Shelf (2)

3 2183273 Meat Pan

4 2192009 Crisper Pan

5 2262654 Shelf, Ice Tray

6 9791600 Glass, Cover

OPTIONAL PARTS

For Models: ET6WSKXSQ02, ET6WSKXST02

(White) (Biscuit)

W10169363

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
