Whirlpool GI5FVAXVB02 Bedienungsanleitung

CABINET PARTS

For Models: GI5FVAXVB02

(Black)

8−09 Litho In U.S.A. (mat) (psw) Part No. W10288065 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10238848

Tech Sheet

12828185SP

Use & Care Guide

W10202396

Guide, Energy

2 12961401 Tube W/Waterline,

Fill−IM

3 12698403 Block, Pivot

4 B5759655 Gasket, MC Back

5 Cover, Top Hinge

(Right)

12962302B

Black

6 Cover, Fill Tube

12981401B

Black

7 12961602 Cover, Control Box

8 M0108105 Clamp, Tube

9 12992602 Screw, Hinge Cover

12963205ED

Hinge, Top Right

11 12992201 Screw, Center

Hinge

12 12990511 Screw (3)

13 Cover, Top Hinge

(Left)

12962301B

Black

14 12992403 Screw, Top Hinge

15 Hinge, Center (RT)

13000008ED

Black

16 12957601 Box, HV Control

17 Cover, Corner (2)

12587703B

Black

12963204ED

Hinge, Top Left

12906303WD

Foot, Cabinet

20 12991302 Screw (8)

21 Shim, Top Hinge

12999501 Left

12999502 Right

22 Grille, Toe

12880103B

Black

23 12957701 Lid, HV Control

24 Hinge, Center (LT)

13000007ED

Black

25 12990702 Screw, Cover

26 Cabinet (Not A

Servicable Part)

27 12580304 Roller Assembly

28 12990302 Screw, Block

29 12957801 Gasket, HV Control

W10211858

Cover, MC Back

W10210988

Tube, Drain

33 12820505 Fiber, Acoustic

34 10354002 Brake, Foot

W10213583

Board, HV Control

REFRIGERATOR LINER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

REFRIGERATOR LINER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12905803 Module, Light

3 12691605 Foil, Light

4 12921801 Cover, Light

5 13008201 Grille, Air

6 12466103 Switch, Light (2)

7 12905902 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light

10 12570701 Socket, Light

11 12960101 Cover, Water Tank

(Upper)

12 12960301 Lid, Water Filter

13 12960001 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 12955901 Bracket, Filter

Base

16 12002355 Thermistor

17 12956001 Bracket, Water

Tank & Valve

18 12956202 Water Tank &

Head Assembly

12664501SP

Plug, Bypass

20 12956102 Valve, Water Inlet

21 12960901 Cover, Ice Box

Harness

24 12962204 Waterline, Cabinet

(W/Nut)

W10118193

Enclosure, Water

Valve Connector

W10118194

Lid, Enclosure

SHELF PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

SHELF PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

Illus. Part

No. No. DESCRIPTION

12883508SP

Shelf, Glide

W10141531

Handle, Crisper

Pan (2)

3 12885501 Shelf, Mini

(Stationary)

W10194031

Glide, Snack Pan

Left Hand

W10194032

Glide, Snack Pan

Right Hand

6 12990302 Track, Pantry

7 13039301 Ladder, Side

8 12883507 Shelf, Glide (1)

9 12503805 Rack, Bottle

W10141529

Pan, Crisper (2)

W10119258

Brace, Crisper

Cover

W10200927

Frame, Crisper

13 12204826 Glass, Crisper

Cover

14 12435809 Ladder, Center

15 12990513 Screw

16 12990515 Screw (2)

W10141530

Slide, Humidity

Control

18 13062602 Supports,

Crisper Frame

19 2223309 Knob, Humidity

Control

MOTOR AND ICE CONTAINER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

MOTOR AND ICE CONTAINER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

Illus. Part

No. No. DESCRIPTION

1 13012606 Ice Bin Assembly

(Includes Auger)

W10121282

Inlet, Blower

W10121281

Scroll, Blower

W10162697

Motor, Fan

W10123444

Wheel, Blower

12956603SP

Clip, Fan Motor

W10151687

Grommet, Fan Motor

12958408SP

Divider, Ice Box

12920001SP

Gasket, Damper

10 12955405 Motor, Auger

W10127427

Damper, Control

13028201SP

Solenoid

W10118612

Liner, Divider

14 12990511 Screw (3)

12958602SP

Bracket, Solenoid

420107A700

Washer

63052A001

Yoke, Ice

Dispenser

12958502SP

Yoke, Solenoid

12942401SP

Spring, Solenoid

W10142628

Foil, Ice Box

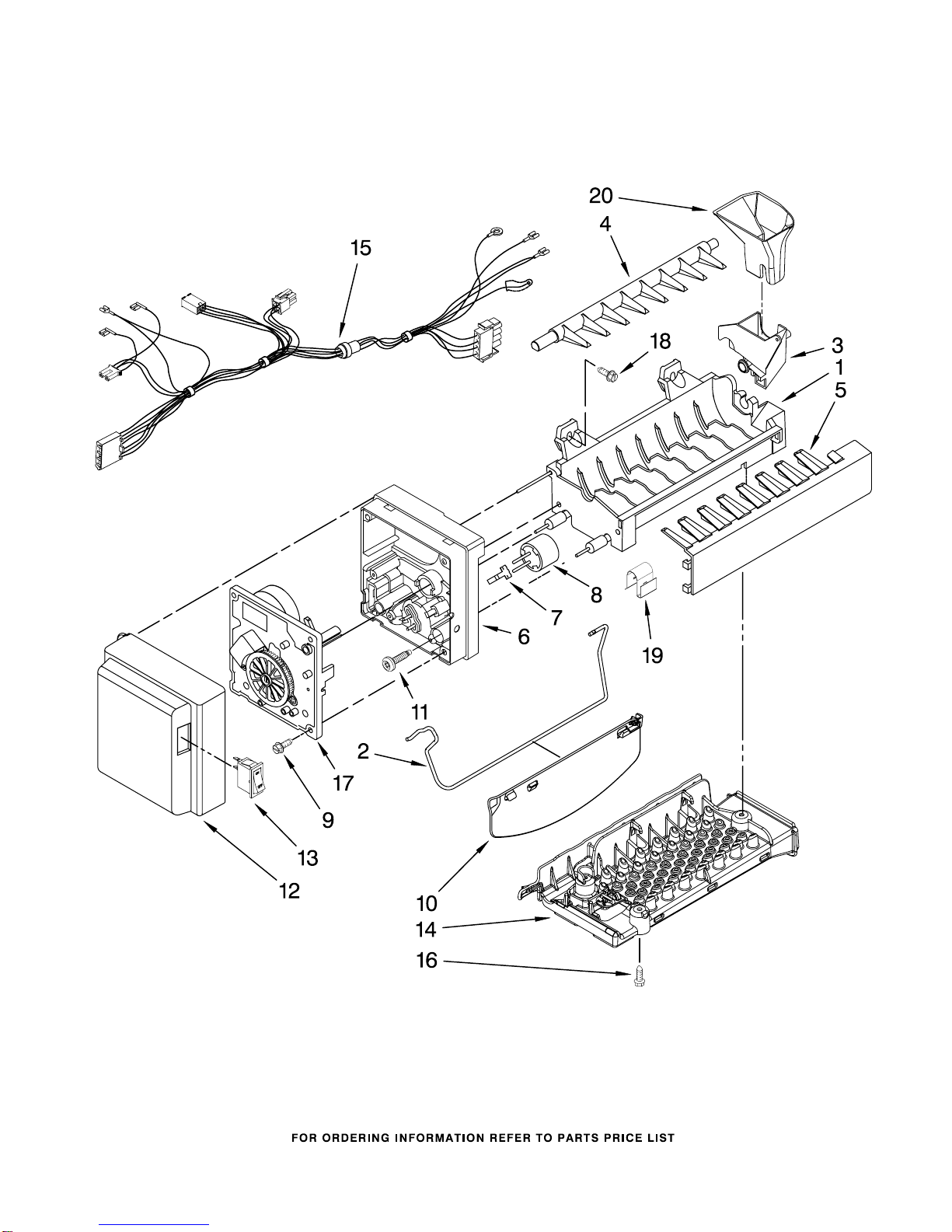

ICEMAKER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

ICEMAKER PARTS

For Models: GI5FVAXVB02

(Black)

W10288065

Illus. Part

No. No. DESCRIPTION

W10122527

Mold & Heater

Assembly (Also

Order 542638

Grease)

W10175514

Arm, Shutoff

3 628515 Cup, Fill

4 627843 Ejector

5 2182124 Ice Stripper

6 2194712 Support, Housing

7 2315522 Retainer,

Thermostat

8 628397 Thermostat

(Also Order 542369

Cement)

9 489276 Screw (3)

W10121440

Extension, Shutoff

Arm

11 8533917 Screw (2)

W10121444

Cover

13 2313326 Switch, On−Off

W10121269

Impinger Assy.

W10117806

Harness, Icemaker

16 12990511 Screw, Impinger

W10223929

Module Assembly

18 489276 Screw (3)

19 628379 Clip

W10121434

Insert, Fill Cup

100

W10190981

Icemaker Assembly

Following Parts Not Illustrated

10244904SP

Coupling
