CABINET PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

1−05 Litho In U.S.A. (djc) Part No. 8199266

REFRIGERATOR

CABINET PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2225759 Service &

Wiring Sheet

2302218 Energy Label

2302037 Use & Care Guide

2225413 Customer

Instructions

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

5 489385 Clamp, Tube

(Water Supply Line)

7 2179826 Rivet

8 3400504 Screw

12 549193 Clamp, Cord

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

18 8281265 Screw

20 2254473 Hinge Butt

24 Fitting, Water Tube

(NOT SERVICED)

25 2254385 Clip, Grille

27 Hole Plug (6)

2201012 White

2200924 Biscuit

2183998 Black

29 489427 Screw

35 Corner Filler (2)

2201014 White

2200926 Biscuit

2201017 Black

36 Grille

(Includes

Illus. 25 & 39)

2254386 White

2254389 Biscuit

2254388 Black

37 489341 Washer

38 487576 Washer

39 2189356 Clip, Grille

40 Cover, Hinge

2213360 White

2213364 Biscuit

2213363 Black

41 Rail, Center

(NOT SERVICED)

44 2221775 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

DOOR PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 2,3,9

& 11)

2183948 White

2205285 Biscuit

2213386 Black

2 939101 Screw Anchor

3 2183198 Tap Plate

5 Handle,

Refrigerator

2202807W White

2202807T Biscuit

2202807B Black

6 489357 Screw

8 8281146 Screw

9 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

11 2183003 Thimble

12 Cover, Screw

2202819W White

2202819T Biscuit

2202819B Black

13 2262218 Nameplate

15 2201052 Trim, Door

16 2180027 Trim, Door Shelf

17 8281206 Screw

18 2201051 Trim, Door

19 Freezer Door

(Includes

Illus. 3,11 & 23)

2182487 White

2205279 Biscuit

2200710 Black

20 Hole Plug,

Handle (1)

2189000 White

2200936 Biscuit

2189009 Black

23 Door Gasket,

Magnetic

2214966 Mist Beige

2214968 Black

25 2195943 Trim, Door Shelf

26 2189202 Bracket, Door

Stop (2)

27 488921 Screw

28 Hole Plug

Hinge (2)

2212648 White

2212649 Biscuit

2212651 Black

29 2156007 Plug, Trim (4)

30 2156006 Plug, Trim (4)

31 2218113 Compartment Door

32 2195915 Plug, Trim

33 Handle,

Freezer

2202806W White

2202806T Biscuit

2202806B Black

37 2201050 Trim, Door (2)

41 2156003 Endcap (4)

42 2195949 Trim, Door

LINER PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

LINER PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2188376 Defrost Timer

5 2204640 Thermostat Tube

Barrier

6 941839 Hole Plug

7 2187885 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

9 2214976 Bracket

Evap. Fan, Rear

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218381 Control Box

13 2225460 Thermostat Assembly

14 489478 Screw

15 693995 Screw

16 2254261 Cover, Evaporator

17 2160708 Light Bulb

18 2221677 Defrost, BI−Metal

19 1118894 Rocker Arm

Switch

20 940014 Hole Plug,

Control Box

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2210390 Air Separator

Assembly

27 2205003 Cover, Hole

29 2218696 Bracket,

Fan Motor

30 2214979 Bracket

Evap. Fan, Front

31 2204639 Shield, Heat

32 487996 Cap

33 2187686 Wire Assembly,

Freezer Compartment

(Includes

Illus. 18)

39 2171931 Release Valve

42 98129 Screw

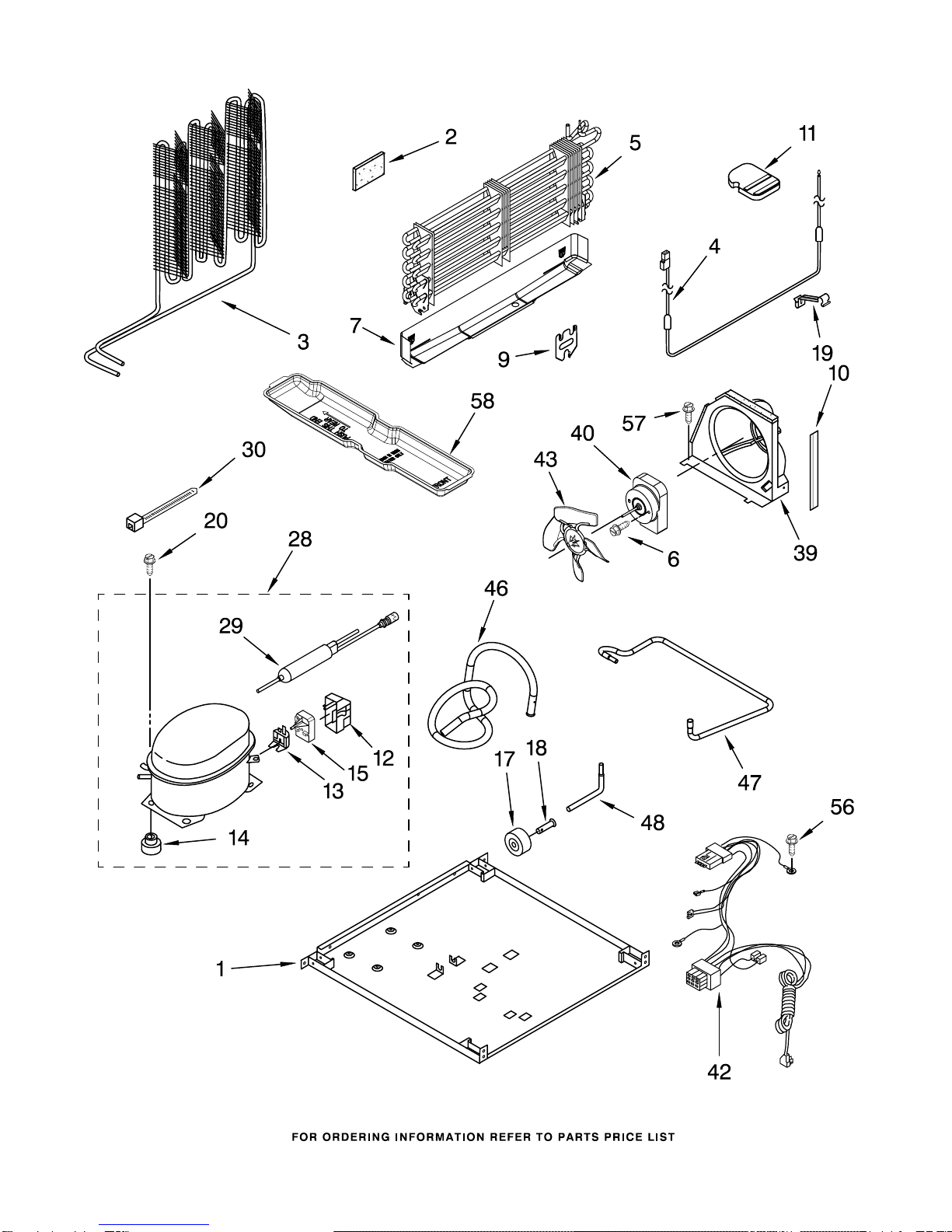

UNIT PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

UNIT PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225597 Plate, Unit

Mounting

2 2169104 Insullation,

Sound Dampening

3 2214960 Condenser

4 2176300 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533859 Screw

7 2254294 Drain Pan

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

11 2201184 Support Block

12 Cover

2162358 Production

4387731 Service

13 Overload

2302290 Production

4387938 Service

(Includes Relay)

14 Grommet (4)

1100826 Production

4387558 Service

15 2258450 Start−Relay

(Production

Compressor Only)

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

28 2225647 Compressor

(Includes Items

12,13,14 & 29)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

39 2302249 Air Baffle

40 2188874 Motor, Condenser

42 2187764 Wire Assy. Unit

43 2225834 Fan Blade

46 2205294 Tube, Discharge

47 2205293 Tube, Suction

48 2212848 Tube, Process

56 488500 Screw

57 3400518 Screw

58 2300635 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

SHELF PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION

2 2163856 Shelf (2)

3 2221752 Cover, Crisper

4 2218124 Pan, Crisper

5 2163762 Cup, Shelf Mounting

6 2172541 Support, Crisper

Cover

7 2163835 Track, Crisper

8 2189453 Shelf

9 2218123 Pan, Crisper

10 2221693 Insert, Crisper

Cover

11 2210522 Shelf Ladder (2)

12 2300520 Shelf Ladder,

Center

14 2218127K Meat Pan

15 2163848 Cover, Meat Pan

16 489478 Screw

OPTIONAL PARTS

For Models: ET8WTKXKQ08, ET8WTKXKT08, ET8WTKXKB08

(White) (Biscuit) (Black)

8199266

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

350956 Enamel, Almond

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
